Page 497 of 548

4978-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10684U
Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and co ntains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Tire related termMeaning
Page 498 of 548

4988-1. Specifications
C-HR_OM_USA_OM10684U
*: Table 1 Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM
E-1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Te s t r i m
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Page 499 of 548
4998-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10684U

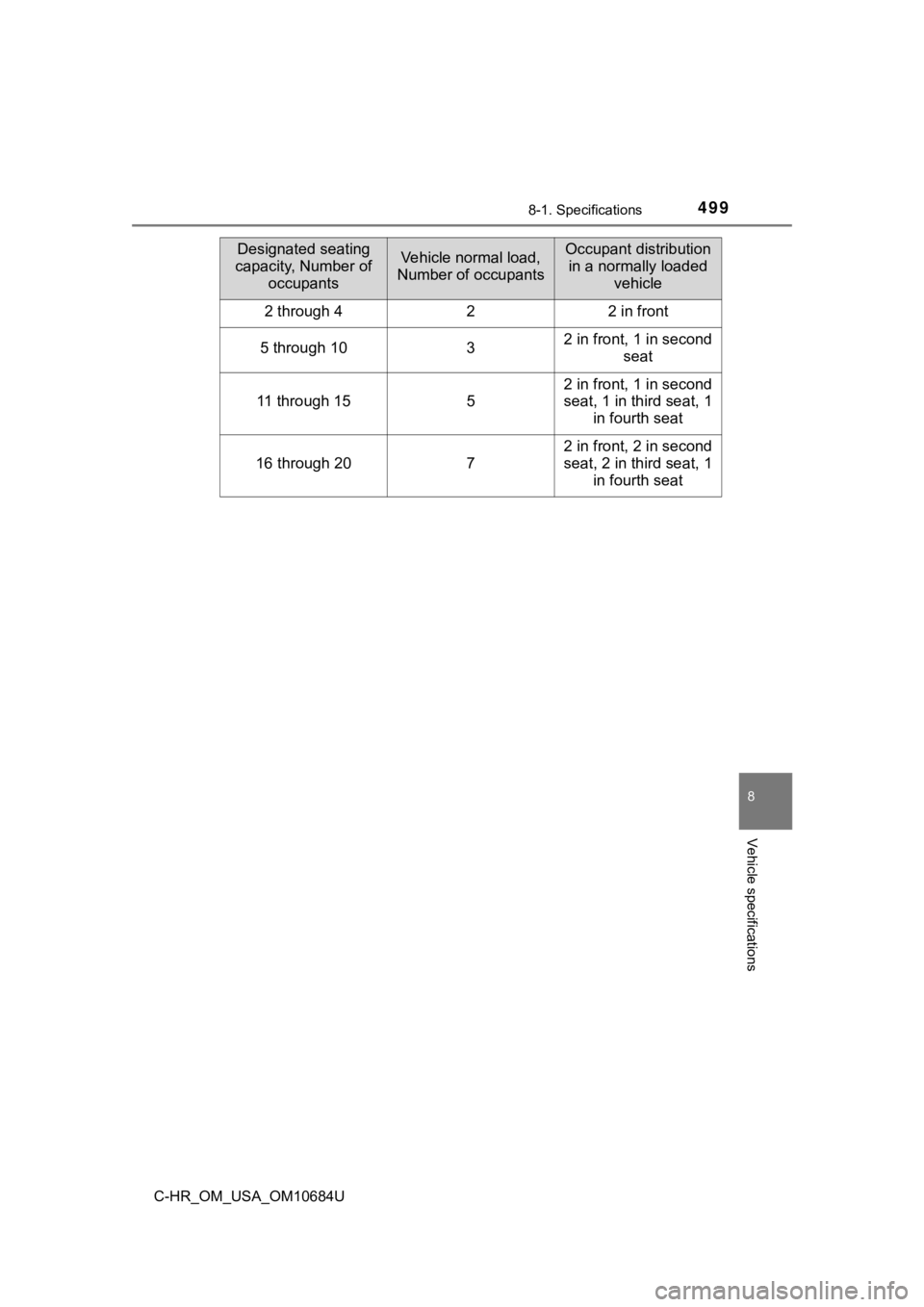

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Page 500 of 548
5008-2. Customization
C-HR_OM_USA_OM10684U
Customizable features
■Changing using the multi-information display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “ ” of the meter control switches, select “Meter Set-
tings”, and then press .
Press “ ” or “ ” of the meter control switches, select the item, and
then press .
Press “ ” or “ ” of the meter control switches, select the desired
setting, and then press .
To go back to the previous scree n or exit the customize mode, press
.
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fe a-
tures can be changed using the multi-information display or at
your Toyota dealer.
Customizing vehicle features
1
2
3
4
Page 501 of 548
5018-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Changing on the audio system screen
Press the “MENU” button.
Select “Setup” on the menu screen and select “Vehicle”.
Select “Vehicle Customization”.
Various setting can be changed. Refer to the list of settings t hat can
be changed for details.
Some function settings are changed simultaneously with other func-
tions when customized. Contact your Toyota dealer for further d etails.
Settings that can be changed usi ng the multi-information display
Settings that can be changed on the audio system screen
Settings that can be chan ged by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
Page 502 of 548
5028-2. Customization
C-HR_OM_USA_OM10684U■
Gauges, meters and multi-information display (
P. 96, 99)
*1: The default setting varies according to country.
*2: 2 of the following items: current fuel economy (bar type), cur rent fuel econ-
omy (numerical value), average fuel economy (after reset), aver age fuel
economy (after start), average fuel economy (after refuel), ave rage speed
(after reset), average speed (after start), elapsed time (after reset),
elapsed time (after start), distance (range), distance (after s tart), blank.
FunctionDefault settingCustomized
setting
Language*1EnglishSpanishOO—French
Units*1miles (MPG, US)
km (km/L)
OO—km (L/100 km)
miles (MPG)
°F°COO—
Eco Driving Indicator
LightOn
(Self-lighting)OffO——
Drive information 1
Current fuel
economy (bar type)
*2O——Average fuel economy
(after reset)
Drive information 2
Distance (range)
*2O——Average speed (after reset)
Pop-up displayOnOffO––
Speed limitWith cautionOnly displayO––OFF
Page 503 of 548
5038-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Instrument cluster (
P. 98)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the bright-
ness of the instrument
cluster depending on
the outside brightness
Standard-2 to 2——O
Sensor sensitivity for
returning the bright-
ness of the instrument
cluster to the original
level depending on
the outside brightness
Standard-2 to 2——O
Page 504 of 548
5048-2. Customization
C-HR_OM_USA_OM10684U■
Smart key system* and wireless remote control (
P. 120, 127,
133)
*: If equipped
FunctionDefault settingCustomized setting
Operation signal
(buzzer)5
Off
—OO
1 to 7
Operation signal
(emergency flashers)OnOff—OO
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors unlocked
in one step—OO
Time elapsed before
the automatic door
lock function is acti-
vated if a door is not
opened after being
unlocked
60 seconds
30 seconds
—OO
120 seconds
Open door reminder
buzzer (When locking
the vehicle)
OnOff——O
Locking operation
when door openedOnOff—OO
