Front side marker l
ights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights (bulb type) Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
1
2
3
Page 410 of 548
4106-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U■

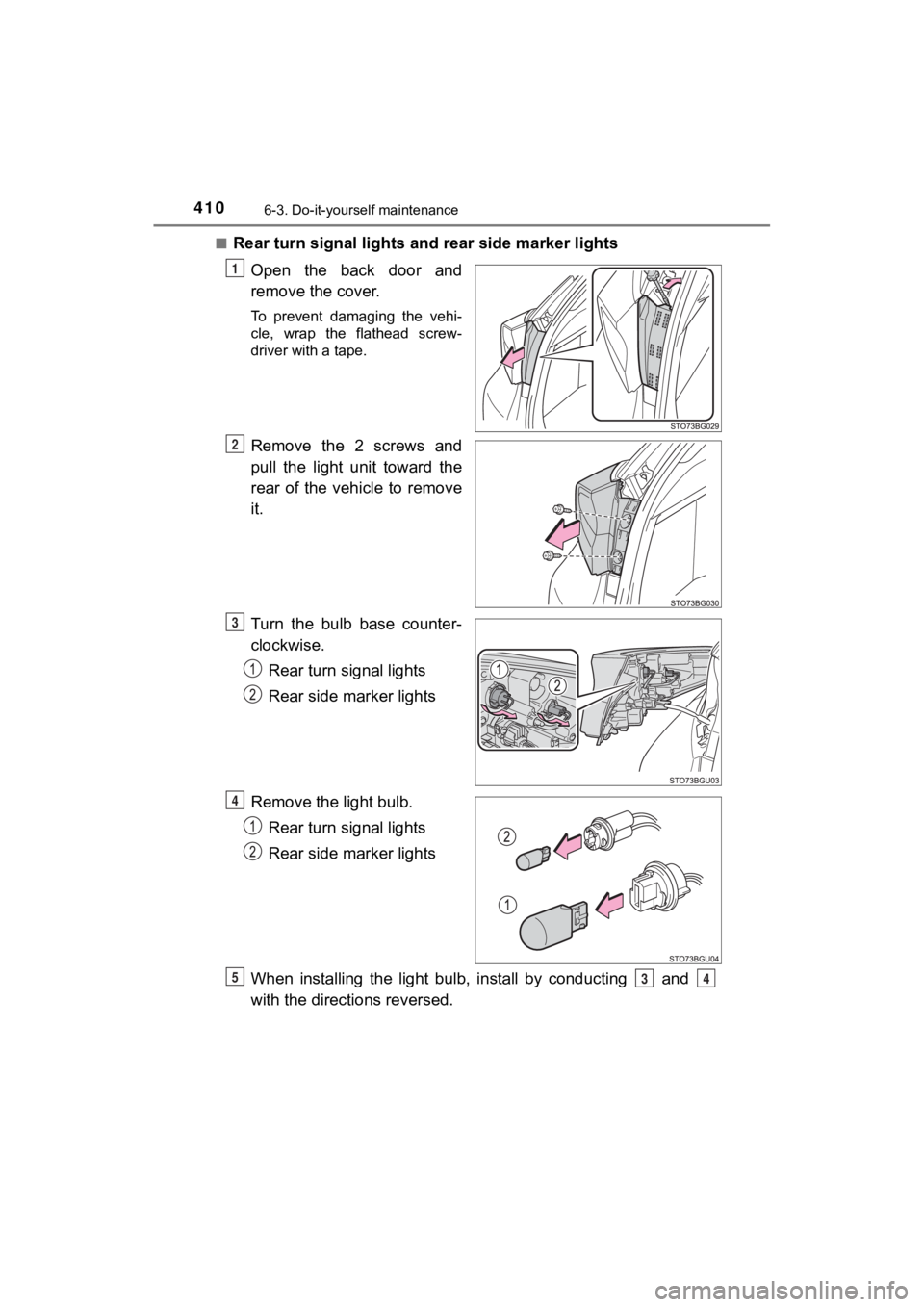

Rear turn signal lights and
rear side marker lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the 2 screws and
pull the light unit toward the
rear of the vehicle to remove
it.
Turn the bulb base counter-
clockwise. Rear turn signal lights
Rear side marker lights
Remove the light bulb. Rear turn signal lights
Rear side marker lights
When installing the light bulb, install by conducting and
with the directions reversed.
1
2
3
4
534
Page 411 of 548
4116-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U

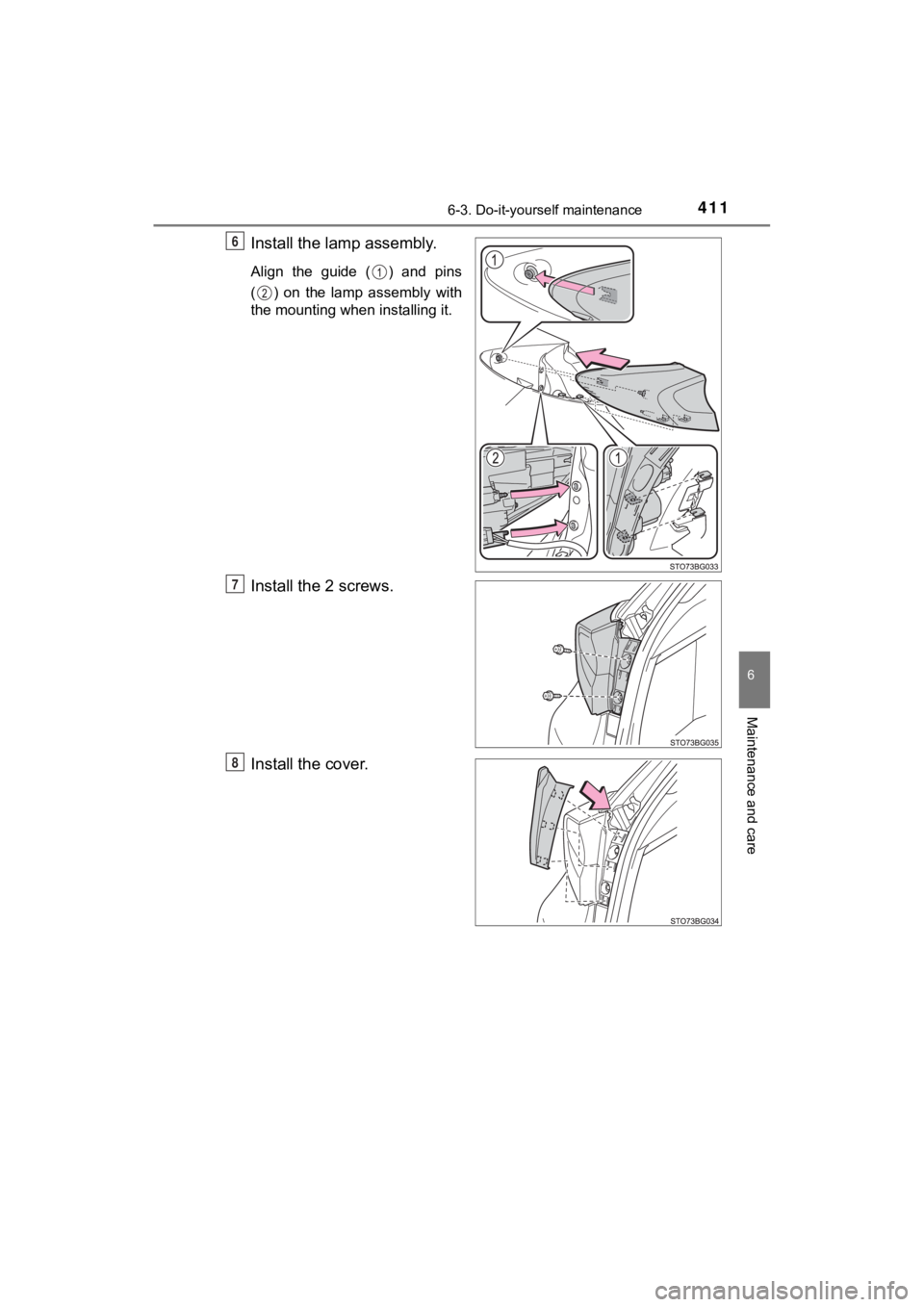

Install the lamp assembly.
Align the guide ( ) and pins
( ) on the lamp assembly with
the mounting when installing it.
Install the 2 screws.
Install the cover.
6
7
8
Page 412 of 548
4126-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U■

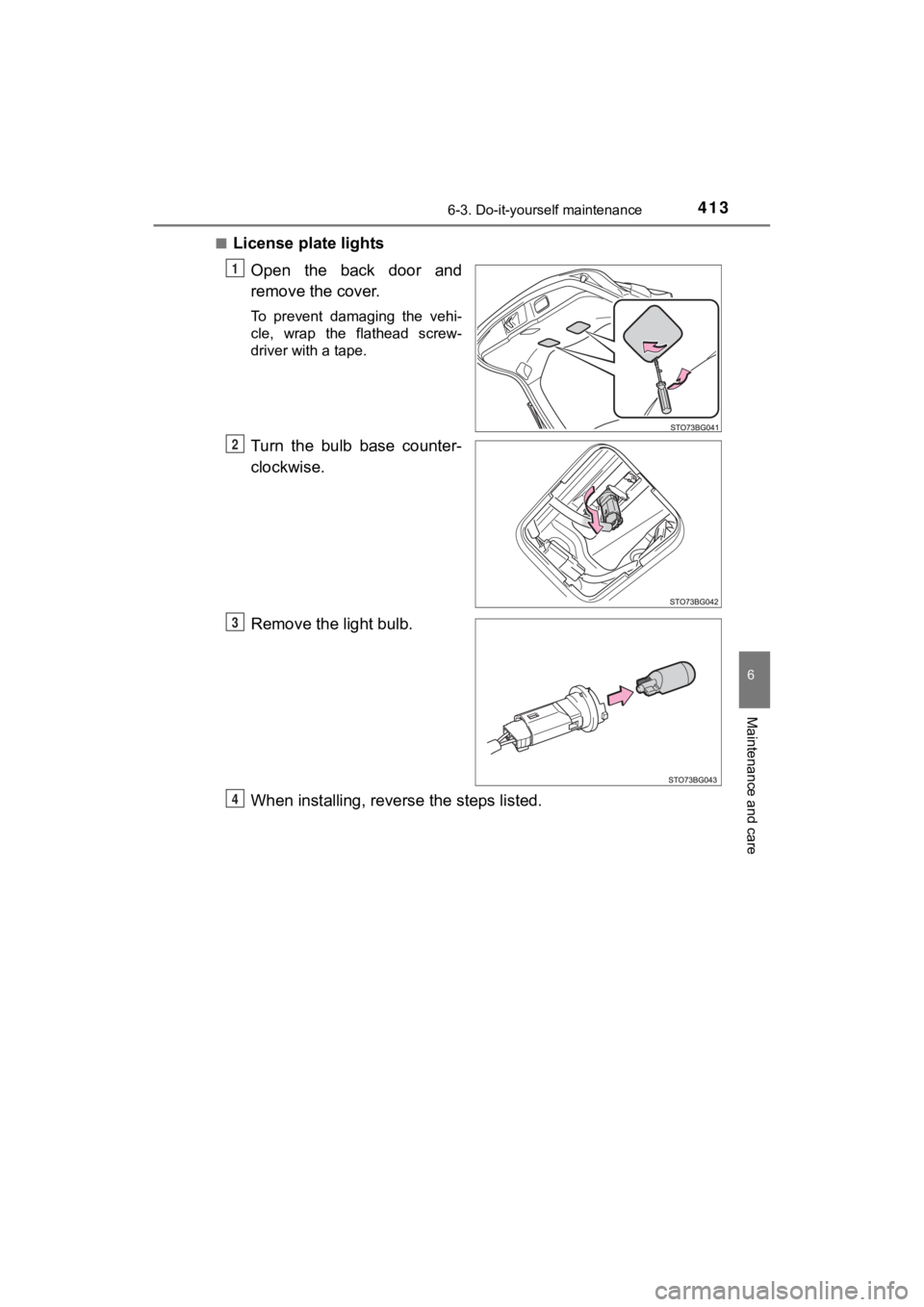

Back-up lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
Page 413 of 548
4136-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U■

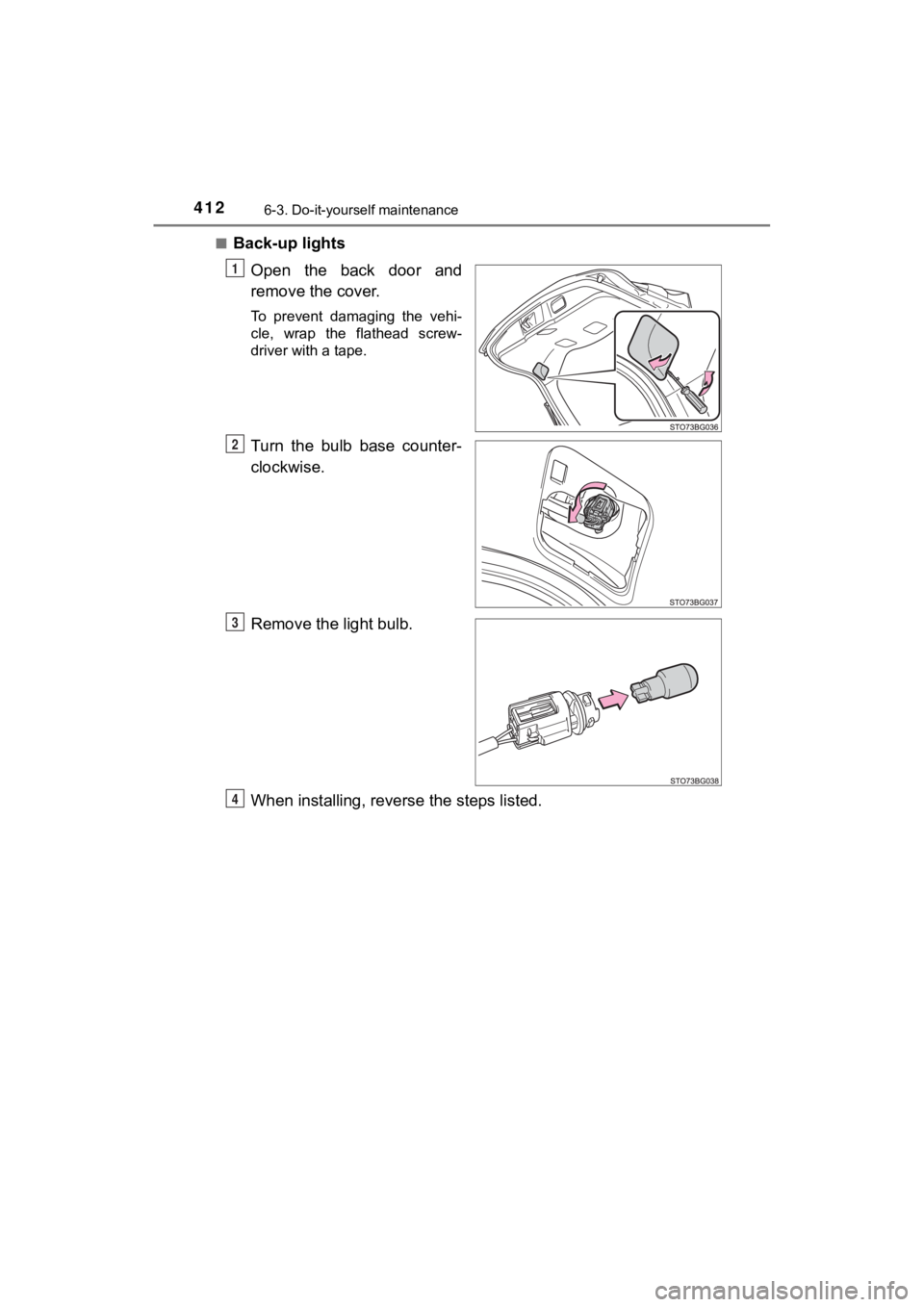

License plate lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
Page 414 of 548
4146-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U■

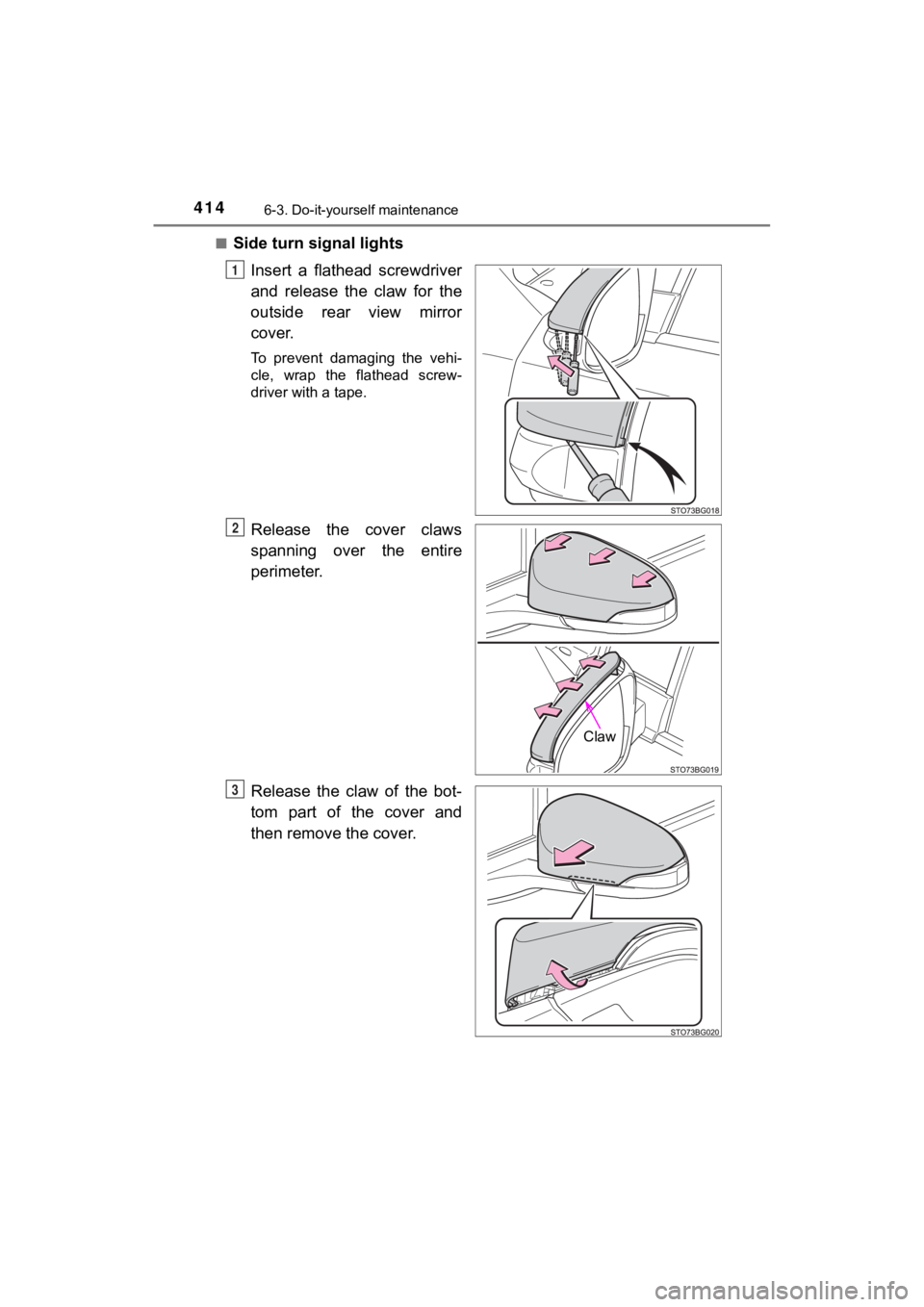

Side turn signal lights
Insert a flathead screwdriver
and release the claw for the
outside rear view mirror
cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Release the cover claws
spanning over the entire
perimeter.
Release the claw of the bot-
tom part of the cover and
then remove the cover.
1
Claw
O
P
Page 415 of 548
4156-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10684U

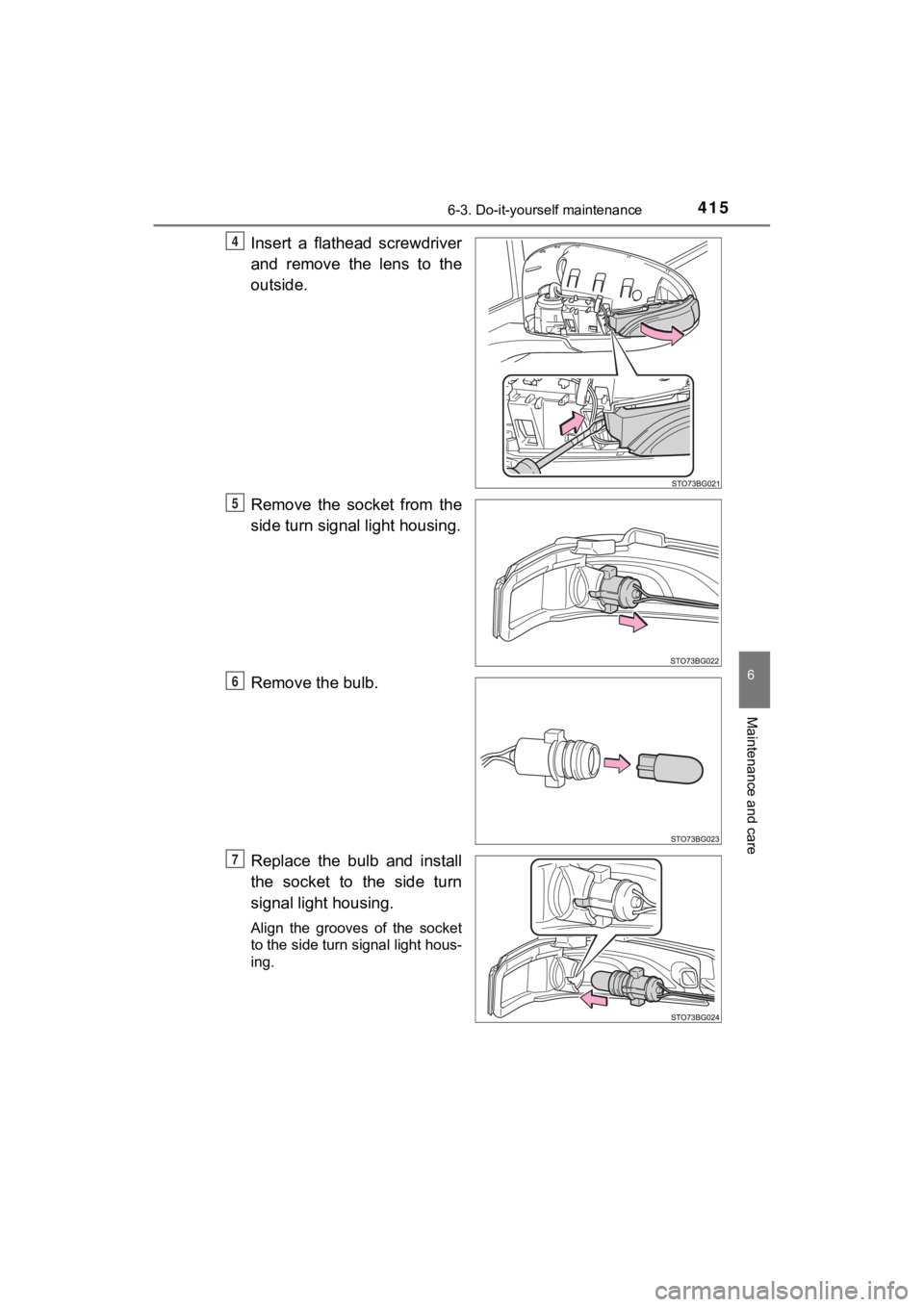

Insert a flathead screwdriver
and remove the lens to the
outside.
Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
4
5
6
7
Page 416 of 548
4166-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10684U

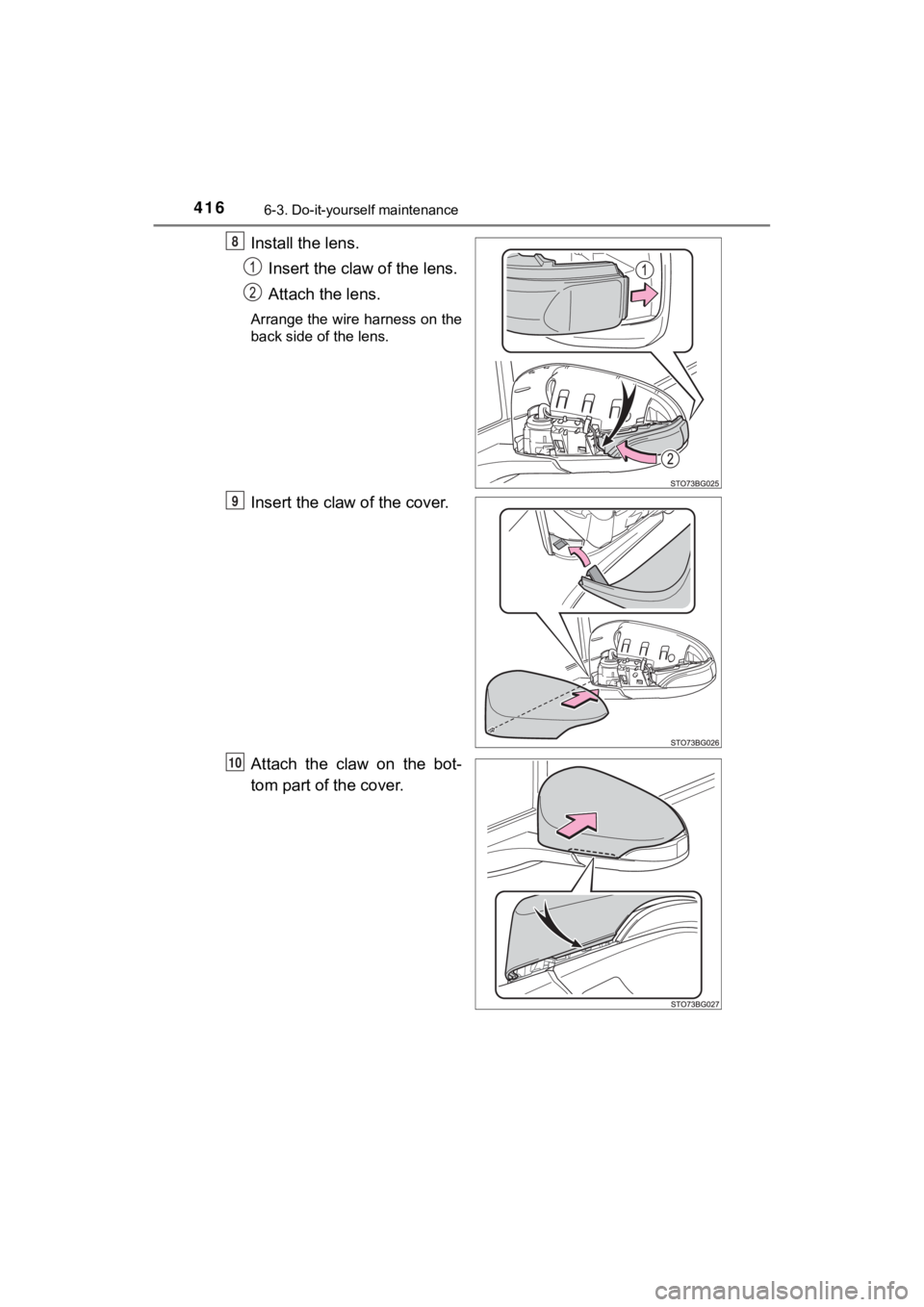

Install the lens.Insert the claw of the lens.
Attach the lens.
Arrange the wire harness on the
back side of the lens.
Insert the claw of the cover.
Attach the claw on the bot-
tom part of the cover.
8
9
10
