2021 RAM CHASSIS CAB Owners Manual

SAFETY327

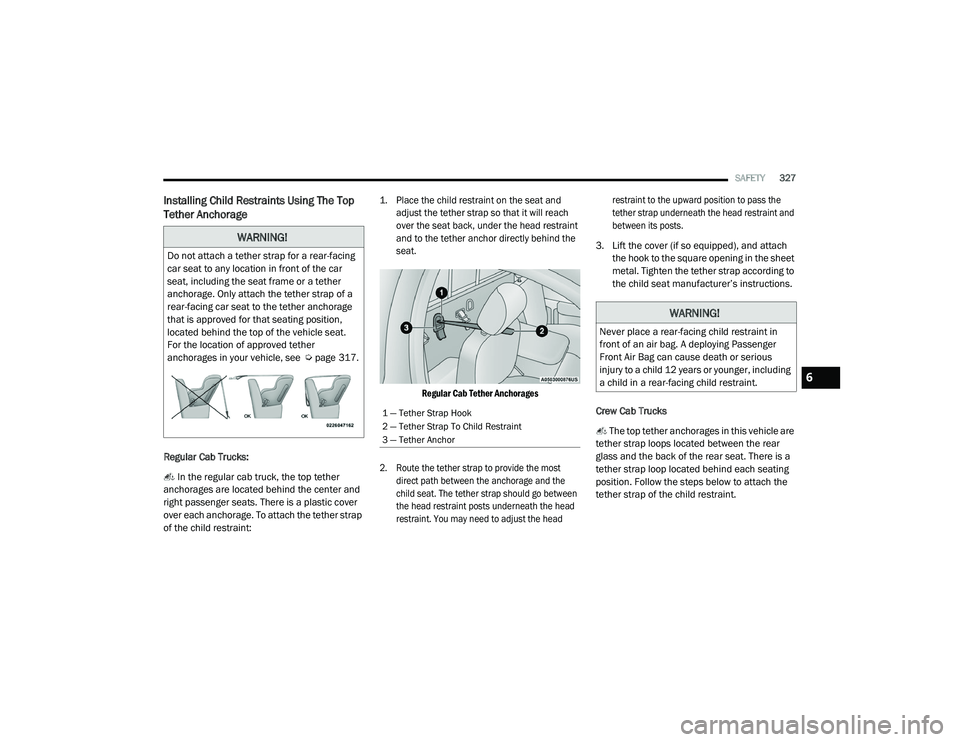

Installing Child Restraints Using The Top
Tether Anchorage
Regular Cab Trucks:
In the regular cab truck, the top tether
anchorages are located behind the center and
right passenger seats. There is a plastic cover
over each anchorage. To attach the tether strap
of the child restraint:
1. Place the child restraint on the seat and
adjust the tether strap so that it will reach
over the seat back, under the head restraint
and to the tether anchor directly behind the
seat.
Regular Cab Tether Anchorages

2. Route the tether strap to provide the most direct path between the anchorage and the
child seat. The tether strap should go between
the head restraint posts underneath the head
restraint. You may need to adjust the head restraint to the upward position to pass the
tether strap underneath the head restraint and
between its posts.

3. Lift the cover (if so equipped), and attach the hook to the square opening in the sheet
metal. Tighten the tether strap according to
the child seat manufacturer’s instructions.
Crew Cab Trucks The top tether anchorages in this vehicle are
tether strap loops located between the rear
glass and the back of the rear seat. There is a
tether strap loop located behind each seating
position. Follow the steps below to attach the
tether strap of the child restraint.
WARNING!
Do not attach a tether strap for a rear-facing
car seat to any location in front of the car
seat, including the seat frame or a tether
anchorage. Only attach the tether strap of a
rear-facing car seat to the tether anchorage
that is approved for that seating position,
located behind the top of the vehicle seat.
For the location of approved tether
anchorages in your vehicle, see Ú page 317.
1 — Tether Strap Hook
2 — Tether Strap To Child Restraint
3 — Tether Anchor
WARNING!
Never place a rear-facing child restraint in
front of an air bag. A deploying Passenger
Front Air Bag can cause death or serious
injury to a child 12 years or younger, including
a child in a rear-facing child restraint.
6

21_DPF_OM_EN_USC_t.book Page 327

328SAFETY
Right Or Left Outboard Seats:

1. Raise the head restraint and reach
between the rear seat and rear glass to
access the tether strap loop.

Head Restraint In Raised Position
Tether Strap Loop With Center Head Restraint In Raised Position 2. Place a child restraint on the seat and adjust
the tether strap so that it will reach over the
seat back, under the head restraint, through
the tether strap loop behind the seat and
over to the tether strap loop behind the
center seat.

3. Pass the tether strap hook under the head restraint behind the child seat, though the
tether strap loop behind the seat and over
to the center tether strap loop.

Tether Strap Through Outboard Tether Strap Loop

4. Attach the hook to the center tether strap loop (see diagram). Tighten the tether strap
according to the child seat manufacturer’s
instructions.
Tether Strap Through Outboard Tether Strap Loop And
Attached To Center Tether Strap Loop

NOTE:
If there are child seats in both of the outboard
(left and right) seating positions, the tether
strap hooks of both child seats should be
connected to the center tether strap loop.
This is the correct way to tether two outboard
child seats.

21_DPF_OM_EN_USC_t.book Page 328

SAFETY329
Center Seat:

1. Raise the head restraint and reach
between the rear seat and rear glass to
access the tether strap loop.

Tether Strap Loop With Head Restraint In Raised Position
2. Place a child restraint on the seat and adjust the tether strap so that it will reach over the
seat back, under the head restraint, through
the tether strap loop behind the seat and
over to the tether strap loop behind either the
right or left outboard seat.
3. Pass the tether strap hook under the head
restraint behind the child seat, though the
tether strap loop behind the seat and over
to the right or left outboard tether strap
loop.

Tether Strap Through Center Tether Strap Loop

4. Attach the hook to the outboard tether strap loop (see diagram). Tighten the tether strap
according to the child seat manufacturer’s
instructions.
Tether Strap Through Center Tether Strap Loop And
Attached To Outboard Tether Strap Loop

Installing Three Child Restraints:

1. Place a child restraint on each outboard rear seat. Route the tether straps following
the directions for right and left seating
positions, above.

2. Attach both hooks to the center tether strap loop, but do not tighten the straps yet.
3. Place a child restraint on the center rear seat. Route the tether strap following the
directions for the center seating position,
above.
4. Attach the hook to the outboard tether strap loop.
6

21_DPF_OM_EN_USC_t.book Page 329

330SAFETY
5. Tighten the tether straps according to the
child seat manufacturer’s instructions,
tightening the right and left tether straps
before the center tether strap.

Outboard And Center Seating Positions Shown
SAFETY TIPS
TRANSPORTING PASSENGERS
NEVER TRANSPORT PASSENGERS IN THE
CARGO AREA.
TRANSPORTING PETS

Air Bags deploying in the front seat could harm
your pet. An unrestrained pet will be thrown
about and possibly injured, or injure a passenger
during panic braking or in a collision.

Pets should be restrained in the rear seat
(if equipped) in pet harnesses or pet carriers
that are secured by seat belts.
SAFETY CHECKS YOU SHOULD MAKE
I
NSIDE THE VEHICLE
Seat Belts
Inspect the seat belt system periodically,
checking for cuts, frays, and loose parts.
Damaged parts must be replaced immediately.
Do not disassemble or modify the system.
Front seat belt assemblies must be replaced
after a collision. Rear seat belt assemblies must
be replaced after a collision if they have been
damaged (i.e., bent retractor, torn webbing,
etc.). If there is any question regarding seat belt
or retractor condition, replace the seat belt.
WARNING!

An incorrectly anchored tether strap could
lead to increased head motion and possible
injury to the child. Use only the anchorage
position directly behind the child seat to
secure a child restraint top tether strap.

If your vehicle is equipped with a split rear
seat, make sure the tether strap does not
slip into the opening between the seat -
backs as you remove slack in the strap.
WARNING!
Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or
death.
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or killed.
Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts.
Be sure everyone in your vehicle is in a seat
and using a seat belt properly.

21_DPF_OM_EN_USC_t.book Page 330

SAFETY331
(Continued)
(Continued)
Air Bag Warning Light
The Air Bag Warning Light will turn on for four
to eight seconds as a bulb check when the
ignition switch is first placed in ON/RUN. If the
light is either not on during starting, stays on,
or turns on while driving, have the system
inspected at an authorized dealer as soon as
possible. After the bulb check, this light will
illuminate with a single chime when a fault with
the Air Bag System has been detected. It will
stay on until the fault is removed. If the light
comes on intermittently or remains on while
driving, have an authorized dealer service the
vehicle immediately Ú page 292.
Defroster
Check operation by selecting the defrost mode
and place the blower control on high speed.
You should be able to feel the air directed
against the windshield. See an authorized
dealer for service if your defroster is inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit your
vehicle. Only use a floor mat that does not
interfere with the operation of the accelerator,
brake or clutch pedals. Only use a floor mat that
is securely attached using the floor mat
fasteners so it cannot slip out of position and
interfere with the accelerator, brake or clutch
pedals or impair safe operation of your vehicle
in other ways.
WARNING!

An improperly attached, damaged, folded,
or stacked floor mat, or damaged floor mat
fasteners may cause your floor mat to interfere
with the accelerator, brake, or clutch pedals
and cause a loss of vehicle control. To prevent
SERIOUS INJURY or DEATH:

ALWAYS securely attach your floor mat
using the floor mat fasteners. DO NOT
install your floor mat upside down or turn
your floor mat over. Lightly pull to confirm
mat is secured using the floor mat
fasteners on a regular basis.
ALWAYS REMOVE THE EXISTING FLOOR
MAT FROM THE VEHICLE before
installing any other floor mat. NEVER install
or stack an additional floor mat on top of an
existing floor mat.
ONLY install floor mats designed to fit your
vehicle. NEVER install a floor mat that
cannot be properly attached and secured to
your vehicle. If a floor mat needs to be
replaced, only use a FCA approved floor
mat for the specific make, model, and year
of your vehicle.
ONLY use the driver’s side floor mat on the
driver’s side floor area. To check for inter -
ference, with the vehicle properly parked
with the engine off, fully depress the accel -
erator, the brake, and the clutch pedal
(if present) to check for interference. If your
floor mat interferes with the operation of
any pedal, or is not secure to the floor,
remove the floor mat from the vehicle and
place the floor mat in your trunk.
WARNING! (Continued)
6

21_DPF_OM_EN_USC_t.book Page 331

332SAFETY
(Continued)
PERIODIC SAFETY CHECKS YOU SHOULD
M
AKE OUTSIDE THE VEHICLE
Tires
Examine tires for excessive tread wear and
uneven wear patterns. Check for stones, nails,
glass, or other objects lodged in the tread or
sidewall. Inspect the tread for cuts and cracks.
Inspect sidewalls for cuts, cracks, and bulges.
Check the lug nuts/bolt torque for tightness.
Check the tires (including spare) for proper cold
inflation pressure.
Lights
Have someone observe the operation of brake
lights and exterior lights while you work the
controls. Check turn signal and high beam
indicator lights on the instrument panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under the vehicle after overnight
parking for fuel, coolant, oil, or other fluid leaks.
Also, if gasoline fumes are detected or if fuel or
brake fluid leaks are suspected, the cause
should be located and corrected immediately.
ONLY use the passenger’s side floor mat on
the passenger’s side floor area.

ALWAYS make sure objects cannot fall or
slide into the driver’s side floor area when the
vehicle is moving. Objects can become trapped
under accelerator, brake, or clutch pedals and
could cause a loss of vehicle control.

NEVER place any objects under the floor
mat (e.g., towels, keys, etc.). These objects
could change the position of the floor mat
and may cause interference with the accel -
erator, brake, or clutch pedals.

If the vehicle carpet has been removed and
re-installed, always properly attach carpet to
the floor and check the floor mat fasteners
are secure to the vehicle carpet. Fully
depress each pedal to check for interference
with the accelerator, brake, or clutch pedals
then re-install the floor mats.

WARNING! (Continued)
It is recommended to only use mild soap
and water to clean your floor mats. After
cleaning, always check your floor mat has
been properly installed and is secured to
your vehicle using the floor mat fasteners
by lightly pulling mat.
WARNING! (Continued)

21_DPF_OM_EN_USC_t.book Page 332

SAFETY333
EXHAUST GAS The best protection against carbon monoxide
entry into the vehicle body is a properly
maintained engine exhaust system.

Whenever a change is noticed in the sound of
the exhaust system, when exhaust fumes can
be detected inside the vehicle, or when the
underside or rear of the vehicle is damaged, have
an authorized dealer inspect the complete
exhaust system and adjacent body areas for
broken, damaged, deteriorated, or mispositioned
parts. Open seams or loose connections could
permit exhaust fumes to seep into the passenger
compartment. In addition, inspect the exhaust
system each time the vehicle is raised for
lubrication or oil change. Replace as required.
CARBON MONOXIDE WARNINGS
WARNING!

Exhaust gases can injure or kill. They contain
carbon monoxide (CO), which is colorless
and odorless. Breathing it can make you
unconscious and can eventually poison you.
To avoid breathing (CO), follow these safety tips:

Do not run the engine in a closed garage or
in confined areas any longer than needed
to move your vehicle in or out of the area.
If you are required to drive with the trunk/
liftgate/rear doors open, make sure that all
windows are closed and the climate control
BLOWER switch is set at high speed.
DO NOT use the recirculation mode.
If it is necessary to sit in a parked vehicle
with the engine running, adjust your
heating or cooling controls to force outside
air into the vehicle. Set the blower at high
speed.
WARNING!
Carbon monoxide (CO) in exhaust gases is
deadly. Follow the precautions below to
prevent carbon monoxide poisoning:
Do not inhale exhaust gases. They contain
carbon monoxide, a colorless and odorless
gas, which can kill. Never run the engine in
a closed area, such as a garage, and never
sit in a parked vehicle with the engine
running for an extended period. If the
vehicle is stopped in an open area with
the engine running for more than a short
period, adjust the ventilation system to
force fresh, outside air into the vehicle.
Guard against carbon monoxide with
proper maintenance. Have the exhaust
system inspected every time the vehicle is
raised. Have any abnormal conditions
repaired promptly. Until repaired, drive with
all side windows fully open.
6

21_DPF_OM_EN_USC_t.book Page 333

334
IN CASE OF EMERGENCY
HAZARD WARNING FLASHERS
The Hazard Warning Flashers switch is located
on the upper switch bank just below the radio.
Hazard Warning Flashers Switch Hazard Warning Flashers Switch

NOTE:
If your vehicle is equipped with a 12–inch
Uconnect display, the Hazard Warning Flashers
switch is located above the display.
Hazard Warning Flashers Switch With 12-inch Display

Push the switch to turn on the Hazard Warning
Flashers. When the switch is activated, all
directional turn signals will flash on and off to
warn oncoming traffic of an emergency. Push
the switch a second time to turn off the Hazard
Warning Flashers.
This is an emergency warning system and it
should not be used when the vehicle is in
motion. Use it when your vehicle is disabled and
it is creating a safety hazard for other motorists.

21_DPF_OM_EN_USC_t.book Page 334
