2021 NISSAN ROGUE Owner´s Manual

10 Technical and consumer information
Capacities and
recommended fluids/lubricants .................................... 10-3Fuel information .................................................................. 10-4
Engine oil and oil filter recommendation ........ 10-6
Air conditioning system refrigerant and
lubricant recommendations ...................................... 10-7
Specifications ........................................................................\
........ 10-8 Engine ........................................................................\
.................. 10-8
Wheels and tires .................................................................. 10-8
Dimensions and weights .............................................. 10-9
When traveling or registering in
another country ........................................................................\
. 10-9
Vehicle identification .............................................................. 10-9 Vehicle Identification Number (VIN) plate ....... 10-9
Vehicle identification number
(chassis number) ............................................................. 10-10
Engine serial number ................................................... 10-10
F.M.V.S.S./C.M.V.S.S. certification label ............. 10-10
Emission control information label .................. 10-11
Tire and Loading Information label ................. 10-11
Air conditioner specification label ..................... 10-11
Installing front license plate ......................................... 10-12
Vehicle loading information .......................................... 10-13
Terms ........................................................................\
................ 10-13
Vehicle load capacity ................................................... 10-13 Securing the load ......................................................... 10-15
Loading tips ...................................................................... 10-15
Measurement of weights ....................................... 10-16
Towing a trailer ...................................................................... 10-16 Maximum load limits ................................................. 10-17
Maximum Gross Vehicle Weight (GVW)/
maximum Gross Axle Weight (GAW) .............. 10-18
Towing load/specification ..................................... 10-20
Towing safety .................................................................. 10-21
Flat towing ........................................................................\
......... 10-26
Flat towing for All–Wheel Drive vehicle
(if so equipped) ............................................................... 10-26
Flat towing for Front-Wheel Drive vehicle
(if so equipped) ............................................................... 10-26
Uniform tire quality grading ........................................ 10-27 Treadwear ........................................................................\
.. 10-27
Traction AA, A, B and C ........................................... 10-27
Temperature A, B and C ......................................... 10-27
Emission control system warranty ......................... 10-28
Reporting safety defects ................................................ 10-28
Readiness for Inspection/Maintenance
(I/M) test ........................................................................\
............... 10-29
Event Data Recorders (EDR) ......................................... 10-30
Additional data recording (on vehicles
equipped with optional ProPILOT
Assist) ........................................................................\
............. 10-30

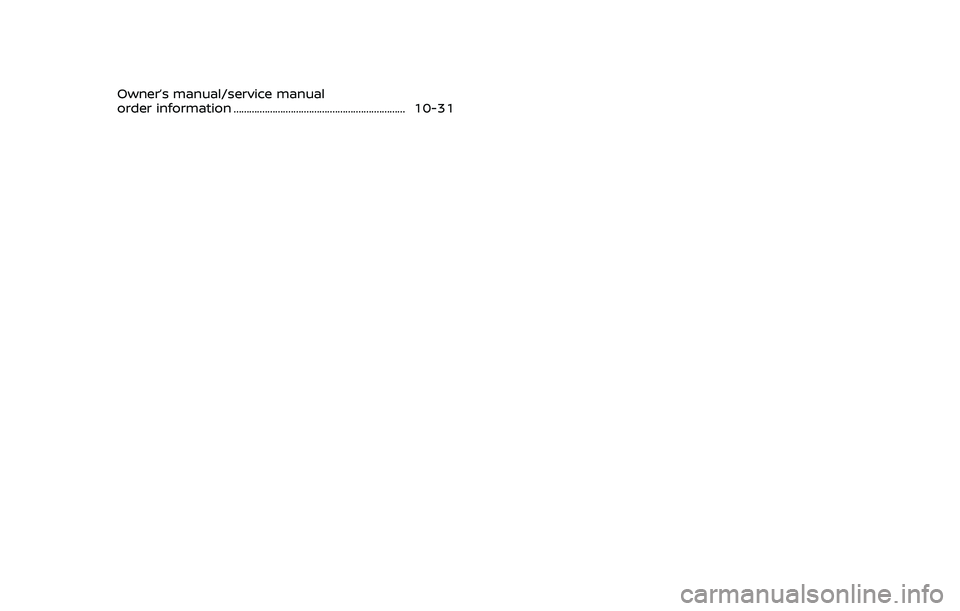

Owner’s manual/service manual
order information .................................................................. 10-31

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the
procedure instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 55 L 14-1/2 gal 12-1/8 gal

See “Fuel information” (P.10-4).
Engine oil
*1With oil filter change 5.1 L 5-3/8 qt 4-1/2 qt

Genuine “NISSAN Motor Oil 0W-20 SN” (or equivalent) is recommended.


If the above motor oil (or engine oil) is not available, a synthetic 0W-20 GF-5 SN
motor oil (or engine oil) may be used. Damage caused by the use of motor oil (or
engine oil) other than as recommended is not covered under NISSAN’s New
Vehicle Limited Warranty. For additional information, see “Engine oil and oil filter
recommendation” (P.10-6).
Drain and refill
*1: For additional
information, see
“Changing engine
oil and filter” (P.8-
6). Without oil filter change
4.8 L 5-1/8 qt 4-1/4 qt
Engine coolant With reservoir 8.8 L 9-1/4 qt 7-3/4 qt

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 0.8 L 7/8 qt 3/4 qt
Continuously Variable Transmission (CVT) fluid — — —

Genuine NISSAN CVT Fluid NS-3


NISSAN recommends using Genuine NISSAN CVT Fluid NS-3 (or equivalent) ONLY
in NISSAN CVTs. Do not mix with other fluids. Using fluids that are not equivalent
to Genuine NISSAN CVT Fluid NS-3 may damage the CVT. Damage caused by the
use of fluids other than as recommended is not covered under NISSAN’s New
Vehicle Limited Warranty.
Differential gear oil — — —

Genuine NISSAN HYPOID FLUID·S1 GL-5 75W-80 or equivalent
Transfer fluid — — —

Genuine NISSAN Differential Oil Hypoid Super-S GL-5 synthetic 75W-90 or
equivalent
Brake fluid Refill to the proper oil level ac-
cording to the instructions in the “8. Do-it-yourself” section.


Genuine NISSAN Super Heavy Duty Brake Fluid
*2or equivalent DOT 3*2: Available in mainland U.S.A. through a NISSAN dealer.
Multi-purpose grease — — —

NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — —

See “Vehicle identification” (P.10-9) for air conditioner specification label.


HFO-1234yf (R-1234yf)
Air conditioning system oil — — —

See “Vehicle identification” (P.10-9) for air conditioner specification label.


A/C System Oil ND-OIL12(PAG) or equivalent
Window washer fluid With liquid level sensor 5 L 1-3/8gal 1-1/8gal

Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
Without liquid level sensor 2.4 L 5/8gal 1/2gal
Coupling oil — — —

LSC Transmission Fluid 12-301 or equivalent
Technical and consumer information10-3
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

10-4Technical and consumer information
FUEL INFORMATION
Use unleaded regular gasoline with an
octane rating of at least 87 AKI (Anti-
Knock Index) number (Research octane
number 91).
CAUTION
.Using a fuel other than that spe-
cified could adversely affect the
emission control system, and
may also affect warranty cover-
age.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way
catalyst.
. Do not use a fuel containing more
than 15% ethanol in your vehicle.
Your vehicle is not designed to
run on a fuel containing more
than 15% ethanol. Using a fuel
containing more than 15% etha-
nol in a vehicle not specifically
designed for a fuel containing
more than 15% ethanol can ad-
versely affect the emission con-
trol devices and systems of the
vehicle. Damage caused by such
fuel is not covered by the NISSAN
new vehicle limited warranty. .
Do not use fuel that contains the
octane booster methylcyclopen-
tadienyl manganese tricarbonyl
(MMT). Using fuel containing
MMT may adversely affect vehicle
performance and vehicle emis-
sions. Not all fuel dispensers are
labeled to indicate MMT content,
so you may have to consult your
gasoline retailer for more details.
Note that Federal and California
laws prohibit the use of MMT in
reformulated gasoline.
. U.S. government regulations re-
quire ethanol dispensing pumps
to be identified by a small,
square, orange and black label
with the common abbreviation or
the appropriate percentage for
that region.
Gasoline specifications
NISSAN recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is avail-
able. Many of the automobile manufac-
turers developed this specification to
improve emission control system and
vehicle performance. Ask your service
station manager if the gasoline meets
the WWFC specifications.
Reformulated gasoline
Some fuel suppliers are now producing
reformulated gasolines. These gasolines
are specially designed to reduce vehicle
emissions. NISSAN supports efforts to-
wards cleaner air and suggests that you
use reformulated gasoline when avail-
able.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, MTBE
and methanol with or without advertising
their presence. NISSAN does not recom-
mend the use of fuels of which the
oxygenate content and the fuel compat-
ibility for your vehicle cannot be readily
determined. If in doubt, ask your service
station manager.
If you use oxygenate-blend gasoline,
please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel sys-
tem damage.
.The fuel should be unleaded and
have an octane rating no lower than
that recommended for unleaded
gasoline.
. If an oxygenate-blend, other than
methanol blend is used, it should
contain no more than 15% oxyge-
nate.

.If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable
amount of appropriate cosolvents
and corrosion inhibitors. If not prop-
erly formulated with appropriate
cosolvents and corrosion inhibitors,
such methanol blends may cause
fuel system damage and/or vehicle
performance problems. At this time,
sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any driveability problems such as en-
gine stalling and difficult hot-starting are
experienced after using oxygenate-blend
fuels, immediately change to a non-oxy-
genate fuel or a fuel with a low blend of
MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxyge-
nates can cause paint damage.
E-15 fuel
E-15 fuel is a mixture of approximately
15% fuel ethanol and 85% unleaded gaso-
line. E-15 can only be used in vehicles
designed to run on E- 15 fuel. U.S. govern-
ment regulations require fuel ethanol
dispensing pumps to be identified with
small, square, orange and black label with
the common abbreviation or the appro- priate percentage for that region.
E-85 fuel
E-85 fuel is a mixture of approximately
85% fuel ethanol and 15% unleaded gaso-
line. E-85 can only be used in a Flexible
Fuel Vehicle (FFV). Do not use E-85 fuel in
your vehicle. U.S. government regulations
require fuel ethanol dispensing pumps to
be identified by a small, square, orange
and black label with the common abbre-
viation or the appropriate percentage for
that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. NISSAN does not recommend
the use of fuel containing MMT. Such fuel
may adversely affect vehicle perfor-
mance, including the emissions control
system. Note that while some fuel pumps
label MMT content, not all do, so you may
have to consult your gasoline retailer for
more details.
Aftermarket fuel additives
NISSAN does not recommend the use of
any aftermarket fuel additives (for exam-
ple, fuel injector cleaner, octane booster,
intake valve deposit removers, etc.) which
are sold commercially. Many of these
additives intended for gum, varnish or
deposit removal may contain active sol-
vent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can
cause persistent, heavy “spark knock”.
(Spark knock is a metallic rapping
noise.) If severe, this can lead to engine
damage. If you detect a persistent
heavy spark knock even when using
gasoline of the stated octane rating, or
if you hear steady spark knock while
holding a steady speed on level roads, it
is recommended you have a NISSAN
dealer correct the condition. Failure to
correct the condition is misuse of the
vehicle, for which NISSAN is not respon-
sible.
Incorrect ignition timing will result in
spark knock, after-run and/or overheat-
ing, which may cause excessive fuel
consumption or engine damage. If any
of the above symptoms are encountered,
have your vehicle checked. It is recom-
mended you visit a NISSAN dealer for
servicing.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is
not a cause for concern, because you
Technical and consumer information10-5

10-6Technical and consumer information
get the greatest fuel benefit when there
is light spark knock for a short time
under heavy engine load.
JVT0351X
API certification markAPI service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-3). NISSAN recommends
the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the
American Petroleum Institute (API) certifi-
cation or International Lubricant Standar-dization and Approval Committee (ILSAC)
certification and SAE viscosity standard.
These oils have the API certification mark
on the front of the container. Oils which
do not have the specified quality label
should not be used as they could cause
engine damage.
Oil additives
NISSAN does not recommend the use of
oil additives. The use of an oil additive is
not necessary when the proper oil type is
used and maintenance intervals are fol-
lowed.
Oil which may contain foreign matter or
has been previously used should not be
used.

Oil viscosity
The engine oil viscosity or thickness
changes with temperature. Because of
this, it is important to select the engine oil
viscosity based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil
viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with
a high-quality genuine NISSAN oil filter.
When replacing, use a genuine NISSAN oil
filter or its equivalent for the reason
described in “Change intervals”.
Change intervals
The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Using an
engine oil and filter other than the
specified quality, or exceeding recom-
mended oil and filter change intervals
could reduce engine life. Damage to the
engine caused by improper maintenance
or use of incorrect oil and filter quality
and/or viscosity is not covered by the
NISSAN new vehicle limited warranty.
Your engine was filled with a high quality
engine oil when it was built. You do not
have to change the oil before the firstrecommended change interval.
Oil and filter change intervals depend
upon how you use your vehicle. Opera-
tion under the following conditions may
require more frequent oil and filter
changes:
.
repeated short distance driving at
cold outside temperatures
. driving in dusty conditions
. extensive idling
. towing a trailer
. stop and go commuting
(See “9. Maintenance and schedules” sec-
tion.)
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
The air conditioner system in your
NISSAN vehicle must be charged with
the specified refrigerant HFO-1234yf (R-
1234yf) and A/C system oil ND-OIL12
(PAG) or the exact equivalent.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner system components.
The refrigerant HFO-1234yf (R-1234yf) in
your NISSAN vehicle will not harm the
earth’s ozone layer. Although this refrig-
erant does not affect the earth’s atmo-
sphere, certain government regulations
require the recovery and recycling of any
refrigerant during automotive air condi-
tioner system service. Air conditioner
system should only be serviced by trained
and certified technicians to ensure proper
and safe operation (SAE J2845). A NISSAN
dealer has the trained technicians and
equipment needed to recover and recycle
your air conditioner system refrigerant.
Only new and SAEJ2842 certified eva-
porator(s) shall be used as replacement
parts.
A damaged or leaking air conditioning
evaporator shall never be repaired or
replaced with one removed from a used
or salvaged vehicle. To replace a da-
maged or leaking evaporator, use only
new and SAE J2842 certified evaporator
(s). It is recommended that you visit a
NISSAN dealer when servicing your air
conditioner system.
Technical and consumer information10-7

10-8Technical and consumer information
ENGINE
ModelPR25DD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, in-line
Bore × Stroke in (mm)3.504 × 3.937 (89.0 × 100.0)
Displacement cu in (cm
3)151.85 (2,488)
Firing order 1-3-4-2
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardDXE22H11C
Spark plug gap (Normal) in (mm)0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
WHEELS AND TIRES
Road wheel
TypeSize Offset in
(mm)
Conven-
tional 17 × 7.5J 1.57 (40)
18 × 7.5J 1.57 (40)
19 × 7.5J 1.57 (40)
Spare 17 × 4T 1.18 (30)
Tire
Type
SizePressure PSI
(kPa) [Cold]
Con-
ven-
tional 235/65 R17Front: 36
(250)
Rear: 33 (230)
235/60 R18 Front: 33
(230)
Rear: 30 (210)
235/55 R19
Spare T155/80 D17
(2WD)
T165/90 D17
(AWD)
60 (420)
SPECIFICATIONS
