2021 LINCOLN NAUTILUS Owners Manual

Malfunction Indicator Lamp
It illuminates when the ignition is
on and the engine is off, this is
normal operation. If it illuminates
when the engine is on this indicates that the
emission control system requires service. If
it flashes, have your vehicle checked
immediately. See Starting and Stopping the
Engine – Warning Lamps (page 191). See
Emission Law (page 546).
Oil Pressure It illuminates when the engine oil
pressure is low.
Powertrain Fault It illuminates when the powertrain
requires service. Have your
vehicle checked as soon as
possible. WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features that
are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control
See
Adaptive Cruise Control
(page 259).
Adaptive Steering See
Steering (page 232).
Airbag See
Airbags (page 63).Auto Hold See
Auto Hold (page 226).
Automatic High Beam See
Exterior Lighting (page 122).
Auto Start-Stop See
Auto-Start-Stop (page 194).
Blind Spot Information System See
Blind Spot Information
System (page 273).
Cruise Control
(If Equipped) See
Cruise Control (page 251).
141
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster E144524 E223375 E67017 E197933 E197934 E151262 E71340

Front Fog Lamp
See Exterior Lighting (page 121).
Headlamp High Beam See
Exterior Lighting (page 119).
Hill Start Assist See
Hill Start Assist (page 225).
Parking Lamps See
Exterior Lighting (page 121).
Stability and Traction Control See
Stability Control (page 229).
See Traction Control (page 228). Turn Signal See
Exterior Lighting (page 121).
142
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster E274708 E138639 E130458

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.
Note: Some options may appear slightly
different or not at all if the items are optional.
The controls are on the steering wheel. You
can control various systems on your vehicle
using the quick action menu (QAM) buttons. Return button.
A
Toggle up.
B
OK button
C Toggle down.
D
Phone QAM buttons.
E
Audio QAM button.
F
Navigation QAM button.
G
Settings QAM button.
H
Display QAM button.
I
Return Button
Press to go back or exit a menu.
Toggle Buttons
Press the toggle button up or down to scroll
through menu items.
OK
Button
Press to make a selection.
Quick Action Menu Buttons
Press to open the correlating menu.
143
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster DisplayE247519

Status Indicator
A check in the box indicates a
feature is on, and unchecked
indicates the feature is off.
INSTRUMENT CLUSTER DISPLAY
MAIN MENU
Depending on your vehicle options, some
menu items can appear different or not at
all. Note:
For your safety, some features are
speed-dependent and could be unavailable
when your vehicle is above a certain speed. Settings
Drive Control
Adaptive Steering Driver Assistance
Speedometer km/h Speedometer MPH VehicleMyKey
144
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster DisplayE204495

Display
Gauges
Info/Trip/Fuel
Display Setup
TRIP COMPUTER
Accessing the Trip Computer
Using the instrument cluster controls, select
the following to access the trip computer: Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Info/Trip/Fuel
145
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display

Resetting the Trip Computer
Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Press and hold the OK button until the system reset confirmation appears.
Info/Trip/Fuel
146
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display

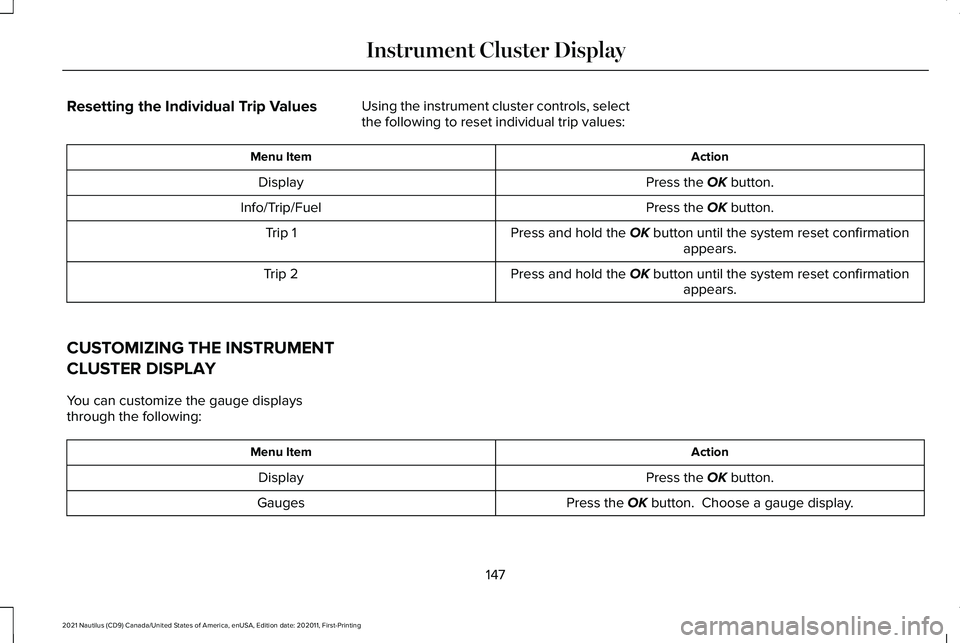

Resetting the Individual Trip Values
Using the instrument cluster controls, select
the following to reset individual trip values: Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Info/Trip/Fuel
Press and hold the
OK button until the system reset confirmationappears.
Trip 1
Press and hold the
OK button until the system reset confirmationappears.
Trip 2
CUSTOMIZING THE INSTRUMENT
CLUSTER DISPLAY
You can customize the gauge displays
through the following: Action
Menu Item
Press the
OK button.
Display
Press the
OK button. Choose a gauge display.
Gauges
147
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display

PERSONALIZED SETTINGS
Changing the Instrument Cluster Display Language
Action
Menu Item
Press the OK button.
Display
Press the
OK button.
Display Setup
Press the
OK button. Select a language.
Language
Note: Available languages vary by region.
Changing the Measure Unit Action
Menu Item
Press the
OK button.
Display
Press the
OK button.
Display Setup
Press the
OK button. Select a measure unit.
Distance
148
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Instrument Cluster Display
