2021 HYUNDAI SANTA FE HYBRID Owners Manual

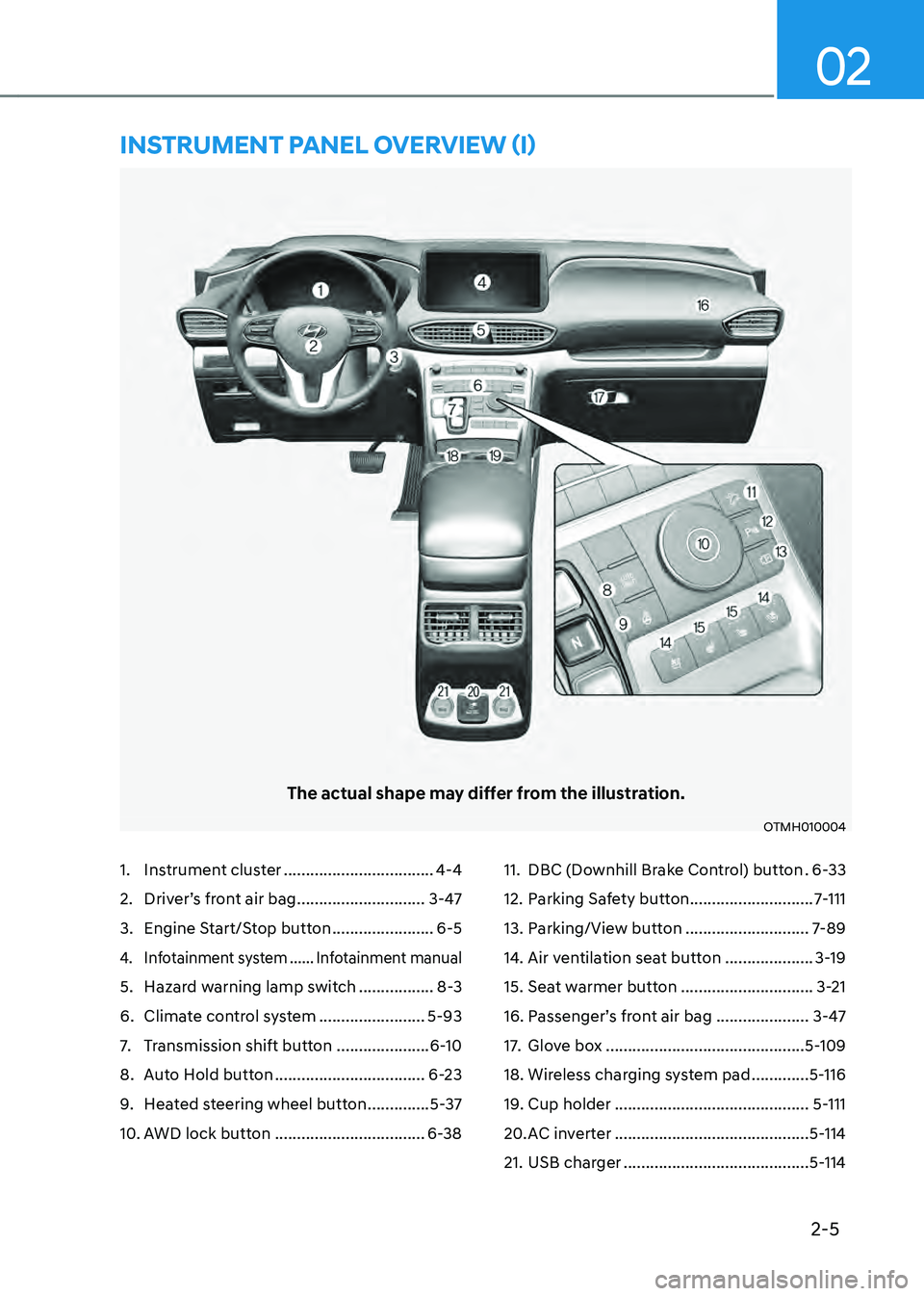

2-5
02
1. Instrument cluster ..................................4-4
2. Driver’s front air bag .............................3-47
3. Engine Start/Stop button .......................6-5
4. Infotainment system ......Infotainment manual
5. Hazard warning lamp switch .................8-3
6. Climate control system ........................5-93
7. Transmission shift button .....................6-10
8. Auto Hold button ..................................6-23
9. Heated steering wheel button ..............5-37
10. AWD lock button ..................................6-38
11. DBC (Downhill Brake Control) button .6-33
12. Parking Safety button ............................7-111
13. Parking/View button ............................7-89
14. Air ventilation seat button ....................3-19
15. Seat warmer button ..............................3-21
16. Passenger’s front air bag .....................3-47
17. Glove box .............................................5-109
18. Wireless charging system pad .............5-116
19. Cup holder ............................................5-111
20. AC inverter ............................................5-114
21. USB charger ..........................................5-114
The actual shape may differ from the illustration.
OTMH010004
INSTRUMENT PANEL OVERVIEW (I)

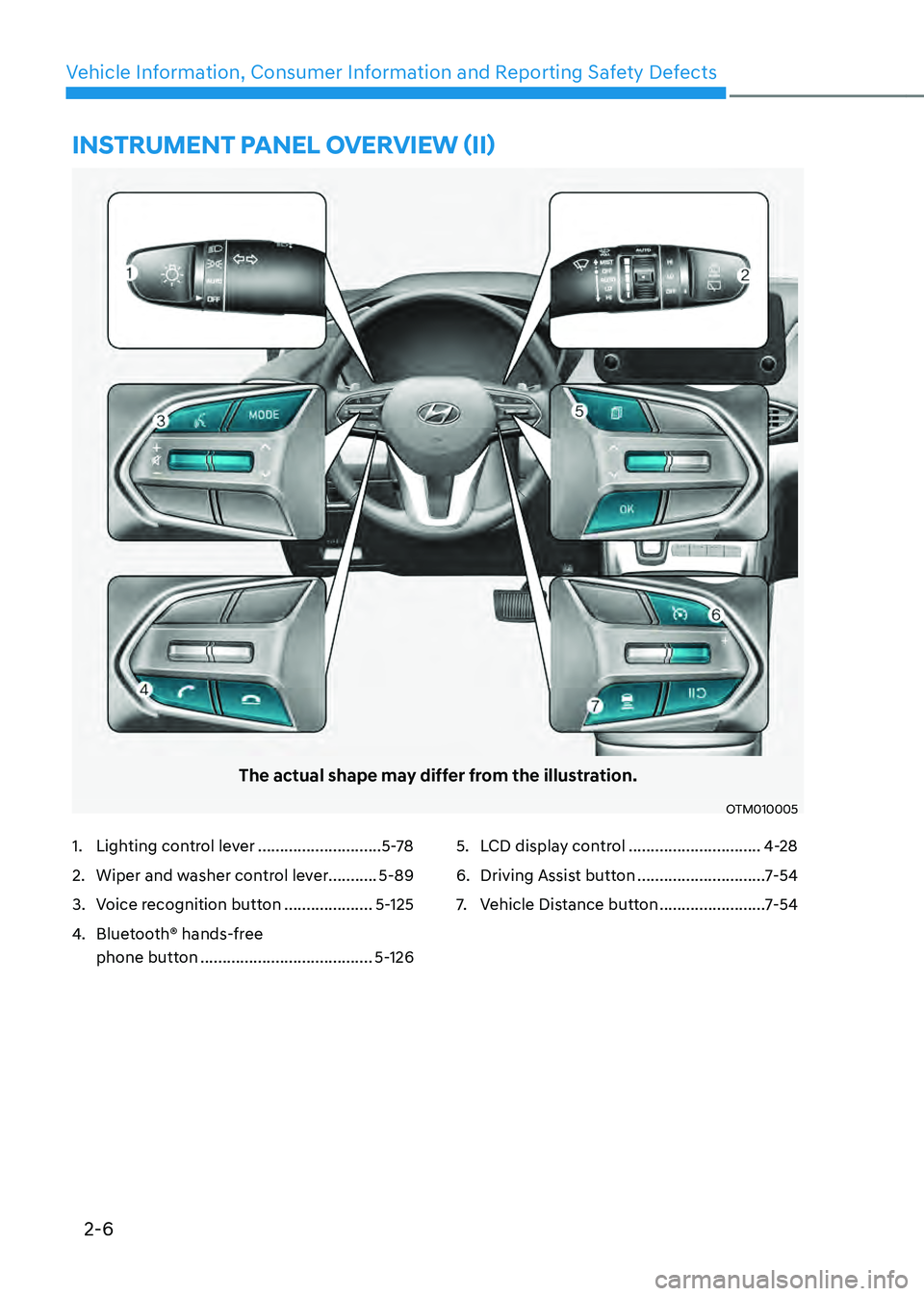

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ............................5-78
2. Wiper and washer control lever...........5-89
3. Voice recognition button ....................5-125
4. Bluetooth® hands-free
phone button
.......................................5-126
5. LCD display control ..............................4-28
6. Driving Assist button .............................7-54
7. Vehicle Distance button ........................7-54
INSTRUMENT PANEL OVERVIEW (II)
The actual shape may differ from the illustration.
OTM010005

2-7
02
„„Smartstream G 1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir .......................9-17
3. Engine coolant reservoir cap ................9-17
4. Inverter coolant reservoir......................9-17
5. Brake fluid reservoir .............................9-20
6. Air cleaner .............................................9-22
7. Engine oil filler cap ................................9-15
8. Engine oil dipstick .................................9-15
9. Windshield washer fluid reservoir ........9-21
10. Fuse box .................................................9-41
11. Invert coolant reservoir cap ..................9-17
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Itemsin. (mm)
Overall length 188.4 (4,785)
Overall width 74.8 (1,900)
Overall height 67.1 (1,705) / 68.1 (1,730)*
Wheel treat Front
Rear
235/65 R17 65 (1,651) 65.49 (1,661)
235/55 R19 64.80 (1,646) 65.20 (1,656)
Wheelbase 108.9 (2,765)
* : if equipped with roof rack
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) Firing order
No. of cylinders
Smartstream G 1.6 T-GDi HEV 97.08 (1,591)3.03 X 3.06
(77 X 85.44) 1-3-4-2
In-line 4 cylinder
DIMENSIONS

02
2-9
Light bulbBulb typeWattage
Front Type A
Headlamp
High
LEDLED
Low LEDLED
Daytime running lamp (DRL) /
position lamp LED
LED
Turn signal lamp PY27W27
Side marker lamp LEDLED
Type B Headlamp
High
LEDLED
Low LEDLED
Low beam assist LEDLED
Daytime running lamp (DRL) /
position lamp LED
LED
Turn signal lamp (Outside mirror) LEDLED
Turn signal lamp (Outside mirror) LEDLED
Rear Type A
Tail lamp
W5W5
Tail/Stop lamp P21/5W5/21
Turn signal lamp P28/8W28
Side marker lamp W5W5
Type B Tail lamp
LEDLED
Stop lamp LEDLED
Turn signal lamp LEDLED
Side marker lamp LEDLED
Reverse lamp W16W16
License plate lamp W5W5
High mounted stop lamp LEDLED
Interior Map lamp
Type A
W10W 10
Type B LEDLED
Room lamp FESTOON10
Personnal lamp LEDLED
Glove box lamp W5W5
Sunvisor lamp FESTOON5
Luggage compartment lamp FESTOON10
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects

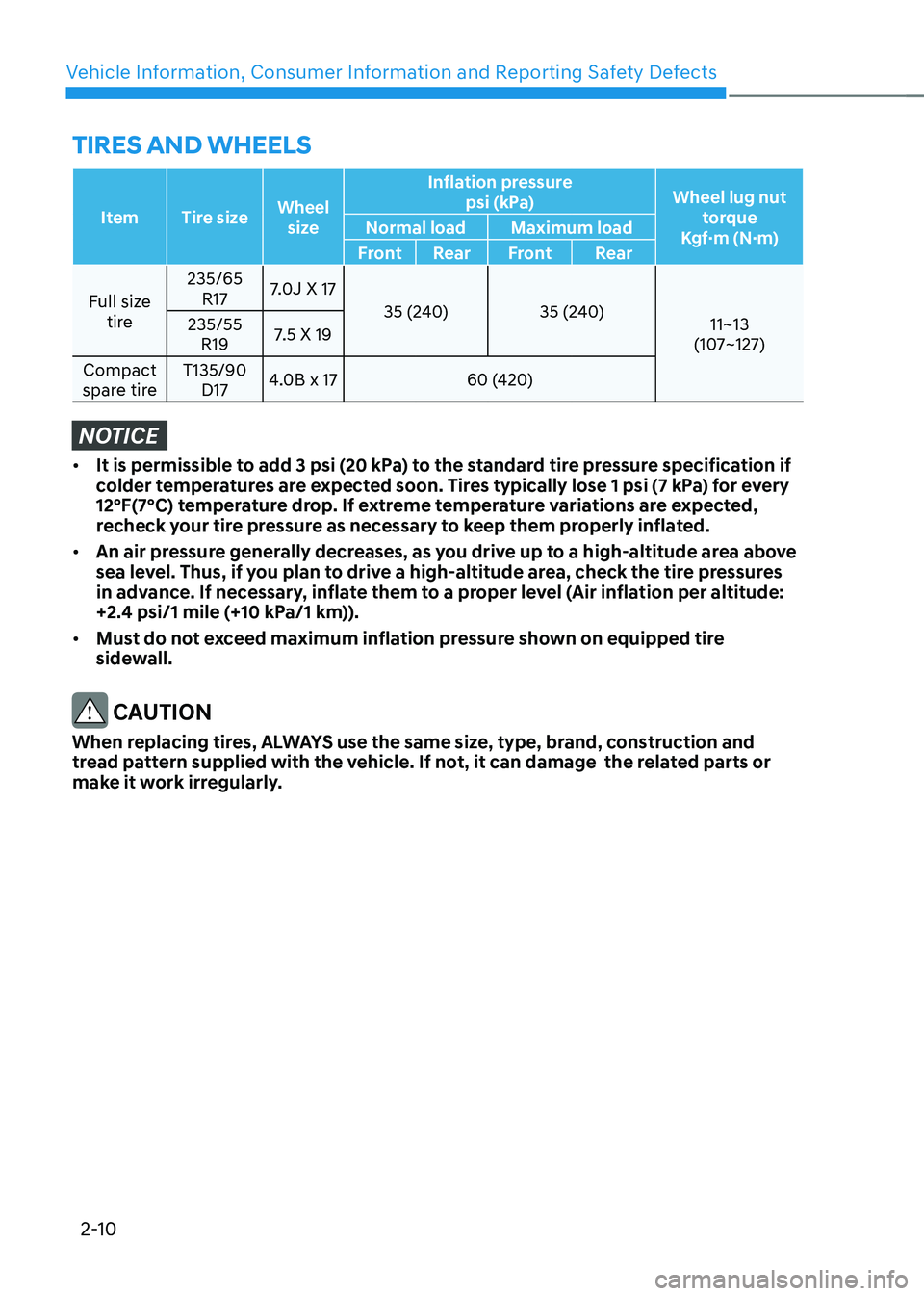

2-10
ItemTire size Wheel
size Inflation pressure
psi (kPa) Wheel lug nut
torque
Kgf·m (N·m)
Normal load
Maximum load
Front RearFront Rear
Full size tire 235/65
R17 7.0J X 17
35 (240) 35 (240)
11~13
(107~127)
235/55
R19 7.5 X 19
Compact
spare tire T135/90
D17 4.0B x 17
60 (420)
NOTICE
• It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every
12°F(7°C) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+2.4 psi/1 mile (+10 kPa/1 km)).
• Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

02
2-11
ItemsWeight of volume Classification
Refrigerant oz. (g)R1234yf
Front22.05 (625) ± 0.88 (25) R-1234yf
Compressor
lubricant oz. (g) Front
4.23 (120) ± 0.35 (10)
POE
Front + Rear 7.4 (210) ± 10 (0.35)
For more details, we recommend that you contact an authorized HYUNDAI dealer.
VOLUME AND WEIGHT
Items Smartstream G1.6 T-GDi HEV
4WD
Gross vehicle weight
lbs. (kg) 5,578 (2,530)
Luggage volume
Items 5 Seater
SAE
cu. ft (ℓ)
BEHIND 1ST ROW 72.1 (2,041) ~ *84.6 (2,396)
(*Forward and upright seat position)
BEHIND 2ND ROW 36.4 (1,032) ~ *37.9 (1,075)
(*upright seat position)
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects

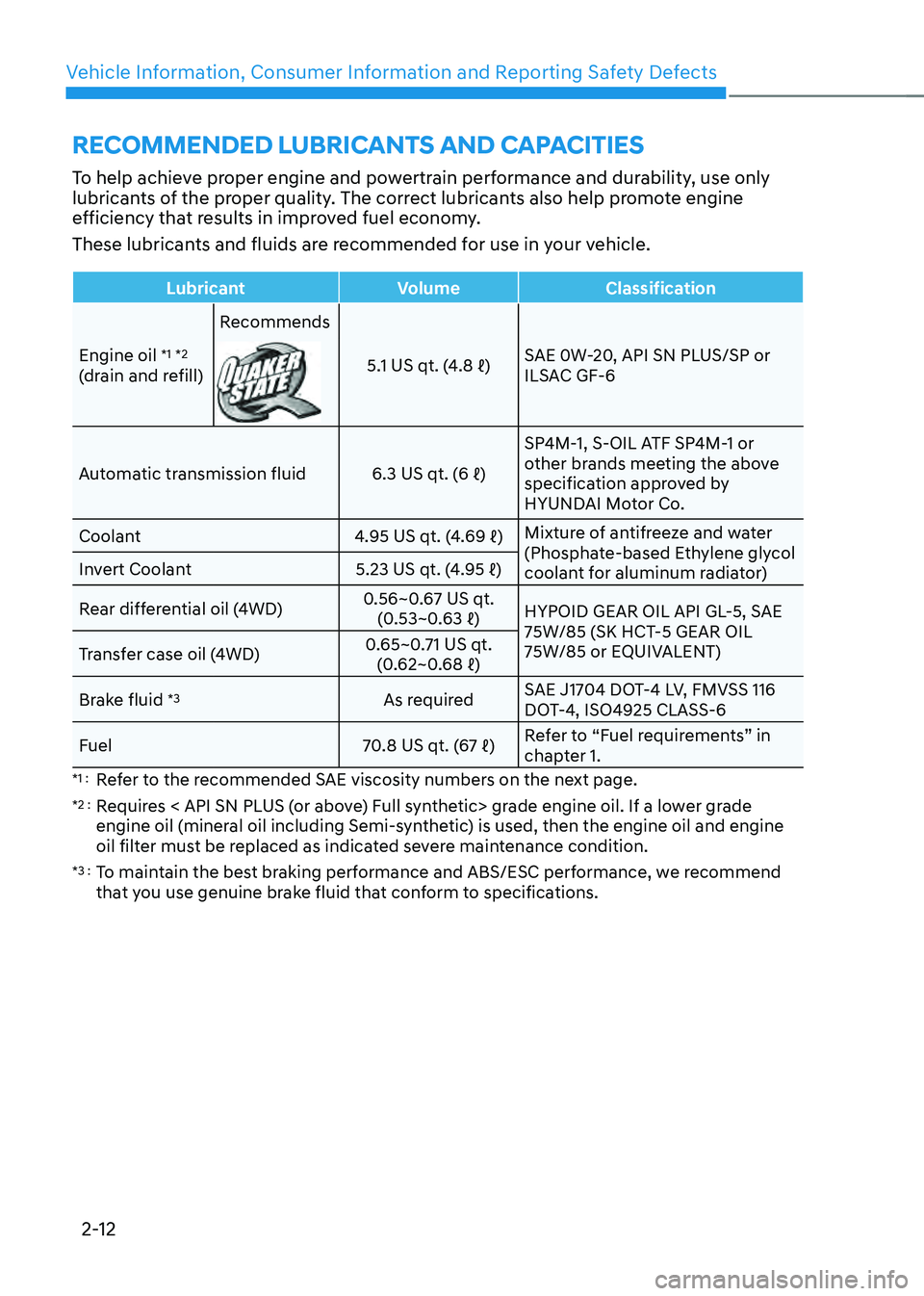

2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2
(drain and refill) Recommends5.1 US qt. (4.8 ℓ)SAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Automatic transmission fluid6.3 US qt. (6 ℓ)
SP4M-1, S-OIL ATF SP4M-1 or
other brands meeting the above
specification approved by
HYUNDAI Motor Co.
Coolant
4.95 US qt. (4.69 ℓ)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Invert Coolant
5.23 US qt. (4.95 ℓ)
Rear differential oil (4WD) 0.56~0.67 US qt. (0.53~0.63 ℓ)HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (4WD) 0.65~0.71 US qt.
(0.62~0.68 ℓ)
Brake fluid *3As required SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel
70.8 US qt. (67 ℓ)Refer to “Fuel requirements” in
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications.
RECOMMENDED LUBRICANTS AND CAPACITIES
