2021 HYUNDAI SANTA FE HYBRID Owners Manual

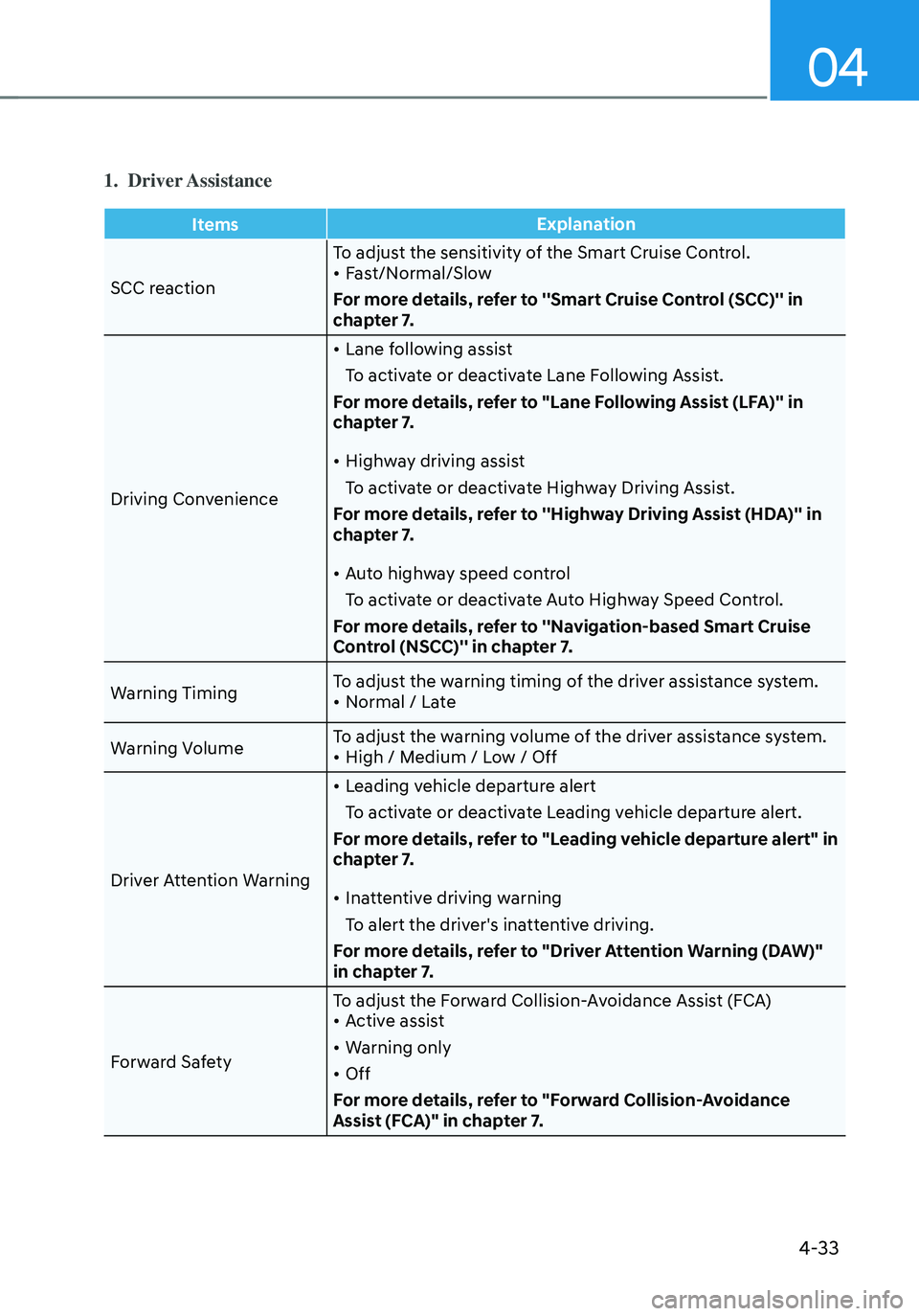

04
4-33
1. Driver Assistance
ItemsExplanation
SCC reaction To adjust the sensitivity of the Smart Cruise Control.
• Fast/Normal/Slow
For more details, refer to ''Smart Cruise Control (SCC)'' in
chapter 7.
Driving Convenience
• Lane following assist
To activate or deactivate Lane Following Assist.
For more details, refer to "Lane Following Assist (LFA)'' in
chapter 7.
• Highway driving assist
To activate or deactivate Highway Driving Assist.
For more details, refer to ''Highway Driving Assist (HDA)'' in
chapter 7.
• Auto highway speed control
To activate or deactivate Auto Highway Speed Control.
For more details, refer to ''Navigation-based Smart Cruise
Control (NSCC)'' in chapter 7.
Warning Timing To adjust the warning timing of the driver assistance system.
• Normal / Late
Warning Volume To adjust the warning volume of the driver assistance system.
• High / Medium / Low / Off
Driver Attention Warning
• Leading vehicle departure alert
To activate or deactivate Leading vehicle departure alert.
For more details, refer to "Leading vehicle departure alert" in
chapter 7.
• Inattentive driving warning
To alert the driver's inattentive driving.
For more details, refer to "Driver Attention Warning (DAW)"
in chapter 7.
Forward Safety To adjust the Forward Collision-Avoidance Assist (FCA)
• Active assist
• Warning only
• Off
For more details, refer to "Forward Collision-Avoidance
Assist (FCA)" in chapter 7.

Instrument cluster

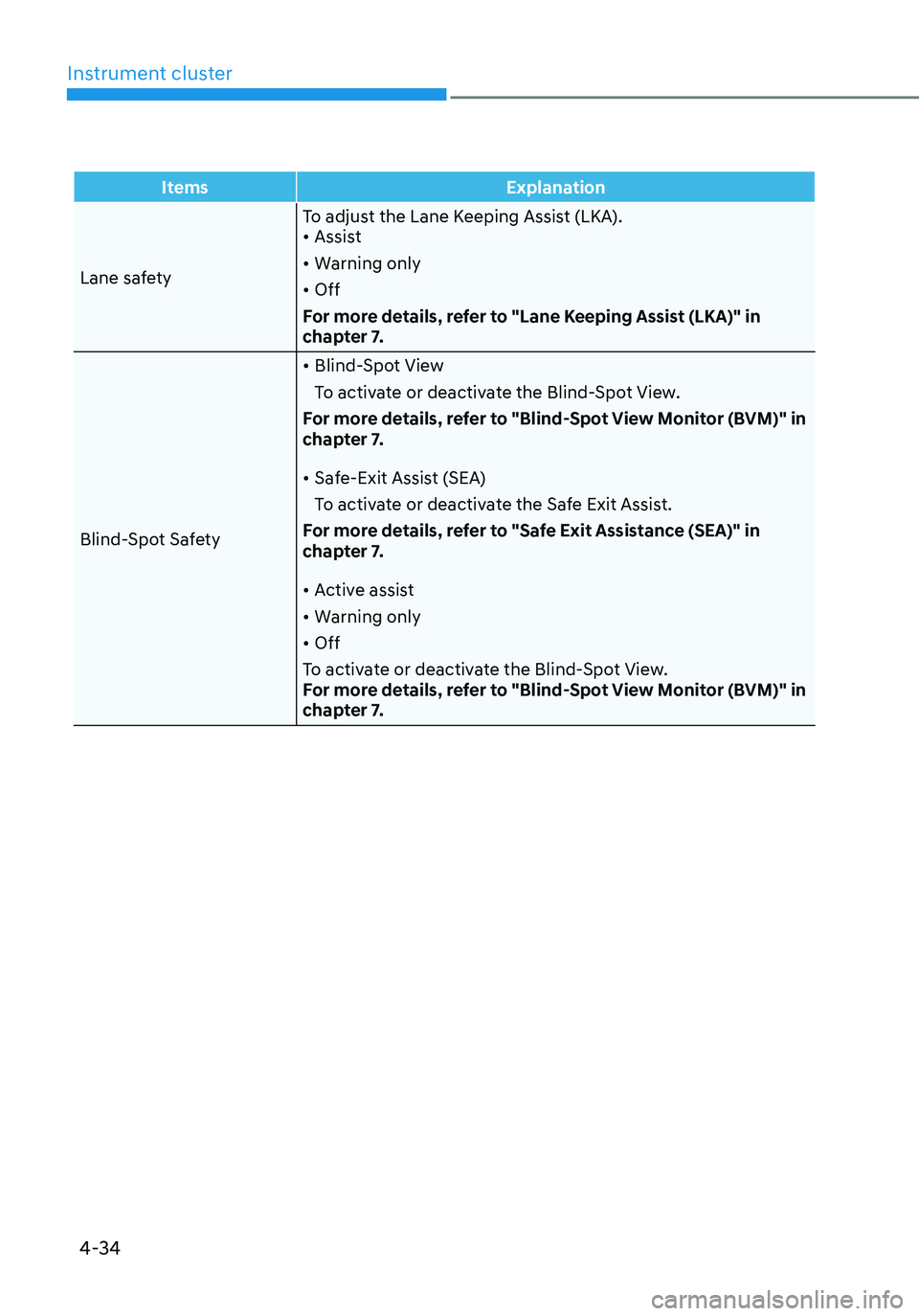

4-34
ItemsExplanation
Lane safety To adjust the Lane Keeping Assist (LKA).
• Assist
• Warning only
• Off
For more details, refer to "Lane Keeping Assist (LKA)" in
chapter 7.
Blind-Spot Safety
• Blind-Spot View
To activate or deactivate the Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.
• Safe-Exit Assist (SEA)
To activate or deactivate the Safe Exit Assist.
For more details, refer to "Safe Exit Assistance (SEA)" in
chapter 7.
• Active assist
• Warning only
• Off
To activate or deactivate the Blind-Spot View.
For more details, refer to "Blind-Spot View Monitor (BVM)" in
chapter 7.

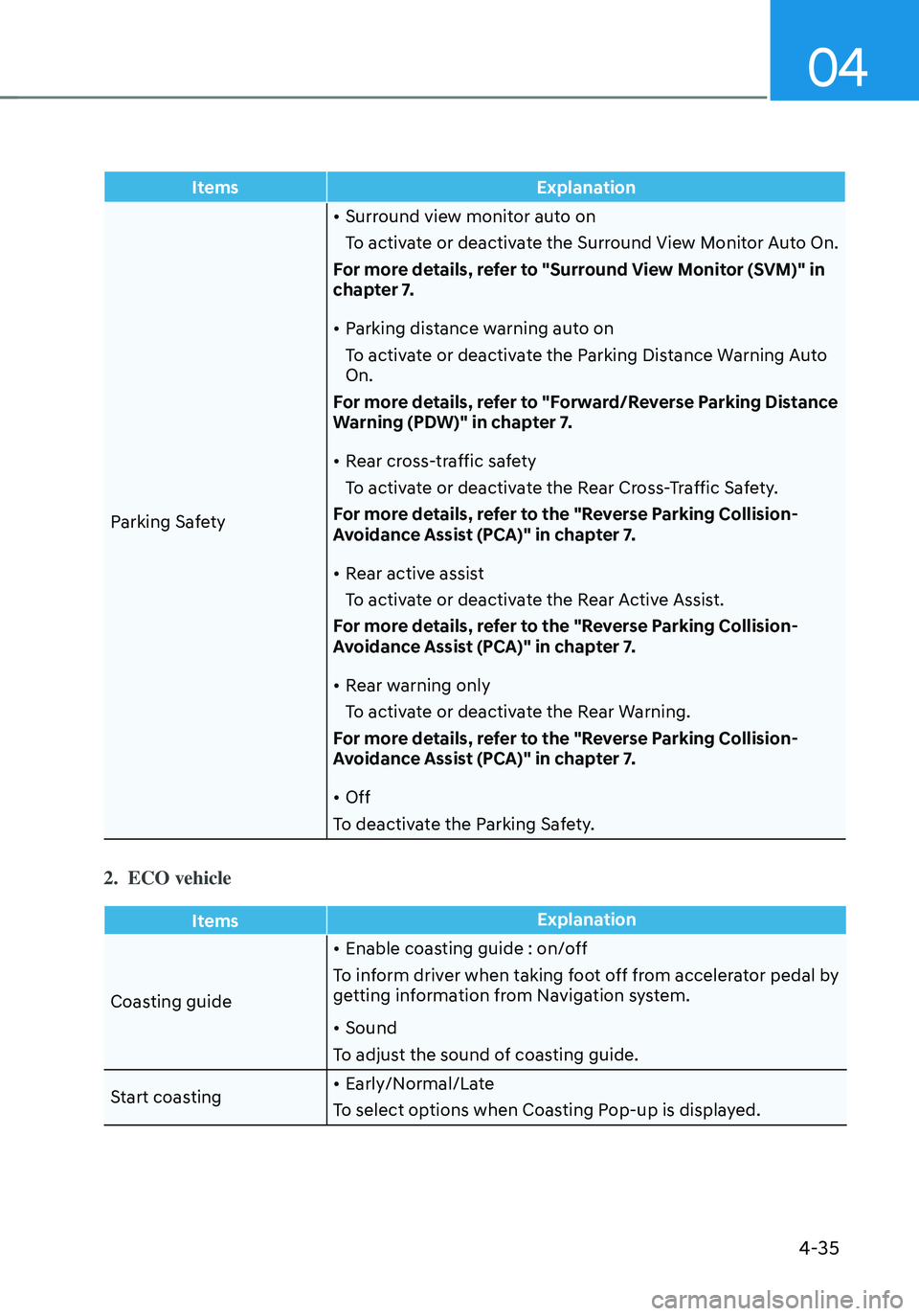

04
4-35
ItemsExplanation
Parking Safety
• Surround view monitor auto on
To activate or deactivate the Surround View Monitor Auto On.
For more details, refer to "Surround View Monitor (SVM)" in
chapter 7.
• Parking distance warning auto on
To activate or deactivate the Parking Distance Warning Auto
On.
For more details, refer to "Forward/Reverse Parking Distance
Warning (PDW)" in chapter 7.
• Rear cross-traffic safety
To activate or deactivate the Rear Cross-Traffic Safety.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Rear active assist
To activate or deactivate the Rear Active Assist.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Rear warning only
To activate or deactivate the Rear Warning.
For more details, refer to the "Reverse Parking Collision-
Avoidance Assist (PCA)" in chapter 7.
• Off
To deactivate the Parking Safety.
2. ECO vehicle
Items Explanation
Coasting guide
• Enable coasting guide : on/off
To inform driver when taking foot off from accelerator pedal by
getting information from Navigation system.
• Sound
To adjust the sound of coasting guide.
Start coasting
• Early/Normal/Late
To select options when Coasting Pop-up is displayed.

Instrument cluster

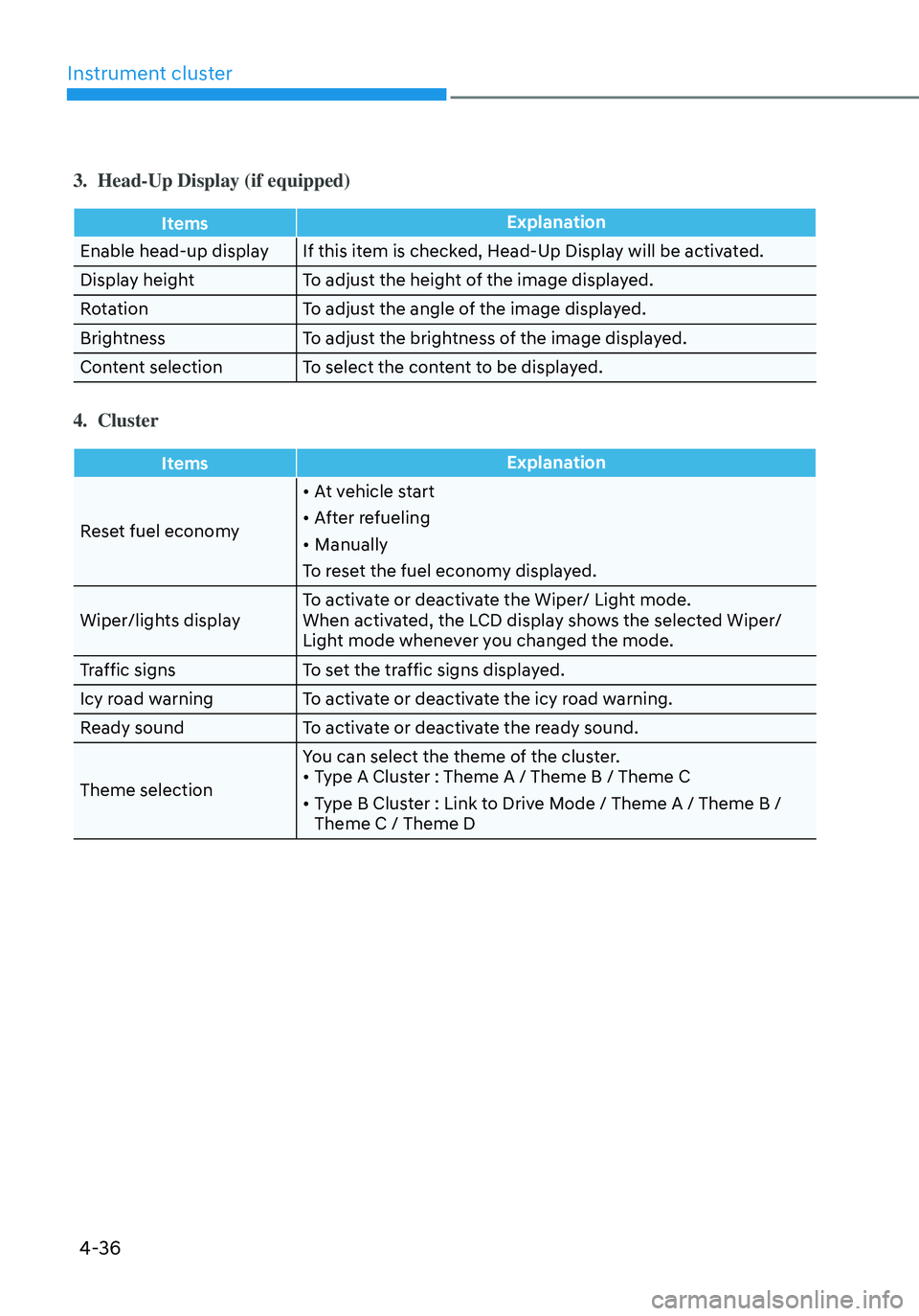

4-36
3. Head-Up Display (if equipped)
ItemsExplanation
Enable head-up display If this item is checked, Head-Up Display will be activated.
Display height To adjust the height of the image displayed.
Rotation To adjust the angle of the image displayed.
Brightness To adjust the brightness of the image displayed.
Content selection To select the content to be displayed.
4. Cluster
Items Explanation
Reset fuel economy
• At vehicle start
• After refueling
• Manually
To reset the fuel economy displayed.
Wiper/lights display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/
Light mode whenever you changed the mode.
Traffic signs To set the traffic signs displayed.
Icy road warning To activate or deactivate the icy road warning.
Ready sound To activate or deactivate the ready sound.
Theme selection You can select the theme of the cluster.
• Type A Cluster : Theme A / Theme B / Theme C
• Type B Cluster : Link to Drive Mode / Theme A / Theme B /
Theme C / Theme D

04
4-37
5. Lights
ItemsExplanation
Illumination To adjust the illumination level.
• Level 1~20
One touch turn signal
• Off : The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness
(If equipped)
• Off
• Level 1/2/3/4
Ambient light color
(If equipped)
• Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
HBA (High Beam Assist) To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in
chapter 5.

Instrument cluster

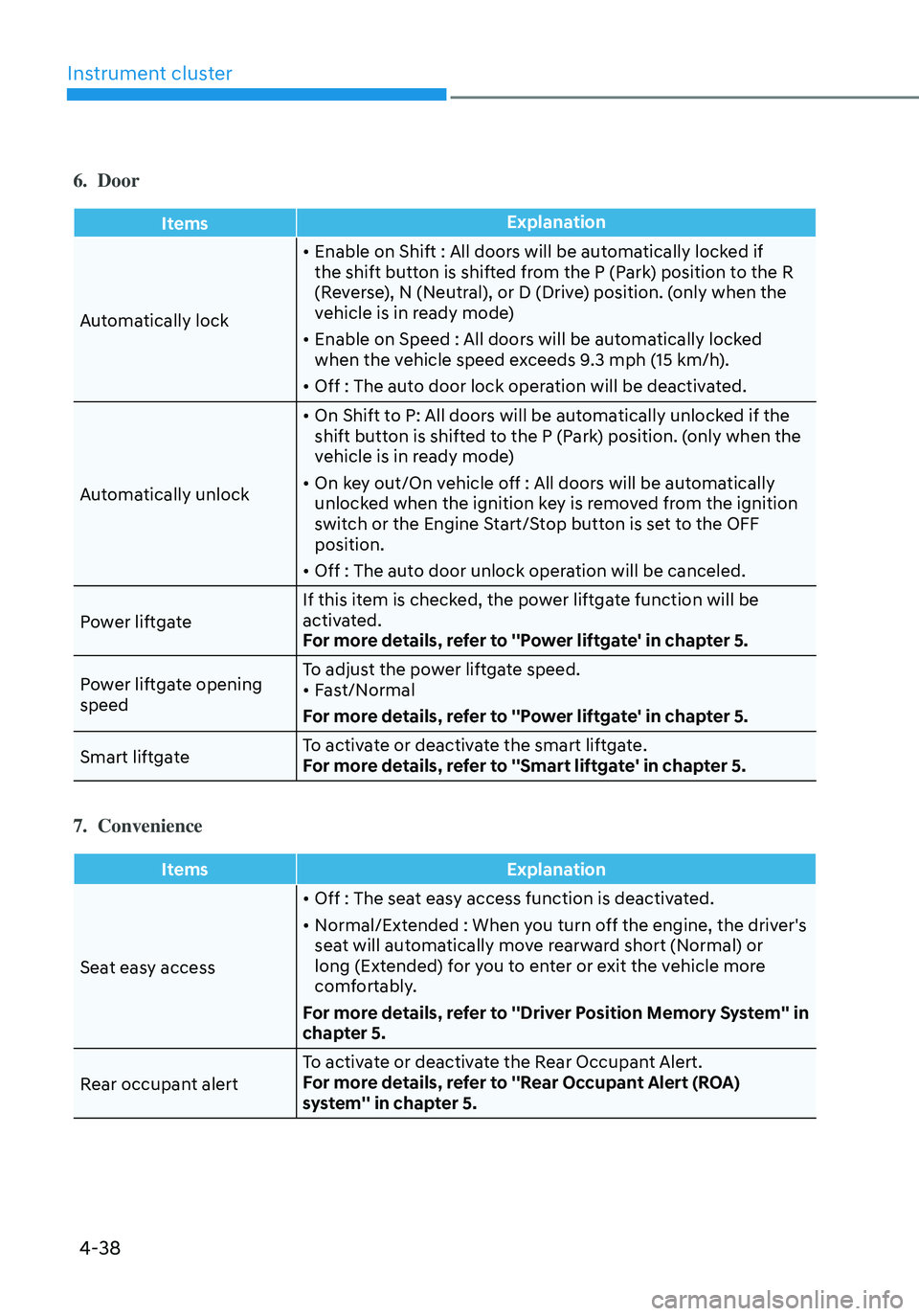

4-38
6. Door
ItemsExplanation
Automatically lock
• Enable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)
• Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 9.3 mph (15 km/h).
• Off : The auto door lock operation will be deactivated.
Automatically unlock
• On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)
• On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF
position.
• Off : The auto door unlock operation will be canceled.
Power liftgate If this item is checked, the power liftgate function will be
activated.
For more details, refer to ''Power liftgate' in chapter 5.
Power liftgate opening
speed To adjust the power liftgate speed.
• Fast/Normal
For more details, refer to ''Power liftgate' in chapter 5.
Smart liftgate To activate or deactivate the smart liftgate.
For more details, refer to ''Smart liftgate' in chapter 5.
7. Convenience
Items
Explanation
Seat easy access
• Off : The seat easy access function is deactivated.
• Normal/Extended : When you turn off the engine, the driver's
seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more
comfortably.
For more details, refer to ''Driver Position Memory System'' in
chapter 5.
Rear occupant alert To activate or deactivate the Rear Occupant Alert.
For more details, refer to ''Rear Occupant Alert (ROA)
system'' in chapter 5.

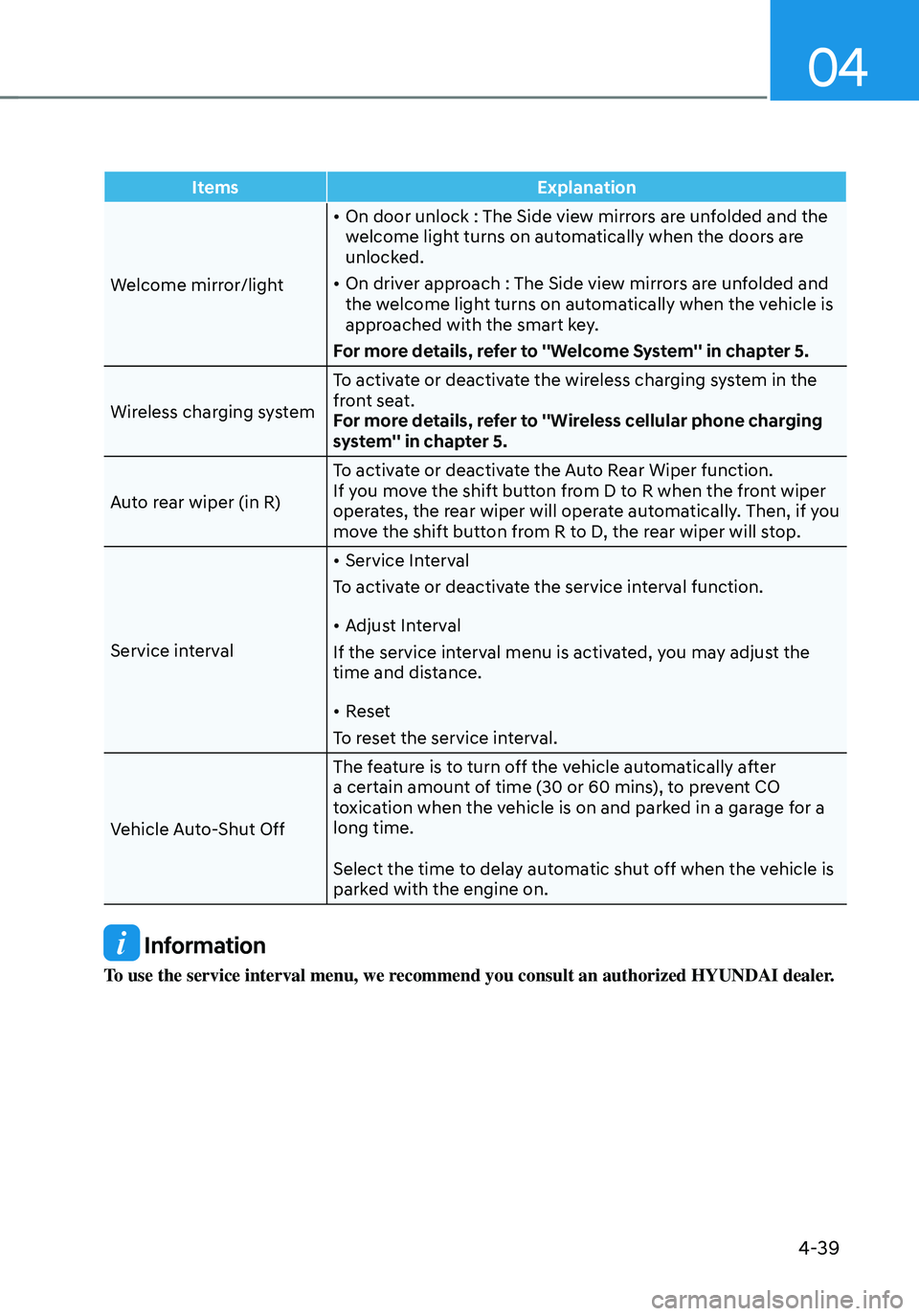

04
4-39
ItemsExplanation
Welcome mirror/light
• On door unlock : The Side view mirrors are unfolded and the
welcome light turns on automatically when the doors are
unlocked.
• On driver approach : The Side view mirrors are unfolded and
the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless charging system To activate or deactivate the wireless charging system in the
front seat.
For more details, refer to ''Wireless cellular phone charging
system'' in chapter 5.
Auto rear wiper (in R) To activate or deactivate the Auto Rear Wiper function.
If you move the shift button from D to R when the front wiper
operates, the rear wiper will operate automatically. Then, if you
move the shift button from R to D, the rear wiper will stop.
Service interval
• Service Interval
To activate or deactivate the service interval function.
• Adjust Interval
If the service interval menu is activated, you may adjust the
time and distance.
• Reset
To reset the service interval.
Vehicle Auto-Shut Off The feature is to turn off the vehicle automatically after
a certain amount of time (30 or 60 mins), to prevent CO
toxication when the vehicle is on and parked in a garage for a
long time.
Select the time to delay automatic shut off when the vehicle is
parked with the engine on.
Information
To use the service interval menu, we recommend you consult an authorized HYUNDAI dealer.

Instrument cluster

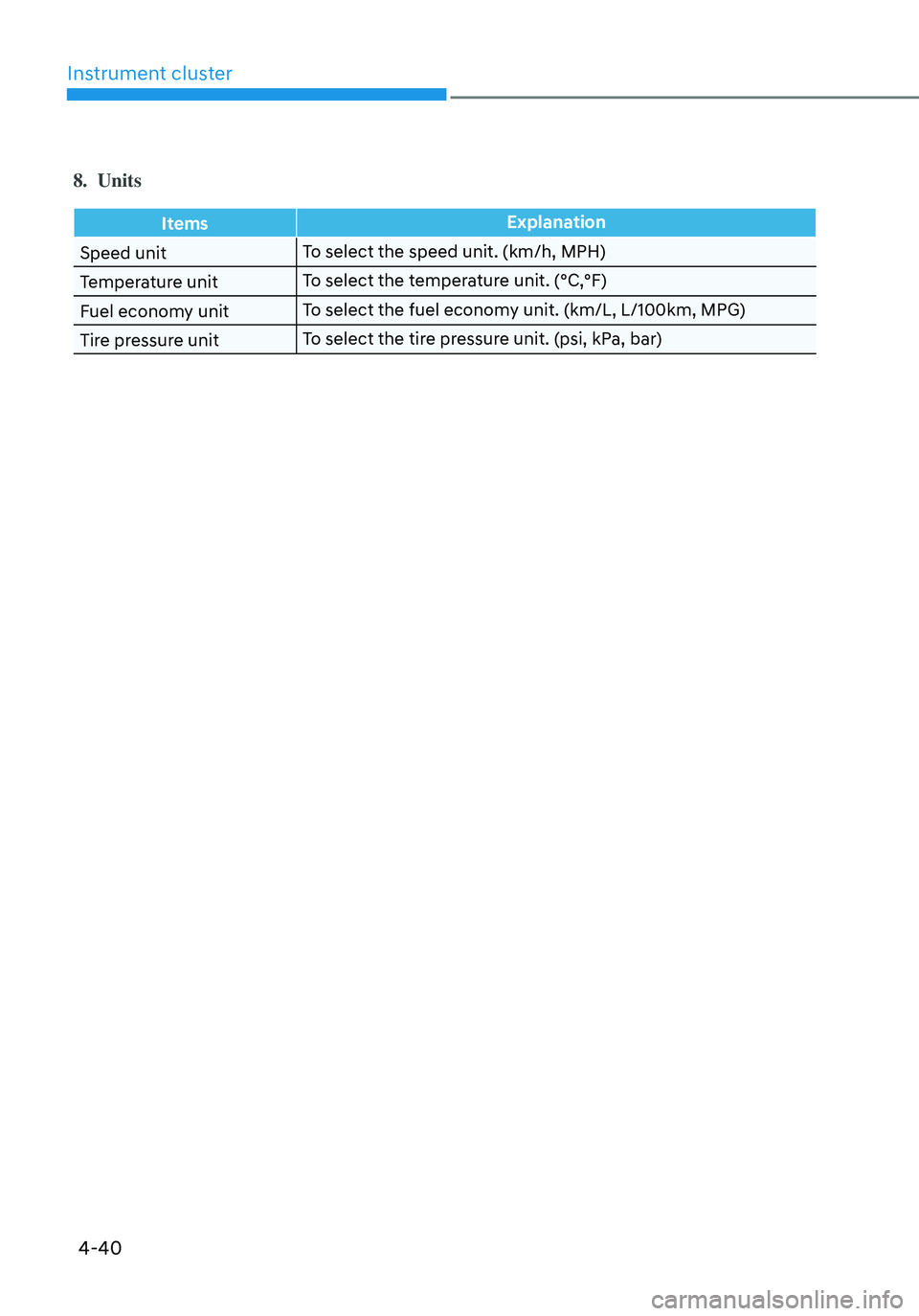

4-40
8. Units
ItemsExplanation
Speed unit To select the speed unit. (km/h, MPH)
Temperature unit To select the temperature unit. (°C,°F)
Fuel economy unit To select the fuel economy unit. (km/L, L/100km, MPG)
Tire pressure unit To select the tire pressure unit. (psi, kPa, bar)
