2021 HONDA CLARITY FUEL CELL service

326
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Door/
Window
Setup
Auto Door LockUsed to change the setting for when the doors
automatically lock.With Vehicle
Speed*1/ Shift from P /
Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When
Driver’s Door
Opens
*1/ All Doors
When Shifted to
Park/ All Doors When
Ignition Switched
Off /Off
Key and Remote Unlock
ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door*1/All
Doors
Keyless Lock Answer BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.90seconds/
60seconds/
30seconds
*1
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.On /Off*1
Maintenance Info.Resets the Maintenance MinderTM display when
you have performed the maintenance service.—
21 CLARITY FCV CSS-31TRT6400_02.book 326 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuBluetooth ® HandsFreeLink ®u HFL Menus
356
Features
HFL can display newly received text or e- mail messages as well as 20 of the most
recently received messages on a linked ce ll phone. Each received message can be
read aloud and replied to using a fixed common phrase. 1.A pop-up appears and notifies you of a new
text or e-mail message.
2. Select Read to listen to the message.
u The text or e-mail message is displayed.
The system automatically starts reading
out the message.
3. To discontinue the mess age read-out, select
Stop .
■Receiving a Text/E-mail Message1Receiving a Text/E-mail Message
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
The system can only receive messages that are sent as
text (SMS) messages. Messages sent using data
services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text and e-mail messages.
State or local laws may limi t your use of the HFL text/
e-mail message feature. Only use the text/e-mail
message feature when conditions allow you to do so
safely.
When you receive a text or e-mail message for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On.
2 To turn on or off the text/e-mail message
notice P. 342
21 CLARITY FCV CSS-31TRT6400_02.book 356 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuBluetooth ® HandsFreeLink ®u HFL Menus
362
Features
■Automatic collision notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequa te cellular coverage, your vehicle’s
location may not be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the 12-volt battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
21 CLARITY FCV CSS-31TRT6400_02.book 362 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

451
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 452
Safety When Performing Maintenance ..453
Parts and Fluids Used in Maintenance Service ........................................... 454
Maintenance Minder
TM..................... 455
Maintenance Under the Hood Maintenance Items Under the Hood .. 459
Opening the Hood ........................... 460
Inverter Coolant ............................... 461
Transmission Fluid ............................ 463
Brake Fluid ....................................... 463 Refilling Window Washer Fluid......... 464
Replacing Light Bulbs ....................... 465
Checking and Maintaining Wiper
Blades .......................................... 467
Checking and Maintaining Tires
Checking Tires ................................. 470
Tire and Loading Information Label .. 471
Tire Labeling .................................... 471
DOT Tire Quality Grading (U.S. Vehicles).. 473
Wear Indicators................................ 475
Tire Service Life ................................ 475
Tire and Wheel Replacement............ 476 Tire Rotation .................................... 477
Winter Tires ..................................... 478
12-Volt Battery ................................. 479
Remote Transmitter Care Replacing the Button Battery ........... 481
Climate Control System Maintenance.. 482
CleaningInterior Care .................................... 483
Exterior Care.................................... 485
Accessories and Modifications ........ 489
21 CLARITY FCV CSS-31TRT6400_02.book 451 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

452
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Honda Clar ity Fuel Cell dealer. (Note, however, that service at an
authorized Honda Clarity Fuel Cell dealer is not mandatory to keep your warranties
in effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 463
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 470
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 465
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 467
■Types of Inspection and Maintenance
1Inspection and Maintenance
All maintenance services should be performed in
accordance with the intervals indicated by the driver
information interface. 2 Maintenance Service Items P. 457
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 540
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
21 CLARITY FCV CSS-31TRT6400_02.book 452 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

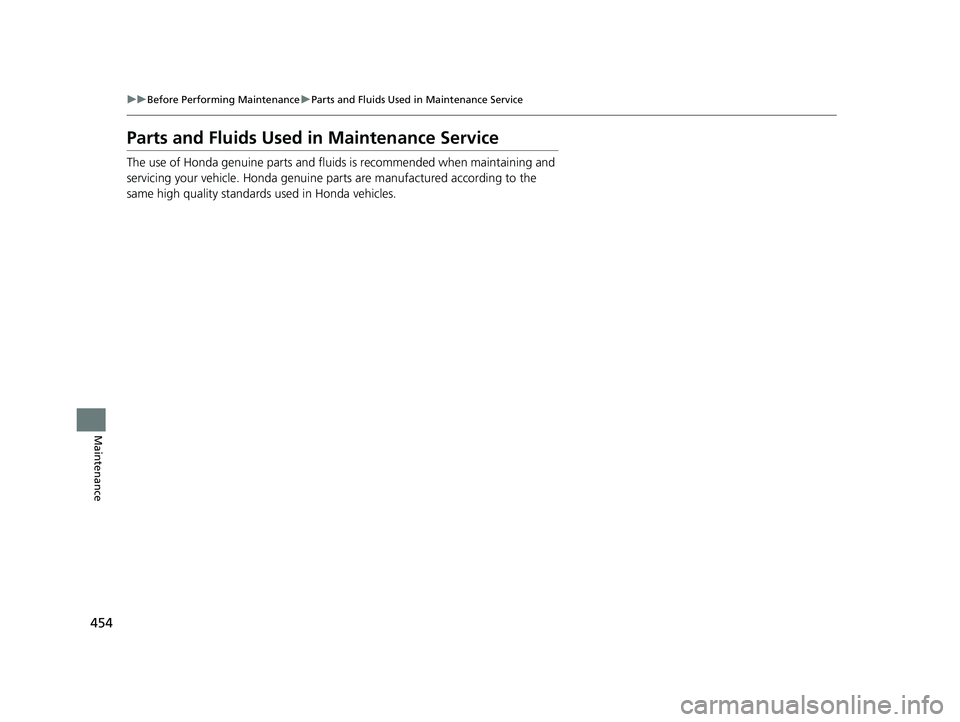

454
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.
21 CLARITY FCV CSS-31TRT6400_02.book 454 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

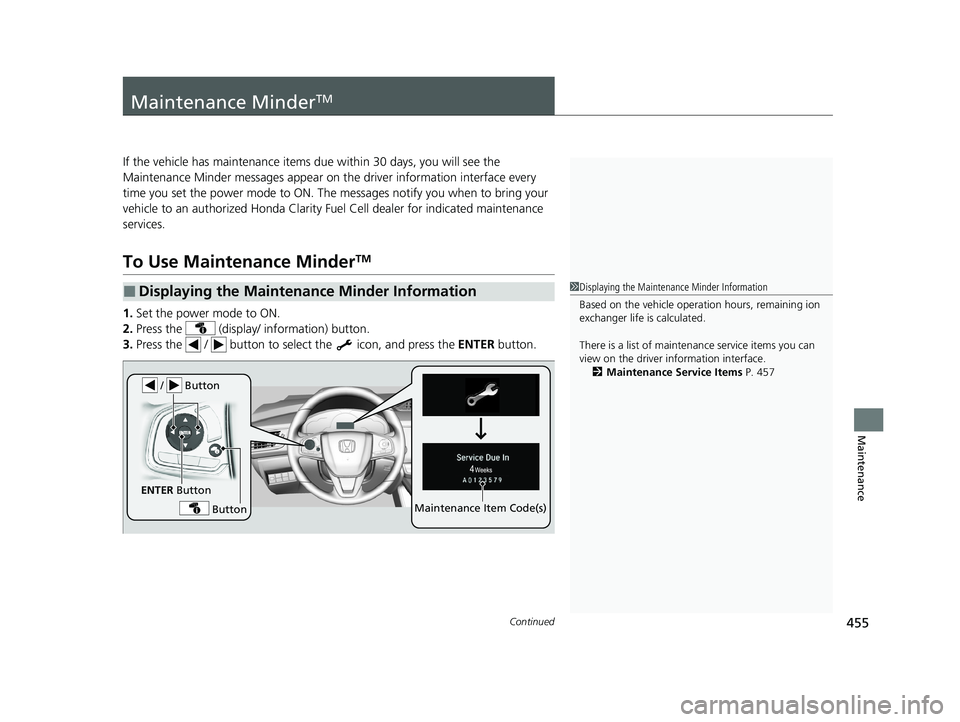

455Continued
Maintenance
Maintenance MinderTM
If the vehicle has maintenance items due within 30 days, you will see the
Maintenance Minder messages appear on the driver information interface every
time you set the power mode to ON. The messages notify you wh en to bring your
vehicle to an authorized Honda Clarity Fu el Cell dealer for indicated maintenance
services.
To Use Maintenance MinderTM
1. Set the power mode to ON.
2. Press the (display/ information) button.
3. Press the / button to select the icon, and press the ENTER button.
■Displaying the Maintenance Minder Information1Displaying the Maintena nce Minder Information
Based on the vehicle operati on hours, remaining ion
exchanger life is calculated.
There is a list of maintenance service items you can
view on the driver in formation interface.
2 Maintenance Service Items P. 457
/ Button
Maintenance Item Code(s)
Button
ENTER Button
21 CLARITY FCV CSS-31TRT6400_02.book 455 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

456
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
*1 : The power system indicator comes on when an ion exchanger replacement is past due.
*2 : The messages appear alternately when an ion exchanger replacement is past due.
■Indicator, Warning Message and Maintenance Minder
Information on the Driver Information Interface
IndicatorWarning MessageMaintenance Minder
InformationExplanationInformation
—
Service Due SoonOne or more of the service
items are required in less than
30 days. Press the button
to switch to another display.The remaining days will
be counted down per
day.
—
Service Due NowOne or more of the service
items are required in less than
10 days. Press the button
to switch to another display.Have the indicated
service performed as
soon as possible.
Service Past DueThe indicated maintenance
service is still not done after the
remaining time reaches 0. Press
the button to switch to
another display.Your vehicle has passed
the service required
point.
Immediately have the
service performed and
make sure to reset the
Maintenance Minder
TM.*1
—*2
21 CLARITY FCV CSS-31TRT6400_02.book 456 ページ ２０２０年９月２５日　金曜日　午
後３時１５分
