2021 Alfa Romeo MiTo Owner handbook (in English)

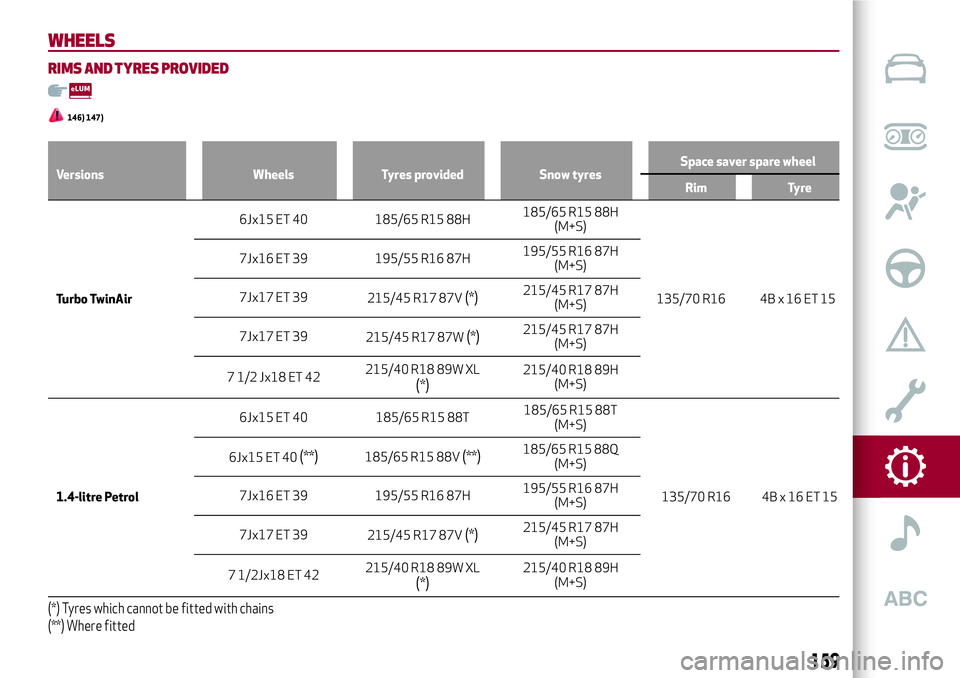

WHEELS
RIMS AND TYRES PROVIDED
146) 147)
Versions Wheels Tyres provided Snow tyresSpace saver spare wheel
Rim Tyre
Turbo TwinAir6Jx15 ET 40 185/65 R15 88H185/65 R15 88H
(M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87H195/55 R16 87H
(M+S)
7Jx17 ET 39
215/45 R17 87V(*)215/45 R17 87H
(M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H
(M+S)
7 1/2 Jx18 ET 42215/40 R18 89W XL
(*)215/40 R18 89H
(M+S)
1.4-litre Petrol6Jx15 ET 40 185/65 R15 88T185/65 R15 88T
(M+S)
135/70 R16 4B x 16 ET 15 6Jx15 ET 40
(**)185/65 R15 88V(**)185/65 R15 88Q
(M+S)
7Jx16 ET 39 195/55 R16 87H195/55 R16 87H
(M+S)
7Jx17 ET 39
215/45 R17 87V
(*)215/45 R17 87H
(M+S)
7 1/2Jx18 ET 42215/40 R18 89W XL
(*)215/40 R18 89H
(M+S)
(*) Tyres which cannot be fitted with chains
(**) Where fitted
159

Versions Wheels Tyres provided Snow tyresSpace saver spare wheel
Rim Tyre
1.4 Turbo Petrol/LPG
120 HP7Jx16 ET 39 195/55 R16 87H195/55 R16 87H
(M+S)
135/70 R16 4B x 16 ET 15 7Jx17 ET 39
215/45 R17 87V(*)215/45 R17 87H
(M+S)
7 1/2 Jx18 ET 42215/40 R18 89W XL
(*)215/40 R18 89H
(M+S)
1.4 Turbo Multi Air /
1.4 Turbo Multi Air
Veloce6Jx15 ET 40
(**)185/65 R15 88V(**)185/65 R15 88Q
(M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87V195/55 R16 87H
(M+S)
7Jx17 ET 39
(**)205/45 R17 88W XL(**)205/45 R17 88H
(M+S)
7Jx17 ET 39
(**)215/45 R17 87V(**)215/45 R17 87H
(M+S)
7Jx17 ET 39
215/45 R17 87W
(*)215/45 R17 87H
(M+S)
7 1/2 Jx18 ET 42215/40 R18 89W XL
(*)215/40 R18 89H
(M+S)
1.4 Turbo MultiAir TCT7Jx16 ET 39 195/55 R16 87V195/55 R16 87H
(M+S)
135/70 R16 4B x 16 ET 15 7Jx17 ET 39 215/45 R17 87V215/45 R17 87H
(M+S)
7 1/2Jx18 ET 42 215/40 R18 89W XL215/40 R18 89H
(M+S)
(*) Tyres which cannot be fitted with chains
(**) Where fitted
160
TECHNICAL SPECIFICATIONS

Versions Wheels Tyres provided Snow tyresSpace saver spare wheel
Rim Tyre
1.3 JTDM-2
7Jx16 ET 39 195/55 R16 87H195/55 R16 87H
(M+S)
135/70 R16 4B x 16 ET 15 7Jx17 ET 39 215/45 R17 87V215/45 R17 87H
(M+S)
7 1/2 Jx18 ET 42 215/40 R18 89W XL215/40 R18 89H
(M+S)
Turbo TwinAir 100 HP /
1.3 JTD
M-290 HP(***)7Jx16 ET 39195/55 R16 87H
Continental Premium
Contact 2195/55 R16 87Q
(M+S)135/70 R16 4B x 16 ET 15
(***) For specific markets. Otherwise use tyres offering equivalent performance.
IMPORTANT If there are any discrepancies between the Owner Handbook and the registration document, take the information from
the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
161

COLD TYRE INFLATION PRESSURE (bar)
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
Turbo TwinAir185/65 R15 88H
195/55 R16 87H
215/45 R17 87V
215/45 R17 87W
215/40 R18 89W XL2.3
2.3
2.2
2.2
2.32.1
2.1
2.1
2.1
2.12.3
2.3
2.3
2.3
2.32.3
2.3
2.3
2.3
2.3
1.4-litre Petrol185/65 R15 88T
195/55 R16 87H
215/45 R17 87V
215/45 R17 87W
215/40 R18 89W XL2.3
2.3
2.2
2.2
2.32.1
2.1
2.1
2.1
2.12.3
2.3
2.3
2.3
2.32.3
2.3
2.3
2.3
2.3
1.4 Turbo Petrol/LPG
120 HP195/55 R16 87H
215/45 R17 87V
215/40 R1889WXL2.3
2.3
2.42.1
2.1
2.22.5
2.6
2.72.3
2.3
2.4
1.4 Turbo Multi Air /
1.4 Turbo Multi Air
Veloce185/65 R15 88V
195/55 R16 87V
205/45 R17 88W XL
215/45 R17 87V
215/45 R17 87W
215/40 R18 89W XL2.3
2.3
2.4
2.3
2.3
2.42.1
2.1
2.2
2.1
2.1
2.22.5
2.5
2.8
2.6
2.6
2.72.3
2.3
2.5
2.3
2.3
2.4
1.4 Turbo MultiAir TCT195/55 R16 87V
215/45 R17 87V
215/40 R18 89W XL2.3
2.3
2.42.1
2.1
2.22.5
2.6
2.72.3
2.3
2.4
1.3 JTD
M-2
195/55 R16 87H
215/45 R17 87V
215/40 R18 89W XL2.3
2.3
2.62.1
2.1
2.42.6
2.5
2.62.3
2.3
2.4
Space saver spare
wheel135/70 R16 4.2
162
TECHNICAL SPECIFICATIONS

When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. Check correct pressure
when the tyres are cold.
With snow tyres, add +0.2 bar to the prescribed pressure for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
163

SNOW CHAINS
47)
The use of snow chains should be in
compliance with local regulations. The
snow chains may be applied only onto the
front wheel (drive wheels).
Check the tension of the snow chains
after the first few metres have been
driven.
Use low-clearance snow chains: for tyres
185/65 R15 88H (where provided),
195/55 R16 and 205/55 R16, use
low-clearance snow chains with a
maximum projection beyond the tyre
profile of 9 mm.
IMPORTANT The space-saver wheel
cannot be fitted with snow chains. If a
front (drive) wheel is punctured and snow
chains must be used, you must remove a
normal wheel from the rear axle and
replace it with the space-saver wheel. In
this way, with two normal drive wheels, it
is possible to use snow chains.
WARNING
146)The maximum speed for snow tyres
marked “Q” is 160 km/h, while it is 190 km/h
for “T” tyres and 210 km/h for "H" tyres. The
highway code speed limits must however
always be complied with.147)DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs) to the
steel rim and after sale tyres provided with
Rim Protector. Use of unsuitable tyres and
wheel caps may cause sudden decrease of
tyre pressure.
IMPORTANT
47)Keep the vehicle's speed down when
snow chains are fitted; never exceed
50 km/h. Avoid potholes, steps and
pavements and avoid driving long distances
on roads not covered with snow to avoid
damaging the car and the roadbed.
164
TECHNICAL SPECIFICATIONS

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with vehicle
unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards) = 270 dm
3.Versions with LPG system= 247 dm3
A B C D E F (*) G H (*)
4063 904 2511 648 1446 1475 1720 1469
(*) Small variations in size are possible, depending on the dimensions of the rims and tyres.
131A0J0202C
165

WEIGHTS
Weights (kg) Turbo TwinAir 1.4-litre Petrol
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1130 1080
Payload including the driver
(*)480(**)/ 560(***)480(**)/ 560(***)
Maximum permitted loads(****)
– front axle 950 850
– rear axle 850 850
– total
1610
(**)/ 1690(***)1560(**)/ 1640(***)
Towable loads
– braked trailer 500 500
– trailer without brakes 400 400
Maximum load on roof 40 40
Maximum load on tow hitch (trailer with brakes) 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the
maximum permissible loads.
(**) 4-seater versions
(***) 5-seater versions
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum
permitted loads.
