The number identifying the electricalcomponent corresponding to each fuse is
shown on the back of the cover. After
replacing the fuse, make sure you close
cover 2 on the fuse box.
Dashboard fuse box
To access the fuses fig. 93 lower the flap
1 fig. 92, with a hand hold the cover 2 in
the area indicated in figure and remove it
operating in the sense indicated by the
arrow, in order to disengage internal
retainers 3 first, and then the tabs 4.
90A0J0126C
91A0J0417C92A0J0334C
93A0J0205C
111

94A0J0264C
95A0J0175C
112
IN AN EMERGENCY
Luggage compartment fuse box
To access the fuse box fig. 95 (located on
the left side of the luggage
compartment), open the relevant
inspection lid as illustrated in figure
fig. 94.

Engine compartment junction boxfig. 91
DEVICE PROTECTEDFUSE AMPERE
Ignition deviceF03 20
Passenger compartment fanF08 40
Additional heater (Turbo TwinAir and 1.3 JTD
M-2versions)F09 5
Two-tone hornF10 15
Main beam headlightsF14 15
Additional heater (PTC 1)F15 30
Air conditioning compressorF19 7.5
Heated rear windscreen, demisting system F20 30
Electric fuel pump in tankF21 15
Front fog lightsF30 15
Additional heater (PTC2)F81 60
Additional heater (PTC1)F82 50
Additional heater (PTC2)F82 40
FreeF83 –
HI-FI sound system (control units, Bassbox speaker) mechanical gearbox setup F84 20
Power socket on tunnelF85 15
Electric door mirror demisters / Demisters on windscreen jets / Relay switch coil for heated
windscreenF87 7.5
113

Dashboard fuse boxfig. 93
DEVICE PROTECTEDFUSE AMPERE
FreeF12 –
Headlamp alignment corrector F13 5
INT/A Engine compartment control unit relays F31 5
EOBD diagnosis plug supply /Uconnect
™/ Alarm buzz / Alarm volumetric sensors /
Electrofan / TPMS system / Electric mirror controls / Climate control system controlsF36 15
Brake light switch (NA) / Instrument panel node / Headlight alignment corrector F37 5
Doors and luggage compartment central locking F38 15
Windscreen/rear window washer pump F43 20
Electric window (driver side)F47 20
Electric window (passenger side) F48 20
Parking sensors / Control lighting / Electro-chrome mirror / Rain/dusk sensor / Sun roof /
TPMS system / Cigar lighter lighting / SBR system panelF49 5
Climate control system controls / Radio system configuration /
Bluetooth®/ Brake light
switch (NC) / Clutch switch / Reverse gear switch / Airflow meter (Diesel versions) / Water in
diesel filter sensor (Diesel versions)F51 5
Instrument panel nodeF53 5
114
IN AN EMERGENCY

Luggage compartment fuse boxfig. 95
DEVICE PROTECTEDFUSE AMPERE
Electric roof opening systemF1 20
Luggage compartment power socket F3 15
Front seat heatingF6 15
IMPORTANT
28)Never replace a fuse with metal wires or anything else.
29)If it is necessary to wash the engine compartment, take care not to directly hit the fuse box and the window wiper motors with the water jet.
WARNING
112)If a fuse blows again, contact an Alfa Romeo Dealership.
113)Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
114)If a general protective fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, contact an Alfa Romeo Dealership.
115)Before replacing a fuse, make sure that the ignition device is at STOP, that the key, if mechanical, has been removed and that all devices are
switched off and/or disconnected.
116)Contact an Alfa Romeo Dealership if a safety system (airbags, brakes), transmission system (engine, gearbox) or steering system general
protection fuse blows.
115

CHANGING A WHEEL
JACK
117) 118) 119) 120) 121) 122)
30) 31)
Please note that:
the jack weight is 1.76 kg;
the jack requires no adjustment;
the jack cannot be repaired and in the
event of a fault it must be replaced by
another genuine one;
no tool other than its cranking device
may be fitted on the jack.
Jack maintenance
prevent any dirt from depositing on
the "worm screw";
keep the "worm screw" lubricated;
never modify the jack.
Conditions in which not to use the jack
temperature below -40°C
o sandy or muddy ground
on uneven ground
on steep roads
in extreme weather conditions:
thunderstorms, typhoons, hurricanes,
blizzards, storms, etc.
in direct contact with the engine or for
repairs under the vehicle
on boats.Wheel replacement procedure
To change a wheel, proceed as follows:
stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground must be flat and sufficiently
compact;
switch off the engine, pull up the
handbrake and engage the 1stgear or
reverse. Wear the reflective safety jacket
(compulsory by law) before getting out of
the vehicle;
open the luggage compartment, lift
the mat using the tab provided 1 fig. 96;
unscrew locking device 1 fig. 97, take
toolbox 2 and bring it next to the wheel to
replace. Then take the space-saver wheel
3;
for versions with steel rims: insert
the screwdriver in the opening 1 fig. 98 in
order to trigger the hub cap retaining clip
2;
for versions with alloy rims: shake the
car to facilitate detachment of the rim
from the wheel hub. Some versions may
be fitted with alloy wheels with a hub cap
fig. 99. To remove the hub cap, insert the
screwdriver into housings 1 in order to
access the fixing bolts. Replace the wheel
as described previously;
96A0J0104C
97A0J0105C
116
IN AN EMERGENCY

take the wrench 1 fig. 100 and loosen
the fixing bolts by about one turn;
position the jack under the car, near
the wheel to be changed. On versions
where this is fitted, be careful not to
damage the plastic aerodynamic guard;
operate the device 1 fig. 101 so as to
raise the jack, until the upper part 2
fig. 102 is correctly inserted in the side
member 3 at the point indicated by the
arrow
;
alert any bystander that the vehicle is
about to be raised; all persons should be
kept away from the vehicle and nobody
must touch it until it has been lowered;
fit handle 4 fig. 101 into the housing in
device 1, operate the jack and raise the
vehicle until the wheel is a few
centimetres from the ground;
make sure the contact surfaces
between space-saver wheel and hub are
clean so that the fastening bolts will not
come loose;
fit the space-saver wheel by inserting
the first bolt for two threads into the hole
closest to the valve;
take the wrench 1 fig. 100 and fully
tighten the fixing bolts;
operate the jack handle 4 fig. 101 to
lower the car. Then extract the jack;
use the wrench 1 provided to fully
tighten the bolts in a criss-cross fashion
as per the numerical sequence illustrated
in fig. 103;
when replacing an alloy wheel it is
advisable to place it upside down, with
the aesthetic part facing upwards.
98A0J0236C
99A0J0238C
100A0J0106C
101A0J0062C
102A0J0061C
117

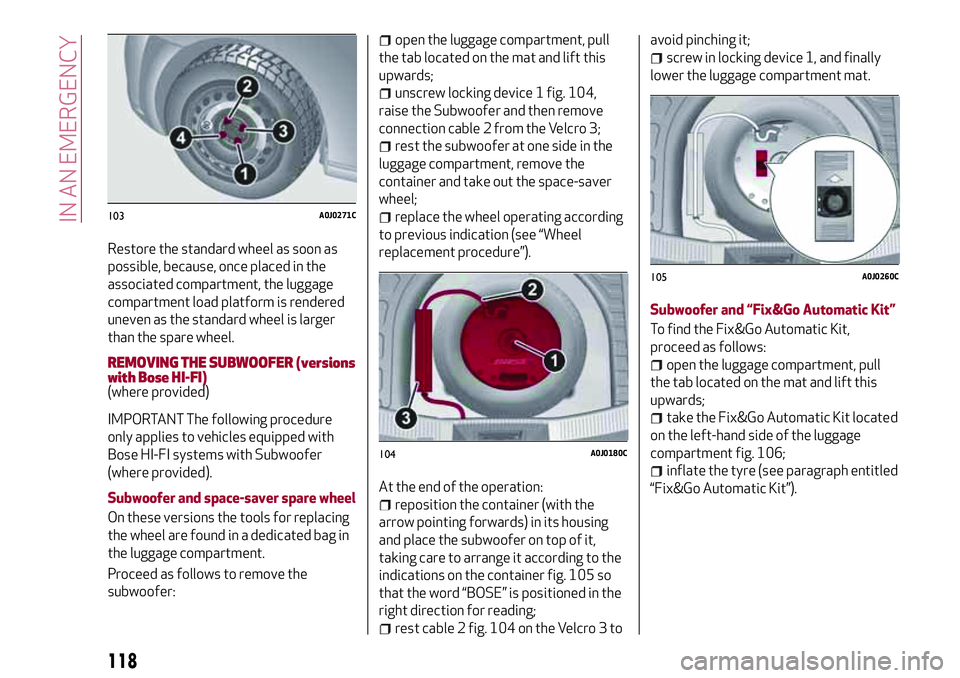

Restore the standard wheel as soon as
possible, because, once placed in the
associated compartment, the luggage
compartment load platform is rendered
uneven as the standard wheel is larger
than the spare wheel.
REMOVING THE SUBWOOFER (versions
with Bose HI-FI)
(where provided)
IMPORTANT The following procedure
only applies to vehicles equipped with
Bose HI-FI systems with Subwoofer
(where provided).
Subwoofer and space-saver spare wheel
On these versions the tools for replacing
the wheel are found in a dedicated bag in
the luggage compartment.
Proceed as follows to remove the
subwoofer:
open the luggage compartment, pull
the tab located on the mat and lift this
upwards;
unscrew locking device 1 fig. 104,
raise the Subwoofer and then remove
connection cable 2 from the Velcro 3;
rest the subwoofer at one side in the
luggage compartment, remove the
container and take out the space-saver
wheel;
replace the wheel operating according
to previous indication (see “Wheel
replacement procedure”).
At the end of the operation:
reposition the container (with the
arrow pointing forwards) in its housing
and place the subwoofer on top of it,
taking care to arrange it according to the
indications on the container fig. 105 so
that the word “BOSE” is positioned in the
right direction for reading;
rest cable 2 fig. 104 on the Velcro 3 toavoid pinching it;
screw in locking device 1, and finally
lower the luggage compartment mat.
Subwoofer and “Fix&Go Automatic Kit”
To find the Fix&Go Automatic Kit,
proceed as follows:
open the luggage compartment, pull
the tab located on the mat and lift this
upwards;
take the Fix&Go Automatic Kit located
on the left-hand side of the luggage
compartment fig. 106;
inflate the tyre (see paragraph entitled
“Fix&Go Automatic Kit”).
103A0J0271C
104A0J0180C
105A0J0260C
118
