2020 PEUGEOT PARTNER TEPEE glove box

54
Centre storage console
This console offers a considerable additional
storage space: it is removable, and is clipped
on a base that also incorporates two cup
holders in the back.
Make sure that the object (bottle, can, etc.) in
the cup holder is held securely and does not
present a risk of falling while driving.
Any liquid which could spill risks damage on
contact with the controls in the dashboard and
centre console.
Ta k e c a r e .
Front fittings
1.Lower glove box (with or without lid).
Upper glove box
This is located in the dashboard, behind the
steering wheel.
A cut-out makes it easier to raise the cover to
open it. Guide it to its stop position.
To close it, guide the cover then press the
centre gently.
Any liquid which could spill risks causing an
electrical short circuit and therefore a potential
fire.
Never drive with the glove box open when
a passenger is sitting at the front. It may
cause injury during sharp deceleration. 2.
Storage tray and bottle holder (1.5 L).
3. Side storage.
4. Bag hook.
Only flexible bags which are not too heavy
can be hung on this hook.
Ease of use and comfort

55

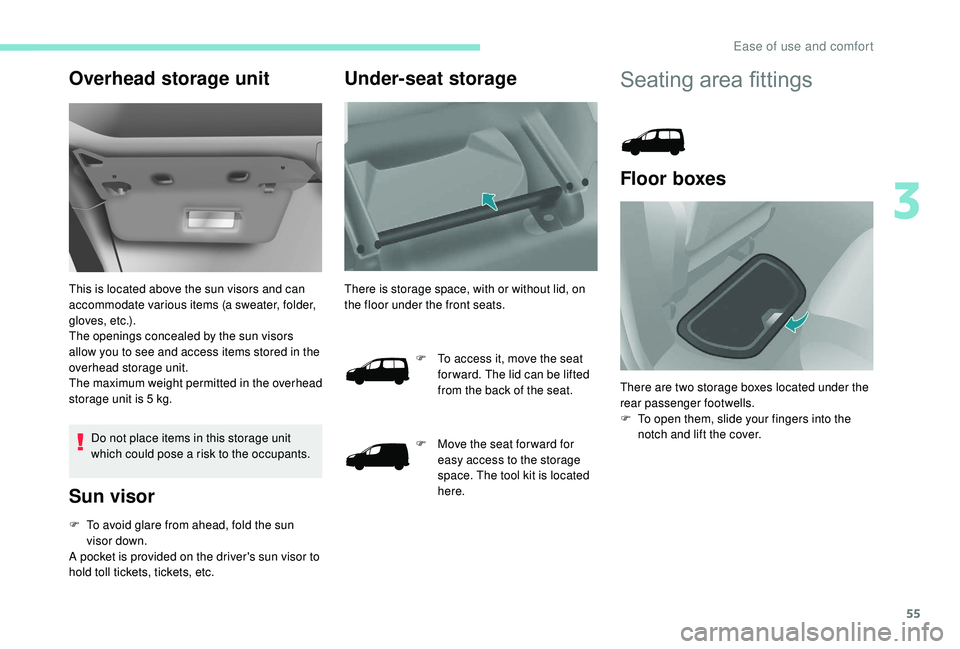

Overhead storage unit
This is located above the sun visors and can
accommodate various items (a sweater, folder,
gloves, etc.).
The openings concealed by the sun visors
allow you to see and access items stored in the
overhead storage unit.
The maximum weight permitted in the overhead
storage unit is 5 kg.
Do not place items in this storage unit
which could pose a risk to the occupants.
Sun visor
F To avoid glare from ahead, fold the sun visor down.
A pocket is provided on the driver's sun visor to
hold toll tickets, tickets, etc.
Under-seat storage
There is storage space, with or without lid, on
the floor under the front seats.
F

T
o access it, move the seat
for ward. The lid can be lifted
from the back of the seat.
F

M
ove the seat for ward for
easy access to the storage
space. The tool kit is located
here.
Seating area fittings
Floor boxes
There are two storage boxes located under the
rear passenger footwells.
F

T
o open them, slide your fingers into the
notch and lift the cover.
3
Ease of use and comfort

68
Manual operation
If you wish, you can make a different choice
from that offered by the system by changing a
setting. The other functions are still managed
automatically. Pressing the AUTO button
returns the system to full automatic operation.
Air distribution
Press this button repeatedly to direct
the air flow towards:
-
t

he windscreen,
-

t

he windscreen and the footwells,
-

t

he footwells,
-

t

he side vents, central vents and footwells,
-

t

he side vents and central vents,
Air flow
F Press the small fan button to
reduce air flow or the large fan
button to increase air flow.
The fan blades fill up in the screen, as the flow
rate increases.
Deactivating the system
F Press the small fan air flow
button until the fan symbol
disappears from the screen.
This will deactivate all system functions except
air recirculation and rear screen defrost (if your
vehicle is so equipped). Your comfort setting is
no longer maintained and disappears from the
screen.
For your comfort, avoid staying in the
deactivated position. Pressing the large fan button or the
AUTO button again reactivates the
system with the values set before
the deactivation.
Intake of exterior air/
Recirculation of interior air
F Press this button to recirculate the interior air. The recirculation
symbol is displayed.
Recirculation temporarily prevents exterior
odours and smoke from entering the passenger
compartment. Avoid prolonged operation in
interior air recirculation mode (risk of misting,
odour and humidity).
Pressing this button again activates the intake
of exterior air.
Air conditioning On/Off
F Once this button is pressed, the A/C symbol will be displayed
and the air conditioning
activated.
Pressing this button again stops cooling of the air.
The ventilation outlet located in the
glove box diffuses fresh air (if the air
conditioning is activated), regardless
of the temperature setting in the
passenger compartment and the exterior
temperature.
Ease of use and comfort

176
GGearbox, automatic ..............................108 -109
Gearbox, electronic .......................10 6 -107, 11 0
Gearbox, manual


...........105 -10 6 , 108 -110 , 140
Gearbox, manual (reverse gear) ...........105 -10 6
Gear lever, manual gearbox


.........................105
Gear shift indicator ~ Gear efficiency indicator


...............................16, 108
Glove box
........................................................ 55
Grip control
............................................... 80 - 81
HHeadlamps, dipped beam ...............................71
Headlamps, main beam ............................16, 71
Head restraints .......................................... 38-39
Hill start assist
............................................... 111
IIdentification.................................................. 174
Immobiliser, electronic ....................................27
Indicator lamps, operation
................................ 8
I

nstrument panel

............................................... 7
Instruments and controls
..................................4
JJack ............................... ....................................9
KKey .................................................................. 27
Kit, hands-free ................................... 1
4 -16, 6-8
Kit, temporary puncture repair
...................... 14

3
LLevels ............................................................ 13 6
Levels and checks .............................. ...13 6 -13 9
Lighting


............................................................ 71
Lighting, directional


......................................... 73
Locking
...............................

.............................27
Low fuel level

................................................ 12

6
MMenu, main .......................................................2
M irror, rear view .............................................. 38
Mirrors, door .................................................... 37
Mountings, ISOFIX


......................................... 98
MP3 CD
............................................................. 5
NNet ............................................................. 62- 63
OOil, engine ..................................................... 13 6
Opening the bonnet ...................................... 13 5
Overhead storage
........................................... 55
PPads, brake ........................................... 13 8, 140
Parcel shelf, rear ............................................. 60
Parking brake


.......................... 10, 105 , 13 8, 140
Plates, identification ...................................... 174
Player, Apple
® ............................................. 11, 6
Player, MP3 CD ............................... ..............5-6
Player, USB

................................................... 9, 4
Port, USB

...................................................... 9, 4
Pressures, tyres


............................................ 174
Pre-tensioning seat belts ................................84
Priming the fuel system ................................160
Protecting children


......................89-90, 99, 101
RRadio ................................................... 7- 8, 10 , 3
Radio, digital (Digital Audio Broadcasting - DAB)

...................................8

-9
Range, AdBlue


.......................................... 13, 21
RDS
................

................................................... 8
Reinitialisation of the under- inflation detection system


...........................114
Reinitialising the electric windows
.................. 36
R

emote control

.......................................... 25 -27
Replacing bulbs
..................................... 1

4 9 -15 0
Replacing the oil filter
................................... 13

9
Reversing camera
...............................

..........124
Risk areas (update)
........................................... 5
Roof bars


................................................13 3 -13 4
Running out of fuel (Diesel)
..........................160
SSafety, children ........................... 89-90, 99, 101
SCR (Selective Catalytic Reduction) ............140
Screen, monochrome


....................................... 2
Screenwash fluid


.......................................... 13 6
Seat, rear bench


....................................... 42- 43
Seat belts


............................................ 83-84, 94
Seats, front
...............................

.................3 8 - 41
Seats, front bench


..................................... 4 0 - 41
Seats, heated


.................................................. 39
Seats, rear


................................................. 43-50
Settings, system


.............................................. 12
Shield, snow
.................................................. 13

0
Sidelamps
....................................................... 71
S

now chains

.................................................. 12 9
Alphabetical index
