PARTNER Tepee
PARTNER
HANDBOOK

Access to the Handbook
From the appropriate Store, download the Scan
MyPeugeot APP application for smartphone.
Direct access to the Handbook.
The Handbook
is available on the PEUGEOT website,
in the "Personal space" section or at the following
address:
http://public.servicebox.peugeot.com/ddb/
Then select:
-

t

he vehicle,
-

t

he print edition appropriate for the date of 1
st registration of your
vehicle.
Download the content of the vehicle's Handbook .Select:
-
t

he language,
-
t
he vehicle, its body style,
-
t
he print edition of your handbook appropriate for the date of 1
st
registration of your vehicle.
This symbol indicates the latest information
available.

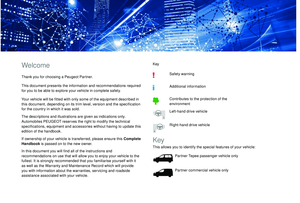

Welcome
Thank you for choosing a Peugeot Partner.
This document presents the information and recommendations required
for you to be able to explore your vehicle in complete safety.
Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.
The descriptions and illustrations are given as indications only.
Automobiles PEUGEOT reser ves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.
If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner.
In this document you will find all of the instructions and
recommendations on use that will allow you to enjoy your vehicle to the
fullest. It is strongly recommended that you familiarise yourself with it
as well as the Warranty and Maintenance Record which will provide
you with information about the warranties, ser vicing and roadside
assistance associated with your vehicle. Key
Safety warning
Additional information
Contributes to the protection of the
environment
Left-hand drive vehicle
Right-hand drive vehicle
Key
This allows you to identify the special features of your vehicle: Partner Tepee passenger vehicle only
Partner commercial vehicle only

2
.
.

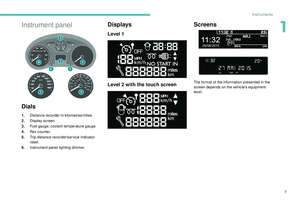

Instrument panel 7

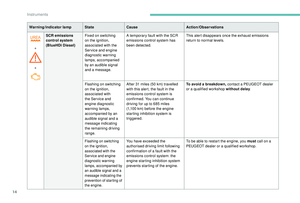

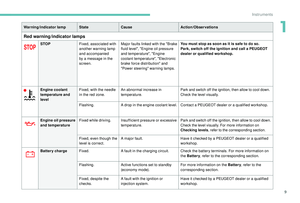

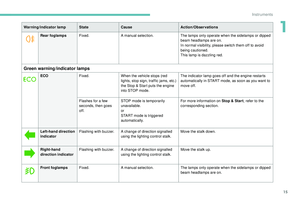

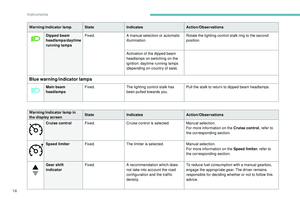

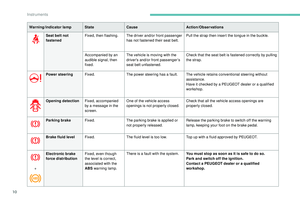

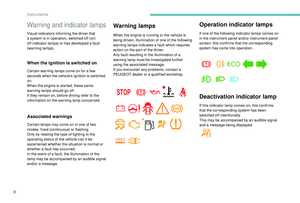

W arning and indicator lamps 8

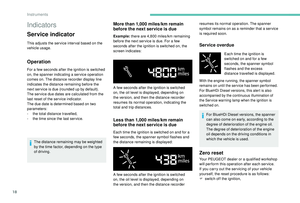

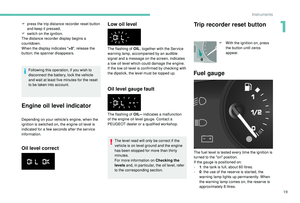

I
ndic ators

18

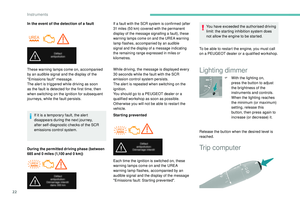

Lighting dimmer

2
2

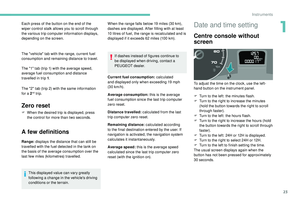

Trip computer

2
2

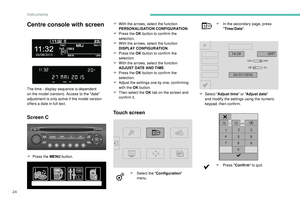

Date and time setting

2
3
Instruments and controls

4
K
ey

25

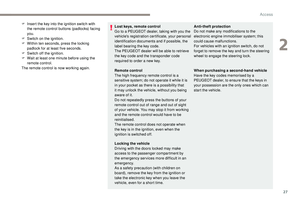

Remote control

2
5

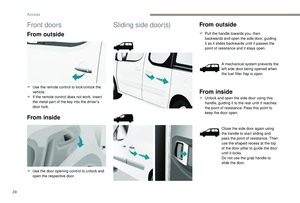

Front doors

2
8
Sliding side door(s)

2
8
Operation in the event of a battery failure

2
9
Tailgate


29

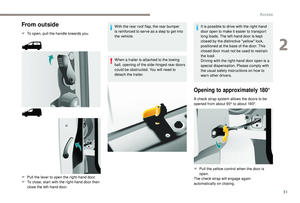

Side-hinged rear doors

3
0

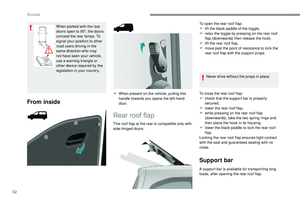

Rear roof flap

3
2
Central locking

3
3

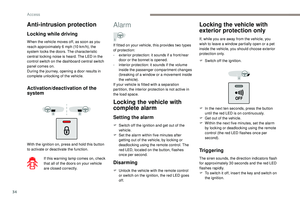

Alarm


34
Rear windows
3

5
Electric windows

3

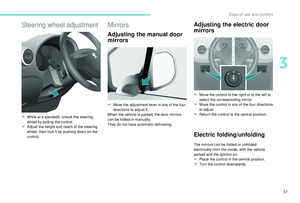

5Steering wheel adjustment
3

7

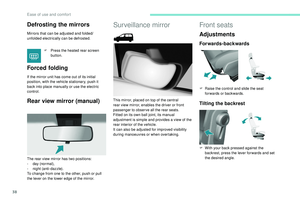

Mirrors

37
Surveillance mirror
3
8

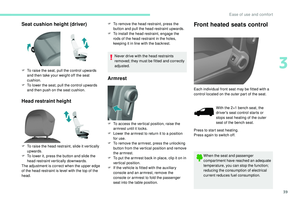

Front seats
3
8
Individual passenger seat
4
0

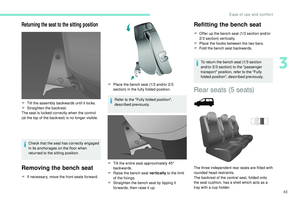

Multi-Flex bench seat
4
0

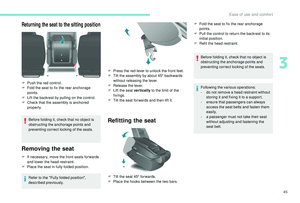

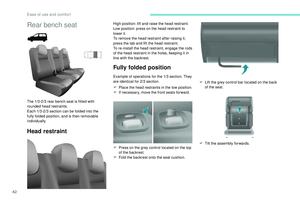

Rear bench seat
4
2
Rear seats (5 seats) 4 3

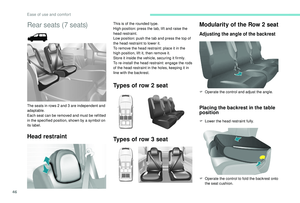

Rear seats (7 seats) 4 6

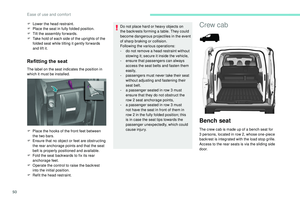

Crew cab

5
0
Seat modularity and configurations

5
2

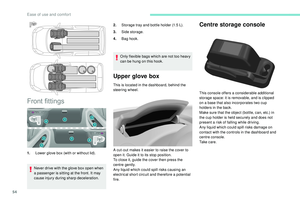

Front fittings

5
4

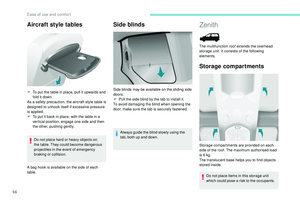

Seating area fittings

5
5
Zenith


56

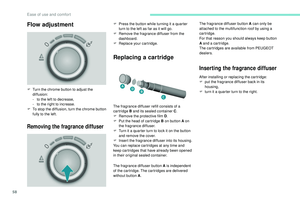

Fragrance diffuser
5

7

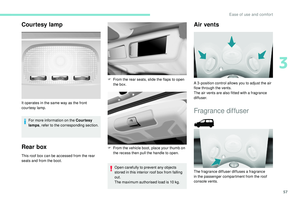

Courtesy lamps

5
9
Rear fittings (5 seats)

6
0
Rear fittings (7 seats)

6
1

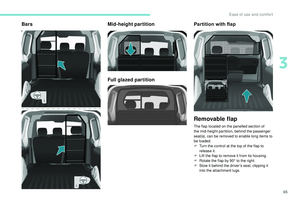

Load space layout

6
4

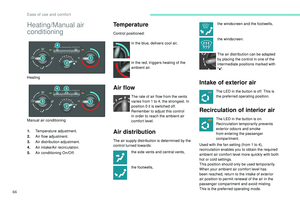

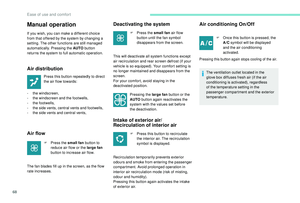

Heating/Manual air conditioning
6

6

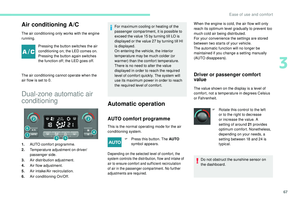

Dual-zone automatic air conditioning
6

7
Recommendations for ventilation
and air conditioning
6

9

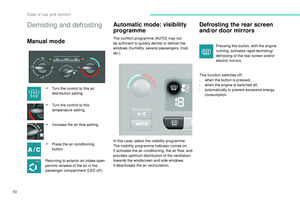

Demisting and defrosting
7

0Lighting control stalk

7
1
Automatic illumination of headlamps
7
2
LED daytime running lamps
7
2
Guide-me-home lighting
7
2

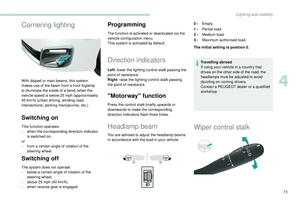

Cornering lighting
7
3
Direction indicators
7
3
Headlamp beam
7
3
Wiper control stalk 7 3

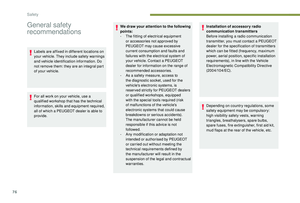

General safety recommendations
7
6
Hazard warning lamps
7

7
Horn
77
Emergency or assistance call
7

7

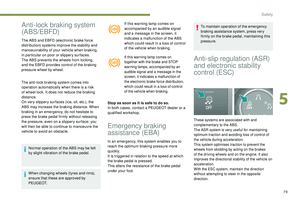

Anti-lock braking system (ABS/EBFD)

7
9
Emergency braking assistance (EBA)
7

9
Anti-slip regulation (ASR) and electronic
stability control (ESC)

7
9

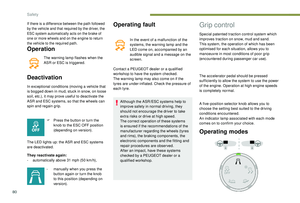

Grip control

8
0
Seat belts
8

2

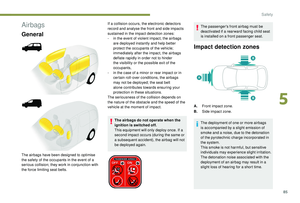

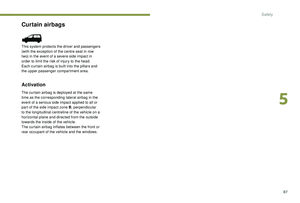

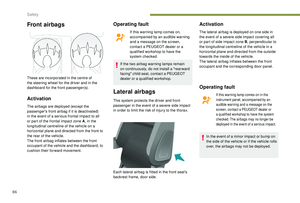

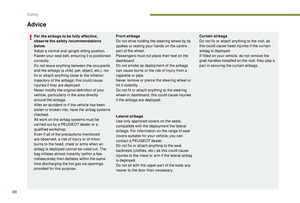

Airbags


85

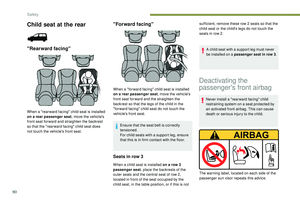

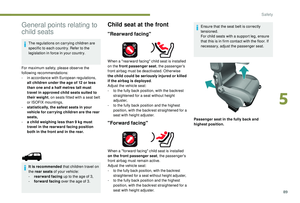

Child seats

8
9

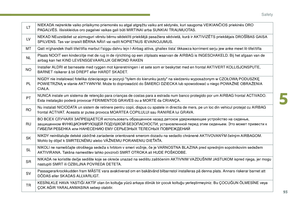

Deactivating the passenger's front airbag
9

0
Reactivating the passenger's front airbag
9

1

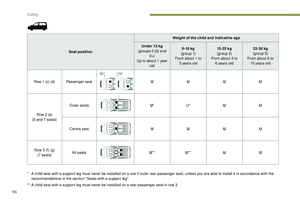

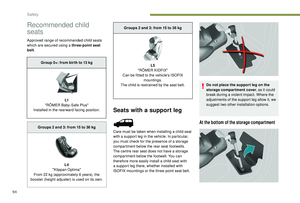

Recommended child seats
9

4

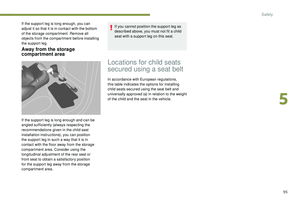

Locations for child seats secured using
a seat belt

9
5

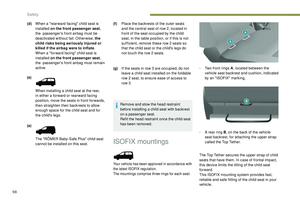

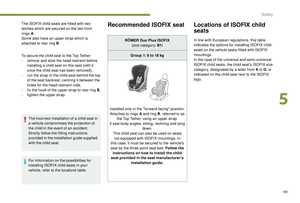

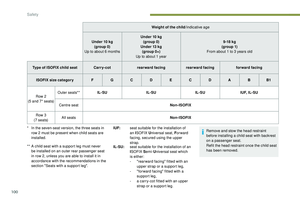

ISOFIX mountings and child seats
9

8

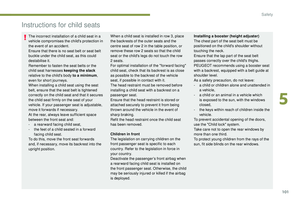

Instructions for child seats

1
01

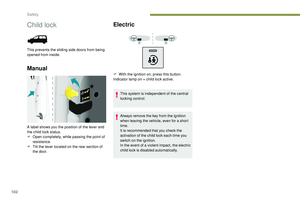

Child lock

1
02
Over view
Instruments
Access Ease of use and comfort
Safety
Lighting and visibility
Eco-driving
Contents

3
.
.

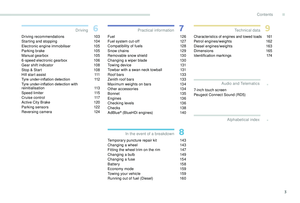

Driving recommendations 103
Starting and stopping 1 04

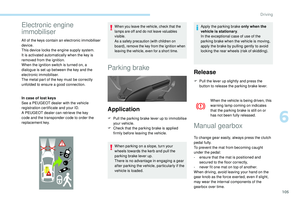

Electronic engine immobiliser
1

05
Parking brake

1
05
Manual gearbox
1

05

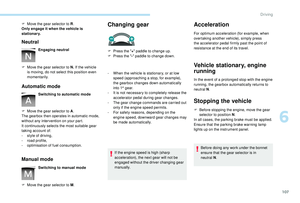

6-speed electronic gearbox
1

06

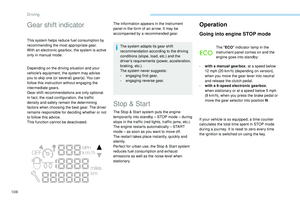

Gear shift indicator

1
08

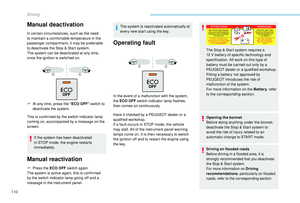

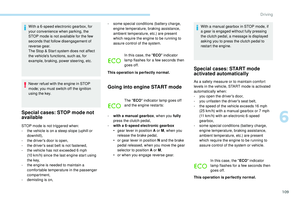

Stop & Start

1
08

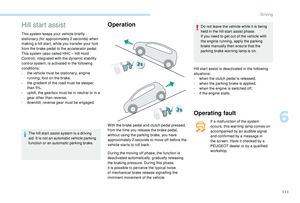

Hill start assist

1
11

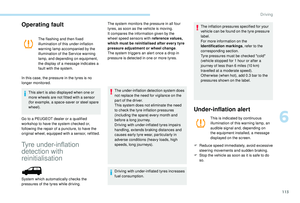

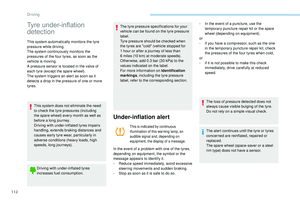

Tyre under-inflation detection

1
12

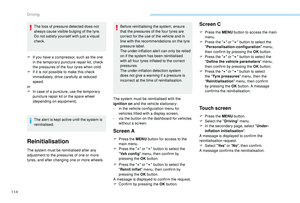

Tyre under-inflation detection with
reinitialisation


113

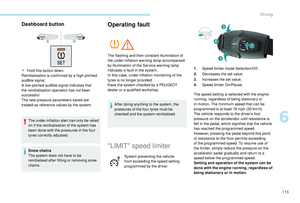

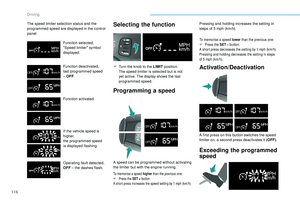

Speed limiter
1

15

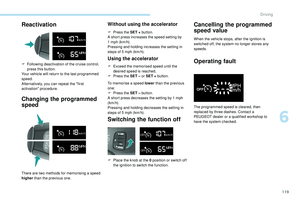

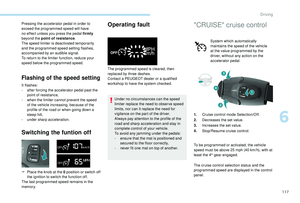

Cruise control

1
17

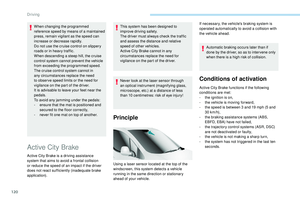

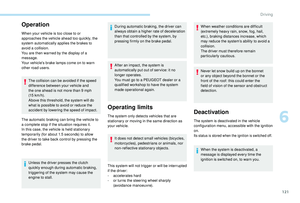

Active City Brake

1
20
Parking sensors
1

22
Reversing camera
1

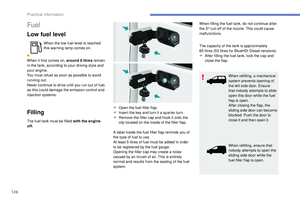

24Fuel 1
26

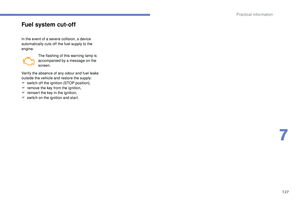

Fuel system cut-off 1 27
Compatibility of fuels
1

28
Snow chains

1
29

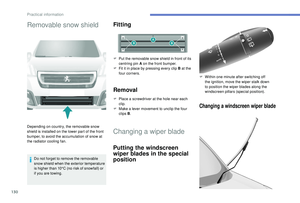

Removable snow shield

1
30
Changing a wiper blade
1

30
Towing device

1
31

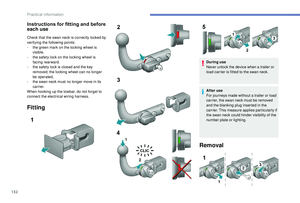

Towbar with a swan neck towball

1
31
Roof bars

1
33
Zenith roof bars

1
33
Maximum weights on bars

1
34
Other accessories
1

34

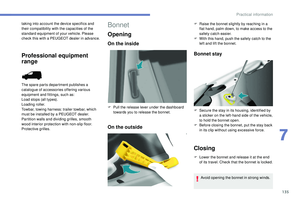

Bonnet


13 5
Engines
1

36
Checking levels

1
36
Chec ks


13 8

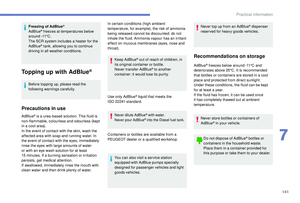

AdBlue
® (BlueHDi engines) 1 40
Temporary puncture repair kit
1
43

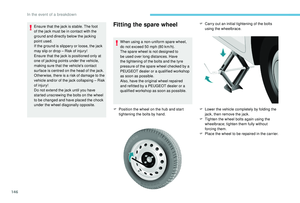

Changing a wheel
1

43
Fitting the wheel trim on the rim

1
47

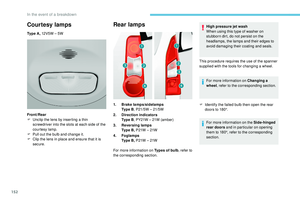

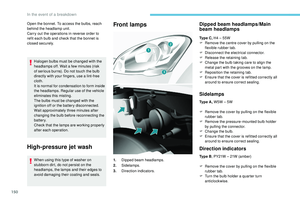

Changing a bulb
1

49

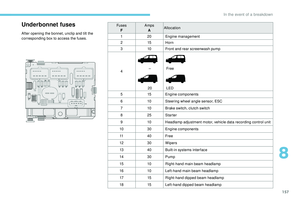

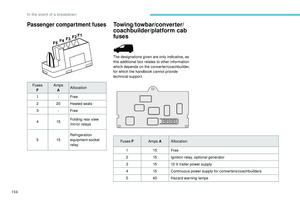

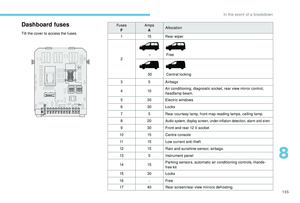

Changing a fuse
1

54

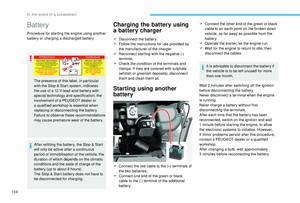

Battery


158
Economy mode

1
59
Towing your vehicle

1
59

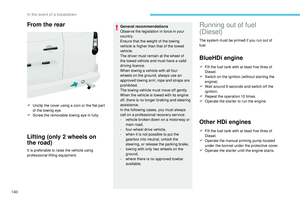

Running out of fuel (Diesel)

1
60

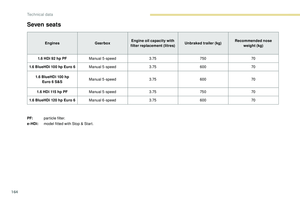

Characteristics of engines and towed loads 1 61Petrol engines/weights 162
Diesel engines/weights 1 63

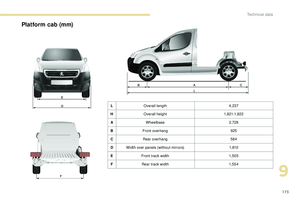

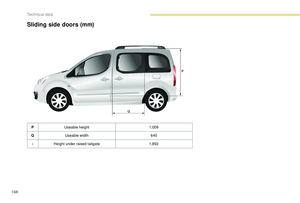

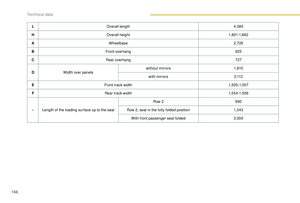

Dimensions


165

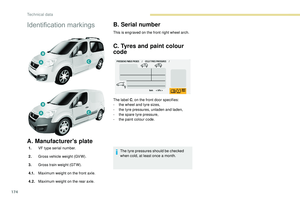

Identification markings
1

74
DrivingPractical information
In the event of a breakdown Technical data

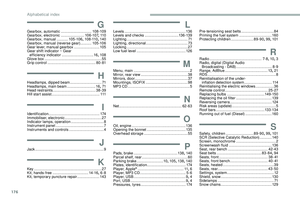

Alphabetical index
Audio and Telematics

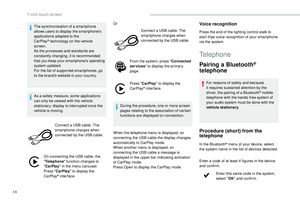

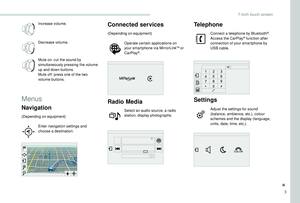

7-inch touch screen

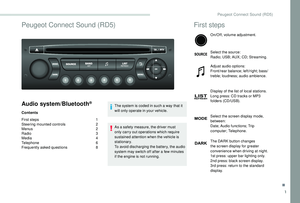

Peugeot Connect Sound (RD5)
.
Contents

4

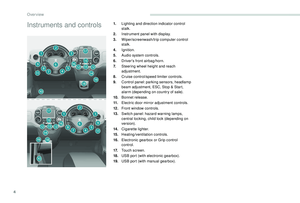

Instruments and controls1.Lighting and direction indicator control
stalk.
2. Instrument panel with display.
3. Wiper/screenwash/trip computer control
stalk.
4. Ignition.
5. Audio system controls.
6. Driver's front airbag/horn.
7. Steering wheel height and reach
adjustment.
8. Cruise control/speed limiter controls.
9. Control panel: parking sensors, headlamp
beam adjustment, ESC, Stop & Start,
alarm (depending on country of sale).
10. Bonnet release.
11. Electric door mirror adjustment controls.
12 . Front window controls.
13. Switch panel: hazard warning lamps,
central locking, child lock (depending on
ve r s i o n).
14 . Cigarette lighter.
15. Heating/ventilation controls.
16. Electronic gearbox or Grip control
control.
17. Touch screen.
18. USB port (with electronic gearbox).
19. USB port (with manual gearbox).
Over view

5
As a passenger, if you avoid connecting your
multimedia devices (film, music, video game,
etc.), you will contribute towards limiting
the consumption of electrical energy and
therefore of fuel.
Disconnect your portable devices before
leaving the vehicle.

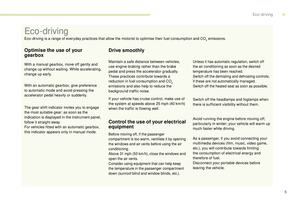

Eco- driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently and
change up without waiting. While accelerating,
change up early.
With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear shift indicator invites you to engage
the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the brake
pedal and press the accelerator gradually.
These practices contribute towards a
reduction in fuel consumption and CO
2
emissions and also help to reduce the
background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25

mph (40 km/h)
when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by opening
the windows and air vents before using the air
conditioning.
Above 31
mph (50 km/h), close the windows and
open the air vents.
Consider using equipment that can help keep
the temperature in the passenger compartment
down (sunroof blind and window blinds, etc.).
Switch off the headlamps and foglamps when
there is sufficient visibility without them.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached.
Switch off the demisting and defrosting controls,
if these are not automatically managed.
Switch off the heated seat as soon as possible.
.
.
Eco-drivingsommaire

6

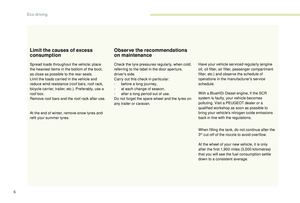

Limit the causes of excess
consumption
Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer, etc.). Preferably, use a
roof box.
Remove roof bars and the roof rack after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Do not forget the spare wheel and the tyres on
any trailer or caravan. Have your vehicle ser viced regularly (engine
oil, oil filter, air filter, passenger compartment
filter, etc.) and obser ve the schedule of
operations in the manufacturer's service
schedule.
When filling the tank, do not continue after the
3
rd cut-off of the nozzle to avoid over flow.
At the wheel of your new vehicle, it is only
after the first 1,900
miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a consistent average. With a BlueHDi Diesel engine, if the SCR
system is faulty, your vehicle becomes
polluting. Visit a PEUGEOT dealer or a
qualified workshop as soon as possible to
bring your vehicle’s nitrogen oxide emissions
back in line with the regulations.
Eco-driving
