2020 MERCEDES-BENZ CLS COUPE Owners Manual

Av
oid direct sunlight &
WARNING Risk of bu rns when thech ild
seat is exposed todirect sunlight
If th ech ild restra int sy stem is exposed to
direct sunlight or heat, parts could heat up.
Children could suf fer burns from these parts,
particularly on the me tallic parts of thech ild
re stra int sy stem. #
Alw ays make sure that thech ild
re stra int sy stem is not exposed to
direct sunlight. #
Protect thech ild restra int sy stem, e.g.
with a blank et. #
Ifth ech ild restra int sy stem has been
ex posed todirect sunlight, allow it to
cool before secu ring a child in it. #
Never lea vechildren unat tended in the
ve hicle. Obser
vewhen stopping or parking &
WARNING Risk of accident and inju ry
due tochildren left unat tended in the
ve hicle
If ch ildren are left unsupervised in theve hi‐
cle, they could, in pa rticular:
R open doors, thereby endangering other
persons or road users.
R get out and be stru ck byoncoming traf‐
fi c.
R ope rate ve hicle equipment and become
trapped, forex ample.
In addition, thech ildren could also set the
ve hicle in motion, forex ample by:
R releasing the parking brake.
R changing the transmission position.
R starting theve hicle. #
Never lea vechildren unat tended in the
ve hicle. #
When leaving theve hicle, alw aysta ke
th eke y with you and lock theve hicle. #
Keep theve hicle key out of reach of
ch ildren. &
WARNING Dangertolife due toexpo‐
sure toextreme heat or cold in theve hi‐
cle
If people, particularly children, are exposed
to extreme temp eratures over an extended
pe riod of time, there is a risk of serious
injury or danger tolife. #
Never lea vepersons, children in partic‐
ular, unat tended in theve hicle. Overview of
recommended child restra int
sy stems %
Further information on the cor rect child
re stra int sy stem can be obtained at a quali‐
fi ed specialist workshop. Mercedes-Benz
re commends that you use a Mercedes-Benz
Service Centre forth is purpose. 54
Occupant saf ety

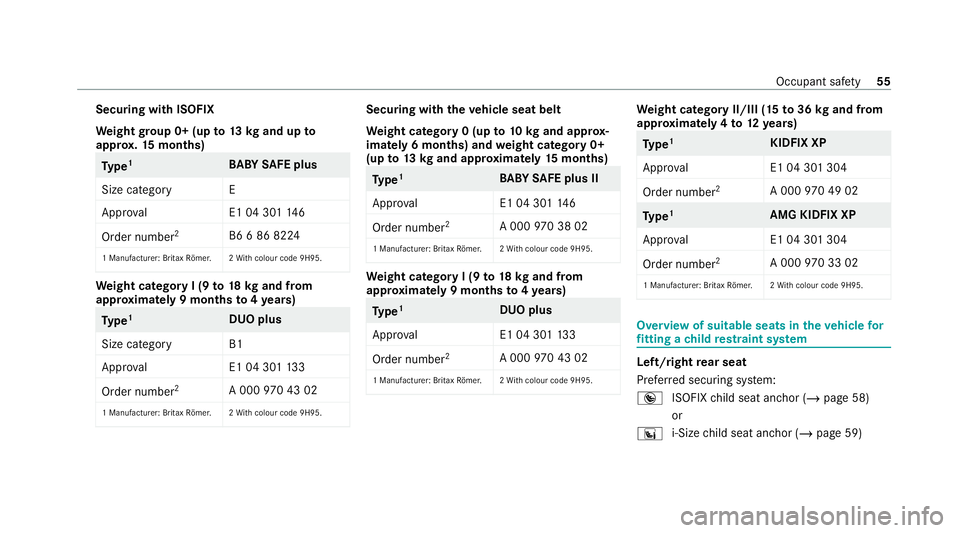

Securing with ISOFIX
We
ight group 0+ (up to13 kgand up to
appr ox.15 months) Ty
pe 1
BABY SAFE plus
Size categor yE
App rova lE 1 04 30114 6
Order number 2
B6 6 86 8224
1 Manufacturer: Britax Römer .2 With colour code 9H95. We
ight category I (9 to18 kgand from
appr oxima tely 9 months to4ye ars) Ty
pe 1
DUO plus
Size catego ry B1
Appr oval E1 04 30113 3
Order number 2
A 000970 43 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. Securing with th
eve hicle seat belt
We ight category 0 (up to10 kgand appr ox‐
ima tely 6 months) and weight category 0+
(up to13 kgand appr oxima tely 15 months) Ty
pe 1
BABY SAFE plus II
App rova lE 1 04 30114 6
Order number 2
A 000970 38 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. We
ight category I (9 to18 kgand from
appr oxima tely 9 months to4ye ars) Ty
pe 1
DUO plus
Appr oval E1 04 30113 3
Order number 2
A 000970 43 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. We
ight category II/III (15 to36 kgand from
appr oxima tely 4to 12 years) Ty
pe 1
KIDFIX XP
Appr oval E1 04 301 304
Order number 2
A 000970 49 02 Ty
pe 1
AMG KIDFIX XP
Appr oval E1 04 301 304
Order number 2
A 000970 33 02
1 Manu facturer: Britax Römer .2 With colour code 9H95. Overview of suitable seats in
theve hicle for
fi tting a child restra int sy stem Left/right
rear seat
Prefer red securing sy stem:
® ISOFIX child seat anchor (/ page 58)
or
° i-Sizechild seat anchor (/ page 59) Occupant saf
ety55

¯
Also secure TopTe ther if present
(/ page 61).
Alternative securing sy stem:
7 Ve
hicle seat belt (/ page 63)
Fr ont passenger seat
Securing sy stem:
7 Ve
hicle seat belt (/ page 63)
Be sure toobser ve:
R Ifth e front passenger seat is occupied,
ensure, bo thbefore and during the journe y,
th at thest atus of the front passenger airbag
is cor rect forth e cur rent situation
(/ page 47).
R Obser vethe no tes on automatic front
passenger airbag shutoff (/ page 45)
Centre rear seat
Securing sy stem:
7 Ve

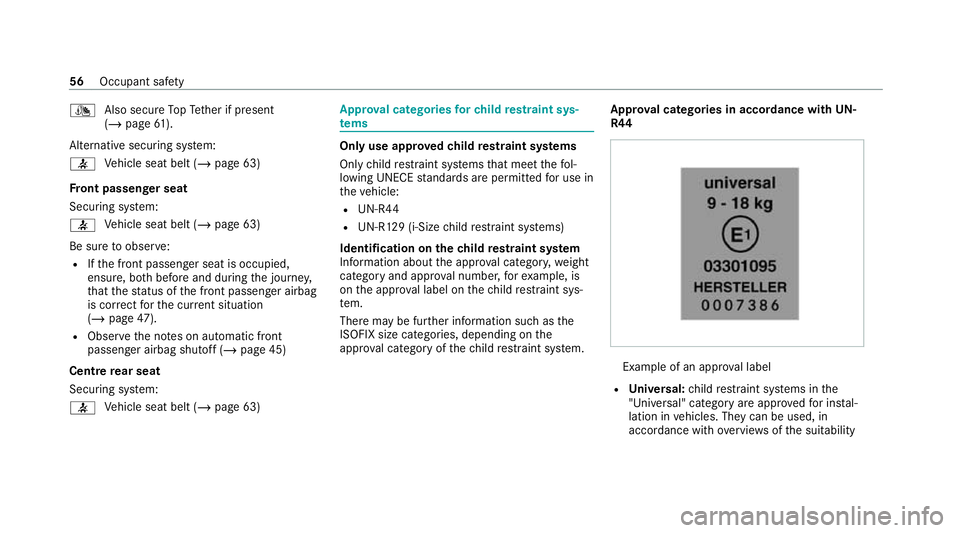

hicle seat belt (/ page 63) Appr
oval catego ries forch ild restra int sys‐
te ms On
lyuse appr ovedch ild restra int sy stems
Only child restra int sy stems that meet thefo l‐
lowing UNECE standards are permit tedfo r use in
th eve hicle:
R UN-R44
R UN-R129 (i-Size child restra int sy stems)
Identification on thech ild restra int sy stem
In fo rm ation about the appr oval categor y,we ight
category and appr oval number, forex ample, is
on the appr oval label on thech ild restra int sys‐
te m.
There may be fur ther information such as the
ISOFIX size categories, depending on the
appr oval category of thech ild restra int sy stem. Appr
oval catego ries in accordance with UN-
R44 Example of an appr
oval label
R Universal: child restra int sy stems in the
"Universal" category are appr oved for ins tal‐
lation in vehicles. They can be used, in

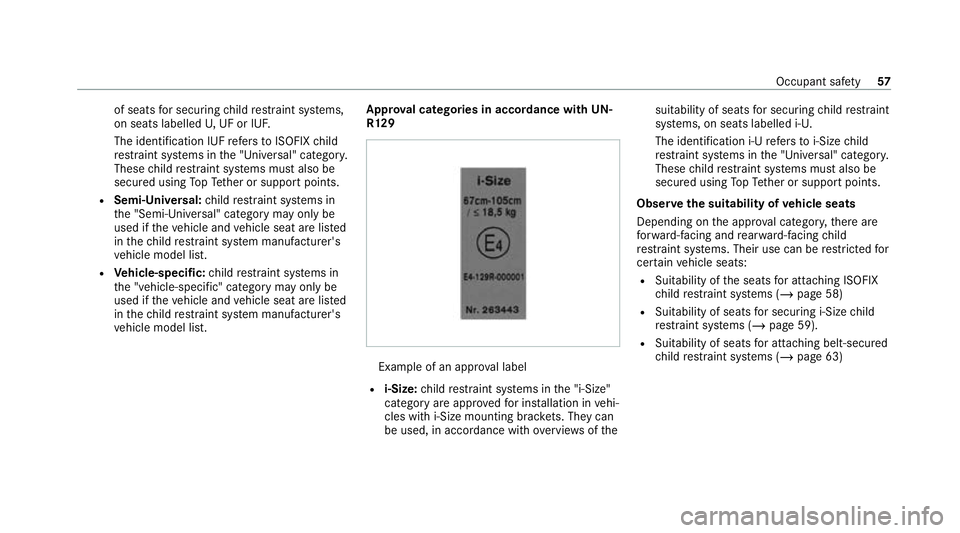

accordance with overviews ofthe suitability 56
Occupant saf ety

of seats
for securing child restra int sy stems,
on seats labelled U,UF or IUF.
The identification IUF refers to ISOFIX child
re stra int sy stems in the "Universal" categor y.
These child restra int sy stems must also be
secured using TopTe ther or support points.
R Semi-Universal: child restra int sy stems in
th e "Semi-Universal" category may only be
used if theve hicle and vehicle seat are lis ted
in thech ild restra int sy stem manufacturer's
ve hicle model list.
R Vehicle-specific: child restra int sy stems in
th e "vehicle-specific" category may only be
used if theve hicle and vehicle seat are lis ted
in thech ild restra int sy stem manufacturer's
ve hicle model list. Appr
oval catego ries in accordance with UN-
R129 Example of an appr
oval label
R i‑Size: child restra int sy stems in the "i‑Size"
category are appr ovedfo r ins tallation in vehi‐
cles with i‑Size mounting brac kets. They can
be used, in accordance wi thove rviews ofthe suitability of seats
for securing child restra int
sy stems, on seats labelled i‑U.
The identification i‑U refers to i‑Size child
re stra int sy stems in the "Universal" categor y.
These child restra int sy stems must also be
secured using TopTe ther or support points.
Obser vethe suitability of vehicle seats
Depending on the appr oval categor y,there are
fo rw ard-facing and rear wa rd-facing child
re stra int sy stems. Their use can be restricted for
cer tain vehicle seats:
R Suitability of the seats for attaching ISOFIX
ch ild restra int sy stems (/ page 58)
R Suitability of seats for securing i‑Size child
re stra int sy stems (/ page 59).
R Suitability of seats for attaching belt-secu red
ch ild restra int sy stems (/ page 63) Occupant saf
ety57

Fi
tting an ISOFIX or i-Size child restra int sys‐
te m on the rear seat Overview of suitability of
the seats for
attaching ISOFIX child restra int sy stems
ISOFIX is a standardised securing sy stem for
specially designed restra int sy stems.
® The symbol indicates seats suitable for
attaching an ISOFIX child restra int sy stem
in accordance with UN R44 (/ page 56).
At tach only child restra int sy stems that
are appr oved in accordance with UN R44
as per thefo llowing ISOFIX tables.
Car rycot Size class –
Equipment
Left/right
rear seat
F – ISO/L1 X
G – ISO/L2 X
X Not sui table for an ISOFIX child restrai nt sy stem in this we ight
group and/or size class. We
ight group 0 (up to10 kgand up to
appr ox. 6 months) Size class –
Equipment
Le
ft/right rear seat
E – ISO/R1 IL
IL Suitable for ISOFIX child restra int sy stems according tothe
ta ble in "Overview of there commended child restra int sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list. We
ight group 0+ (up to13 kgand up to
appr ox.15 months) Size class –
Equipment
Le
ft/right rear seat
E – ISO/R1 IL
D – ISO/R2 IL Size class –
Equipment
Left
/right rear seat
C – ISO/R3 IL (1) IL Suitable for ISOFIX child restrai nt sy stems according tothe
ta ble in "Overview of there commended child restrai nt sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list.
(1) When using a child restra int sy stem of size class (ISO/R3),
mo vethe front seat into the highest position. Make sure that the
seat backrest of the front seat does not rest against thech ild
re strai nt sy stem. We
ight group 1 (9–18 kgand appr ox. 9
months to4ye ars) Size class –
Equipment
Left
/right rear seat
D – ISO/R2 IL
C – ISO/R3 IL (1)

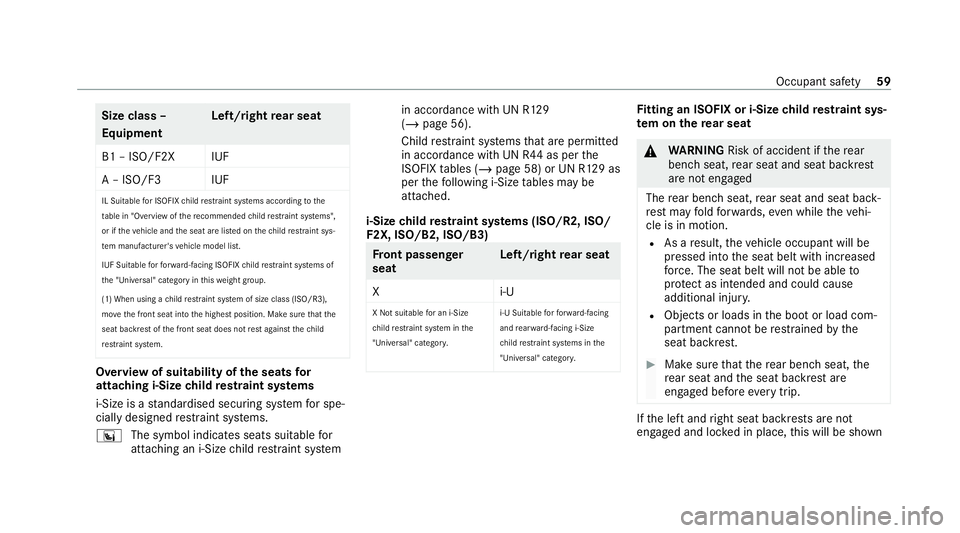

B – ISO/F2 IUF 58
Occupant saf ety

Size class –
Equipment
Left/right
rear seat
B1 – ISO/F2X IUF
A – ISO/F3 IUF
IL Suitable for ISOFIX child restra int sy stems according tothe
ta ble in "Overview of there commended child restra int sy stems",
or if theve hicle and the seat are lis ted on thech ild restrai nt sys‐
te m manufacturer's vehicle model list.
IUF Suitable forfo rw ard-facing ISOFIX child restra int sy stems of
th e "Universal" category in this we ight group.
(1) When using a child restrai nt sy stem of size class (ISO/R3),
mo vethe front seat into the highest position. Make sure that the
seat backrest of the front seat does not rest against thech ild
re stra int sy stem. Overview of suitability of
the seats for
attaching i‑Size child restra int sy stems
i‑Size is a standardised securing sy stem for spe‐
cially designed restra int sy stems.
° The symbol indicates seats suitable for
attaching an i‑Size child restra int sy stem in accordance with UN R129
(/
page 56).
Child restra int sy stems that are permit ted
in accordance with UN R44 as per the
ISOFIX tables (/ page 58) or UN R129 as
per thefo llowing i‑Size tables may be
attached.
i‑Size child restra int sy stems (ISO/R2, ISO/
F2X, ISO/B2, ISO/B3) Fr
ont passenger
seat Left/right
rear seat
Xi ‑U
X Not suitable for an i-Size
ch ild restrai nt sy stem in the
"Universal" categor y.i-U Suitable
forfo rw ard-facing
and rear wa rd-facing i-Size
ch ild restrai nt sy stems in the

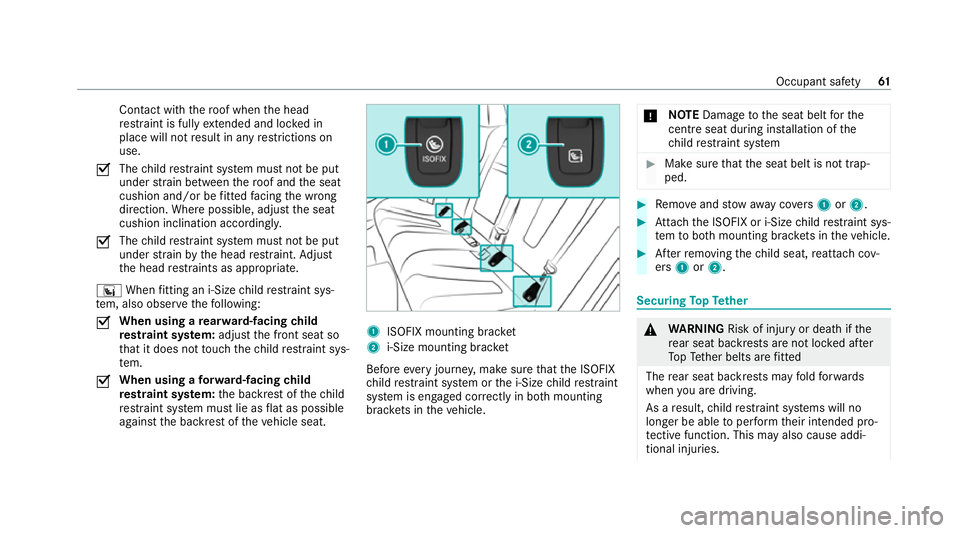

"Universal" categor y. Fi
tting an ISOFIX or i‑Size child restra int sys‐
te m on the rear seat &
WARNING Risk of accident if there ar
ben chseat, rear seat and seat backrest
are not engaged
The rear ben chseat, rear seat and seat back‐
re st may fold forw ards, even while theve hi‐
cle is in motion.
R As a result, theve hicle occupant will be
pressed into the seat belt with increased
fo rc e. The seat belt will not be able to
pr otect as intended and could cause
additional injur y.
R Objects or loads in the boot or load com‐
partment cann otbe restra ined bythe
seat backrest. #
Make sure that there ar ben chseat, the
re ar seat and the seat backrest are
engaged before everytrip. If
th e left and right seat backrests are not

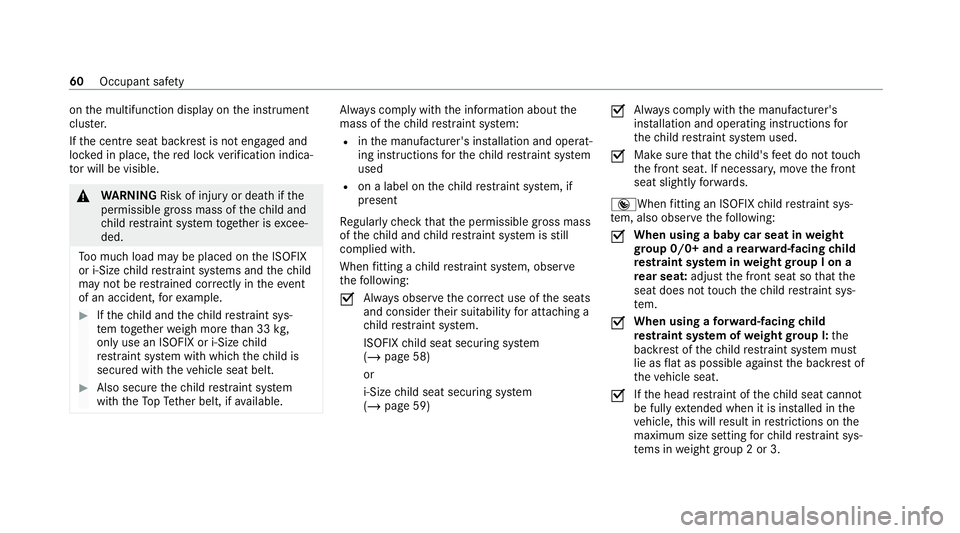

engaged and loc ked in place, this will be shown Occupant saf
ety59

on
the multifunction display on the instrument
clus ter.
If th e cent reseat backrest is not engaged and
loc ked in place, there d lock verification indica‐
to r will be visible. &
WARNING Risk of inju ryor death if the
permissible gross mass of thech ild and
ch ild restra int sy stem toget her is excee‐
ded.
To o much load may be placed on the ISOFIX
or i‑Size child restra int sy stems and thech ild
may not be restra ined cor rectly in theeve nt
of an accident, forex ample. #
Ifth ech ild and thech ild restra int sys‐
te m toget her weigh more than 33 kg,
only use an ISOFIX or i‑Size child
re stra int sy stem with which thech ild is
secured with theve hicle seat belt. #
Also secure thech ild restra int sy stem
with theTo pTe ther belt, if available. Alw
ays comply with the information about the
mass of thech ild restra int sy stem:
R inthe manufacturer's ins tallation and operat‐
ing instructions forth ech ild restra int sy stem
used
R on a label on thech ild restra int sy stem, if
present
Re gular lych eck that the permissible gross mass
of thech ild and child restra int sy stem is still
complied with.
When fitting a child restra int sy stem, obser ve
th efo llowing:
O Alw
ays obser vethe cor rect use of the seats
and consider their suitability for attaching a
ch ild restra int sy stem.
ISOFIX child seat securing sy stem
(/ page 58)
or
i‑Size child seat securing sy stem
(/ page 59) O
Alw
ays comply with the manufacturer's
ins tallation and operating instructions for
th ech ild restra int sy stem used.
O Make sure
that thech ild's feet do not touch
th e front seat. If necessar y,mo vethe front
seat slightly forw ards.
®When fitting an ISOFIX child restra int sys‐
te m, also obser vethefo llowing:
O When using a baby car seat in
weight
gr oup 0/0+ and a rear wa rd-facing child
re stra int sy stem in weight group I on a
re ar seat: adjustthe front seat so that the
seat does not touch thech ild restra int sys‐
te m.
O When using a
forw ard-facing child
re stra int sy stem of weight group I: the
backrest of thech ild restra int sy stem must
lie as flat as possible against the backrest of
th eve hicle seat.
O If
th e head restra int of thech ild seat cannot
be fully extended when it is ins talled in the
ve hicle, this will result in restrictions on the
maximum size setting forch ild restra int sys‐
te ms in weight group 2 or 3. 60
Occupant sa fety

Con
tact wi th thero of when the head
re stra int is fully extended and lo cked in
place will not result in any restrictions on
use.
O The
child restra int sy stem must not be put
under stra in between thero of and the seat
cushion and/or be fitted facing the wrong
direction. Where possible, adjust the seat
cushion inclination accordingly.
O The
child restra int sy stem must not be put
under stra in by the head restra int. Adjust
th e head restra ints as appropriate.
° When fitting an i‑Size child restra int sys‐
te m, also obser vethefo llowing:
O When using a
rear wa rd-facing child
re stra int sy stem: adjust the front seat so
th at it does not touch thech ild restra int sys‐
te m.
O When using a
forw ard-facing child
re stra int sy stem: the backrest of thech ild
re stra int sy stem must lie as flat as possible
against the backrest of theve hicle seat. 1
ISOFIX mounting brac ket
2 i‑Size mounting brac ket
Before every journe y,make sure that the ISOFIX
ch ild restra int sy stem or the i‑Size child restra int
sy stem is engaged cor rectly in bo thmounting
brac kets in theve hicle. *
NO
TEDama getothe seat belt forthe
centre seat du ring ins tallation of the
ch ild restra int sy stem #
Make sure that the seat belt is not trap‐
ped. #
Remo veand stow aw aycovers 1 or2. #
Attach the ISOFIX or i‑Size child restra int sys‐
te m to both mounting brac kets in theve hicle. #
Afterre moving thech ild seat, reattach cov‐
ers 1or2. Securing
TopTe ther &
WARNING Risk of inju ryor death if the
re ar seat backrests are not loc ked af ter
To pTe ther belts are fitted
The rear seat backrests may fold forw ards
when you are driving.
As a result, child restra int sy stems will no
longer be able toper form their intended pro‐
te ctive function. This may also cause addi‐
tional inju ries. Occupant saf
ety61
