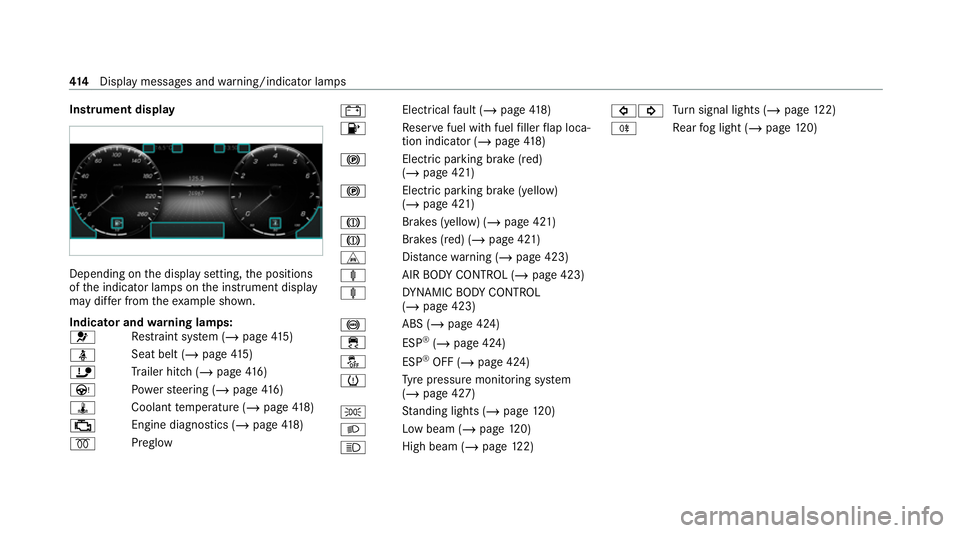

Instrument display
Depending on
the display setting, the positions
of the indicator lamps on the instrument display
may dif fer from theex ample shown.
Indicator and warning lamps:
6 Re
stra int sy stem (/ page415)
ü Seat belt (/
page415)
ï Trailer hit ch (/page 416)
Ù Powe rst eering (/ page416)
ÿ Coolanttemp erature (/ page418)
; Engine diagnostics (/
page 418)
% Preglow #
Electrical
fault (/ page418)
8 Re
ser vefuel with fuel filler flap loca‐
tion indicator (/ page418)
! Electric pa
rking brake (red)
(/ page 421)
! Electric parking brake (yellow)
(/
page 421)
J Brakes (yellow) (/
page 421)
J Brakes (red) (/
page 421)
L Distance warning (/ page 423)
ä AIRBODY CONTROL (/ page 423)
ä DYNA MIC BODY CONTROL
(/ page 423)
! ABS (/
page 424)
÷ ESP®
(/ page 424)
å ESP®
OFF (/ page 424)
h Ty
re pressure monitoring sy stem
(/ page 427)
T St
anding lights (/ page120)
L Low beam (
/page 120)
K High beam (/
page122) #!
Tu
rn signal lights (/ page122)
R Re
ar fog light (/ page120) 414
Displaymessa ges and warning/indicator lamps

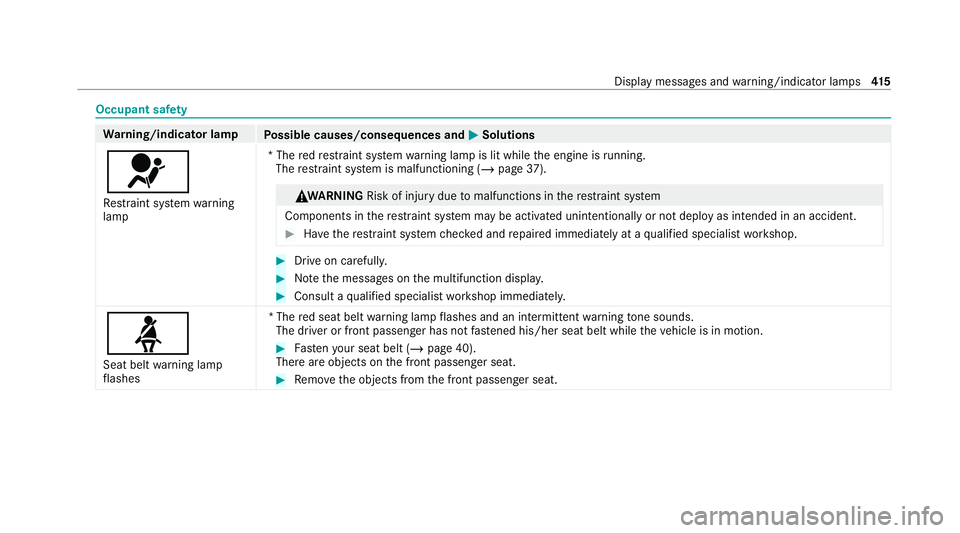

Occupant saf
ety Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
6 Re stra int sy stem warning
lamp *T
he redre stra int sy stem warning lamp is lit while the engine is running.
The restra int sy stem is malfunctioning (/ page37). &
WA RNING Risk of inju rydue tomalfunctions in there stra int sy stem
Components in there stra int sy stem may be activated unintentionally or not deploy as intended in an accident. #
Have there stra int sy stem checked and repaired immediately at a qualified specialist workshop. #
Drive on carefully. #
Notethe messages on the multifunction displa y. #
Consult a qualified specialist workshop immediatel y.
ü
Seat belt warning lamp
fl ashes *T
he red seat belt warning lamp flashes and an intermit tent wa rning tone sounds.
The driver or front passenger has not fastened his/her seat belt while theve hicle is in motion. #
Fasten your seat belt (/ page 40).
There are objects on the front passenger seat. #
Remo vethe objects from the front passenger seat. Display messages and
warning/indicator lamps 415

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
ü Seat belt warning lamp
lights up *T
he red seat belt warning lamp lights up once the engine has star ted.
In addition, an intermittent warning tone may sound.
The red seat belt warning lamp reminds the driver and front passenger tofast entheir seat belts. #
Fasten your seat belt (/ page 40).
If yo u ha veplaced objects on the front passenger seat, there d seat belt warning lamp may remain lit. Ve
hicle Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
Ù Po we rst eering warning
lamp (red) *T
he red po werst eering sy stem warning lamp is lit while the engine is running.
The po wer assi stance or thesteering itself is malfunctioning. &
WA RNING Risk of accident if steering capability is impaired
If th esteering does not function as intended, theve hicle's operating saf ety is jeopardised. #
Pull over and stop theve hicle safely as soon as possible, paying attention toroad and traf fic conditions. Do
not continue driving under any circums tances. #
Consult a qualified specialist workshop. #
Notethe messages on the multifunction displa y.416
Displaymessa ges and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

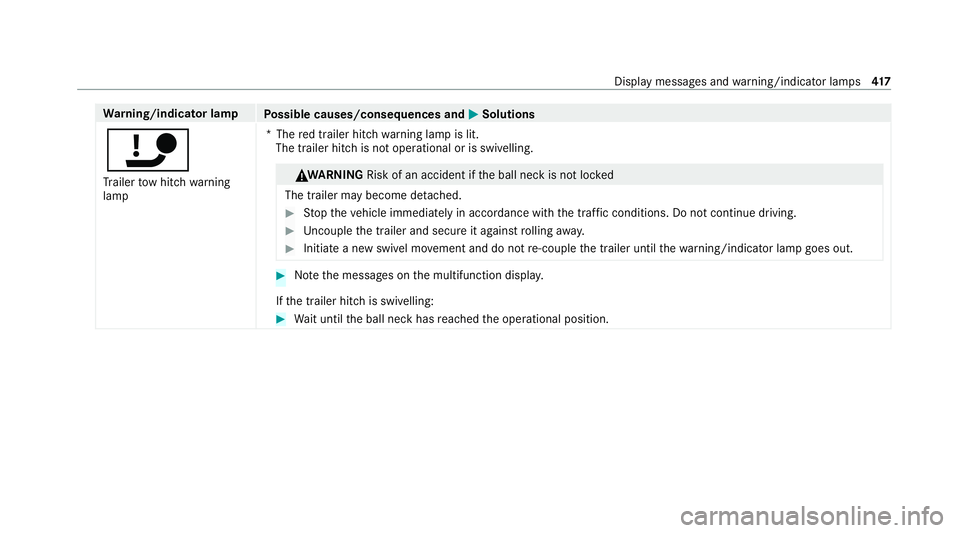

ï Tr ailer tow hit chwarning
lamp *T
hered trailer hitch warning lamp is lit.
The trailer hitch is not operational or is swivelling. &
WA RNING Risk of an accident if the ball neck is not loc ked
The trailer may become de tach ed. #
Stop theve hicle immediately in accordance with the traf fic conditions. Do not continue driving. #
Uncouple the trailer and secure it against rolling away. #
Initiate a new swivel mo vement and do not re-couple the trailer until thewa rning/indicator lamp goes out. #
Notethe messages on the multifunction displa y.
If th e trailer hitch is swivelling: #
Wait until the ball neck has reached the operational position. Display messages and
warning/indicator lamps 417

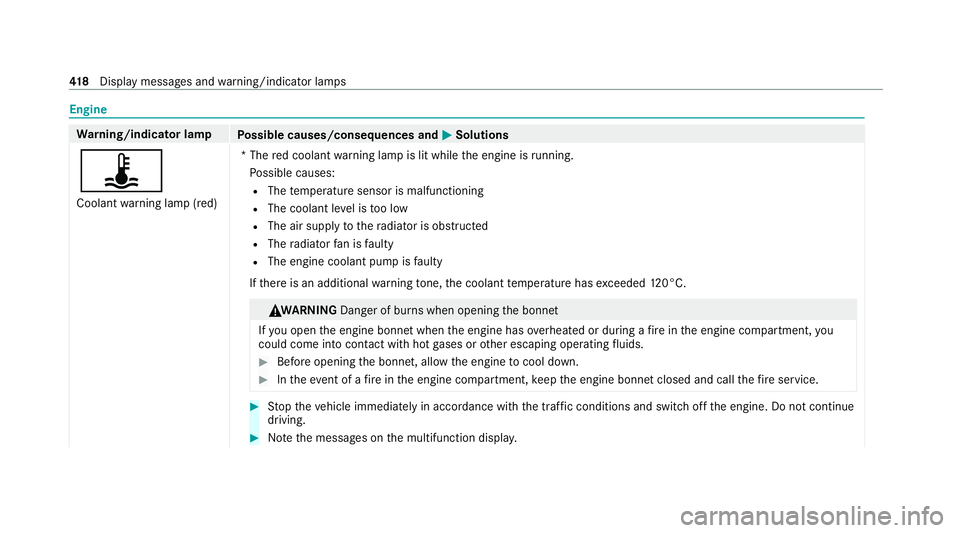

Engine
Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
ÿ Coolant warning lamp (red) *T
he red coolant warning lamp is lit while the engine is running.
Po ssible causes:
R The temp erature sensor is malfunctioning
R The coolant le vel is too low
R The air supply tothera diator is obstructed
R The radiator fan is faulty
R The engine coolant pump is faulty
If th ere is an additional warning tone, the coolant temp erature has exceeded 120°C. &
WA RNING Danger of bu rns when opening the bonn et
If yo u open the engine bonn etwhen the engine has overheated or during a fire inthe engine compartment, you
could come into contact wi thhot gases or other escaping operating fluids. #
Before opening the bonn et, allow the engine tocool down. #
Intheeve nt of a fire inthe engine compartment, keep the engine bonn etclosed and call thefire service. #
Stop theve hicle immediately in accordance with the traf fic conditions and switch off the engine. Do not continue
driving. #
Notethe messages on the multifunction displa y.41 8
Displaymessa ges and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

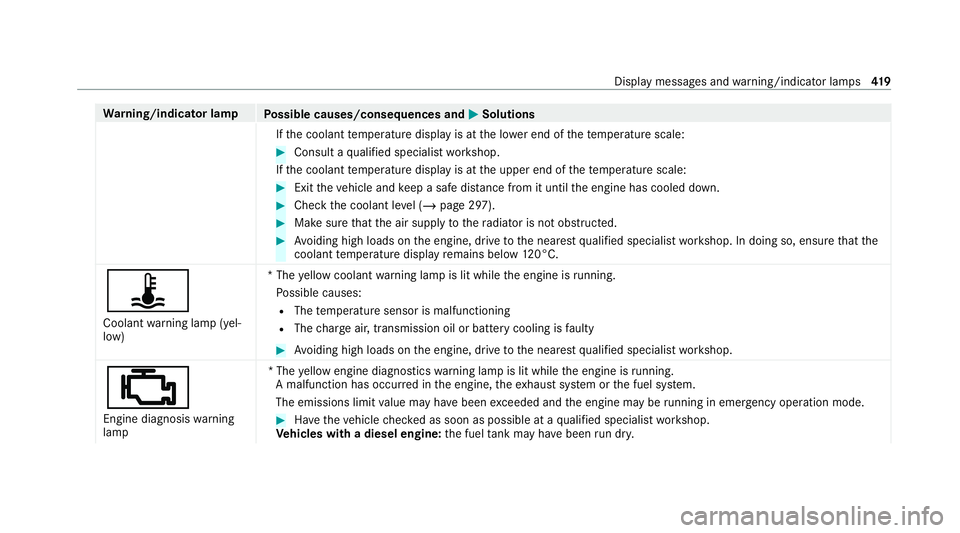

If th e coolant temp erature display is at the lo wer end of thete mp erature scale: #
Consult a qualified specialist workshop.
If th e coolant temp erature display is at the upper end of thete mp erature scale: #
Exit theve hicle and keep a safe dis tance from it until the engine has cooled down. #
Check the coolant le vel (/ page 297). #
Make sure that the air supply tothera diator is not obstructed. #
Avoiding high loads on the engine, drive tothe nearest qualified specialist workshop. In doing so, ensure that the
coolant temp erature display remains below 120°C.
ÿ Coolant warning lamp (yel‐
low) *T
he yellow coolant warning lamp is lit while the engine is running.
Po ssible causes:
R The temp erature sensor is malfunctioning
R The charge air, transmission oil or bat tery cooling is faulty #
Avoiding high loads on the engine, drive tothe nearest qualified specialist workshop.
;
Engine diagnosis warning
lamp *T
he yellow engine diagno stics warning lamp is lit while the engine is running.
A malfunction has occu rred in the engine, theex haust sy stem or the fuel sy stem.
The emissions limit value may ha vebeen exceeded and the engine may be running in emergency operation mode. #
Have theve hicle checked as soon as possible at a qualified specialist workshop.
Ve hicles with a diesel engine: the fuel tank may ha vebeen run dr y. Displ
aymessa ges and warning/indicator lamps 419

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #
Start the engine thre eto four times af terre fuelling.
If th eye llow engine diagnosis warning lamp goes out, emer gency operation mode is cancelled. The vehicle need
not be checked.
#
Elect rical fault warning
lamp *T
hered elect rical fault warning lamp is lit.
There is a fault in the electrics. #
Notethe messages on the multifunction displa y.
8
Fu elreser vewarning lamp
lights up *T
he yellow fuel reser ve wa rning lamp lights up while the engine is running.
The fuel supp lyhas dropped into there ser verange. #
Refuel. 420
Displaymessa ges and warning/indicator lamps

Brakes
Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
! Elect ric pa rking brake indi‐
cator lamp (red)
!
The elect ric pa rking brake
(yellow) indicator lamp *T
he red elect ric pa rking brake indicator lamp flashes or is lit.
The yellow elect ric pa rking brake indicator lamp also lights up in theev ent of a malfunction. #
Notethe messages on the multifunction displa y.
J
Brake sy stem warning lamp
(yellow) *T
he yellow brake sy stem warning lamp is lit while the engine is running. &
WA RNING Risk of an accident due toa brake sy stem malfunction
If th e brake sy stem is malfunctioning, braking characteristics may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. #
Adjust your speed and drive on carefull y,leaving a suitable dis tance totheve hicle in front. #
Ifth e multifunction display sho wsa display message, obse rve it. Display messages and
