Page 289 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Run/start anti-lock brake system.
10A 3
25
Run/start powertrain control module.
10A 3
26
Heater control valve (HCV) power 5.
10A 2
27
Right hand side headlamp ballast.
20A 2
28
Left hand side headlamp ballast.
20A 2
29
Not used.
–
30
Not used.
–
31
Hybrid electric vehicle pulse width modulated fan relay.
–
32
Not used.
–
33
Not used.
–
34
Not used (spare).
15A 2
35
Hybrid electric vehicle battery electronic control module fan.
15A 3
36
Not used.
–
37
Vacuum pump #1 relay.
–
38
286
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
Page 290 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Vacuum pump #2 relay.
–
39
Fuel pump relay.
–
40
Horn relay.
–
41
Not used.
–
42
Fuel door motor.
10A 2
43
Not used.
–
44
Vacuum pump monitor.
5A 2
45
Not used (spare).
10A 2
46
Brake on/off switch.
10A 3
47
Horn.
20A 2
48
Air flow monitor.
5A 2
49
Battery energy control module.
15A 2
50
Hybrid content vehicle power 1.
15A 3
51
Hybrid powertrain control module.
287
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
Page 291 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Hybrid content vehicle power 2.
15A 3
52
Battery energy control module.
Multi-contour seats.
10A 2
53
Hybrid content vehicle power 3.
10A 3
54
Coolant pump.
Hybrid content vehicle power 4.
10A 3
55
Air conditioning compressor.
1 M Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.
288
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
Page 292 of 544

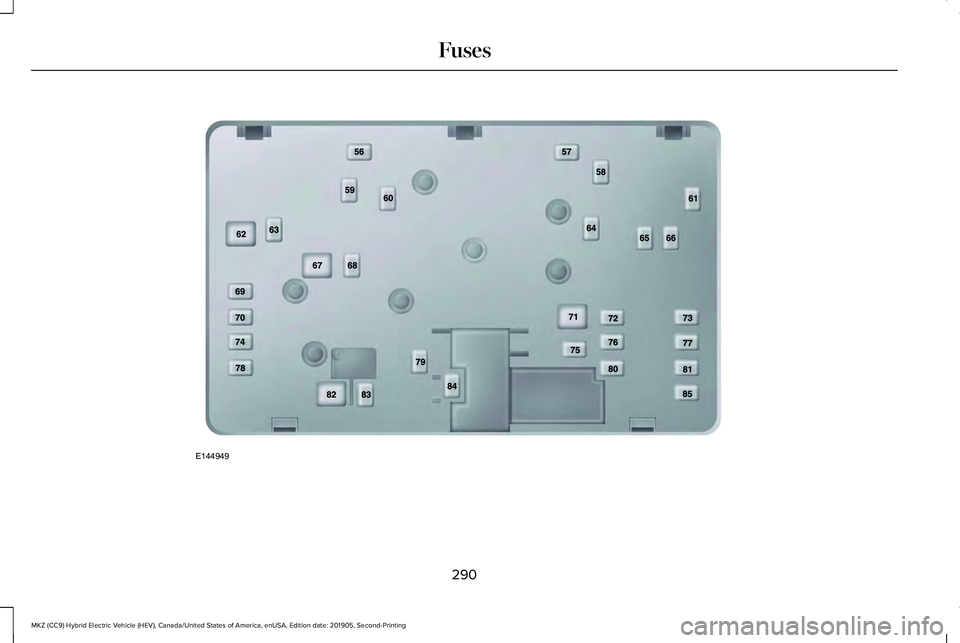

Power Distribution Box - Bottom There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
1.
Release the two latches on both sides of
the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
289
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983
Page 293 of 544
290
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE144949
Page 294 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Fuel pump feed.
30A 1
56
Not used.
-
57
Not used.
-
58
Vacuum pump relay.
40A 2
59
Pulse width modulated fan.
40A 1
60
Not used.
-
61
Body control module 1.
50A 2
62
Not used.
-
63
Not used.
-
64
Front heated seat.
20A 1
65
Not used (spare).
15A 2
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
291
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
Page 295 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used (spare).
50A 1
71
Panoramic roof number 1.
30A 1
72
Moonroof.
Not used (spare).
20A 2
73
Driver seat module.
30A 1
74
Not used.
-
75
e-Shifter.
20A 1
76
Front climate controlled seats.
30A 1
77
Not used.
-
78
Blower motor.
40A 2
79
Power decklid.
30A 1
80
292
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
Page 296 of 544
Protected Component
Fuse Rating
Fuse or Relay Number
Inverter.
40A 1
81
Anti-lock brake system pump.
60A 2
82
Wiper motor number 1.
25A 1
83
Not used.
-
84
Panoramic roof number 2.
30A 1
85
1 M Case fuse.
2 J Case fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
293
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
