This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronicdevices, it may cause the vehicle to
operate abnormally, damage
wiring, discharge the battery, and
cause fire. No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
Do not race the engine.
While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
VEHICLE BREAK-IN
PROCESS
VEHICLE MODIFICATIONS

17
Introduction
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
How various systems in yourvehicle were operating;
Whether or not the driver and passenger safety belts were
buckled/ fastened;
How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
How fast the vehicle was travel- ing. This data can help provide a better
understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data is
recorded by your vehicle only if a
non-trivial crash situation occurs;
no data is recorded by the EDR
under normal driving conditions
and no personal data (e.g., name,
gender, age, and crash location)
are recorded. However, other par-
ties, such as law enforcement,
could combine the EDR data with
the type of personally identifying
data routinely acquired during a
crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.

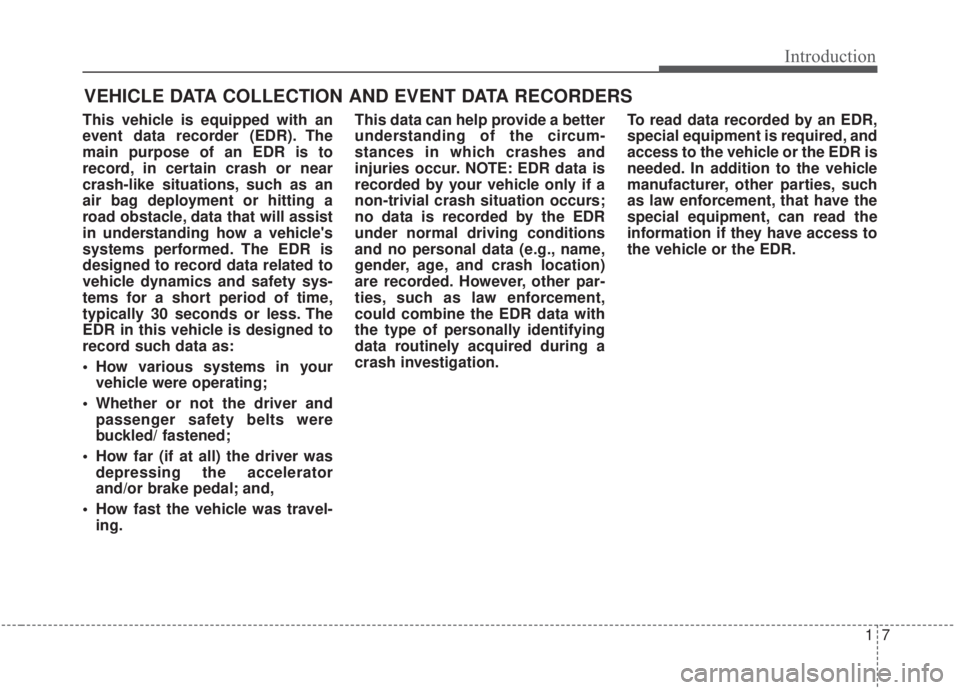

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-35
2. Head lamp (Features of your vehicle) ..4-100
Head lamp (Maintenance) .....................7-79
3. DRL lamp (Features of your vehicle) ..4-100 DRL lamp (Maintenance) ......................7-79
4. Front turn signal lamp (Maintenance) ...7-79
5. Wheel and tire .......................................7-46
6. Outside rearview mirror .........................4-52
7. Sunroof ..................................................4-41
8. Front windshield wiper blades (Features of your vehicle)....................4-108
Front windshield wiper blades
(Maintenance) .......................................7-39
9. Windows ................................................4-30
10. Front fog lamp (Features of your vehicle)..................4-107
Front fog lamp (Maintenance) .............7-79
OBDM018001N
■Front view
❈ The actual shape may differ from the illustration.

23
Your vehicle at a glance
1. Door locks .............................................4-19
2. Fuel filler lid ...........................................4-38
3. Rear combination lamp (Maintenance) .......................................7-80
4. High mounted stop lamp (Maintenance) .......................................7-81
5. Trunk ......................................................4-24
6. Antenna ...............................................4-155
7. Rear view monitor .................................4-99
8. Reverse parking distance warning ........4-96
9. Rear turn signal lamp (Maintenance) ....7-80
10. Back Up lamp (Maintenance) ..............7-80
OBDM018002
■ Rear view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ............................4-20
2. Outside rearview mirror control ........4-53
3. Outside rearview mirror folding .........4-54
4. Central door lock switch....................4-21
5. Power window switch ........................4-30
6. Power window lock button ................4-34
7. Lane Keeping Assist system button..5-126
8. Steering wheel ..................................4-47
9. Tilt and telescopic steering control lever ......................................4-48
10. Instrument panel illumination control .............................................4-57
11. BCW ON/OFF button ....................5-116
12. Hood release lever ..........................4-35
13. Fuel filler lid release lever ...............4-38
14. Trunk release lever..........................4-24
15. Seat...................................................3-4
16. ESC OFF button .............................5-50
17. Brake pedal .....................................5-44
18. Accelerator pedal
19. Inner fuse panel ..............................7-63
OBDM018003N

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
OBDM018004N
1. Instrument cluster.............................4-56
2. Horn .................................................4-49
3. Driver’s front air bag .........................3-58
4. Light control/Turn signals ...............4-100
5. Wiper/Washer .................................4-108
6. Ignition switch or ENGINE START/STOP button....5-7, 5-11
7. Cruise control system ............................5-86 Smart cruise control system .................5-90
8. Drive mode button ...............................5-111
9. Hazard warning flasher switch ................6-2
10. Power outlet .................................4-148
11. Climate control system .....4-115, 4-125
12. Shift lever .....................5-18, 5-22, 5-35
13. Passenger’s front air bag ...............3-58
14. USB charger.................................4-149
15. Glove box .....................................4-142
16. Seat warmer .................................4-144 Seat cooler ...................................4-146
17. Heated steering wheel switch ........4-49
18. Center console storage ................4-142

Your vehicle at a glance
62
ENGINE COMPARTMENT
OBD078101L/OBD078135L
■ ■Nu 2.0L MPI Engine (Gasoline)
❈ The actual engine compartment in the vehicle may differ from the illustration.
■ ■Gamma 1.6L T-GDI Engine (Gasoline) 1. Engine coolant reservoir....................7-28
2. Engine oil filler cap ............................7-26
3. Brake/clutch fluid reservoir ................7-32
4. Air cleaner .........................................7-35
5. Fuse box ............................................7-61
6. Negative battery terminal ..................7-43
7. Positive battery terminal ....................7-43
8. Engine oil dipstick..............................7-26
9. Radiator cap ......................................7-31
10. Windshield washer fluid reservoir....7-33
