2020 KIA FORTE Owners Manual

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
7 108
Maintenance

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-3
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-7
Recommended lubricants and capacities . . . . . . . . 8-8
• Recommended SAE viscosity number. . . . . . . . . . . . 8-10
Vehicle identification number (VIN) . . . . . . . . . . 8-11
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-11
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
8

Specifications & Consumer information
28
DIMENSIONS
Itemmm (in)
Overall length 4,640 (182.7)
Overall width 1,800 (70.9)
Overall height1,435 (56.5)
Front tread
195/65R15 1,563 (61.5)
205/55R161,555 (61.2)
225/45R171,549 (61.0)
225/40 R182,271 (89.4)
225/40 ZR182,271 (89.4)
Rear tread
195/65R15 1,572 (61.9)
205/55R161,564 (61.6)
225/45R171,558 (61.3)
225/40 R182,271 (89.4)
225/40 ZR182,271 (89.4)
Wheelbase 2,700 (106.3)

83
Specifications & Consumer information
ENGINE
ItemNu 2.0L MPI Gamma 1.6L T-GDI
Displacement cc (cu.in)1,999
(121.9) 1,591
(97.08)
Bore x Stroke mm (in.)81 x 97
(3.19 x 3.82) 77 x 85.44
(3.03 x 3.36)
Firing order 1-3-4-21-3-4-2
No. of cylinders 4, In-line4, In-line

Specifications & Consumer information
48
BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Head lamp
Low Standard
60WHB3LL
High Standard 55WH7LL
Daytime running light * 21W or LED P21/5W or LED
Position lamp * 5W or LED P21/5W or LED
Turn signal lamp 21WPY21W
Front fog lamp * 51WHB4
Rear Tail lamp
Inside
5W or LED w5w or LED
Outside 5W or LED P21/5W or LED
Stop lamp Outside 21W or LED P21/5W or LED
Turn signal lamp 21WPY21W
Back up lamp 16WW16W
High mounted stop lamp 21WP21W or LED
License plate lamp 5W X 2EAW5W
Interior Map lamps *
10W X 2EAW10W
Room lamp 10WFESTOON
Luggage lamp 8WFESTOON
Glove box LAMP 8WFESTOON
Vanity mirror lamps * 5WFESTOON
* If equipped

85
Specifications & Consumer information
TIRES AND WHEELS
*1: Load Index *2: Speed Symbol *3: Normal load : Up to 3 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make them work irregularly.
ItemTire sizeWheel sizeLoad
CapacitySpeed
capacityInflation pressure [kPa (psi)]Wheel lug nut torque Kgf·m
(lbf·ft, N·m)
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
195/65R156.0J×1591615H210230 (33)230 (33)230 (33)230 (33)
11 ~ 13
(79 ~ 94,
107 ~ 127)
205/55R166.5J×1691615H210230 (33)230 (33)230 (33)230 (33)
225/45R177.0J×1791615W270230 (33)230 (33)230 (33)230 (33)
225/40R187.5Jx1891615W270240 (35)240 (35)240 (35)240 (35)
225/40ZR187.5Jx1892630Y300240 (35)240 (35)240 (35)240 (35)
Compact
spare tireT125/80D154.0T×1595690M130420 (60)
T125/80D164.0Tx1697730M130420 (60)

Specifications & Consumer information
68
✽ ✽NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kPa (1.5 psi) km

87
Specifications & Consumer information

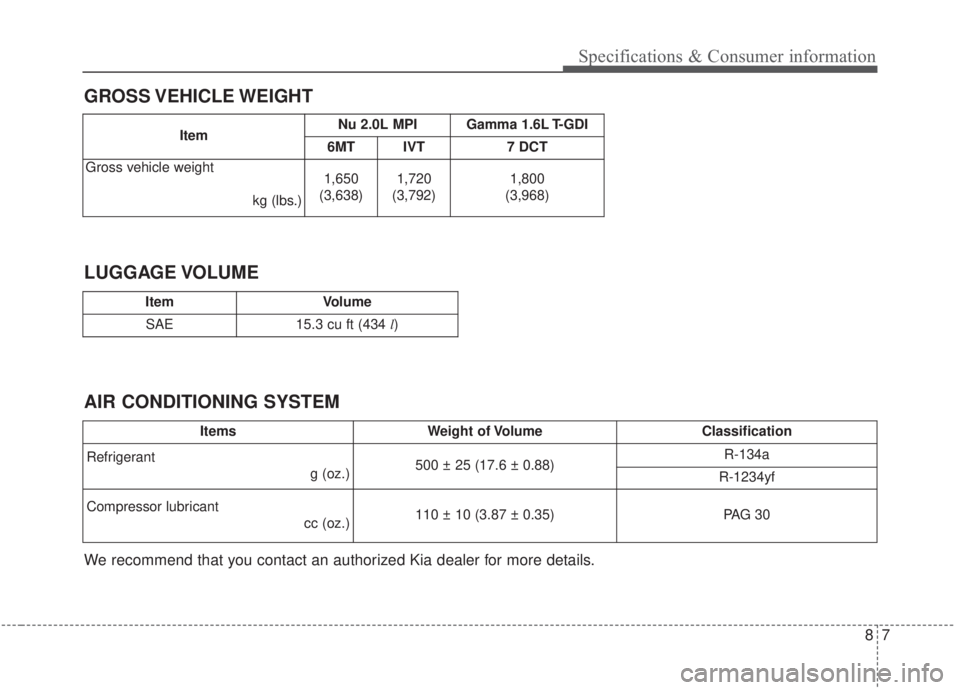

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ItemVolume
SAE15.3 cu ft (434 l)
ItemsWeight of VolumeClassification
Refrigerant g (oz.) 500 ± 25 (17.6 ± 0.88)R-134a
R-1234yf
Compressor lubricantcc (oz.) 110 ± 10 (3.87 ± 0.35)PAG 30
ItemNu 2.0L MPI Gamma 1.6L T-GDI
6MT IVT 7 DCT
Gross vehicle weight
kg (lbs.)
1,650
(3,638)1,720
(3,792)1,800
(3,968)
