2020 HONDA CLARITY PLUG-IN Owner's Manual (in English)

367
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

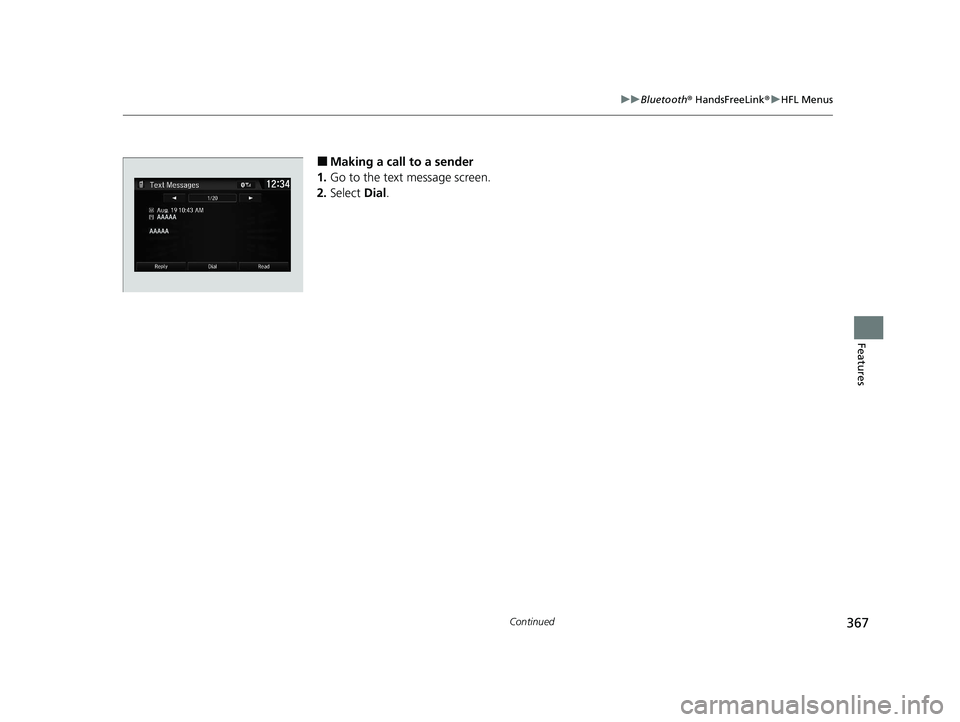

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
20 CLARITY PHEV-31TRW6200.book 367 ページ ２０１９年９月２４日　火曜日　午後１２時９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
368
Features

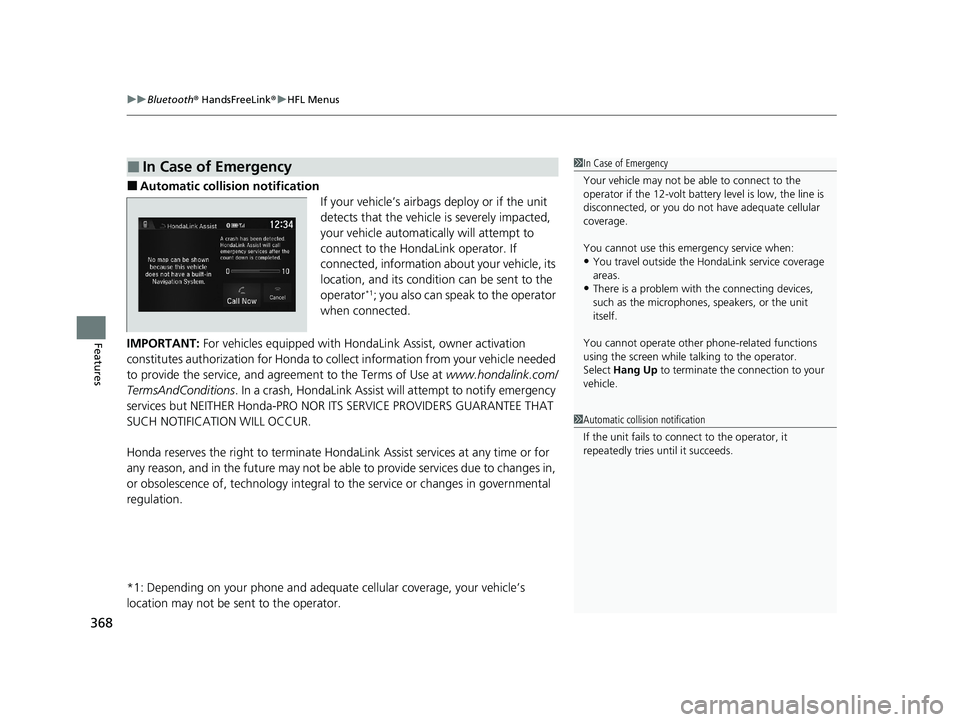

■Automatic collision notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequa te cellular coverage, your vehicle’s
location may not be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the 12-volt battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
20 CLARITY PHEV-31TRW6200.book 368 ページ ２０１９年９月２４日　火曜日　午後１２時９分

369
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

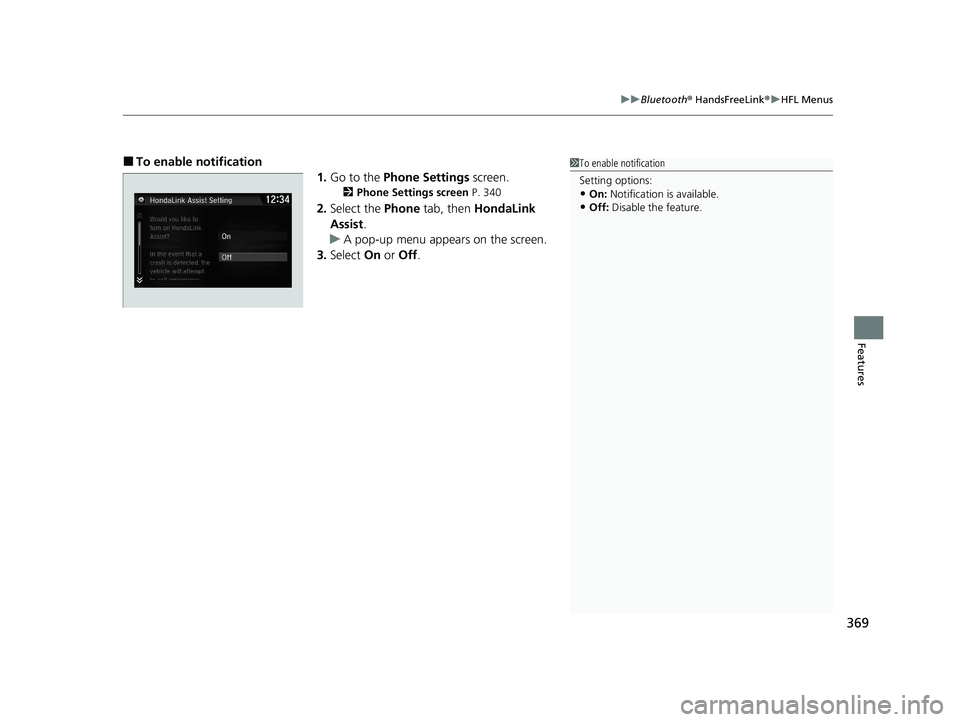

■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 340
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
20 CLARITY PHEV-31TRW6200.book 369 ページ ２０１９年９月２４日　火曜日　午後１２時９分

370
20 CLARITY PHEV-31TRW6200.book 370 ページ ２０１９年９月２４日　火曜日　午後１２時９分

371
Driving
This chapter discusses driving and refueling.
Before Driving................................... 372
Towing a Trailer ................................ 377
When Driving Turning on the Power ...................... 378
Precautions While Driving................. 382
Transmission .................................... 383
Shifting ............................................ 384
ECON Mode .................................... 390
SPORT Mode.................................... 391
Deceleration Paddle Selector ............ 392
Acoustic Vehicle Al erting System ...... 395
Front Sensor Camera ....................... 396
Road Departure Mi tigation (RDM)
System ........................................ 398
Adaptive Cruise Control (ACC) with Low
Speed Follow ................................. 402
Lane Keeping Assist System (LKAS) .. 419
Vehicle Stability AssistTM (VSA®), aka
Electronic Stability Control (ESC),
System ....................................... 426
Agile Handling Assist ....................... 428Tire Pressure Monitoring System (TPMS) .. 429Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 431
LaneWatch
TM................................... 433
Braking .............................................. 435
Parking Your Vehicle When Stopped................................. 451 Multi-View Rear Camera
.................. 453
Refueling
Fuel Information .............................. 455
How to Refuel ................................. 456
Charging
Before Charging .............................. 458
Charge the High Voltage battery using a Level 1 or 2 charger ....................... 459
Control Box ..................................... 465
High Voltage Battery........................ 470
Using a Timer .................................. 471
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 473
20 CLARITY PHEV-31TRW6200.book 371 ページ ２０１９年９月２４日　火曜日　午後１２時９分

372
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 503
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
• Disconnect the charging cable.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
20 CLARITY PHEV-31TRW6200.book 372 ページ ２０１９年９月２４日　火曜日　午後１２時９分

Continued373
uuBefore Driving uDriving Preparation
Driving

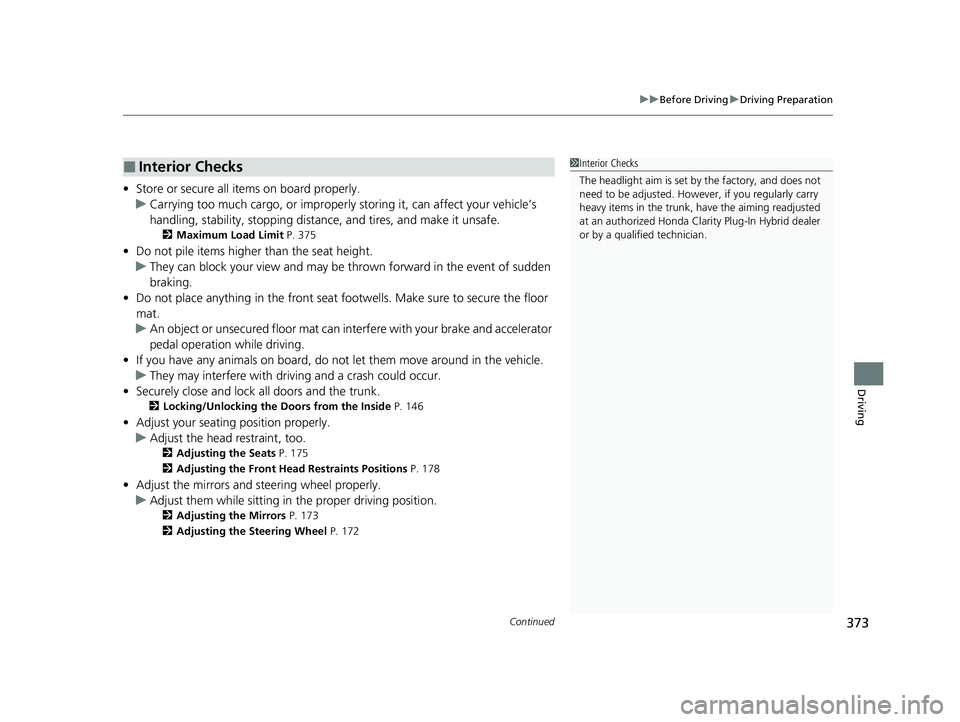

• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 375
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 146
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 175
2 Adjusting the Front Head Restraints Positions P. 178
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 173
2 Adjusting the Steering Wheel P. 172
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Honda Clar ity Plug-In Hybrid dealer
or by a qualif ied technician.
20 CLARITY PHEV-31TRW6200.book 373 ページ ２０１９年９月２４日　火曜日　午後１２時９分

374
uuBefore Driving uDriving Preparation
Driving

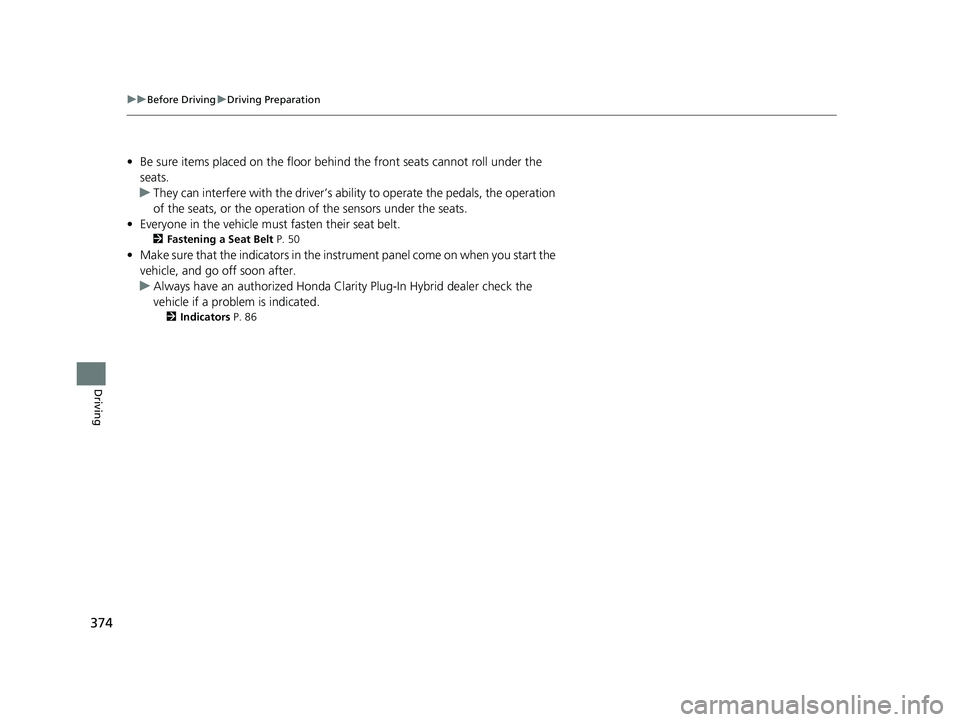

• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 50
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have an authorized Honda Clar ity Plug-In Hybrid dealer check the
vehicle if a problem is indicated.
2 Indicators P. 86
20 CLARITY PHEV-31TRW6200.book 374 ページ ２０１９年９月２４日　火曜日　午後１２時９分
