2020 HONDA CLARITY PLUG-IN Owner's Manual (in English)

575
Information

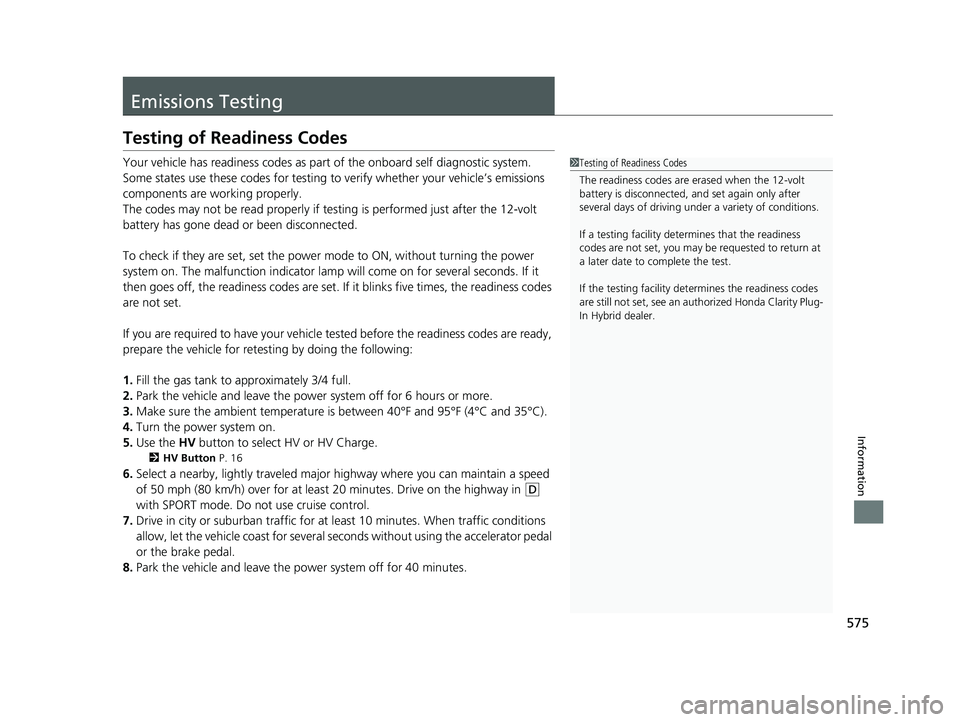

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Use the HV button to select HV or HV Charge.
2HV Button P. 16
6.Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in
(D
with SPORT mode. Do not use cruise control.
7. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
8. Park the vehicle and leave the po wer system off for 40 minutes.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see an au thorized Honda Clarity Plug-
In Hybrid dealer.
20 CLARITY PHEV-31TRW6200.book 575 ページ ２０１９年９月２４日　火曜日　午後１２時９分

576
Information

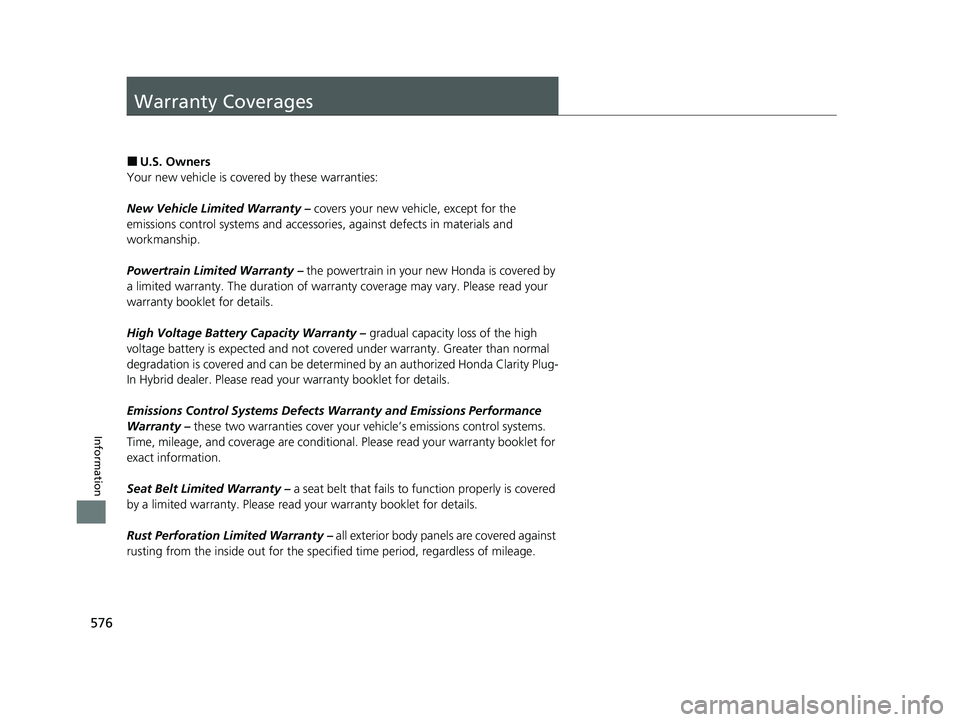

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Powertrain Limited Warranty – the powertrain in your new Honda is covered by
a limited warranty. The duration of warran ty coverage may vary. Please read your
warranty booklet for details.
High Voltage Battery Capacity Warranty – gradual capacity loss of the high
voltage battery is expected and not covered under warranty. Greater than normal
degradation is covered and can be determin ed by an authorized Honda Clarity Plug-
In Hybrid dealer. Please read yo ur warranty booklet for details.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
20 CLARITY PHEV-31TRW6200.book 576 ページ ２０１９年９月２４日　火曜日　午後１２時９分

577
uuWarranty Coverages u
Continued
Information

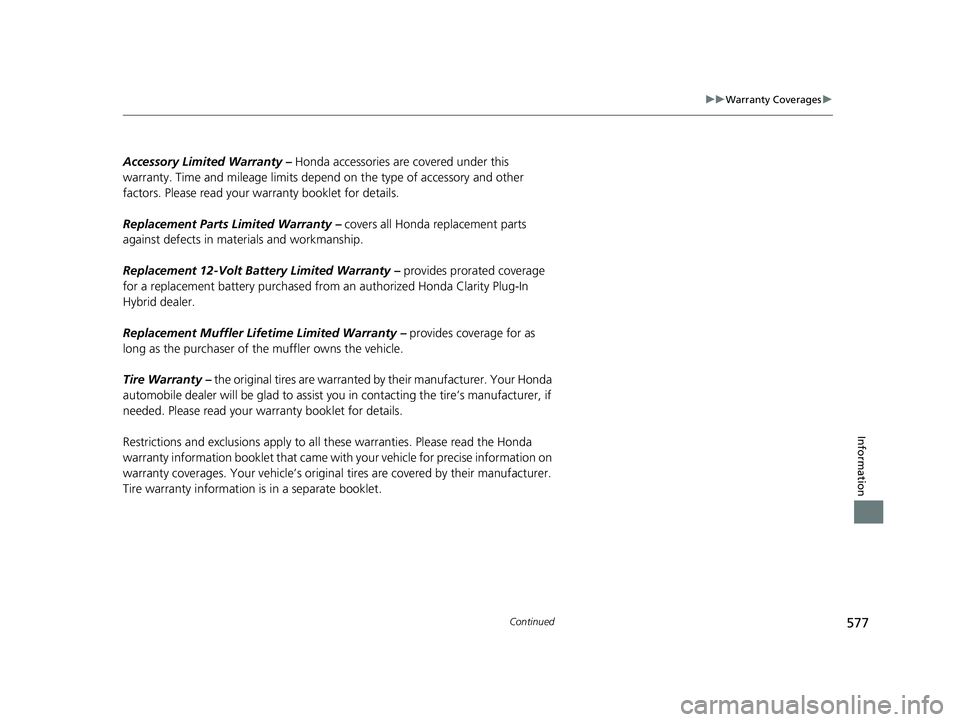

Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
Replacement 12-Volt Battery Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Honda Clarity Plug-In
Hybrid dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Tire Warranty – the original tires ar e warranted by their ma nufacturer. Your Honda
automobile dealer will be glad to assist you in contac ting the tire’s manufacturer, if
needed. Please read your warranty booklet for details.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
20 CLARITY PHEV-31TRW6200.book 577 ページ ２０１９年９月２４日　火曜日　午後１２時９分

578
uuWarranty Coverages u
Information

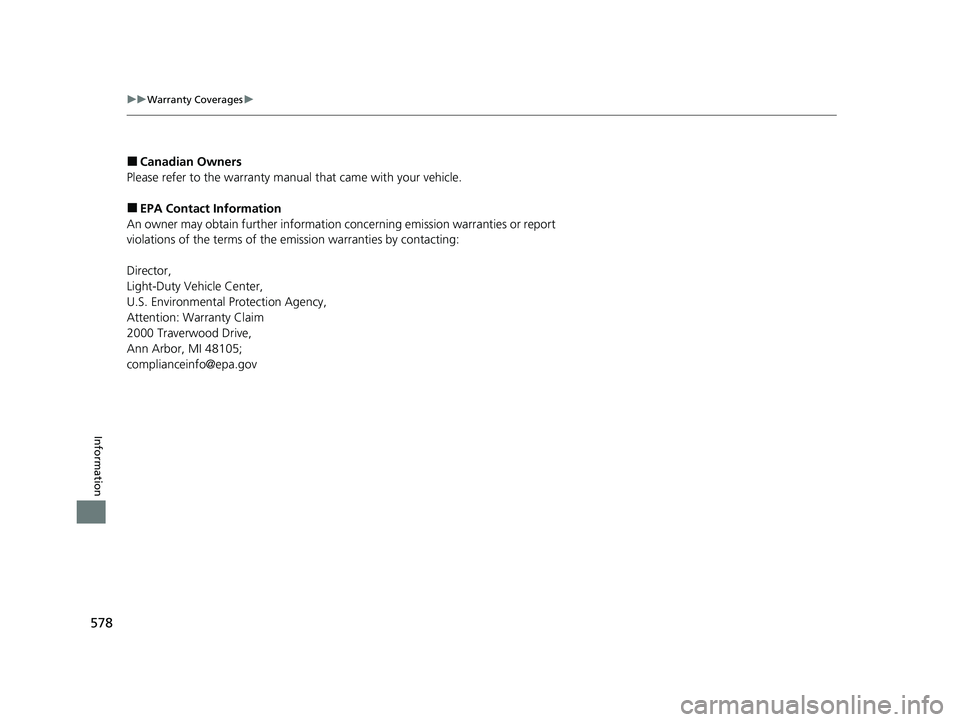

■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
20 CLARITY PHEV-31TRW6200.book 578 ページ ２０１９年９月２４日　火曜日　午後１２時９分

579
Information

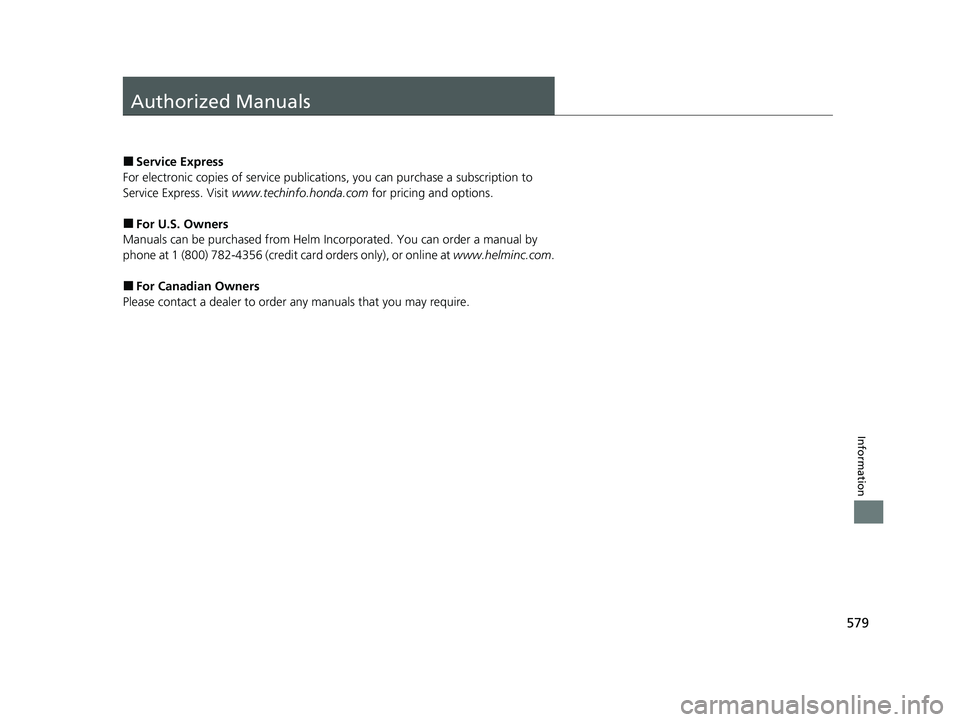

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
20 CLARITY PHEV-31TRW6200.book 579 ページ ２０１９年９月２４日　火曜日　午後１２時９分

580
Information

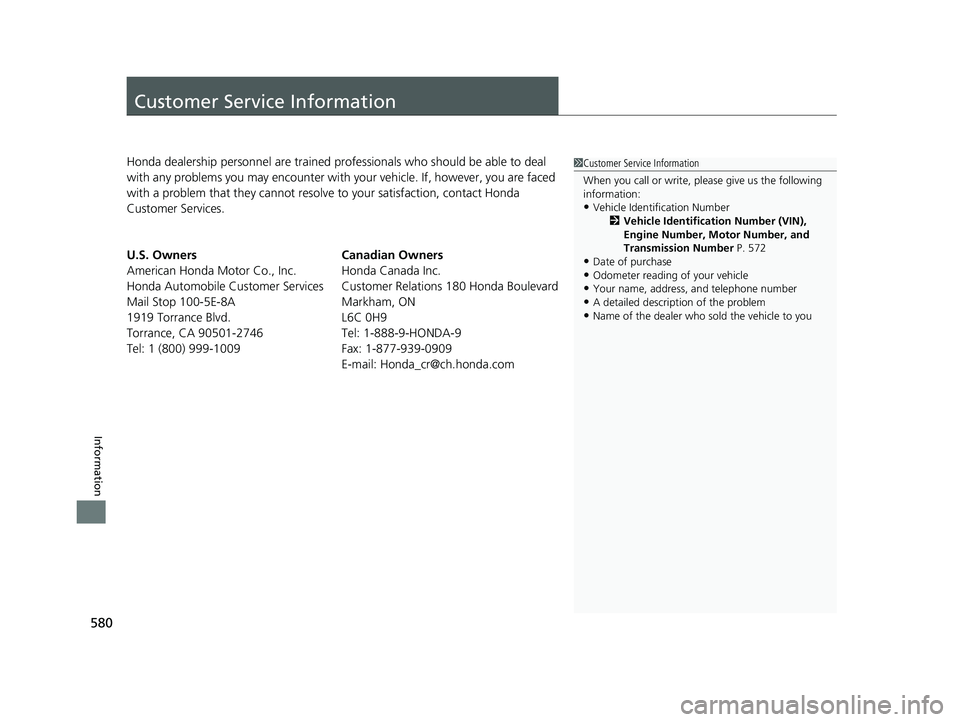

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations 180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_c
[email protected] Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 572
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 CLARITY PHEV-31TRW6200.book 580 ページ ２０１９年９月２４日　火曜日　午後１２時９分

581
uuCustomer Service Information u
Information

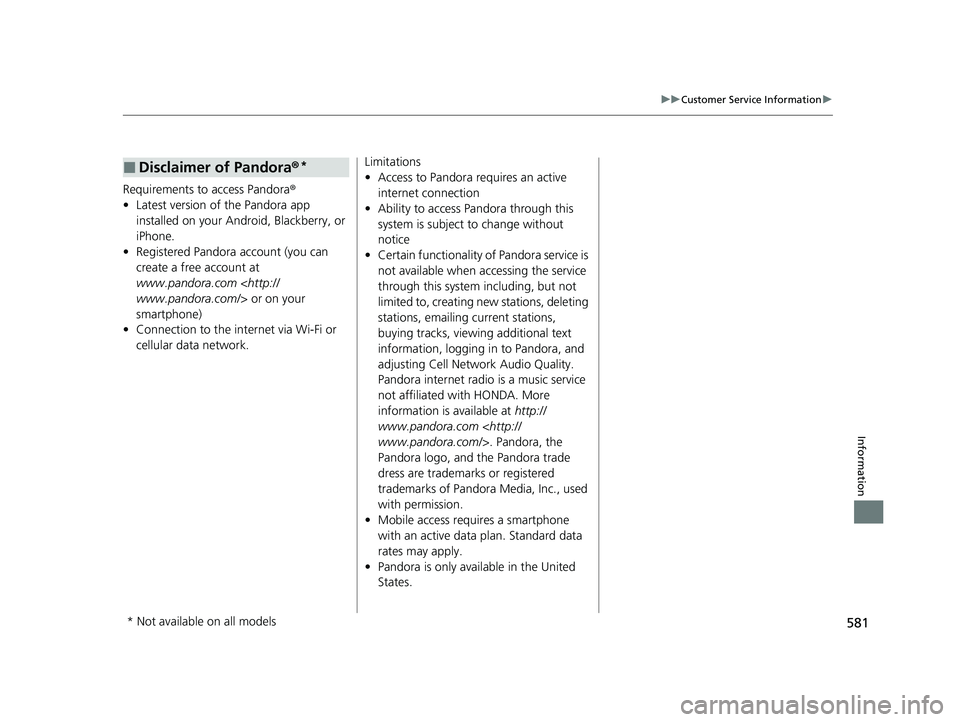

Requirements to access Pandora®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the in ternet via Wi-Fi or
cellular data network.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating ne w stations, deleting
stations, emailing current stations,
buying tracks, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only avai lable in the United
States.
* Not available on all models
20 CLARITY PHEV-31TRW6200.book 581 ページ ２０１９年９月２４日　火曜日　午後１２時９分

Index
582
Index
Index
Numbers
120V AC (AC Level 1)................................ 460
12-Volt Battery Charging System Indicator ............................................ 90, 550
240V AC (AC Level 2) ................................ 463
A
ABS (Anti-lock Brake System) ................... 441
Accessories and Modifications ................. 523
Accessory Power Sockets .......................... 189
Acoustic Vehicle Alerting System ............ 395
Adaptive Cruise Control (ACC) with Low
Speed Follow ........................................... 402
Indicator .................................................. 100
Additives
Coolant ................................................... 492
Engine Oil ................................................ 486
Washer .................................................... 497
Additives, Engine Oil ................................ 486
Adjusting
Armrest ................................................... 182
Front Seats .............................................. 175
Head Restraints........................................ 178
Mirrors .................................................... 173
Steering Wheel ........................................ 172
Temperature ............................................ 126
Agile Handling Assist ................................ 428
Air Conditioning System (Climate Control System) .................................................... 193
Changing the Mode ................................ 195 Defrosting the Windshield and
Windows ............................................... 197
Dust and Pollen Filter............................... 516
Sensors ................................................... 201
Synchronized Mode................................. 198
Using Automatic Climate Control ............ 193
Air Pressure ....................................... 504, 571
Airbags ........................................................ 54
Advanced Airbags ..................................... 60
Airbag Care............................................... 68
Driver’s Knee Airbag.................................. 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 57
Indicator.............................................. 66, 94
Passenger Front Airbag Off Indicator ......... 67
Sensors ..................................................... 54
Side Airbags .............................................. 63
Side Curtain Airbags.................................. 65
AM/FM Radio ............................................ 243
Android Auto ........................................... 280
Anti-lock Brake System (ABS) .................. 441
Indicator.................................................... 93
Apple CarPlay ........................................... 277
Armrest ..................................................... 182
Audio Remote Controls ........................... 207
Audio System .................................... 204, 210
Adjusting the Sound................................ 236
Audio/Information Screen........................ 211
Changing the Home Screen Icon Layout .. 219
Changing the Screen Interface ................ 233
Closing Apps ........................................... 235 Customizing the Meter ........................... 219
Display Setup .......................................... 237
Error Messages ....................................... 284
General Information................................ 288
Home Screen .......................................... 225
Limitations for Manual Operation ............ 238
Menu Customize .................................... 234
MP3/WMA/AAC ..................................... 264
Reactivating ............................................ 206
Recommended Devices ........................... 290
Remote Controls ..................................... 207
Security Code ......................................... 206
Selecting an Audio Source ...................... 238
Status Area ............................................. 232
Theft Protection ...................................... 206
USB Flash Drives...................................... 290
USB Port ................................................. 205
Voice Control Operation ......................... 239
Wallpaper Setup ..................................... 223
Audio/Information Screen ....................... 211
Authorized Manuals ................................ 579
Auto Door Locking/Unlocking ................ 149
Automatic Brake Hold ............................. 439
Indicator ........................................... 87, 439
Automatic Brake Hold System
Indicator ........................................... 87, 439
Automatic Lighting .................................. 163
Average Fuel Economy ............................ 126
Average Fuel Economy Records .............. 129
Average Speed ......................................... 127
20 CLARITY PHEV-31TRW6200.book 582 ページ ２０１９年９月２４日　火曜日　午後１２時９分
