2020 CITROEN C5 AIRCROSS DAG Handbook (in English)

15
Warning/indicator lampStateCause Actions/Observations
AdBlue
®On for around
30 seconds when
starting the vehicle,
accompanied by
a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500
and 500 miles
(2,400
and 800 km).Top up the AdBlue®.
Fixed, on switching
on the ignition,
accompanied by an
audible signal and
a
message indicating the
remaining driving range.The remaining driving range is
between 500 and 62 miles (800 and
10 0


k m). Top up the AdBlue® as soon as possible
, or carry
out (3).
Flashing,
accompanied by an
audible signal and
a

message indicating
the remaining driving
range. The remaining driving range is less
than 62

miles (100

km). Yo u must
top up the AdBlue
® to avoid star ting
being prevented , or carry out (3).
Flashing,
accompanied by an
audible signal and
a

message indicating
that starting is
prevented. The AdBlue
® tank is empty: the
starting prevention system required
by legislation prevents starting of the
engine. To restart the engine, top up the AdBlue® or carry
out (2).
It is essential to add at least 5

litres of AdBlue
® to its
tank.
1
Instruments

16
Warning/indicator lampStateCause Actions/Observations
+
+ SCR emissions
control system
Fixed when the ignition is
switched on, accompanied
by an audible signal and
a


message.A fault with the SCR emissions
control system has been detected. This alert disappears once the exhaust emissions
return to normal levels.
AdBlue® warning lamp
flashing, on switching
on the ignition,
associated with the
fixed Ser vice and
Engine self-diagnostic
warning lamps,
accompanied by an
audible signal and
a

message indicating
the remaining driving
range.Depending on the message
displayed, you can continue driving
for up to 685
miles (1,100 km) before
the engine starting prevention
system is triggered. Carry out (3) as soon as possible to avoid star ting
being prevented
.
AdBlue
® warning
lamp flashing, on
switching on the
ignition, associated
with the fixed Ser vice
and Engine self-
diagnostic warning
lamps, accompanied
by an audible signal
and a

message
indicating that starting
is prevented. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a
fault with the
emissions control system). To start the engine, carry out (2).

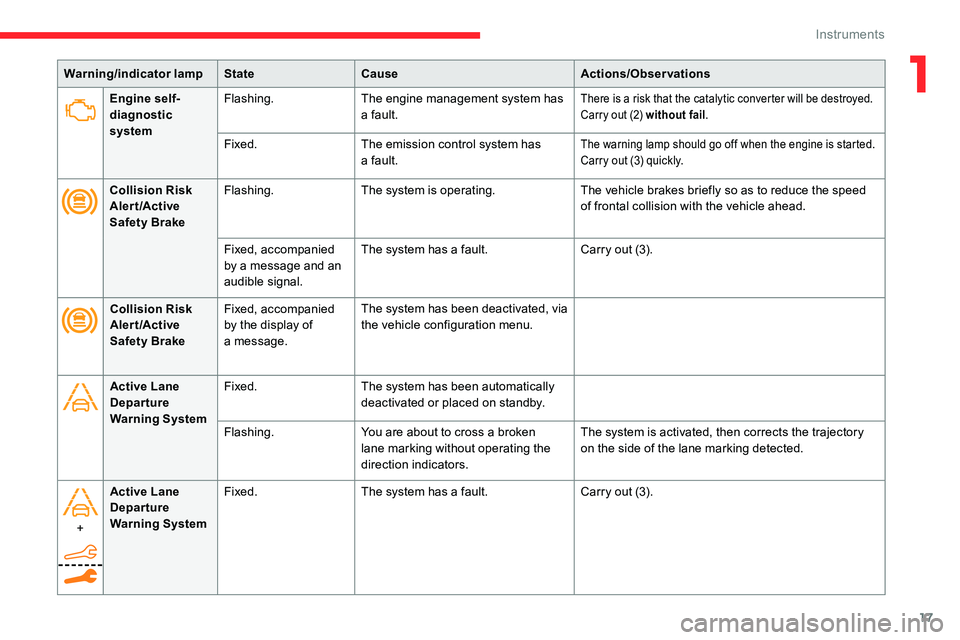

Instruments

17
Engine self-
diagnostic
systemFlashing.
The engine management system has
a
fault.There is a risk that the catalytic converter will be destroyed.
C arry out (2) without fail .
Fixed. The emission control system has
a
fault.The warning lamp should go off when the engine is started.
Carry out (3) quickly.
Warning/indicator lamp StateCause Actions/Observations
Collision Risk
Alert/Active
Safety Brake Flashing.
The system is operating. The vehicle brakes briefly so as to reduce the speed
of frontal collision with the vehicle ahead.
Fixed, accompanied
by a
message and an
audible signal. The system has a
fault.Carry out (3).
Collision Risk
Alert/Active
Safety Brake Fixed, accompanied
by the display of
a


message.The system has been deactivated, via
the vehicle configuration menu.
Active Lane
Departure
Warning System Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing. You are about to cross a
broken
lane marking without operating the
direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Active Lane
Departure
Warning System
Fixed.
The system has a
fault.Carry out (3).
1
Instruments

18
+Active Lane
Keeping Assist
Fixed, accompanied
by the Ser vice
warning lamp. The system has a fault.
Carry out (3).
Dynamic
stability control
(DSC)/Anti- slip
regulation (ASR) Fixed.
The system is deactivated. The DSC/ASR system is reactivated automatically
when the vehicle is started, and from around 31
mph
(50


km/h).
Below 31
mph (50 km/h), you can reactivate it
manually.
Dynamic
stability control
(DSC)/Anti- slip
regulation (ASR) Flashing.
The DSC/ASR adjustment is
activated if there is a
loss of grip or
trajectory.
Fixed. The DSC/ASR system has a
fault. Carry out (3).
+ Emergency
brake fault (with
electric parking
brake) Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not have
f u l l p o w e r.
If automatic release is not available, use manual
release.
Warning/indicator lamp
StateCause Actions/Observations
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a
CITROËN dealer or a qualified
workshop.
(2): Contact a
CITROËN dealer or a qualified
workshop.
Instruments

19
Under-inflationFixed, accompanied
by an audible signal
and a
message.The pressure in one or more wheels
is too low.
Check the pressure of the tyres as soon as possible.
Reinitialise the detection system after adjusting the
pressure.
+ Under-inflation
warning lamp flashing
then fixed and
Service warning lamp
fixed.The system is faulty: tyre pressures
are no longer monitored.
Under-inflation detection is no longer monitored.
As soon as possible, check the pressure of the tyres
and carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
Diesel engine
pre-heating Fixed.
The period of
illumination depends
on the climatic
conditions. The ignition is on.
Wait until the warning lamp goes off before starting.
If the engine does not start, switch the ignition off and
then on, wait until the lamp goes off again, then start
the engine.
Front passenger
airbag (ON) Fixed.
The front passenger airbag is
activated.
The control is in the "ON" position. In this case, do NOT install a "
rearward facing"
child seat on the front passenger seat – risk of
serious injury!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag is
deactivated.
The control is in the "OFF" position. You can install a "rear ward facing" child seat, unless
there is a
fault with the airbags (Airbags warning lamp
o n).
Airbags Fixed. One of the airbags or seat belt
pretensioners is faulty. Carry out (3).
1
Instruments

20
Warning/indicator lampStateCause Actions/Observations
or Low fuel level
Fixed (warning
lamp or LED) and
needle in the red
zone (depending on
version), accompanied
by an audible signal
and a
message.
The audible signal
and the message
are repeated with
increasing frequency
as the level drops
towards zero.When it first comes on, there
remains approximately 5 litres of
fuel in the tank (reser ve). Refuel without delay to avoid running out of fuel.
Never drive until completely empty
, as this could
damage the emissions control and injection systems.
Diesel filter Fixed. The Diesel filter contains water. Risk of damage to the injection system: carry out (2)
without delay.
Par ticle filter
(Diesel) Fixed, accompanied
by an audible signal
and a

message about
the risk of particle
filter blockage. This indicates that the particle filter
is beginning to saturate.
As soon as the traffic conditions permit, regenerate
the filter by driving at a
speed of at least 37 mph
(60
km/h) until the warning lamp goes off.
Fixed, accompanied by
an audible signal and
a

message signalling
that the additive level
in the particle filter is
too low.This indicates that the level in the
additive tank is low. Carry out (3).
Instruments

21
Deactivation of
the automatic
functions (with
electric parking
brake)Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" (on acceleration)
functions are deactivated.
In the event of a
fault, illumination of
this warning lamp is accompanied by
a


message.Carry out (3) if automatic application/release is no
longer possible.
The brake can be applied or released manually.
+ Automatic
application
(with electric
parking brake)
Fixed, accompanied
by the message
"Parking brake fault".
Automatic application is not
available, the parking brake can only
be used manually. Use the electric parking brake control lever.
If automatic release is also not available, use manual
release.
Warning/indicator lamp
StateCause Actions/Observations
Malfunction
(with electric
parking brake) Fixed.
The electric parking brake has
a


fault.Carry out (3) quickly.
+ Fixed, accompanied
by the message
"Parking brake fault".
You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
1
Instruments

22
+
+Malfunction
(with electric
parking brake)
Fixed, accompanied
by the message
"Parking brake fault". The parking brake is faulty: manual
and automatic functions may not be
working. When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately
7 to 15 seconds, until the indicator lamp comes on
in the instrument panel.
If this procedure does not work, secure your vehicle:
F

P
ark on a level sur face.
F

W
ith a

manual gearbox, engage a

gear.
F

W
ith an automatic gearbox, select P, then put the
supplied chocks against one of the wheels.
Then carry out (2).
Rear foglamps Fixed. The lamps are on.
Parking sensors Fixed, accompanied
by the display of
a
message and an
audible signal. The system has a
fault.Carry out (3).
Foot on the
clutch Fixed.
Stop & Start: the change to START
mode is rejected because the clutch
pedal is not fully depressed. Fully depress the clutch pedal.
Warning/indicator lamp
StateCause Actions/Observations
Instruments
