Fuses and bulbs
Left engine compartment fuse assignment
=
3
3}
7
6
Ly
vy
<1
RAZ-0794)
ment
F3

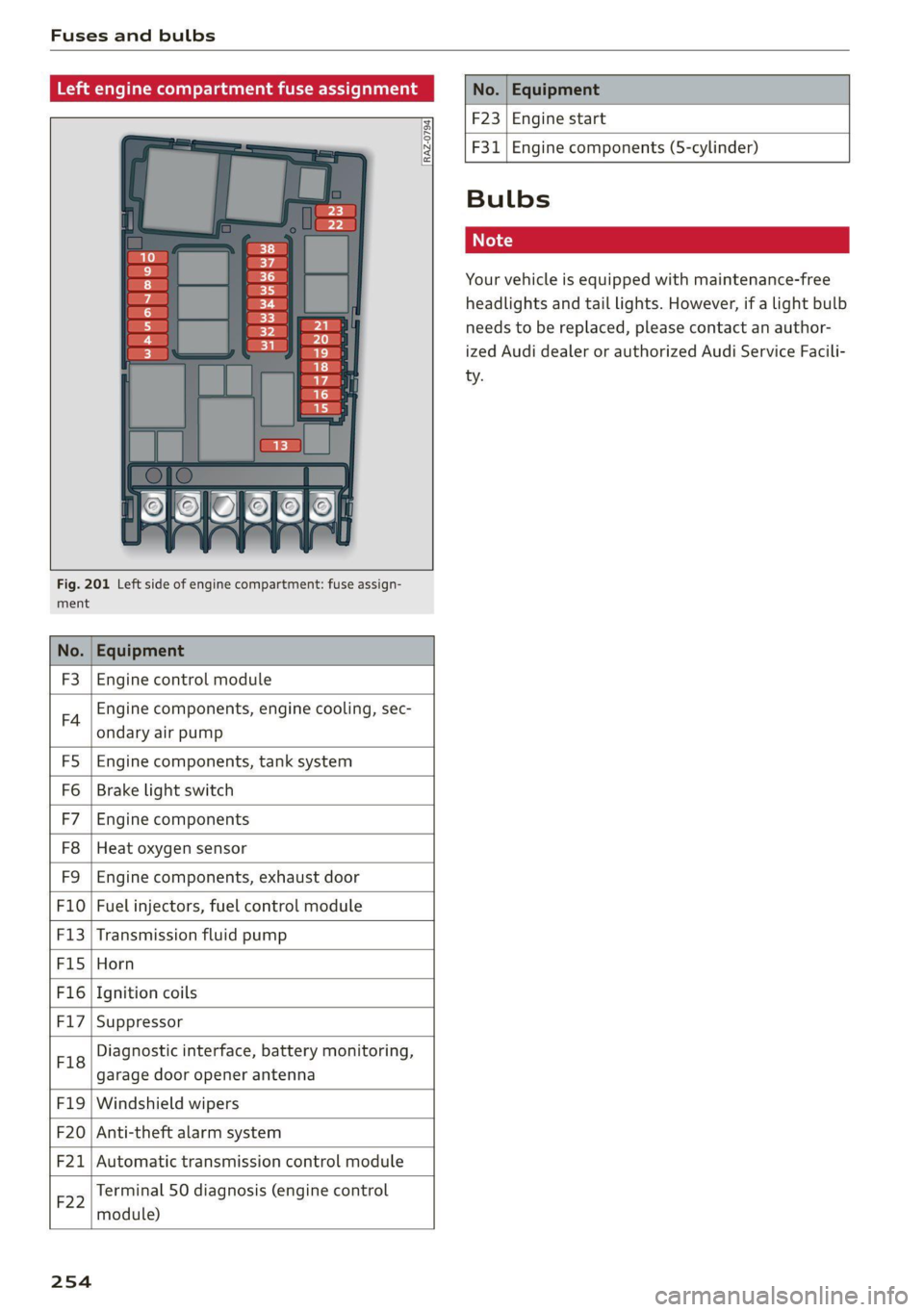

Fig. 201 Left side of engine compartment: fuse assign-
Engine control module
F4
Engine components, engine cooling, sec-
ondary air pump
FS Engine components, tank system
Fo Brake light switch
F7 Engine components
F8 Heat oxygen sensor
F9 Engine components, exhaust door
F10 Fuel injectors, fuel control module
F13 Transmission fluid pump
F15 Horn
F16 Ignition coils
F17 Suppressor
F18
Diagnostic interface, battery monitoring,
garage door opener antenna
F19 Windshield wipers
F20 Anti-theft alarm system
F201: Automatic transmission control module
F22
Terminal 50 diagnosis (engine control
module)
254
F23 Engine start
F31
Engine components (5-cylinder)
Bulbs
Your vehicle is equipped with maintenance-free
headlights and tail lights. However, if a light bulb
needs to be replaced, please contact an author-
ized Audi dealer or authorized Audi Service Facili-
ty.
