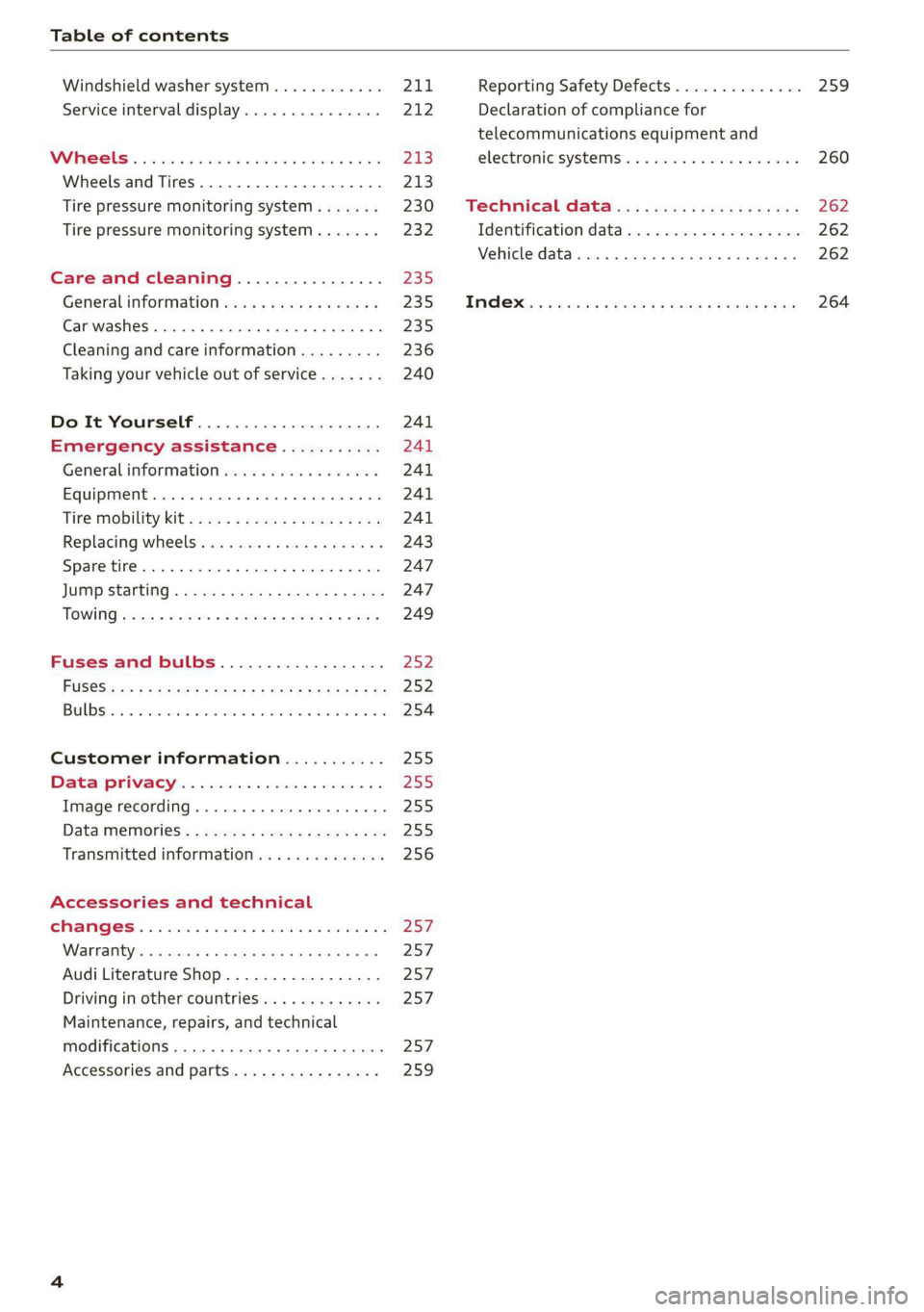

Table of contents

Windshield washer system...........-
Service interval display...............
Tire pressure monitoring system.......
Tire pressure monitoring system.......
Care and cleaning................
Generalinformation.................
Care washes « stom: «2 mre: a omnes onan ©
Cleaning and care information.........
Taking your vehicle out of service.......
Do It Yourself ....................
Emergency assistance...........
General information.................
Equipment....... 00.0... 0 cece eee
Tife Mobility Kit sxe « = sccm & 2 neue 2 2 eo
Replacing wheels. ...........0eee eee
Sparetire.......... 2... eee eee eee
Customer information...........
Datrasprivae yin. « eccscss xc svesson ae arenes oo
Image recording .........es eee eee eae
Data Memories: + sca « = seem « = ees og oe
Transmitted information..............
Accessories and technical
IWAEKATIEY'. « wssane « scensus « « exenens o « snineiine 6
Audi Literature Shop.................
Driving in other countries.............
Maintenance, repairs, and technical
modifications...............00 cena
Accessories and parts................
Reporting Safety Defects.............. 259
Declaration of compliance for
telecommunications equipment and
electronic systems ............--0000- 260
Technical data................0005 262
Identification data................0.. 262
Vehicle data............ cece eee eee 262
ENAGXM on « yas « = wpe © < eo 8 & ee 8 7 ew 264

Instrument cluster

At temperatures below 41 °F (+5 °C), a snowflake
symbol appears in front of the temperature dis-
play > A.

ZA WARNING
Do not assume the roads are free of ice based
on the outside temperature display. Be aware
that there may be ice on roads even when the
outside temperature is around 41 °F (+5 °C)
and that ice can increase the risk of accidents.


Fuel level
The display @ > page 10, fig. 3 only works when
the ignition is switched on. When the display has
reached the reserve mark, a red LED turns on and
the iy indicator light turns on > page 197.
For the tank capacity in your vehicle, refer to the
Technical Data > page 263.
@) Note
Never drive until the tank is completely emp-
ty. The irregular supply of fuel that results
from that can cause engine misfires. Uncom-
busted fuel will then enter the exhaust sys-
tem. This can cause overheating and damage
to the catalytic converter.
Multifunction steering
wheel
87.6 MHz
cS BAL
90.0 MHz
90.5 MHz
91.5 MHz
TRON Lard
Fig. 5 Driver information system display
12

Fig. 6 Left side of multifunction steering wheel
Requirement: the ignition must be switched on.
The driver information system contains multiple
tabs @ that display various information (2).
The following tabs may be available, depending
on vehicle equipment:








First tab Vehicle functions
Second tab | Driver messages (this is only dis-
played if at least one indicator
light/message is being displayed)
=>page 16
Third tab Radio > page 165
Media
> page 170
Fourth tab | Telephone > page 129
Fifth tab Navigation > page 149
Map > page 158
Sixth tab Sound®> page 189
Audi connect > page 142
Settings > page 189
@®lk2] button

Switching tabs: press the|<>] button repeatedly
until the desired tab is shown (for example, Ra-
dio).


@ [VIEW] button
Changing the view > page 13.

©®|[] button
Return to functions at higher levels.
© DJand [control buttons
Open/close the selection menu or options menu
=> page 13.

8S1012721BB
Checking and Filling

The correct fuel type for your vehicle can be
found ona label located on the inside of the fuel
filler door. For additional information on fuel, see
=>page 195.
For the tank capacity in your vehicle, refer to the
Technical Data > page 263.
If the central locking system malfunctions, there
is a fuel filler door emergency release
=> page 199.
Messages
[i Tank system: malfunction! Please contact
Service
If the indicator light turns on and this message
appears, there is a malfunction in the tank sys-
tem. Drive to an authorized Audi dealer or au-
thorized Audi Service Facility immediately to have
the malfunction corrected.


ZA WARNING
Improper fueling procedures and improper
handling of fuel can lead to explosions, fires,
severe burns, and other injuries.
— Do not smoke. Keep away from open flames.
— The ignition must be switched off when re-
fueling.
— Mobile devices, radio devices, and other ra-
dio equipment should always be switched
off when refueling. Electromagnetic rays
could cause sparks and start a fire.
— If you do not insert the fuel pump nozzle all
the way into the filler tube, then fuel can
leak out. Spilled fuel can ignite and start a
fire.
— Never get into the vehicle when refueling. If
there is an exceptional situation where you
must enter the vehicle, close the door and
touch a metal surface before touching the
fuel pump nozzle again. This will reduce the
risk of electrostatic discharge that can cause
flying sparks. Sparks can start a fire when
refueling.

the container and ignite, especially during an
accident. This can cause explosions, fires, and
injuries.
— If you must transport fuel in a fuel contain-
er, note the following:
— Always place the fuel container on the
ground before filling. Never fill the fuel
container with fuel while it is inside or on
the vehicle. Electrostatic discharge can oc-
cur while refueling and the fuel vapors
could ignite.
— When using fuel containers made of met-
al, the fuel pump nozzle must always re-
main in contact with the container to re-
duce the risk of static charge.
— Insert the fuel pump nozzle as far as pos-
sible into the filler opening while refuel-
ing.
— Follow the applicable legal regulations in
the country where you are driving when
using, storing and transporting fuel con-
tainers.
— Make sure that the fuel container meets
the industry standards, for example ANSI
or ASTM F852-86.


ZA WARNING
Transporting fuel containers inside the vehicle

is not recommended. Fuel could leak out of

C) Note
— Remove fuel that has overflowed onto any
vehicle
components immediately to reduce
the risk of damage to the vehicle.
— Never drive until the fuel tank is completely
empty. The irregular supply of fuel that re-
sults from that can cause engine misfires.
Uncombusted fuel may enter the exhaust
system and increase the risk of damage to
the catalytic converter.
(@) For the sake of the environment
— Do not overfill the fuel tank, or fuel could
leak out when the vehicle is warming up.
— Fuel should never enter the sewer system or
come into contact with the ground.
197
>

8S1012721BB
Data privacy

Data privacy
Image recording
Surrounding area monitoring
Applies to: vehicles with surrounding area monitoring
Some vehicle functions require the vehicle’s path
to be detected and evaluated. This is done by
cameras installed permanently on the vehicle
that detect objects in the vehicle's surroundings
(such as obstacles or guard rails). The live images
from the cameras are transmitted to the applica-
ble control module.
The camera images are transmitted to the appli-
cable control module and stored for processing.
The control module analyzes the current camera
image using image evaluation software. This im-
age evaluation software detects anonymized
technical measurements, such as distances to ob-
jects. The control module evaluates these techni-
cal measurements and makes it possible for the
assist systems to control the vehicle, if necessary.
Data memories
Vehicle control modules
5 io. oO Z| x=
+ )


Fig. 202 Driver side footwell: connection port for the On
Board Diagnostic System (OBD)
Your vehicle is equipped with electronic control
modules for various vehicle systems such as the
airbags. These vehicle control modules store data
while driving normally that is required by an au-
thorized Audi dealer or authorized Audi Service
Facility for diagnosis and repair purposes. Only
certain types of data are recorded for a very short
period of time if a control module has detected a
system event. No noises, conversations, or im-
ages will be recorded in the vehicle.
The data may include information such as the ve-
hicle speed, the direction of travel, and informa-
tion about the brake system, or also the behavior
of the restraint system in the event of an acci-
dent. The stored data can be exported and down-
loaded with special devices, which must be con-
nected directly to the vehicle.
On Board Diagnostic System (OBD)
There is a diagnostic connector socket in the driv-
er's side footwell to read out the various control
modules and the event data recorder. Data re-
garding the function and condition of the elec-
tronic control modules is stored in the event
memory. Only have an authorized Audi dealer or
authorized Audi Service Facility read out and de-
lete the event memory.

ZX WARNING
— Incorrect use of the connection port for the
On Board Diagnostic System can cause mal-
functions, which can then result in accidents
and serious injuries.
— Only allow an authorized Audi dealer or au-
thorized Audi Service Facility to read out the
engine data.
Creu lem eelcel 1g
Crash data recorder/event data recorder

Your vehicle is not equipped with a crash data re-
corder.
Vehicle information is stored temporarily in a
crash data recorder. This provides detailed insight
into the circumstances of an accident. In vehicles
with an airbag system, accident-related informa-
tion such as impact speed, seat belt status, seat
positions and deployment times may be stored.
The scope of information depends on the particu-
lar manufacturer.
The owner must agree to the installation of any
such crash data recorder and it is regulated by
law in some countries.
255

Accessories and technical changes

Usually maintenance and repair work requires
special tools, measuring devices, and other
equipment that is available to trained vehicle
technicians in order to help ensure that your vehi-
cle and all of its systems operate correctly, relia-
bly, and safely. Performing work on the vehicle
incorrectly can impair the operation and reliabili-
ty of your vehicle and may void one or more of
your vehicle's warranties.
Technical Modifications
Interference with electronic components, their
software, the wiring, and data transfer may cause
malfunctions. Because of the way electronic com-
ponents are interconnected, such malfunctions
can also impair systems that are not directly in-
volved. This means that you risk both a substan-
tial reduction in the operational safety of your ve-
hicle and increased wear of vehicle components.
Some convenience functions, such as the conven-
ience turn signal function, individual door open-
ing function, and displays, can be reprogrammed
using special workshop equipment. If functions
are reprogrammed, the information and descrip-
tions about these functions in this Owner's Man-
ual may no longer apply to the changed func-
tions. Audi recommends that an authorized Audi
dealer or authorized Audi Service Facility perform
and verify any reprogramming procedures.


carry out the job and have the correct tech-
nical information and the correct tools.
— If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer, an authorized Audi Service Facility,
or another qualified workshop. Serious per-
sonal injury may result from improperly per-
formed work.


ZA WARNING
Maintenance procedures, repairs, or technical
modifications that are performed incorrectly
increase the risk of an accident and can lead
to serious injuries.


ZA WARNING
The engine compartment of any motor vehicle
is a potentially dangerous area and can cause
serious personal injury.
— Always use extreme caution when doing any
work in the engine compartment. Always
follow commonly accepted safety practices
and use common sense. Never risk personal
injury.
— Never perform any work in the engine com-
partment unless you know exactly how to

258
C) Note
— Maintenance procedures, repairs or techni-
cal modifications that are performed incor-
rectly can cause damage to the vehicle, such
as corrosion.
— If emergency repairs must be performed,
take your vehicle to an authorized Audi deal-
er or authorized Audi Service Facility as soon
as possible.
— Audi is not liable for damage to the vehicle
resulting from failure to comply with these
guidelines.
@) For the sake of the environment
— Regular maintenance can help protect the
environment.
— Technical modifications to the vehicle can
have a negative impact on fuel consumption
and vehicle emissions.
@) For the sake of the environment
Undeployed airbag modules and pretension-
ers are classified as Perchlorate Material -
special handling may apply, See www.dtsc.ca.
gov/hazardouswaste/perchlorate. When the
vehicle or parts of the restraint system includ-
ing airbag modules and safety belts with pre-
tensioners are scrapped, all applicable laws
and regulations must be observed. Your au-
thorized Audi dealer is familiar with these re-
quirements and we recommend that you have
your dealer perform this service for you.
G) Tips
Because of your vehicle's aluminum body de-
sign, all service and repair procedures affect-
ing the body should be performed by an au-
thorized Audi dealer or authorized Audi

Technical data

Technical data
Identification data
Vehicle identification label

—S>SSESESES>S>S>E>E>>—s FA
WOOK X-XOK KKK)
(Hae osccn XX x XXKKKNKK
Fim = YXX XXX
27] XX XXXXXXX XX. X.X XX
XXX KW x
(3)—-Wwoee / GER. 1B
ENG. CODE / TRANS. CODE
XX
XXXX XXX XXX
@ i XK XKNK XK XX
EOA 7D5
2EH JOZ
3FC
FOA
TL6 = 3KA
1XW
716 CV7
3L4
1SA

4UB
1LB
6XM 5SG 1AS
SMU 7X1
0G7 OYH OJF
U1A X9B QZ7
9Q8
824 D2D
4X3 2K2
3Y0 413
QIA
SRW
1BA
9G3
8EH
8Q3
7KO
AKC 7GB
6)
5D2
4GQ
et

Fig. 203 Vehicle identification label
The vehicle identification label > fig. 203 is locat-
ed in the luggage compartment under the cargo
floor cover.
The vehicle identification label information can
also be found in the Warranty & Maintenance
booklet.
Vehicle data
The sticker contains the following vehicle data:
@ Vehicle Identification Number (VIN)
@ Vehicle type, engine output, transmission
@® Engine and transmission codes
@ Paint and interior codes
© Optional equipment numbers
Vehicle identification number (VIN)
The VIN is located in the following areas:

MENU — Select: button > left control button >
Service & checks > Vehicle information.
— On the vehicle identification label
— At the front behind the windshield*
— On the right side of the engine compartment
under a cover
Notes about technical data
The values may vary based on special equipment
as well as market-specific equipment and meas-
uring methods.

Please note that the specifications listed in the
vehicle documentation always take precedence.
@ Tips
Any technical data that is missing was not
available at the time of printing.

Length (in (mm)) Width (in (mm)) Width across the
mirrors (in (mm))
Height at curb
weight (in (mm))



TT Coupe 165.0 (4,191) 72.1 (1,832) 77.4 (1,966) 53.3 (1,353)
TTS Coupe 165.0 (4,191) 72.1.(1,832) 77.4 (1,966) 53,3 (1,353)
TT Roadster 165.0 (4,191) 72.1.(1,832) 77.4 (1,966) 53.4 (1,355)

262

851012721BB
Technical data

ler} lahat)
Fuel tank 14.5 gal (55 L)
Windshield and headlight washer system* 4.0 qt (3.8L)


Weights


[= Le
TAMA AA ON
Fig. 204 Safety certificate



Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight @ of the
vehicle is listed on the safety certificate on the
side area of the door or on the driver's door pillar.
Gross Axle Weight Rating (GAWR)
The maximum permitted load on the front axle
@ or the rear axle @) is listed on the safety cer-
tificate on the side area of the door or on the
driver's door pillar.
Load
The maximum permitted load is listed on the tire
pressure label on the driver's door pillar.
Roof load
The maximum permissible roof load is 165 lb (75
kg).
263

8S1012721BB

SIM icatd reader ia: « + seis ¥ vena w © romeo @ o ame 143
SKI Dag sic = & mesa oo mess «vem ¥ woe we RHE 66
Smartphone
refer to Telephone................-00. 129
Snowboard. bag « esses vs scone se mene © mene © 66
Snow chains! « sev oo sews oe site oo aes vo 228
Socket
refer to Power sourcesS.............0000. 63
Software update
refer to System update (MMI).......... 192
Software (MMI)
License... 22... eee ee 194
Update « cares so naw so pees oe news 2 Rees @ 192
MERSIOM Eo sncesexes » esonane 0 6 eccenees «© & oveaum 9 4 asus 192
Sane Eek: & wien v @ snzens wo mwenere wo seswaws w @ ve8 247
Speed dependent volume control......... 193
SPeedOMeter « mses + wow so weres s x wees + 6 oe 10
Speed warning syst€Mias < « asws se ees so eae 87
Speller « saw s 2 wows 2 2 cee x yee oe 117
Sport displays............ 0.000220 eee ee 15
Sport mode...........02-- cee eee eee eee 106
Sport view.... 0.2.0... 2c 13
Sporty driving. .......... 0. eee ee eee eee ee 79
Stabilization program
refer to Electronic Stabilization
Gontrol.(ESG) « + awe ¢ » maeu 2 ¢ ame 2 2 eee 105
START ENGINE STOP button.............. 75
START ENGINE STOP (button)............. 76
Starting todrive......... 6. ce eee eee eee 78
Starting (engine)...............00220 00 75
SEONG)’. « « seexes 5 « amen 5 2 ommes wo nme © 6 me 108
Indicator light.............. eee eee eee 16
also refer to Steering..............--5 108
Steering wheel
AGJUSEIN Gia: & & svssews oo suvsacs 6 a sonore & & amas © 8 48
Shift paddles (automatic transmission).... 83
also refer to Multifunction
steering wheel. .........0c eee e eee 12,14
Steps for determining correct load limit... 227
Stopover (navigation) ............0.000. 154
Storage compartments...............--. 63
Streaming
refer to Online media................. 175
S tronic (automatic transmission) .......... 79
Subtitles (DVD) ssc ¢ s eas =o ees = bee ee 181
SUN VISOFS. 1... ee eee 41
Suspension Comtrolie. es cc ee ences oe eevee ox 96
Swapping 'calls:. « ssies v6 sees oo ewes & os oweers 134
Switching daytime running lights on and off. 38
Switching the ignitionon............00eee 75
SYMDOIS ss ss peas so e995 = i RG EE eG Fes 120
Navigationivs « 3 sno s 3 wwwsu so ames > wae 158
also refer to Indicator lights.............- ?
System settings (MMI)................. 189
System update (MMD) ws s «cnc «a wwe x x 192
System VOLUME sven ss wvaie os eee ee wee es 193
T
Tachometer cas + » aawe 2 names x wean a 2 ae LO, 11.
Technical data’: « « aie « aqews 7 neue 3 x eee 262
Technical modifications................. 257
Telephone... .. cece eee eee eee eee 129
Audi phone Dox es + « sacs sc eres se een ve 131
Connecting acellphone............... 129
Dialinganumber................0000- 133
Options during a phone call............ 134
SOEEINGS: cccvan © o waves o wreens ¥en we enbawie 140
Temperature display (outside temperature)... 11
Temperature gauge
Coolant... 0... eee eee ee 10
Tethering
refer to Personal hotspot.............. 143
Text messageS...........0.00 2002. e eee 135
also refer to Text messages............ 135
Tie-downs .... 0... eee eee eee 67
Tightening specification
Wheel boltsisn « « aces s x eee su oeww s eee 247
Tightening specification (wheel bolts) .... . 247
TIMG eee eee teens 189
tiptronic (automatic transmission)......... 83
Tire Mobility System (tire repair set)....... 241
THIRGS & cron 5 emcee © scenes @ tere © 8 Oe & = oa 213
All wheel drive............. eee e eee eee 109
Low-profile tires.............0...000. 229
Repaitisetis + o seas + ween « 6 wnemn 4 2 cower 8 a 6 241
Replacing.......... 0... cee cece eee eee 243
SCiVICE lifGicms = nave = meme & ¥ ROE ee Sew 222
Tite PKOSSUNC iu ow seawese 3 scsmes @ ose wo ae 223
Tire pressure monitoring sys-
LOM: « v ews s pewey « een 9 cow 230, 231,232
Tire pressure table.............. 0000 225
273,
