2020 AUDI R8 COUPE Owners Manual

4S1012721BA
Opening and closing

in the same frequency range (such as a cell
phone or radio equipment). Always check if
your vehicle is locked!
— For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
=> page 287.
Removing the mechanical key

B4S-0099



Fig. 12 Remote control master key: removing the mechani-
cal key
» Press the release button @ 9 fig. 12.
> Pull the mechanical key (2) out of the remote
control key.
Using the mechanical key, you can:
— Lock or unlock the glove compartment.
— Manually lock or unlock the vehicle > page 26.
— Mechanically lock the doors > page 26.
LED and batteries in the remote control key

B4S-0102



Fig. 13 Remote control key: removing the battery holder
LED on the remote control key
The LED @ indicates the remote control key func-
tion.
> If you press a button briefly, the LED blinks
once.
> If you press and hold a button (convenience
opening/closing), the LED blinks several times.
» If the LED does not blink, the remote control
key battery is drained. The BS indicator light
turns on and the message Remote control key:
replace key battery appears in the driver infor-
mation system. Replace the battery in the re-
mote control key.
Replacing the remote control key battery
> Remove the mechanical key > page 23.
> Press the release button (2) on the battery
holder and pull the battery holder out of the re-
mote control key in the direction of the arrow at
the same time.
> Insert the new battery with the “+” facing
down.
> Slide the battery holder carefully into the re-
mote control key.
> Insert the mechanical key.
(@) For the sake of the environment
Discharged batteries must be disposed of us-
ing
methods that will not harm the environ-
ment. Do not dispose of them in household
trash.
@ Tips
Replacement batteries for the remote control
key must meet the same specifications as the
original battery.
Unlocking and locking by remote control

B4S-0103


Fig. 14 Remote control key: button programming
23

Opening and closing

> To unlock the vehicle, press the &@ button
> fig. 14.
> To lock the vehicle, press the & button once.
> To unlock the luggage compartment lid, press
the & button.
> To trigger the alarm, press the red [PANIC] but-
ton.
The vehicle horn and emergency flashers
will activate.
> To switch off the alarm, press the red [PANIC
button again.




If you unlock the vehicle and do not open any of
the doors, the engine compartment lid, or the
luggage compartment lid within 45 seconds, the
vehicle automatically locks again. This feature
prevents the vehicle from being accidentally left
unlocked for a long period of time.
The settings in the Infotainment system deter-
mine if the entire vehicle or only the driver's door
is unlocked when unlocking the vehicle
=> page 25.


Z\ WARNING
No one, especially children, should stay in the
vehicle when it is locked from the outside, be-
cause the windows can no longer be opened
from the inside > page 26. Locked doors
make it more difficult for emergency workers
to get into the vehicle, which puts lives at risk.

G Tips
— Only use the remote control key when you
are within view of the vehicle.
— The "P" position must be engaged to lock
the vehicle.
— Only use the panic function in an emergen-
cy.
24

Unlocking and locking with the
oT BC
The doors can be unlocked/locked without using
the remote control key.

nN
Ss
° a
¢ a
Fig. 15 Door handle: sensor
Unlocking the vehicle
> Grip the door handle. The door unlocks auto-
matically.
> Pull on the door handle to open the door.
Locking the vehicle
» Select the "P" position. The vehicle cannot be
locked if "P" is not selected.
> To lock the vehicle, close the door and touch
the sensor in the door handle once > fig. 15. Do
not hold the door handle while doing this.
You can unlock/lock the vehicle at every door. The
convenience key must no be more than approxi-
mately 5 feet (1.5 m) away from the door handle.
The function should not be impaired if the con-
venience key is in your jacket pocket or in your
briefcase, for example.
If you hold the door handle while locking, this
can impair the locking function.
The door cannot be opened for a brief period di-
rectly after locking it. This way you have the op-
portunity to check if the doors locked correctly.
The settings in the Infotainment system deter-
mine if the entire vehicle or only one of the doors
is unlocked when unlocking the vehicle
=> page 25.

4S1012721BA
Opening and closing


AN WARNING
No one, especially children, should stay in the
vehicle when it is locked from the outside, be-
cause the windows can no longer be opened
from the inside > page 26. Locked doors
make it more difficult for emergency workers
to get into the vehicle, which puts lives at risk.

ZA\ WARNING
Read and following all WARNINGS. > A\ in
Key set on page 22
G) Tips
If your vehicle is left standing for a long peri-
od of time, note the following:
—To prevent the vehicle battery from dis-
charging, the energy management gradual-
ly switches off convenience functions that
are not needed. You then may no longer be
able to unlock your vehicle with the sensors.
— For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
=> page 287.
Central locking switch


Fig. 16 Driver's door: central locking switch
> To lock the vehicle, press the & button > A\.
> To unlock the vehicle, press the @ button.
When locking the vehicle with the central locking
switch, the following applies:
— The doors and the luggage compartment lid
cannot be opened from the outside for security
reasons, such as to prevent unauthorized open-
ing while stopped at a light.
— The LED in the central locking switch turns on
when all doors are closed and locked.
— You can open the doors individually from the in-
side by pulling the door handle.
— In the event of a crash with airbag deployment,
the doors unlock automatically to allow access
to the vehicle.

ZA\ WARNING
— The central locking switch also works when
the ignition is switched off and automatical-
ly locks the entire vehicle when the & button
is pressed.
— The central locking switch is inoperative
when the vehicle is locked from the outside.
— Locked doors make it more difficult for
emergency workers to get into the vehicle,
which puts lives at risk. Do not leave anyone
behind in the vehicle, especially children.
Gi) Tips
Your vehicle locks automatically when it
reaches a speed of 9 mph (15 km/h) (Auto
Lock) = page 21. You can unlock the vehicle
again using the @ button in the central lock-
ing switch.
Setting the central locking system
You can adjust the central locking system to your
preferences. The settings depend on the vehicle
equipment.


> Select in the Infotainment system: [MENU] but-
ton > Vehicle > left control button > Vehicle
settings.

Door unlocking - You can decide if All doors or
only the Driver door should unlock. If you select
Driver, only the door whose handle you pull will
unlock.
Long press to open windows - You can select if
all windows should open using the vehicle key
= page 29, Convenience opening and closing. If
you press and hold the ff button on the vehicle
key, all of the windows will close.
25

Opening and closing

All doors will be unlocked if you press the ( but-
ton twice on the convenience key when the Driver
setting is selected.
Lock when driving” - If you select On, all doors
and the luggage compartment lid will be locked
automatically when driving (Auto Lock).
Fold mirrors - If you select On, the exterior rear-
view mirrors fold will in automatically when you
press the f button on the remote control key or
touch the sensor® in the handle.

Mechanically unlocki
Co lofol
g and locking the
If the central locking fails, you must unlock or
lock the doors separately.

B4S-0019

Fig. 18 Front passenger's door: emergency release
Unlocking and locking the driver's door with
the mechanical key
> Remove the mechanical key > page 23.
> To unlock the driver's door, turn the key to the
unlock position in the direction of arrow @)
> fig. 17.

D This function is not available in all countries.
26
> To lock the driver's door, select the P position
and turn the key once to the closing position
@.
Locking the front passenger's door with the
mechanical key
The mechanical lock is located on the edge of the
front passenger's door. It is only visible when the
door is open.
> Remove the mechanical key > page 23.
>» Remove the cap from the opening > fig. 18.
> Insert the key into the slot inside and turn it all
the way to the right (right door) or to the left
(left door*).
Once the front passenger's door is closed, it is no
longer possible to open it from the outside. The
door can be opened from the inside by pulling
the door handle.
Nie aee Ley a)
If the anti-theft alarm system detects a vehicle
break-in, audio and visual warning signals are
triggered. The anti-theft alarm system is switch-
ed on or off when locking or unlocking your vehi-
cle. If the alarm is triggered, it will shut off auto-
matically after a certain amount of time.
Switching the alarm off manually
> To switch the alarm off, press the @ button on
the remote control key or switch the ignition
on.
Break-in security feature
The alarm will sound if there is a break-in at the
doors, engine compartment lid, and/or luggage
compartment lid.

4S1012721BA
Opening and closing

Luggage compartment
lid
Opening and closing the luggage
compartment lid
S 8
Ss
& db t a

Fig. 19 Driver's door: unlocking the luggage compartment
lid

B4S-0023

Fig. 20 Unlocked luggage compartment lid
When opening the luggage compartment lid, the
windshield wipers must be switched off and the
wiper arms must be folded against the window.
Otherwise the paint could be damaged.
Opening the luggage compartment lid
> To unlock the luggage compartment lid, press
the & button on the remote control key. Or
> Press the & button in the driver's door.
> Press the tab. This releases the catch.
> Lift the luggage compartment lid.
Closing the luggage compartment lid
> Push the luggage compartment lid down until
you override the force of the struts.
> Close the luggage compartment lid.
> Carefully push the luggage compartment lid
closed using both hands until it audibly engag-
eso /\.


ZA WARNING
— After closing the luggage compartment lid,
make sure that it is latched. Otherwise the
luggage compartment lid could open sud-
denly when driving, which increases the risk
of an accident.
— Never leave your vehicle unattended when
the luggage compartment lid is open. A
child could crawl into the luggage compart-
ment. If the luggage compartment lid was
then closed, the child would be trapped in
the vehicle and unable to escape. To reduce
the risk of injury, do not allow children to
play in or around the vehicle. Always keep
the luggage compartment lid and the doors
closed when the vehicle is not in use.
— Always make sure no one is in the luggage
compartment lid's range of motion when it
is closing, especially near the hinges. Fin-
gers or hands could be pinched.

G) Tips
— When the vehicle is locked, the luggage
compartment lid can be unlocked separately
by pressing the <> button on the remote
control key. The luggage compartment lid
locks automatically when it is closed again.
— In case of an emergency or a faulty handle,
the luggage compartment lid can be opened
manually from the inside > page 28.
27

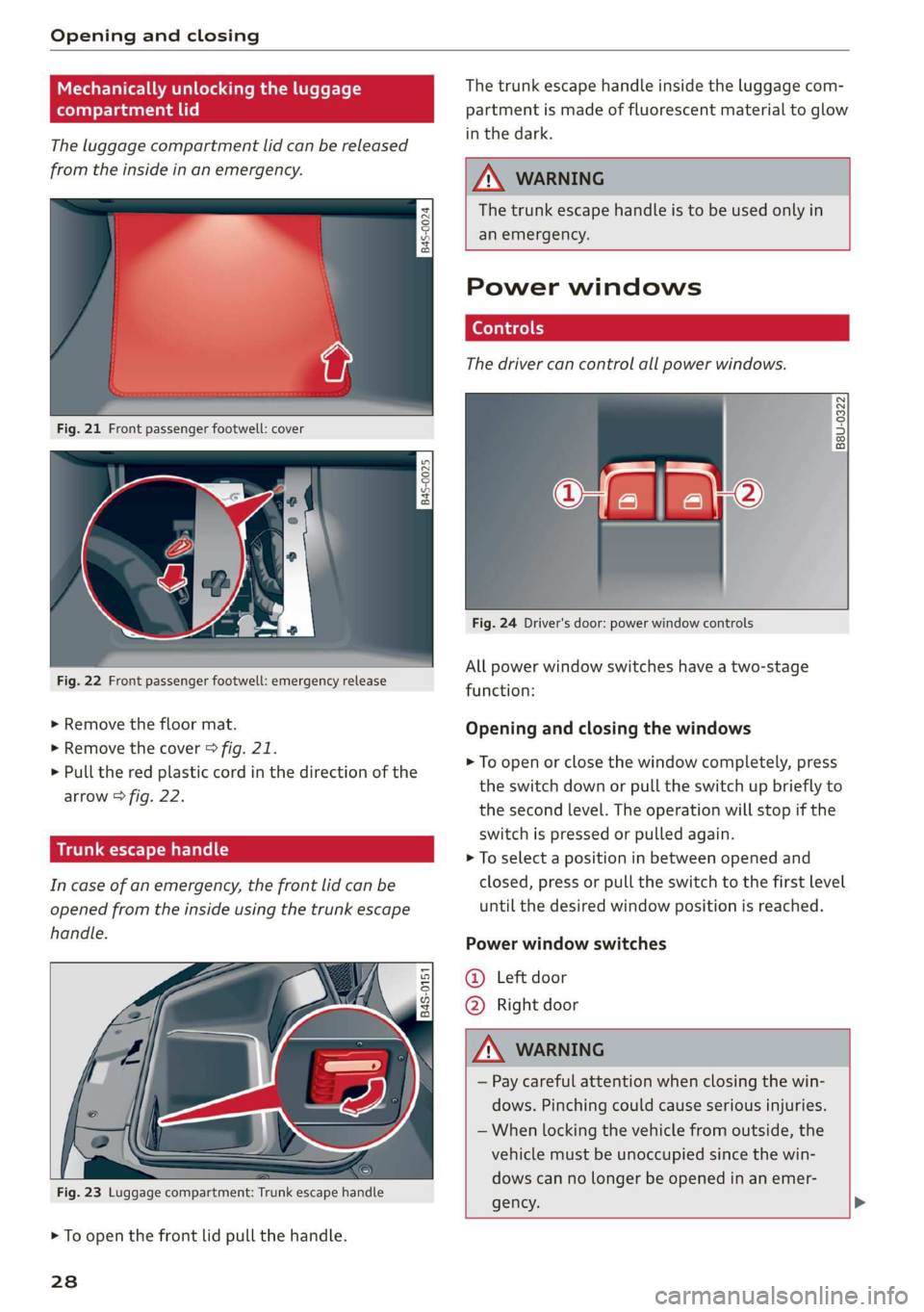

Opening and closing



The luggage compartment lid can be released
from the inside in an emergency.
[645-0024
|


Fig. 21 Front passenger footwell: cover
1545-0025


Fig. 22 Front passenger footwell: emergency release
> Remove the floor mat.
> Remove the cover > fig. 21.
> Pull the red plastic cord in the direction of the
arrow > fig. 22.
In case of an emergency, the front lid can be
opened from the inside using the trunk escape
handle.

Fig. 23 Luggage compartment: Trunk escape handle
> To open the front lid pull the handle.
238

The trunk escape handle inside the luggage com-
partment is made of fluorescent material to glow
in the dark.
Z\ WARNING
The trunk escape handle is to be used only in
an emergency.
Power windows
Controls

The driver can control all power windows.
B8U-0322

Fig. 24 Driver's door: power window controls
All power window switches have a two-stage
function:
Opening and closing the windows
> To open or close the window completely, press
the switch down or pull the switch up briefly to
the second level. The operation will stop if the
switch is pressed or pulled again.
> To select a position in between opened and
closed,
press or pull the switch to the first level
until
the desired window position is reached.
Power window switches
1) Left door
Right door

ZA\ WARNING
— Pay careful attention when closing the win-
dows. Pinching could cause serious injuries.
— When locking the vehicle from outside, the
vehicle must be unoccupied since the win-
dows can no longer be opened in an emer-
gency. >

4S1012721BA
Opening and closing

@) Tips
You can still open and close the windows for
approximately 10 minutes after turning the
ignition off. The power windows do not switch
off until the driver's door or front passenger's
door has been opened.
Convenience opening and closing
All windows can be opened and closed at the
same time.
For power top* convenience opening/closing, re-
fer to the information in > page 33.
Convenience opening feature
> Press and hold the @ button on the remote con-
trol key until all windows reach the desired po-
sition.
Convenience closing feature
> Hold the key in the driver's door lock in the lock
position until all windows are closed > /\.
Setting convenience opening in the
Infotainment system
The function can be switched on/off in the Info-
tainment system > page 25.

Z\ WARNING
— Never close the windows carelessly or in an
uncontrolled manner, because this increases
the risk of injury.
— For security reasons, the windows can only
be opened and closed with the remote con-
trol key at a maximum distance of approxi-
mately 6 ft (2 m) away from the vehicle.
When pressing the f button, always watch
the windows while they are closing so that
no one is pinched in the window. The closing
process will stop immediately when the fa
button is released.


Correcting power window malfunctions
You can reactivate the one-touch up/down func-
tion if it malfunctions.
> Pull the power window switch up until the win-
dow is completely raised.
>» Release the switch and pull it up again for at
least one second.
Garage door opener
Applies to: vehicles with garage door opener
2 a 3 2
> z
oO
Fig. 25 Garage door opener: examples of usage for differ-
ent systems
With the garage door opener, you can activate
systems such as the garage doors, security sys-
tems or house lights from inside your vehicle. Up
to three remote control functions can be pro-
grammed to the three buttons that are integrat-
ed in the control unit above the rearview mirror.
To be able to operate systems using the garage
door opener, the buttons in the control unit must
first be programmed.

Z\ WARNING
When operating or programming the garage
door opener, make sure that no people or ob-
jects are in the area immediately surrounding
the equipment. People can be injured or prop-
erty can be damaged if struck when closing.
@® Tips
— For security reasons, we recommend that
you clear the programmed buttons before
selling the vehicle.

29

Opening and closing

— For additional information about HomeLink,
visit www.homelink.com.
— For the Declaration of Conformity with the
provisions from the FCC in the United States
and Industry Canada, see > page 287.
Applies to: vehicles with garage door opener

g
8
om z 5

Fig. 26 Control panel above the interior rearview mirror
Requirement: the button in the control panel
must be programmed & page 30 and the vehi-
cle must be located within range of the system,
such as the garage door.
> Press the button to open the garage door. The
green LED (@) blinks or turns on.
> Press the button again to close the garage
door.
@ Tips
When opening or closing the garage door, do
not press and hold the button longer ten sec-
onds or the garage door opener will switch to
programming mode.
30


Programming the transmitter
Applies to: vehicles with garage door opener

B4S-0073
Fig. 27 Distance between the radiator grille and the re-
mote control transmitter
Programming the button: step 1 on the
control panel
1. Switch the ignition on.
2. Press both of the outside buttons on the con-
trol unit > page 30, fig. 26 until the yellow
LED @) turns off and the green LED @ turns
on. This procedure clears the standard codes
that were set at the factory and does not
need to be repeated again to program the
other buttons.
3. Briefly press the button in the control panel
that you want to program.
4. Wait until the yellow LED @) blinks. The pro-
gramming mode is active for five minutes.
5. Go in front of the vehicle with the original re-
mote control transmitter for the system that
you are programming to the control panel
button.
Programming the button: step 2 at the
radiator grille
6. Hold the remote control transmitter at the
vehicle radiator grille > fig. 27.
7. Now press the remote control transmitter
until the turn signals on your vehicle blink.
This can take up to 30 seconds.
8. Ifthe emergency flashers blink three times,
the programming was successful. If the
emergency flashers only blink one time, the
five-minute time limit for programming has
expired or the programming was unsuccess-
ful. Repeat the programming procedure
starting from the third step or change the
distance to the radiator grille.
