2019 TOYOTA COROLLA Owners Manual (in English)

7
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

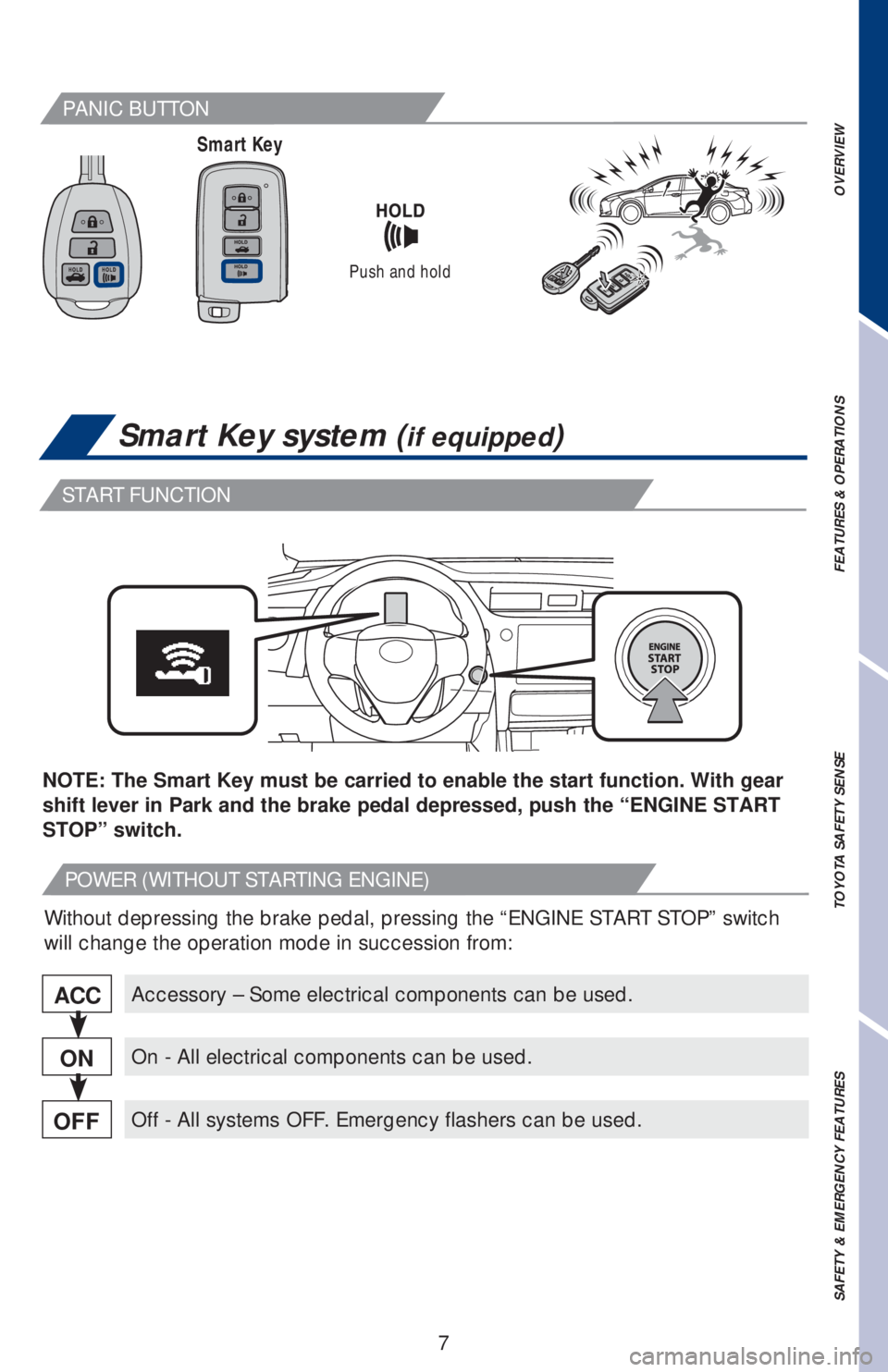

Smart Key system (if equipped)
Smart Key
Push and hold
PANIC BUTTON
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
ACC
ON
OFF
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:

8
OVERVIEW

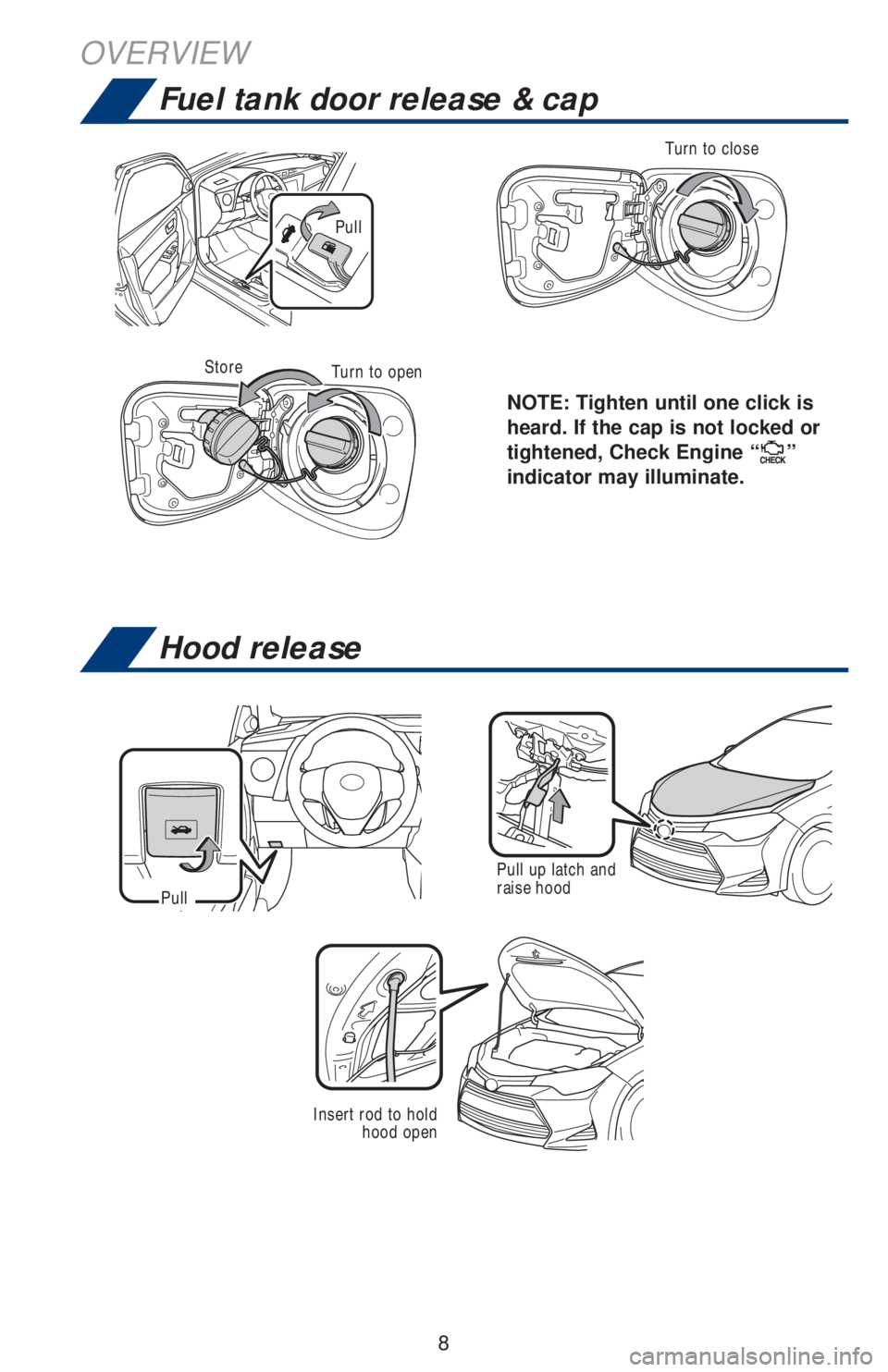

Pull up latch and
raise hood
Pull
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “
”
indicator may illuminate.
Pull
Turn to close
StoreTurn to open
Insert rod to hold
hood open
Fuel tank door release & cap
Hood release

9
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

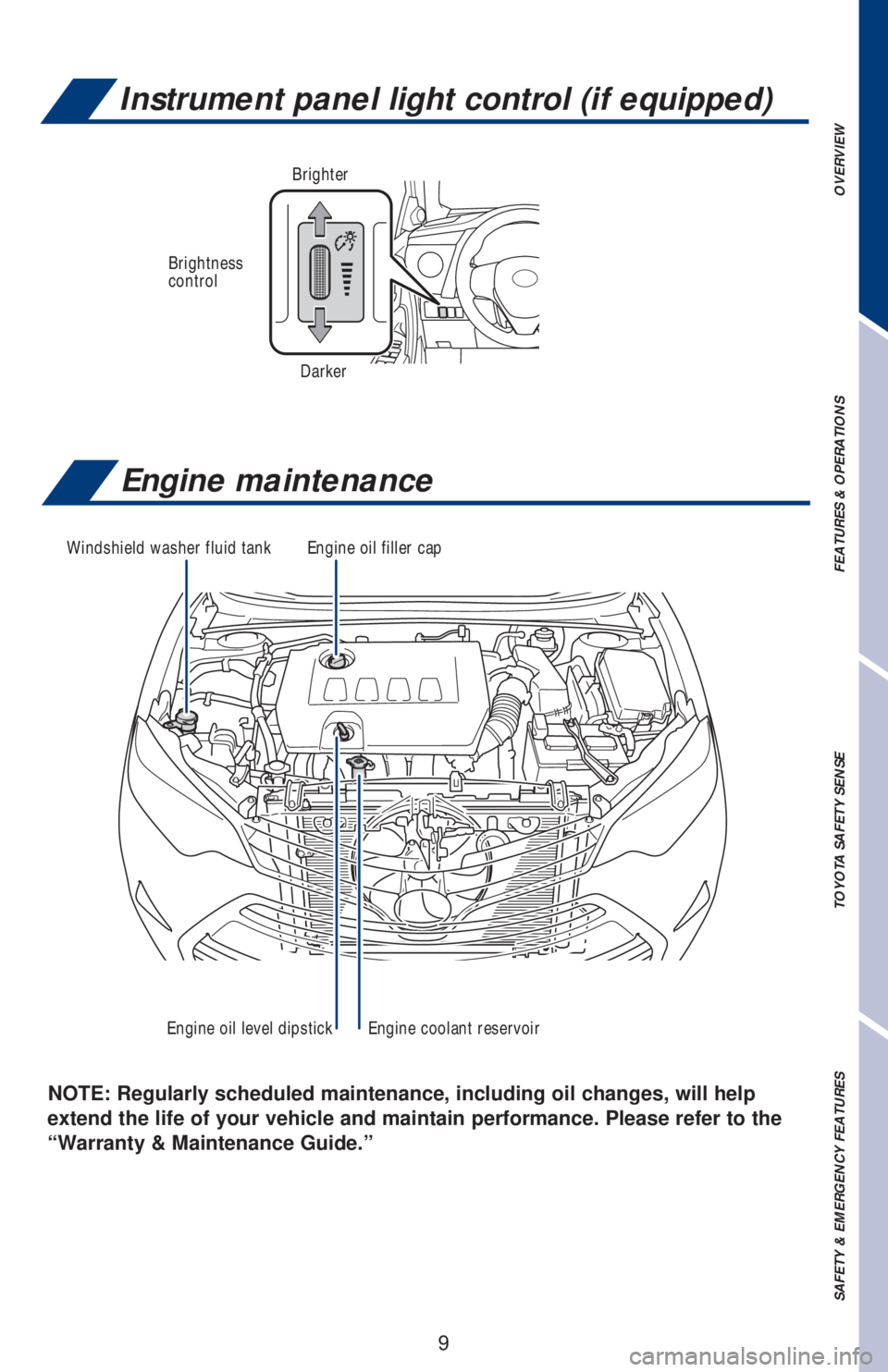

NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Instrument panel light control (if equipped)
Brightness
control
Brighter
Darker

10

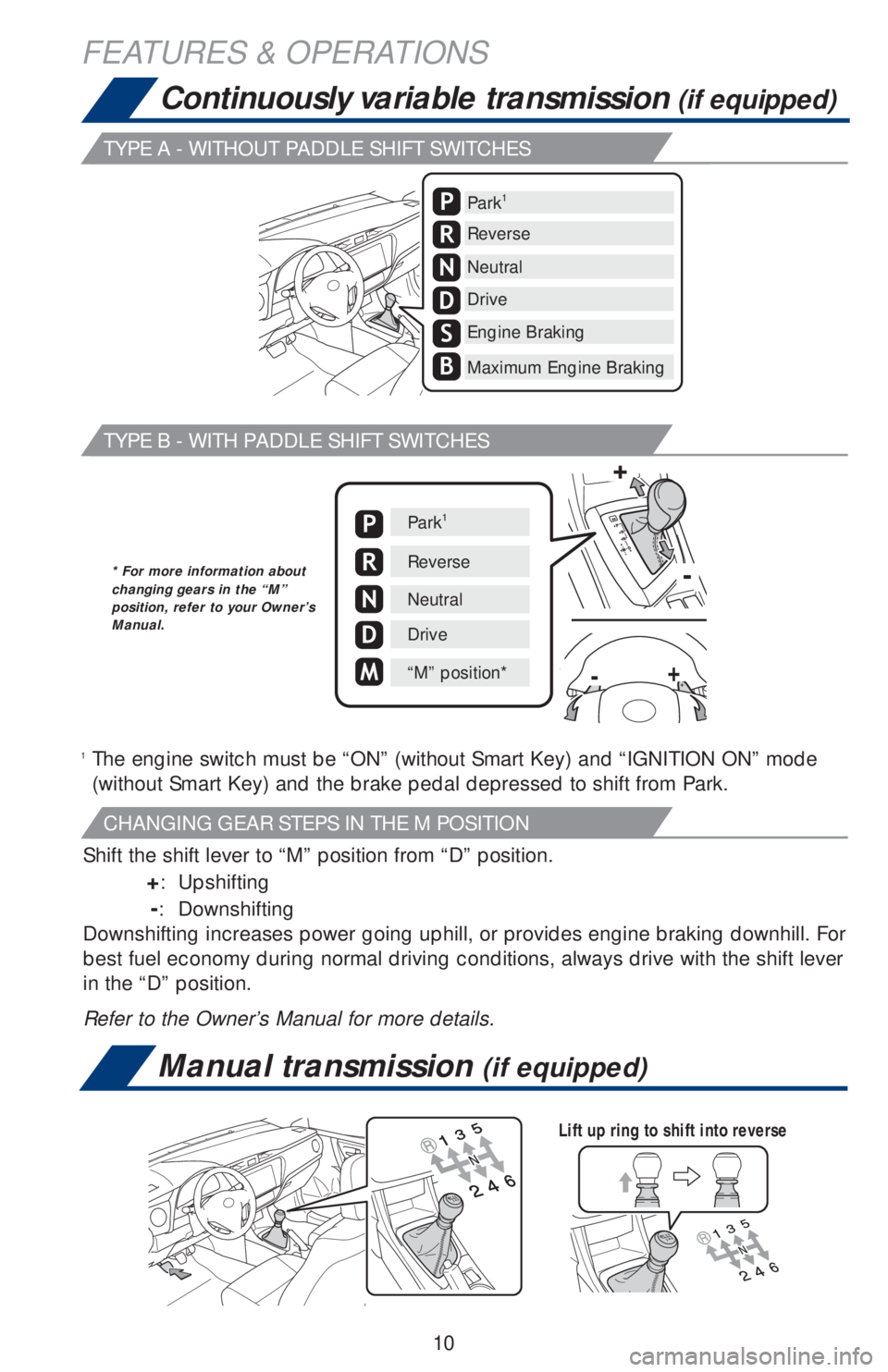

Manual transmission (if equipped)
Continuously variable transmission (if equipped)
Lift up ring to shift into reverse
Park1
Reverse
Neutral
Drive
Engine Braking
Maximum Engine Braking
S
B
P
R
N
D
1 The engine switch must be “ON” (without Smart Key) and “IGNITION ON” mode
(without Smart Key) and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.

+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Park1
Reverse
Neutral
Drive
“M” position*
P
R
N
D
M
+
+
-
-
* For more information about
changing gears in the “M”
position, refer to your Owner’s
Manual.
FEATURES & OPERATIONS
TYPE A - WITHOUT PADDLE SHIFT SWITCHES
TYPE B - WITH PADDLE SHIFT SWITCHES
CHANGING GEAR STEPS IN THE M POSITION

11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

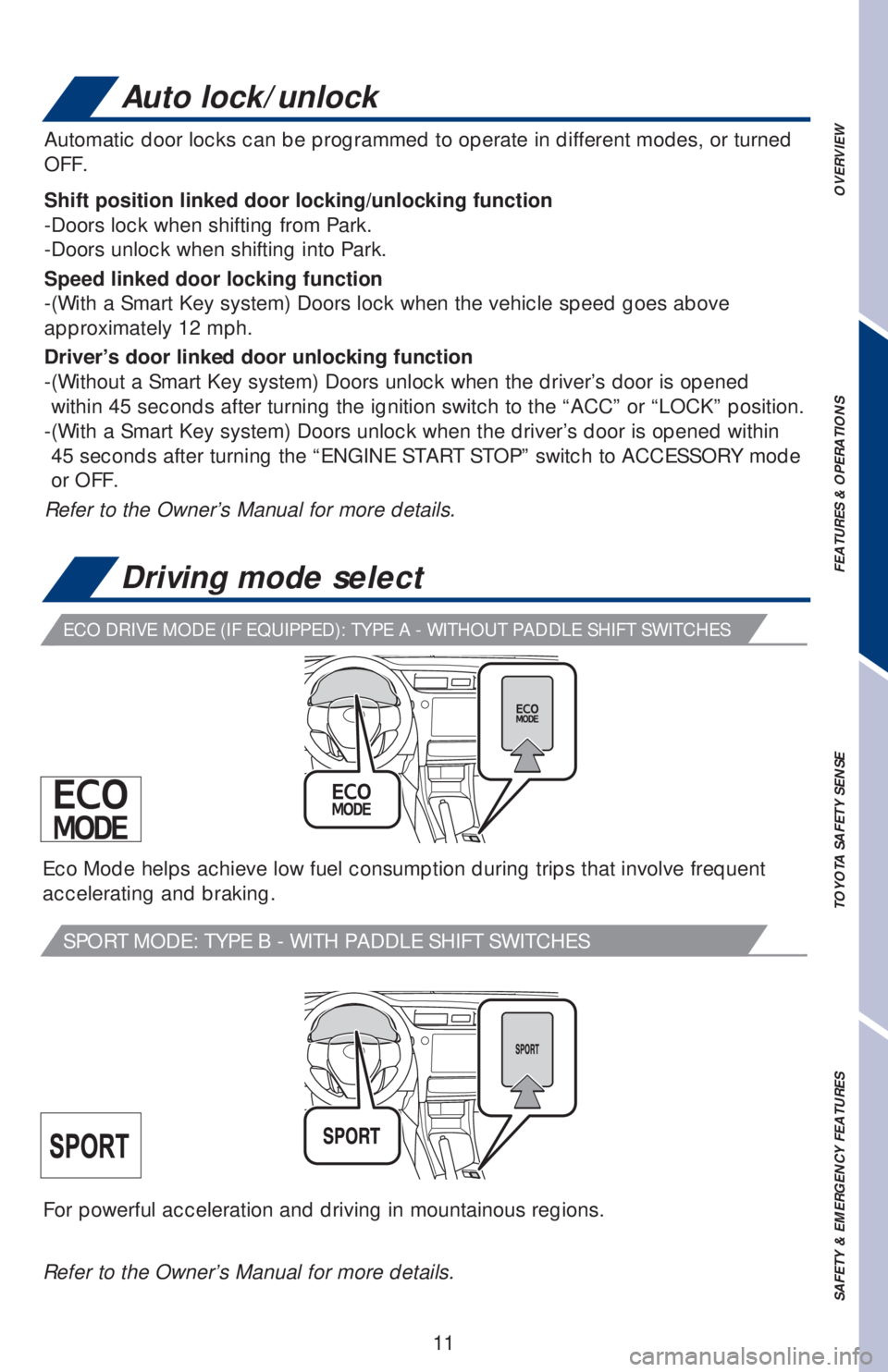

Auto lock/unlock
For powerful acceleration and driving in mountainous regions.
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-(With a Smart Key system) Doors lock when the vehicle speed goes above
approximately 12 mph.
'ULYHU

12

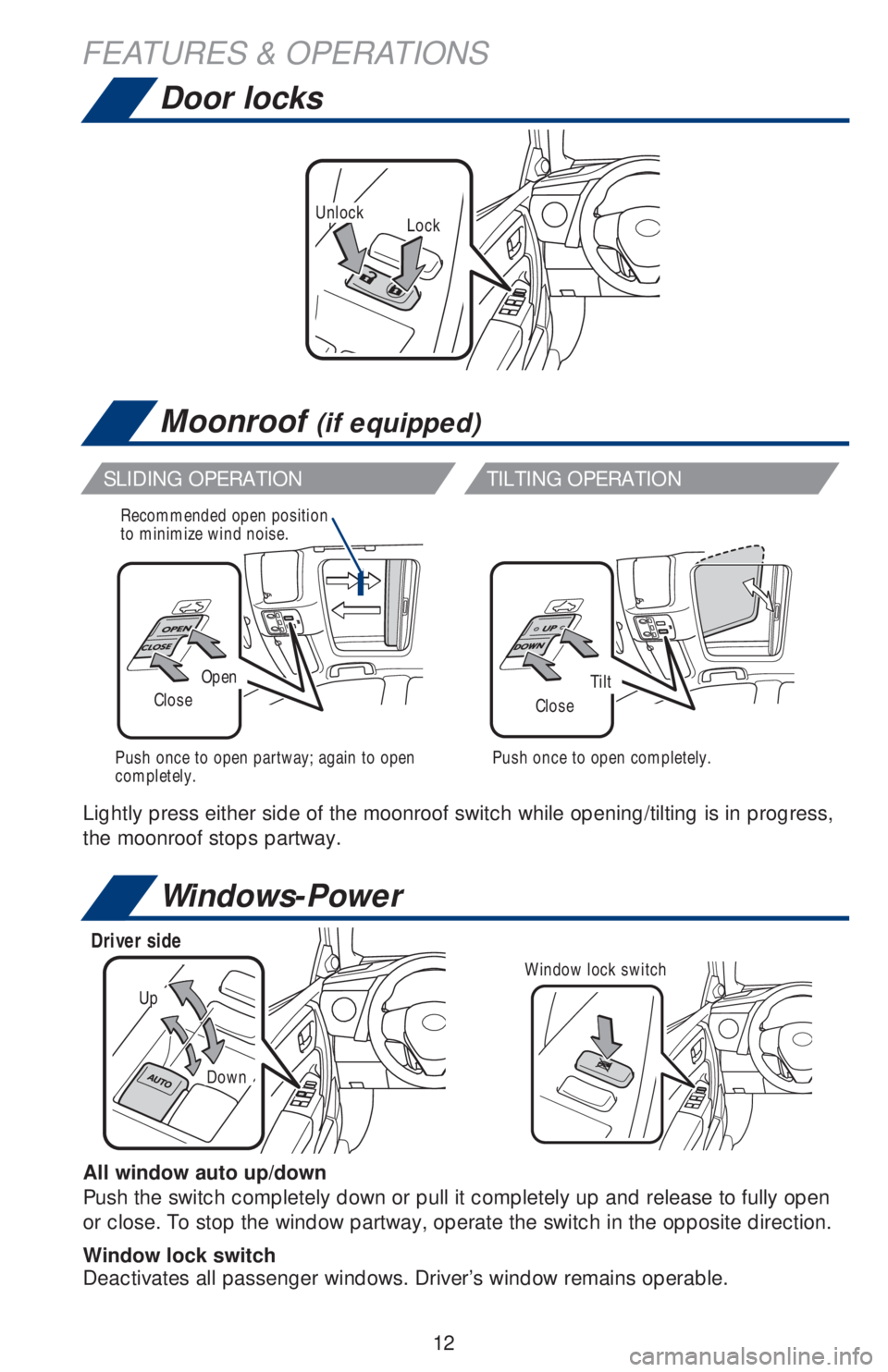

LockUnlock
Door locks
Moonroof (if equipped)
OpenTiltCloseClose
Recommended open position
to minimize wind noise.
Push once to open partway; again to open
completely.Push once to open completely.
Windows-Power
Up
Down
Driver side
Window lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
SLIDING OPERATION TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
FEATURES & OPERATIONS

13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

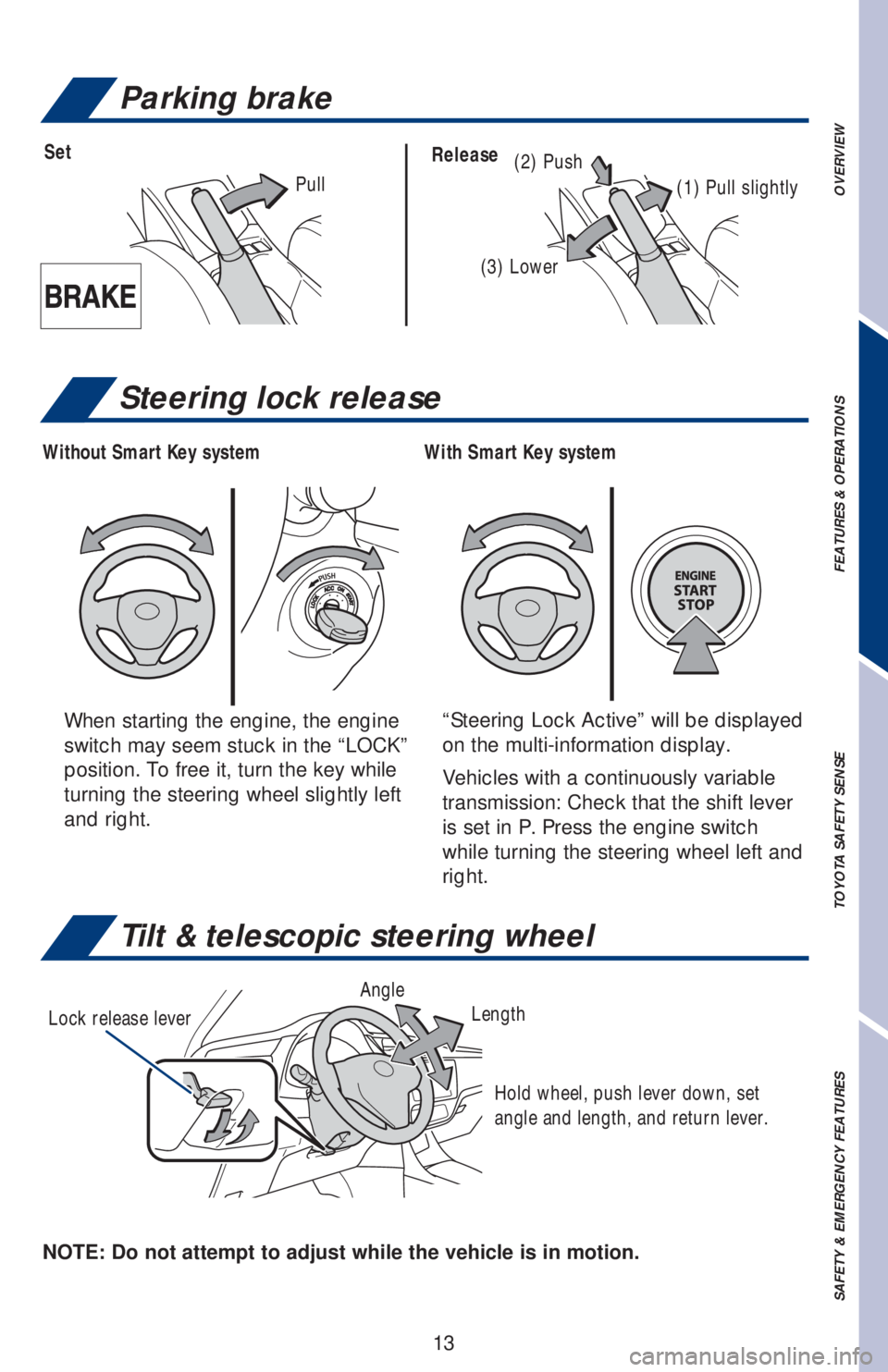

Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion.Lock release leverAngle
Length
Hold wheel, push lever down, set
angle and length, and return lever.
Parking brake
(2) PushSetRelease
(1) Pull slightly
(3) Lower
Pull
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.“Steering Lock Active” will be displayed
on the multi-information display.
Vehicles with a continuously variable
transmission: Check that the shift lever
is set in P. Press the engine switch
while turning the steering wheel left and
right.
Steering lock release
With Smart Key system Without Smart Key system

14
FEATURES & OPERATIONS
Seat adjustments-Front
FrontRear (Type B) Rear (Type A)
Lock release buttonLock release buttonLock release button
Fold downPull
MANUAL SEAT
POWER SEAT (DRIVER’S SIDE ONLY)
Rear seats-Folding
Seats-Head restraints
Seat position
(forward/backward)Height crank
(driver’s side only) Seatback angle
Seat position (forward/backward),
cushion (front) angle and heightSeatback angle
