2019 TOYOTA COROLLA Owners Manual (in English)

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

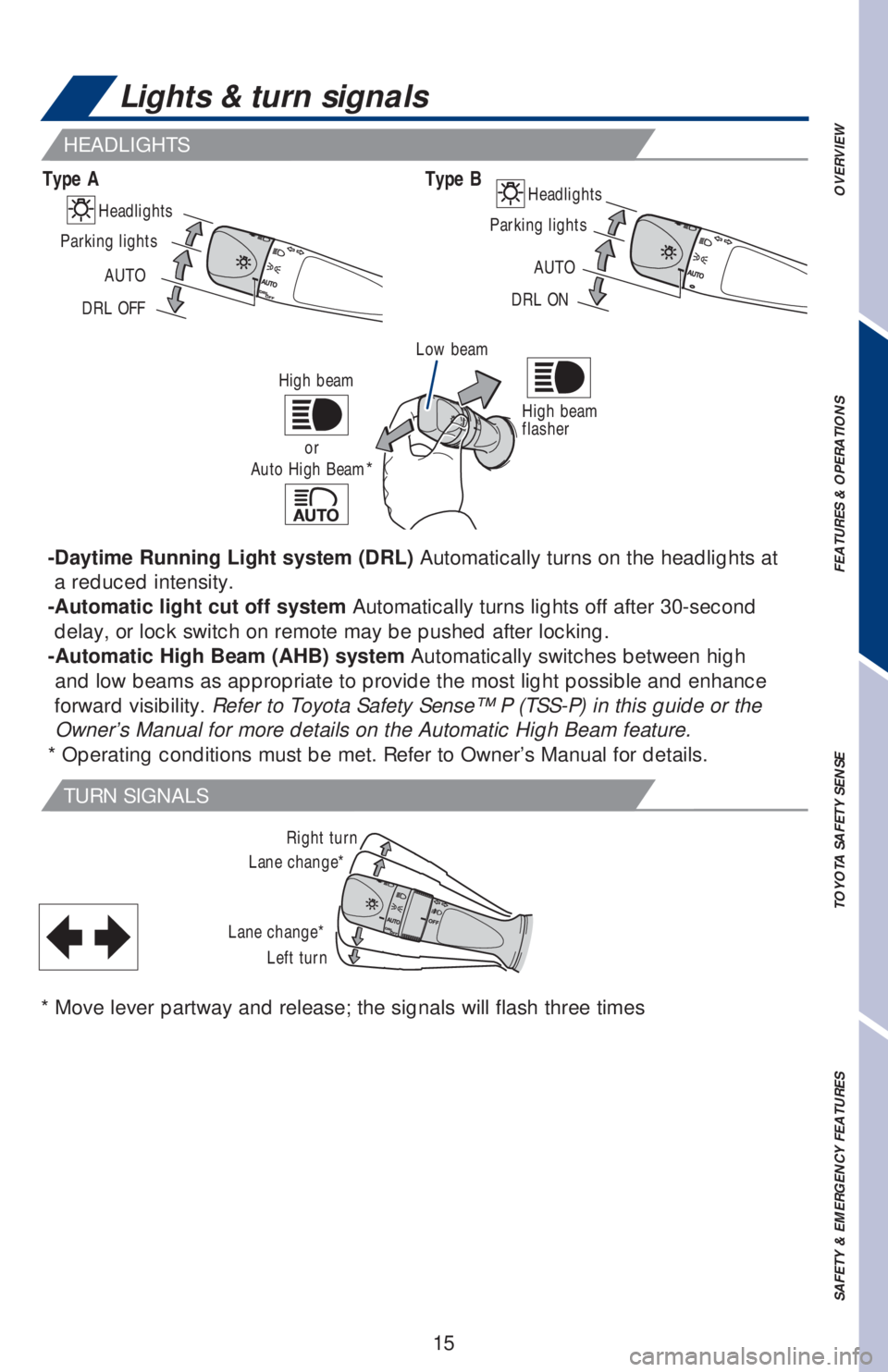

-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for details.
Type A Type BHeadlights
Parking lights
DRL ONAUTO
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change*
Left turn
* Move lever partway and release; the signals will flash three times
High beam
flasher Headlights
Parking lights
DRL OFFAUTO
Low beam
High beam
Auto High Beam* or

16
FEATURES & OPERATIONS
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
The engine switch must be in the “ACC” or “ON” (without a Smart Key system),
ACCESSORY or IGNITION ON mode (with a Smart Key system) position for use.
Interval wipe Mist
Slow
Fast
Pull to wash and wipe
Windshield wipers & washers
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. (Available on select grades.)
Refer to the Owner’s Manual for more information.
Adjust frequency*
Pull to wash and wipe
Power outlet
USB media/AUX port

17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

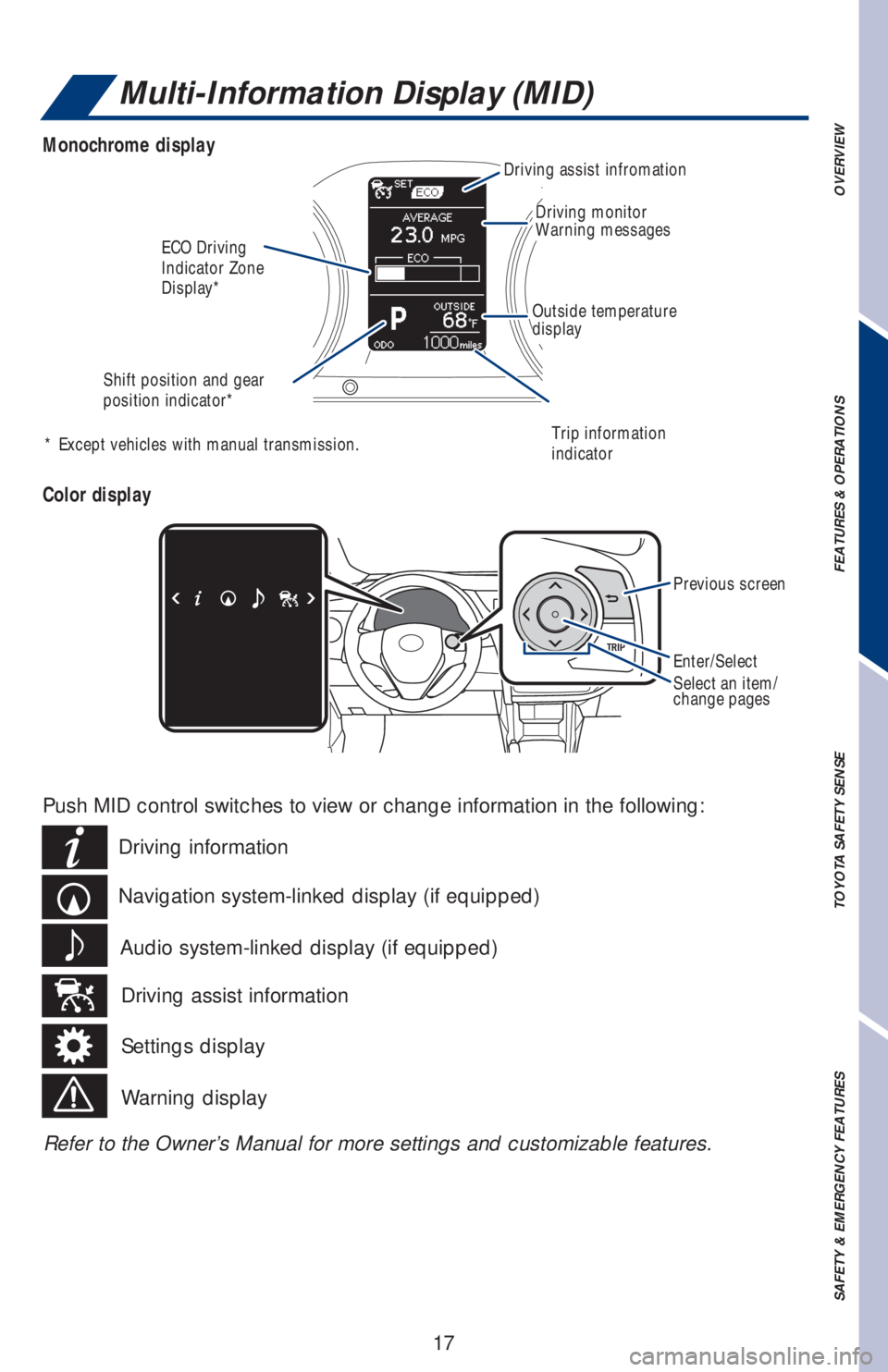

Multi-Information Display (MID)
Monochrome display
Color display
* Except vehicles with manual transmission.
Previous screen
Enter/SelectSelect an item/
change pages
Refer to the Owner’s Manual for more settings and customizable features. Push MID control switches to view or change information in the following:
Navigation system-linked display (if equipped) Driving information
Driving assist information Audio system-linked display (if equipped)
Settings display
Warning display
ECO Driving
Indicator Zone
Display*
Driving monitor
Warning messages
Outside temperature
display
Driving assist infromation
Shift position and gear
position indicator*
Trip information
indicator

18
FEATURES & OPERATIONS

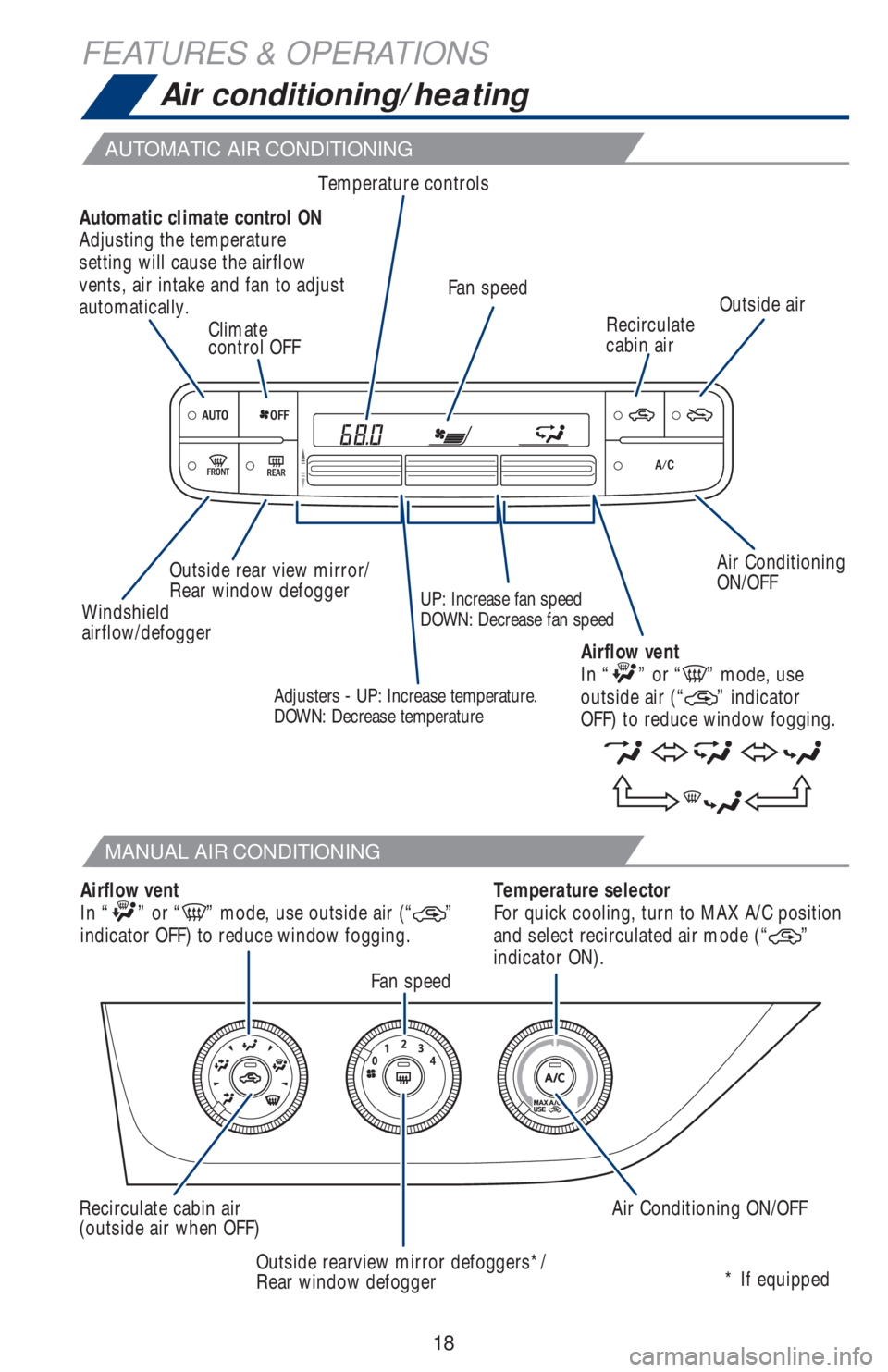

Air conditioning/heating
AUTOMATIC AIR CONDITIONING
MANUAL AIR CONDITIONING
Air Conditioning
ON/OFF Temperature controls
Recirculate
cabin airOutside air
Climate
control OFF
Outside rear view mirror/
Rear window defoggerFan speed
* If equipped
Windshield
airflow/defoggerUP: Increase fan speed
DOWN: Decrease fan speed Automatic climate control ON
Adjusting the temperature
setting will cause the airflow
vents, air intake and fan to adjust
automatically.
Temperature selector
For quick cooling, turn to MAX A/C position
and select recirculated air mode (“
”
indicator ON).
Fan speed
Air Conditioning ON/OFF Recirculate cabin air
(outside air when OFF)
Outside rearview mirror defoggers*/
Rear window defogger Airflow vent
In “” or “” mode, use outside air (“”
indicator OFF) to reduce window fogging.Airflow vent
In “
” or “” mode, use
outside air (“” indicator
OFF) to reduce window fogging.Adjusters - UP: Increase temperature.
DOWN: Decrease temperature

19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Seat heaters (if equipped)
Driver seat Front passenger seat
The engine switch must be in the “ON” (without a Smart Key system) or “IGNITION
ON” (with a Smart Key system) mode.
WINDSHIELD WIPER DE-ICER (IF EQUIPPED)

20
FEATURES & OPERATIONS

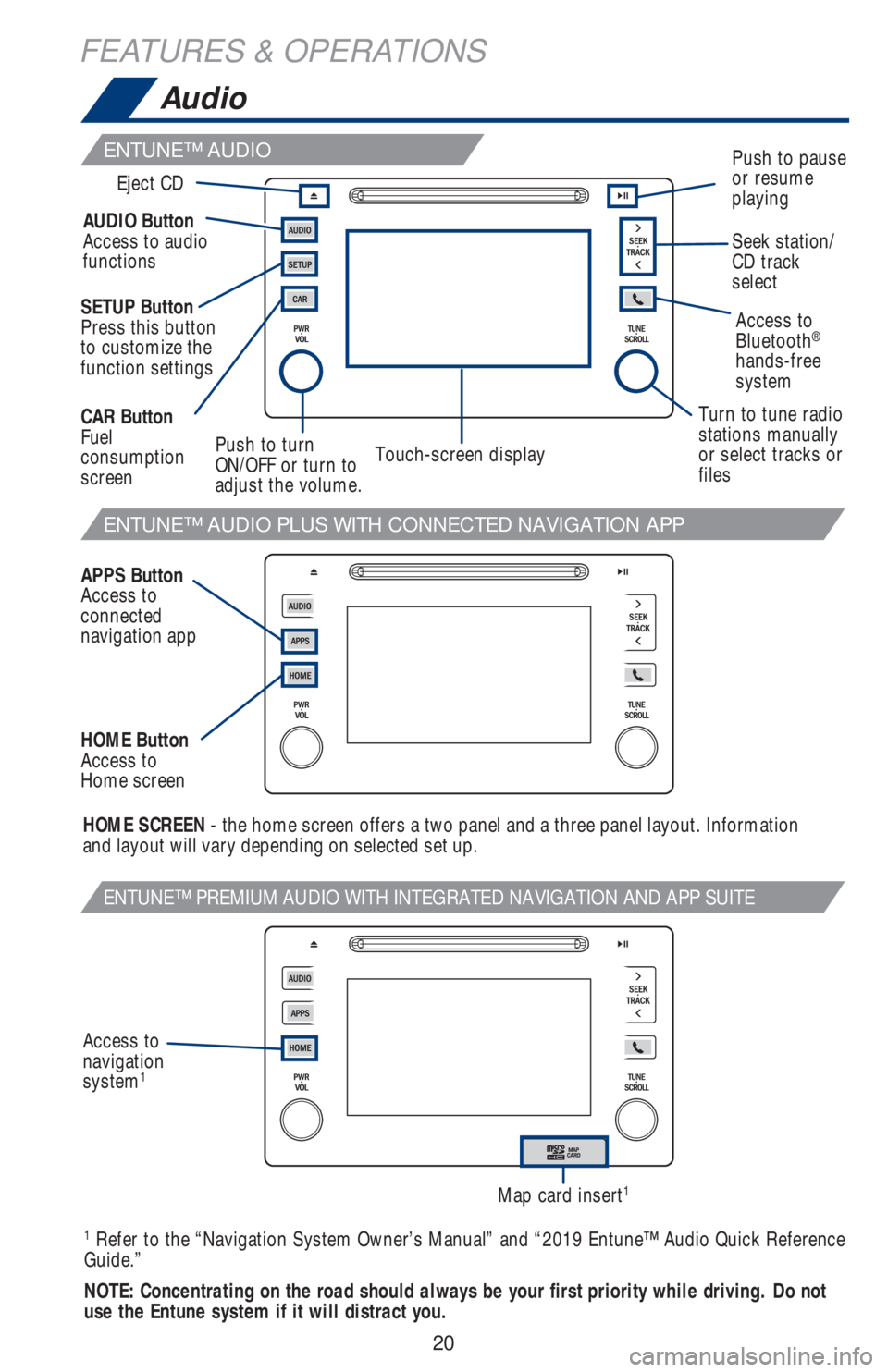

ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Access to
Bluetooth®

hands-free
system AUDIO Button
Access to audio
functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information
and layout will vary depending on selected set up. SETUP Button
Press this button
to customize the
function settings
APPS Button
Access to
connected
navigation app CAR Button
Fuel
consumption
screen
HOME Button
Access to
Home screenPush to turn
ON/OFF or turn to
adjust the volume.Turn to tune radio
stations manually
or select tracks or
filesSeek station/
CD track
select Eject CD
Push to pause
or resume
playing
Touch-screen display
1 Refer to the “Navigation System Owner’s Manual” and “2019 Entune™ Audio Quick Reference
Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the Entune system if it will distract you.
Audio
ENTUNE™ AUDIO
Map card insert1
Access to
navigation
system
1

21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

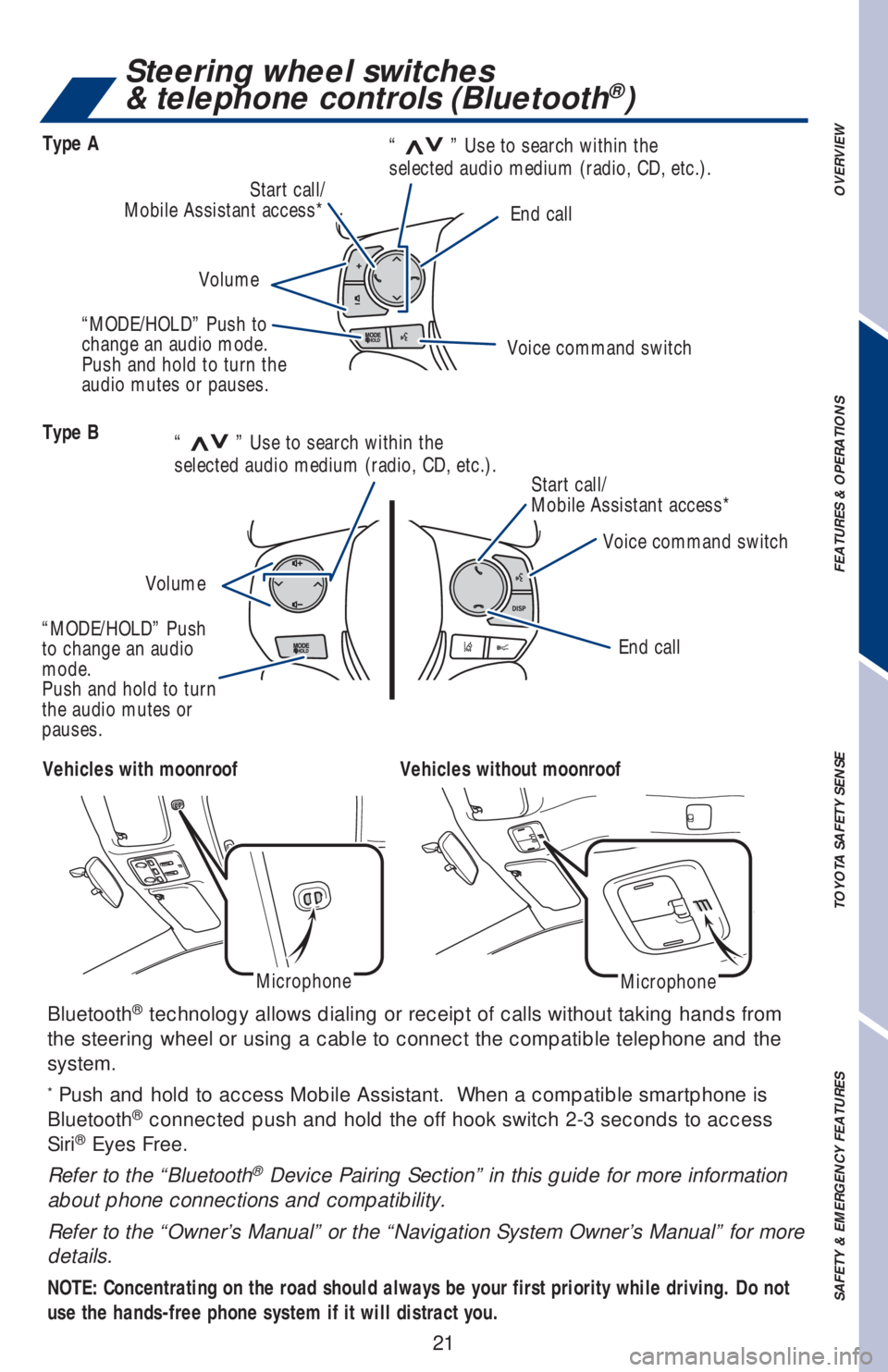

Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
* Push and hold to access Mobile Assistant. When a compatible smartphone is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” or the “Navigation System Owner’s Manual” for more
details.
NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the hands-free phone system if it will distract you.
Vehicles with moonroofVehicles without moonroof
MicrophoneMicrophone
Steering wheel switches
& telephone controls (Bluetooth®)
Type B
Type A
End call
End call Voice command switch
Voice command switch Start call/
Mobile Assistant access* Start call/
Mobile Assistant access*
VolumeVolume
“
>>” Use to search within the
selected audio medium (radio, CD, etc.).“
>>” Use to search within the
selected audio medium (radio, CD, etc.).
“MODE/HOLD” Push to
change an audio mode.
Push and hold to turn the
audio mutes or pauses.
“MODE/HOLD” Push
to change an audio
mode.
Push and hold to turn
the audio mutes or
pauses.

22
FEATURES & OPERATIONS

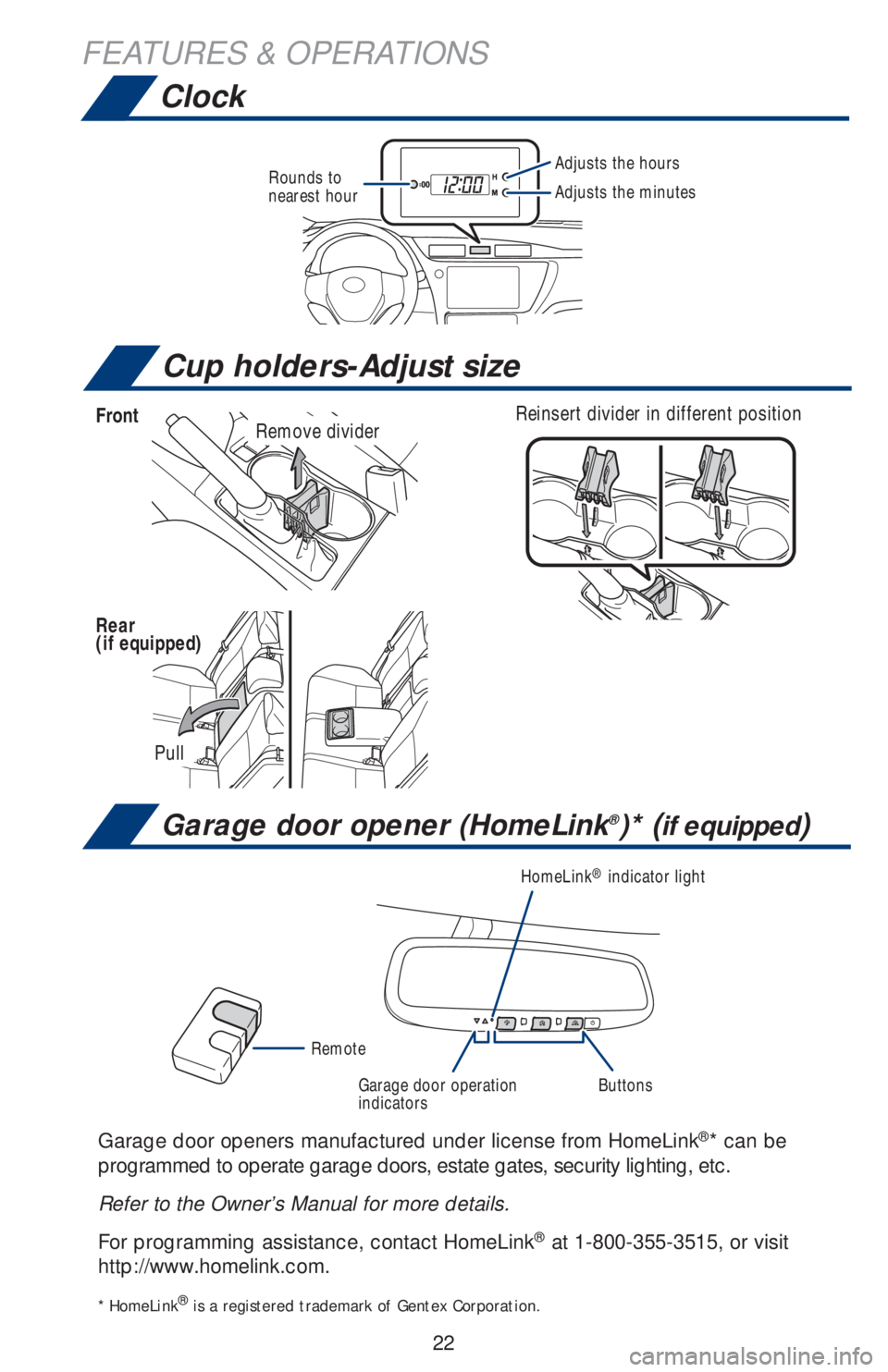

Adjusts the hoursRounds to
nearest hourAdjusts the minutes
Clock
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
HomeLink® indicator light
Garage door operation
indicatorsButtons
Remote
Cup holders-Adjust size
Reinsert divider in different position
Pull
Remove dividerFront
Rear
(if equipped)
