2019 TOYOTA COROLLA Owners Manual (in English)

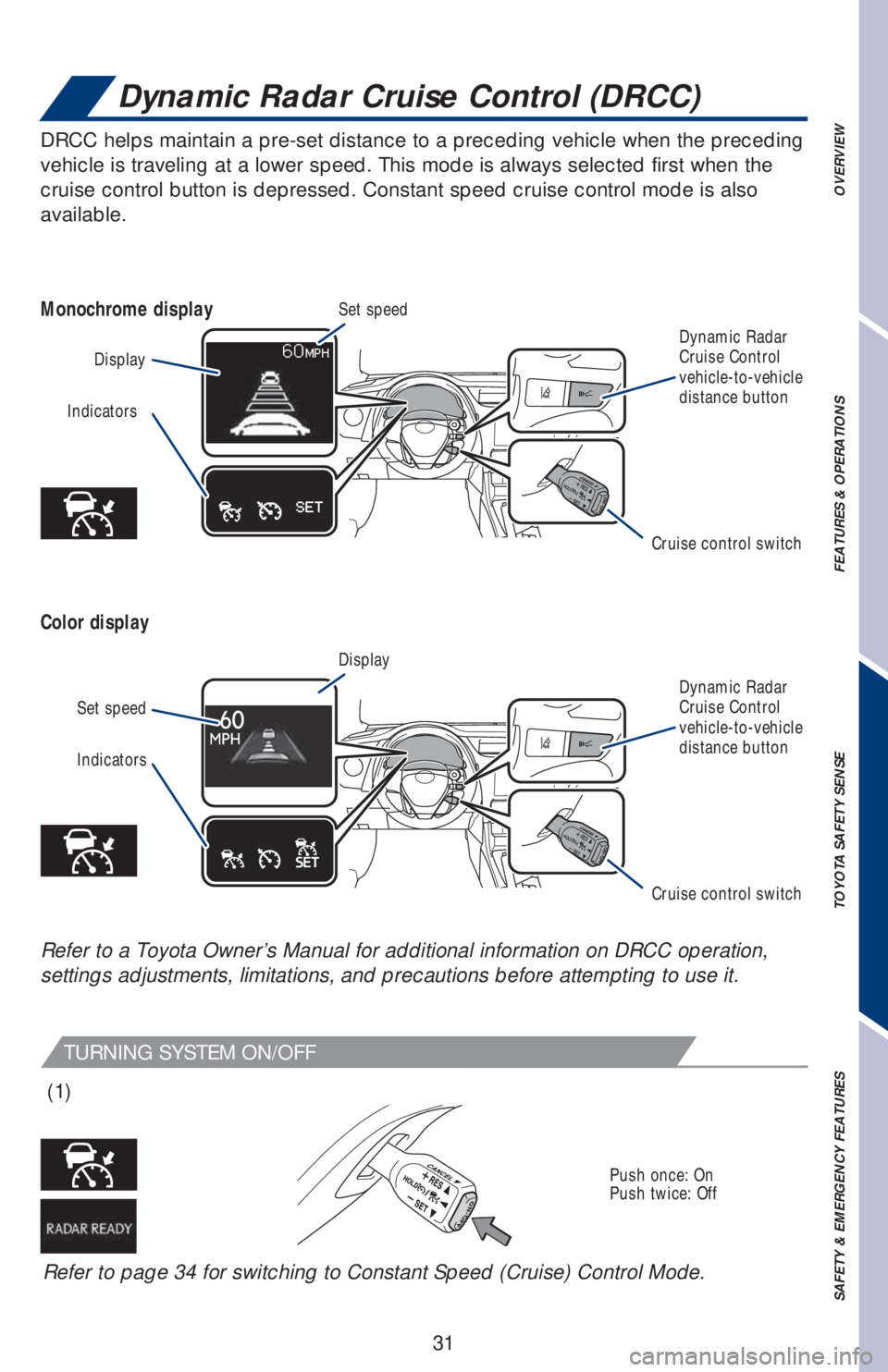

31
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
DRCC helps maintain a pre-set distance to a preceding vehicle when the preceding
vehicle is traveling at a lower speed. This mode is always selected first when the
cruise control button is depressed. Constant speed cruise control mode is also
available.
Dynamic Radar Cruise Control (DRCC)
TURNING SYSTEM ON/OFF
(1)
Display
Set speedSet speed
Display Indicators
IndicatorsDynamic Radar
Cruise Control
vehicle-to-vehicle
distance button
Dynamic Radar
Cruise Control
vehicle-to-vehicle
distance button Cruise control switch
Cruise control switch
Monochrome display
Color display
Refer to a Toyota Owner’s Manual for additional information on DRCC operation,
settings adjustments, limitations, and precautions before attempting to use it.
Push once: On
Push twice: Off
Refer to page 34 for switching to Constant Speed (Cruise) Control Mode.

32
ADJUSTING DRCC SET SPEED
1
The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Vehicle will cruise at a set speed, decelerate to maintain selected distance from a
slower vehicle traveling in front and accelerate back up to the selected speed if the
vehicle in front changes lanes or speeds up.

(1) Push the ON-OFF button. The “RADAR READY” or “
” indicator will come on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress
brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1mph increments).
(3) (2)
ADJUSTING DISTANCE
To change the vehicle-to-vehicle distance

Push the “
” button to cycle
through the settings, which will
change progressively.
Decrease
speedIncrease
speed
Cancel1
Resume2
Set
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 328 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance from the
vehicle ahead.
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill slopes.
LONG
(default setting)MIDDLE SHORT
Preceding vehicle
mark
TOYOTA SAFETY SENSE™
Monochrome MID
Color MID

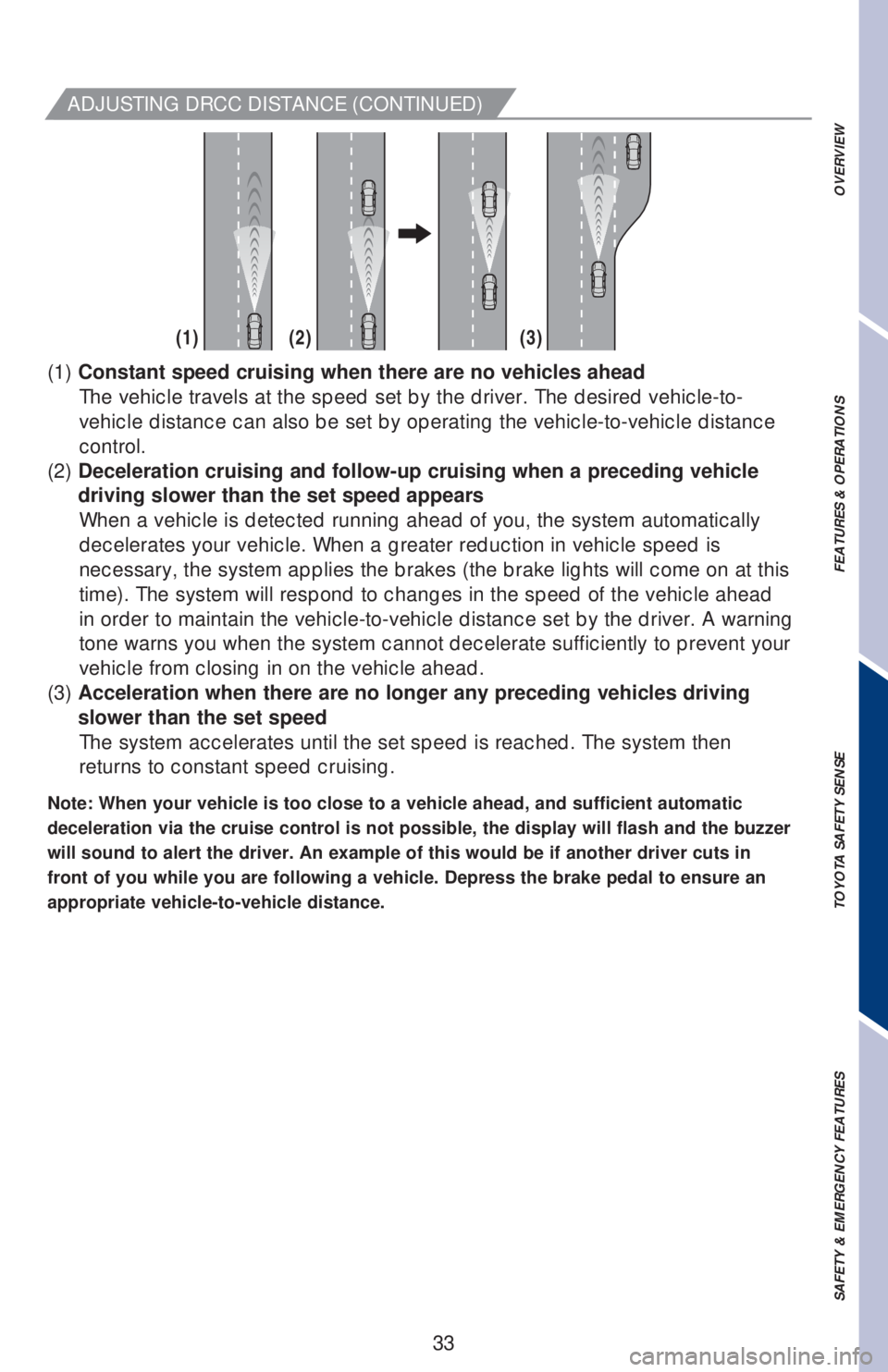

33
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead.
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the buzzer
will sound to alert the driver. An example of this would be if another driver cuts in
front of you while you are following a vehicle. Depress the brake pedal to ensure an
appropriate vehicle-to-vehicle distance.
(1) (2) (3)
ADJUSTING DRCC DISTANCE (CONTINUED)

34
TOYOTA SAFETY SENSE™
SWITCHING TO CONSTANT SPEED (CRUISE) CONTROL MODE
If you are already using DRCC “”, push ON-OFF button to turn the system off
first, then push and hold ON-OFF button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to DRCC.
1.5 seconds
SETTING CONSTANT SPEED (CRUISE) CONTROL
Refer to a Toyota Owner’s Manual for additional information on DRCC operation,
settings adjustments, limitations, and precautions before attempting to use it.
Set
To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on
page 32.
Monochrome MID
Color MID

35
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Automatic High Beams (AHB)
(1) With the engine switch in IGNITION ON mode and turn the headlight switch to
“AUTO” position, push lever away from you.
The “
” indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
(2) Pull the lever back toward you to turn the AHB system off.
The “
” will turn off and the “” turns on.
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
• Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lights
turned on.
• There are few street lights on the road ahead.
If any of these conditions occur, the system is designed to automatically turn off
high beams:
• Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights
turned on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
AHB is a safety system designed to help drivers see more of what’s ahead at
nighttime and reduce glare for oncoming drivers. When enabled, AHB uses an
in-vehicle camera to help detect the headlights of oncoming vehicles and tail lights
of preceding vehicles, then automatically switches between high and low beams
as appropriate to provide the most light possible and enhance forward visibility.
By using high beams more frequently, the system may allow earlier detection of
pedestrians and obstacles.
Refer to a Toyota Owner’s Manual for additional information on AHB operation,
settings adjustments, limitations, and precautions before attempting to use it.

36
SAFETY & EMERGENCY FEATURES
Rear door child safety locks
Keep as low on
hips as possible
Take up slack
127(,IDSDVVHQJHU

37
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Trunk-Internal release
System reset initialization
1. Push and hold “
SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or replaced, turn the
ignition switch to “ON” and follow the steps above to reset the TPMS.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Push
Tire Pressure Monitoring (warning) System
(TPMS)

38
6$)(7< (0(5*(1&<)($785(6
Spare tire & tools
TOOL LOCATION
REMOVE THE SPARE TIRE
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Remove the luggage floor cover.
Loosen the center fastener that secures the spare tire.
Remove the tool tray.
Luggage floor cover
Wheel nut wrench
Tool tray
Jack Jack handle
Spare tire
