2019 TOYOTA CAMRY HYBRID Owners Manual (in English)

4737-2. Steps to take in an emergency
7
When trouble arises
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
Covers are installed to the tie-down
holes.
After transporting the vehicle,
make sure to reinstall the covers to
the holes.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Using a flatbed truck
Front

4747-2. Steps to take in an emergency
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Do not tow the vehicle from the rear when the power switch is o ff. The
steering lock mechanism is not strong enough to hold the front wheels
straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or re ar.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.

4757-2. Steps to take in an emergency
7
When trouble arises
●Fluid leaks un der the vehicle.
(Water dripping from the air conditioning a fter use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points high er
than normal
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumb ling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one s ide when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touch es
the floor
If you think something is wrong
If you notice any of the followi ng symptoms, your vehicle proba -
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4767-2. Steps to take in an emergency

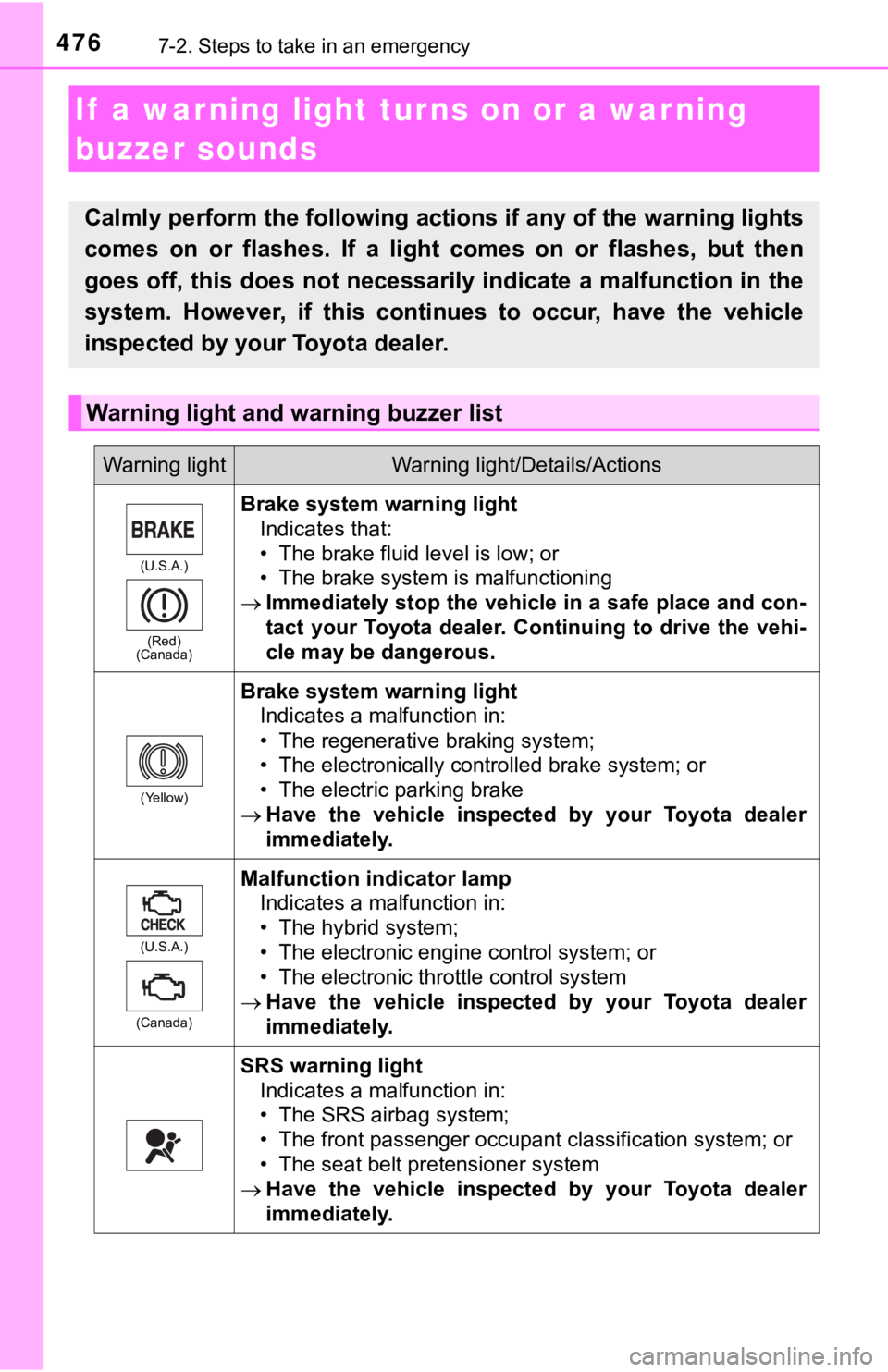

If a warning light turns on or a war ning
buzzer sounds
Calmly perform the following actions if any of the warning ligh ts
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and w arning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Red)
(Canada)
Brake system warning light
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
(Yellow)
Brake system warning light
Indicates a malfunction in:
• The regenerative braking system;
• The electronically controlled brake system; or
• The electric parking brake
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Toyota dealer
immediately.

4777-2. Steps to take in an emergency
7
When trouble arises
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
Parking brake indicator (warning buzzer)*1
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake once again.
This light comes on when the parking brake is not
released. If the light turns off after the parking brake is ful ly
released, the system is operating normally.
(Flashes)
Brake hold operated indicator Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Yellow)
LDA (Lane Departur e Alert) indicator
Indicates a malfunction in the LDA
 When “LDA Unavailable” is displayed on the multi-
information display, turn the LDA system off, drive
the vehicle for a short time, and then turn the LDA
system back on. ( P. 270)
When a message other than above is displayed, fol-
low the instructions displayed in the message.
Warning lightWarning light/Details/Actions

4787-2. Steps to take in an emergency
(Flashes or
illuminates)
PCS warning light
Indicates a malfunction in the PCS (Pre-Collision System)
or that the system is temporarily unavailable due to the
vehicle being extremely hot/cold, or dirt around a front
sensor, etc. ( P. 264, 486)
 Follow the instructions displayed on the multi-infor-
mation display. (P. 264, 486)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 265
(if equipped)
(Flashes)
ICS OFF indicator
When a buzzer sounds:
Indicates a malfunction in the Intelligent Clearance Sonar
system
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Clear the dirt, etc.
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system
• The ABS; or
• The hill-start assist control system
The light will flash when the ABS, VSC or TRAC system is
operating.
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightWarning light/Details/Actions

4797-2. Steps to take in an emergency
7
When trouble arises

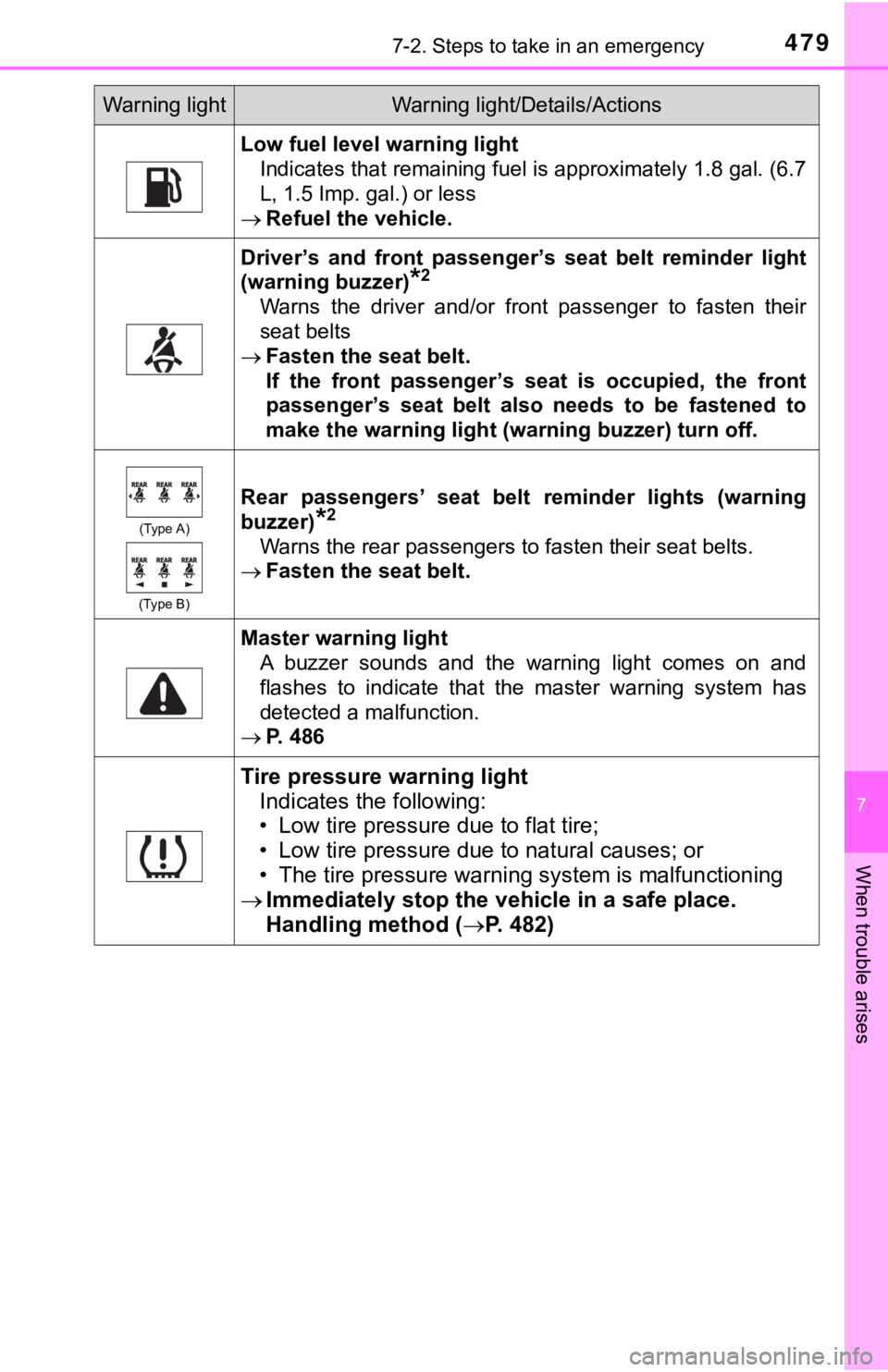

Low fuel level warning lightIndicates that remaining fuel is approximately 1.8 gal. (6.7
L, 1.5 Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’ s seat belt reminder light
(warning buzzer)
*2
Warns the driver and/or front passenger to fasten their
seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
(Type A)
(Type B)
Rear passengers’ seat belt reminder lights (warning
buzzer)
*2
Warns the rear passengers to fasten their seat belts.
 Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 486
Tire pressure warning light
Indicates the following:
• Low tire pressure due to flat tire;
• Low tire pressure due to natural causes; or
• The tire pressure warning system is malfunctioning
 Immediately stop the veh icle in a safe place.
Handling method ( P. 4 8 2 )
Warning lightWarning light/Details/Actions

4807-2. Steps to take in an emergency
*1: Parking brake engaged warning buzzer:A buzzer will sound if the vehicle is driven at a speed of appr oximately 3
mph (5 km/h) or more.
*2: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that h is or her seat
belt is not fastened. Once the power switch is turned to ON mod e, the
buzzer sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20
km/h), the buzzer sounds once. If the seat belt is still unfast ened after 24
seconds, the buzzer will sound intermittently for 6 seconds. Then, if the
seat belt is still unfastened, the buzzer will sound in a diffe rent tone for 90
more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the fron t passenger
that his or her seat belt is not fastened. The buzzer sounds on ce if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt i s still unfas-
tened after 24 seconds, the buzzer will sound intermittently fo r 6 seconds.
Then, if the seat belt is still unfastened, the buzzer will sou nd in a different
tone for 90 more seconds.
Rear passenger’s seat belt buzzer:
The rear passenger’s seat belt buzzer sounds to alert the rear passenger
that his or her seat belt is not fastened. The buzzer sounds on ce if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt i s still unfas-
tened after 24 seconds, the buzzer will sound intermittently fo r 6 seconds.
Then, if the seat belt is still unfastened, the buzzer will sou nd in a different
tone for 30 more seconds.
