2019 TOYOTA CAMRY HYBRID Owners Manual (in English)

1452. Instrument cluster
2

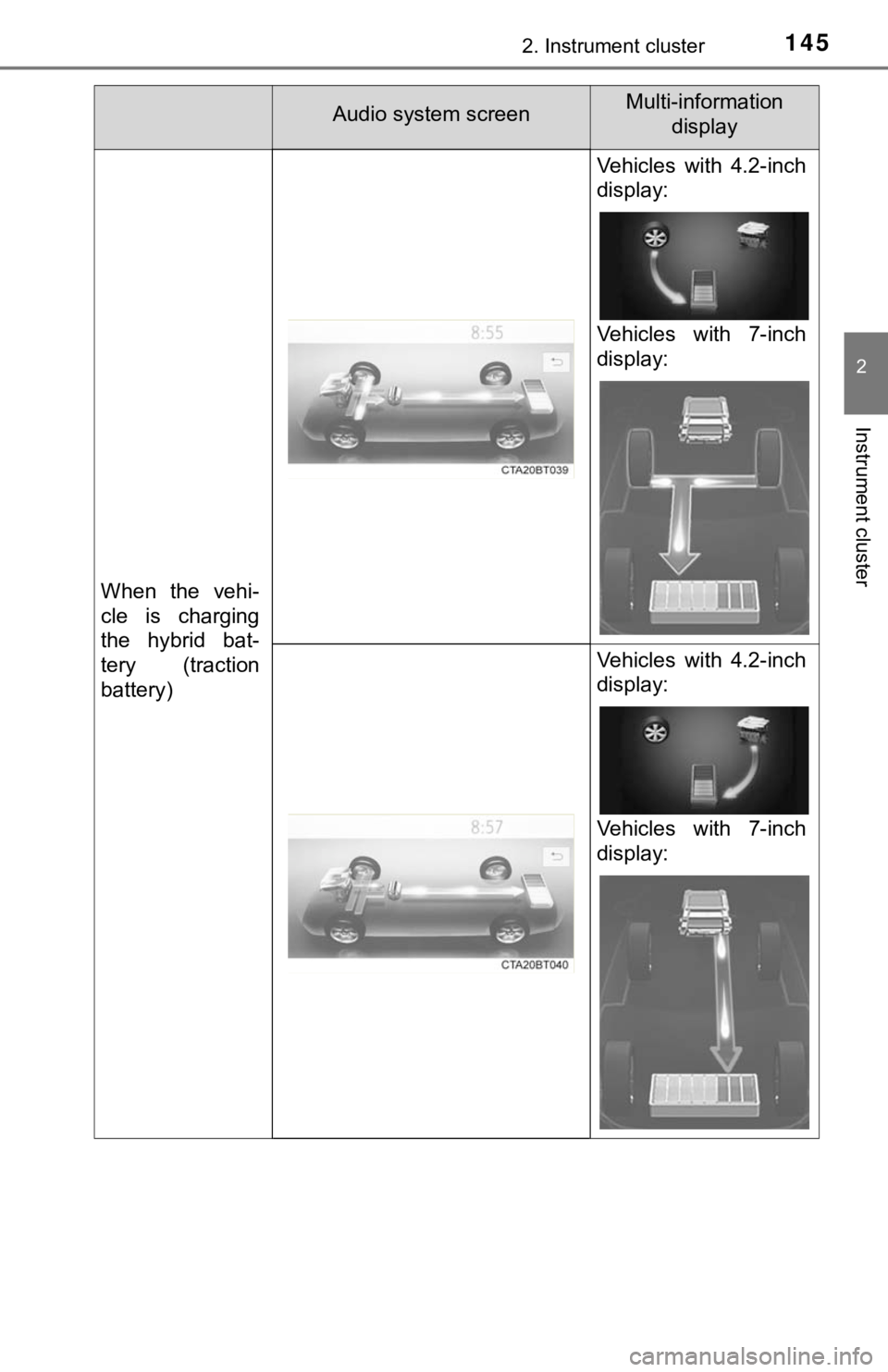

Instrument cluster
When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Audio system screenMulti-information display

1462. Instrument cluster
When there is
no energy flow
Vehicles with 4.2-inch
display:
Vehicles with 7-inch
display:
Hybrid battery
(traction bat-
tery) statusLow Full Vehicles with 4.2-inch
display:
Low Full
Vehicles with 7-inch
display:
Low Full
Audio system screenMulti-information display

1472. Instrument cluster
2
Instrument cluster
■Trip information
Entune Audio (vehicles without Data Communication Module) or
Entune Audio Plus (vehicles without Data Communication Mod-
ule)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “History” screen is displayed, selec t “Trip
Information”.
Entune Audio (vehicles with Data Communication Module),
Entune Audio Plus (vehicles with Data Communication Module)
and Entune Premium Audio
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “History” screen is displayed, select “T rip Informa-
tion”.
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in t he past 15 minutes
Cruising range
Regenerated energy i n the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual co ndi-
tions.
Current fuel consumption
Fuel consumption screen
1
2
1
2
3
1
2
3
4
5
6
7

1482. Instrument cluster
■History
Entune Audio (vehicles without Data Communication Module) or
Entune Audio Plus (vehicles without Data Communication Mod-
ule)
Press the “MENU” button.
Select “Info” on t he “Menu” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.
Entune Audio (vehicles with Data Communication Module),
Entune Audio Plus (vehicles with Data Communication Module)
and Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “Trip Inf ormation” screen is displayed, select “His-
tory”.
Resetting the past record
data
Best past fuel consumption
Current fuel economy
Previous fuel consumption
record
Entune Audio or Entune Audio Plus
Displays the daily average fuel consumption. (Instead of the da te,
“Trip 1” through “Trip 5” will be displayed.)
Entune Premium Audio
Displays the daily average fuel consumption. Updating the average fuel consumption data
Displays a maximum of five past record of the average fuel cons ump-
tion.
The image is example only, and may vary slightly from actual co ndi-
tions.
1
2
1
2
3
1
2
3
4
5

1492. Instrument cluster
2
Instrument cluster
■Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset t he fuel consump-
tion and the regenerated energy for the past 15 minutes. Select ing “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

1502. Instrument cluster

151
3
Operation of
each component
3-1. Key information
Keys .................................. 152
3-2. Opening, closing and locking the doors
Doors ................................ 156
Trunk ................................. 162
Smart key system ............. 166
3-3. Adjusting the seats Front seats ........................ 175
Rear seats......................... 177
Head restraints.................. 179
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 181
Inside rear view mirror ...... 183
Outside rear view mirrors ............................. 185
3-5. Opening and closing the windows
Power windows ................. 187
Moon roof .......................... 190

1523-1. Key information
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart key system (P. 166)
• Operating the wireless remote control function ( P. 152)
Mechanical keys
Key number plate
Locks all the doors ( P. 1 5 6 )
Unlocks all the doors ( P. 1 5 6 )
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows*2 and the
moon roof
*1, 2 (  P. 156)
Opens the trunk ( P. 1 6 2 )
Sounds the alarm ( P. 153)
*1: If equipped
*2: This setting must be customized at your Toyota dealer.
Keys
The keys
1
2
3
Wireless remote control
1
2
3
4
5
