2019 SKODA KAMIQ Owner´s Manual

Operation
Applies to Climatronic.

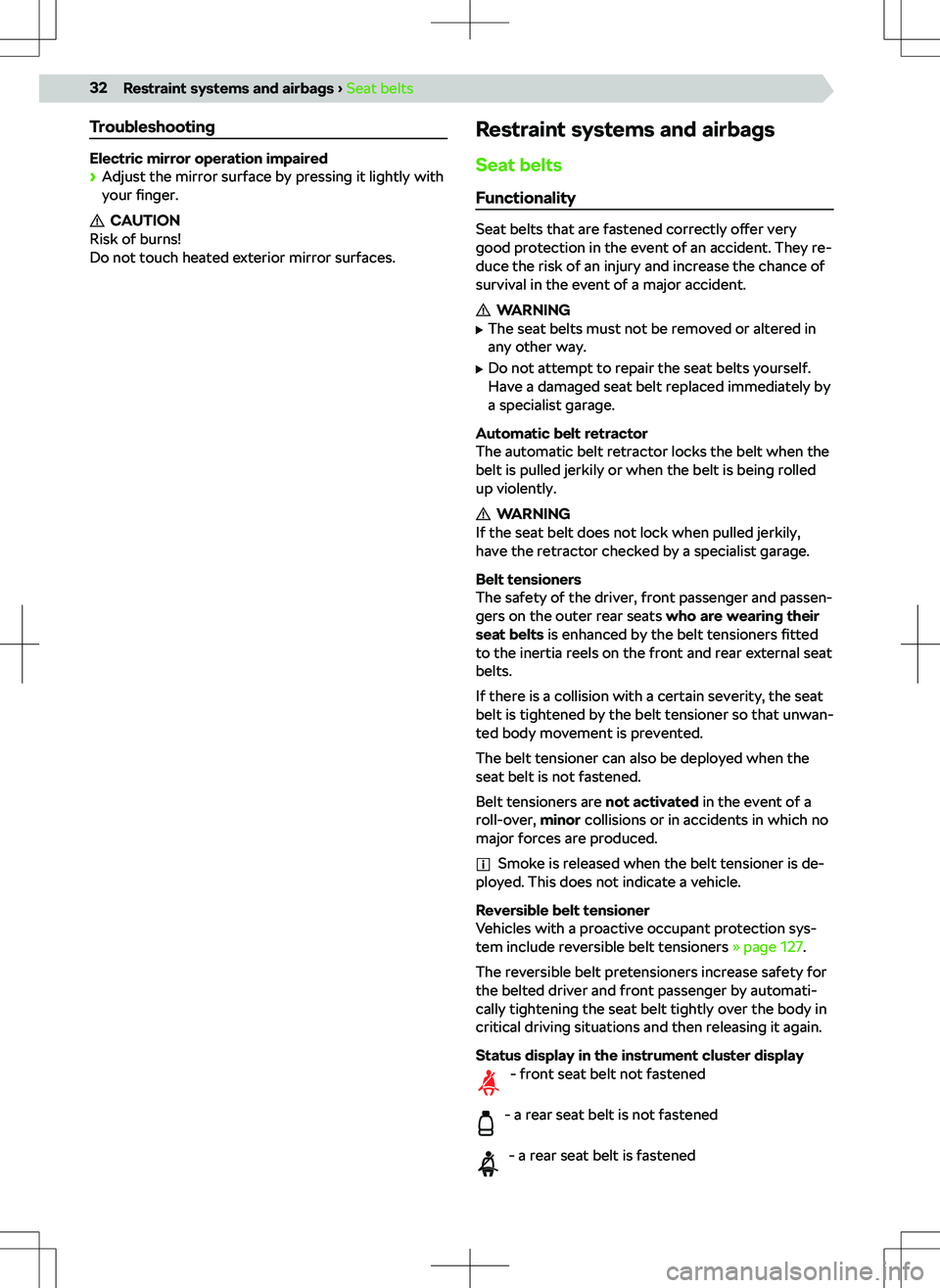

Troubleshooting
Electric mirror operation impaired

Operation

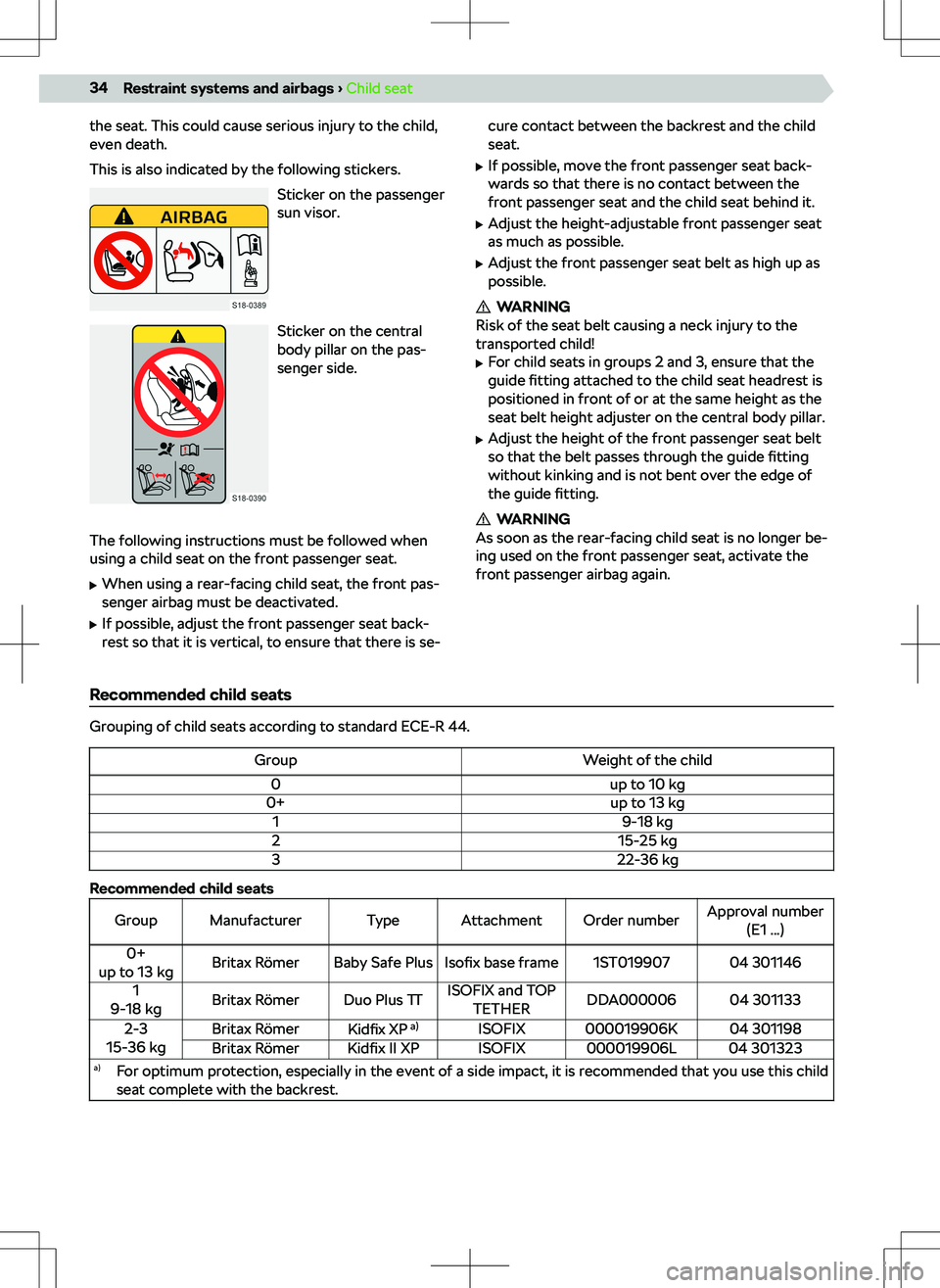

Fastening the seat belt

the seat. This could cause serious injury to the child,
even death.
This is also indicated by the following stickers.
Sticker on the passenger
sun visor.
Sticker on the central
body pillar on the pas-
senger side.
The following instructions must be followed when
using a child seat on the front passenger seat.

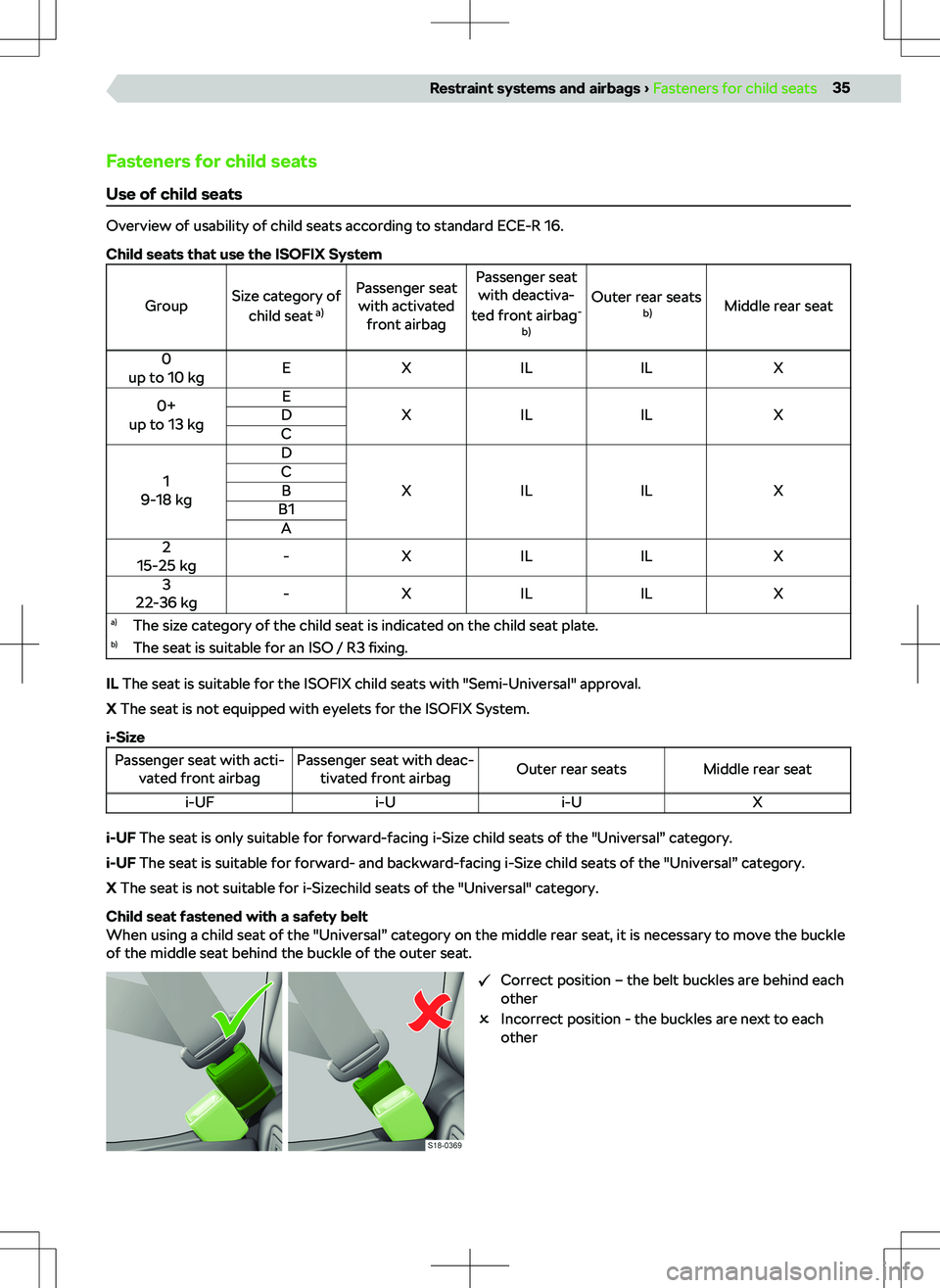

Fasteners for child seats
Use of child seats
Overview of usability of child seats according to standard ECE-R 16. Child seats that use the ISOFIX System
GroupSize category of child seat a)Passenger seat
with activated front airbagPassenger seatwith deactiva-
ted front airbag -
b)
Outer rear seats b)Middle rear seat
0
up to 10 kgEXILILX0+
up to 13 kgEXILILXDC
1
9-18 kg
D
XILILX
CBB1A2
15-25 kg-XILILX3
22-36 kg-XILILXa) The size category of the child seat is indicated on the child seat plate.b)The seat is suitable for an ISO / R3 fixing.
IL The seat is suitable for the ISOFIX child seats with "Semi-Universal" approval.
X The seat is not equipped with eyelets for the ISOFIX System.
i-Size
Passenger seat with acti- vated front airbagPassenger seat with deac-tivated front airbagOuter rear seatsMiddle rear seati-UFi-Ui-UX
i-UF The seat is only suitable for forward-facing i-Size child seats of the "Universal” category.
i-UF The seat is suitable for forward- and backward-facing i-Size child seats of the "Universal” category.
X The seat is not suitable for i-Sizechild seats of the "Universal" category.
Child seat fastened with a safety belt
When using a child seat of the "Universal” category on the middle rear seat, it is necessary to move the buckle
of the middle seat behind the buckle of the outer seat.
Correct position

GroupPassenger seat withactivated front air- bagPassenger seat with
deactivated front air- bagOuter rear seatsMiddle rear seat a)0
up to 10 kgXU b)UU0+
up to 13 kgXU b)UU1
9-18 kgUFUUU2
15-25 kgUFUUU3
22-36 kgUFUUUa) It is forbidden to install a child seat with a support foot in the middle rear seat.b)Adjust the height-adjustable front passenger seat as much as possible.
U The seat is suitable for the child seat category "Universal” and is permitted for use in this weight group.
UF The seat is suitable for forward-facing child seats in the "Universal” category and is permitted for use in
this weight group.
X The seat is not suitable for children in this weight group.
Overview
ISOFIX
WARNING

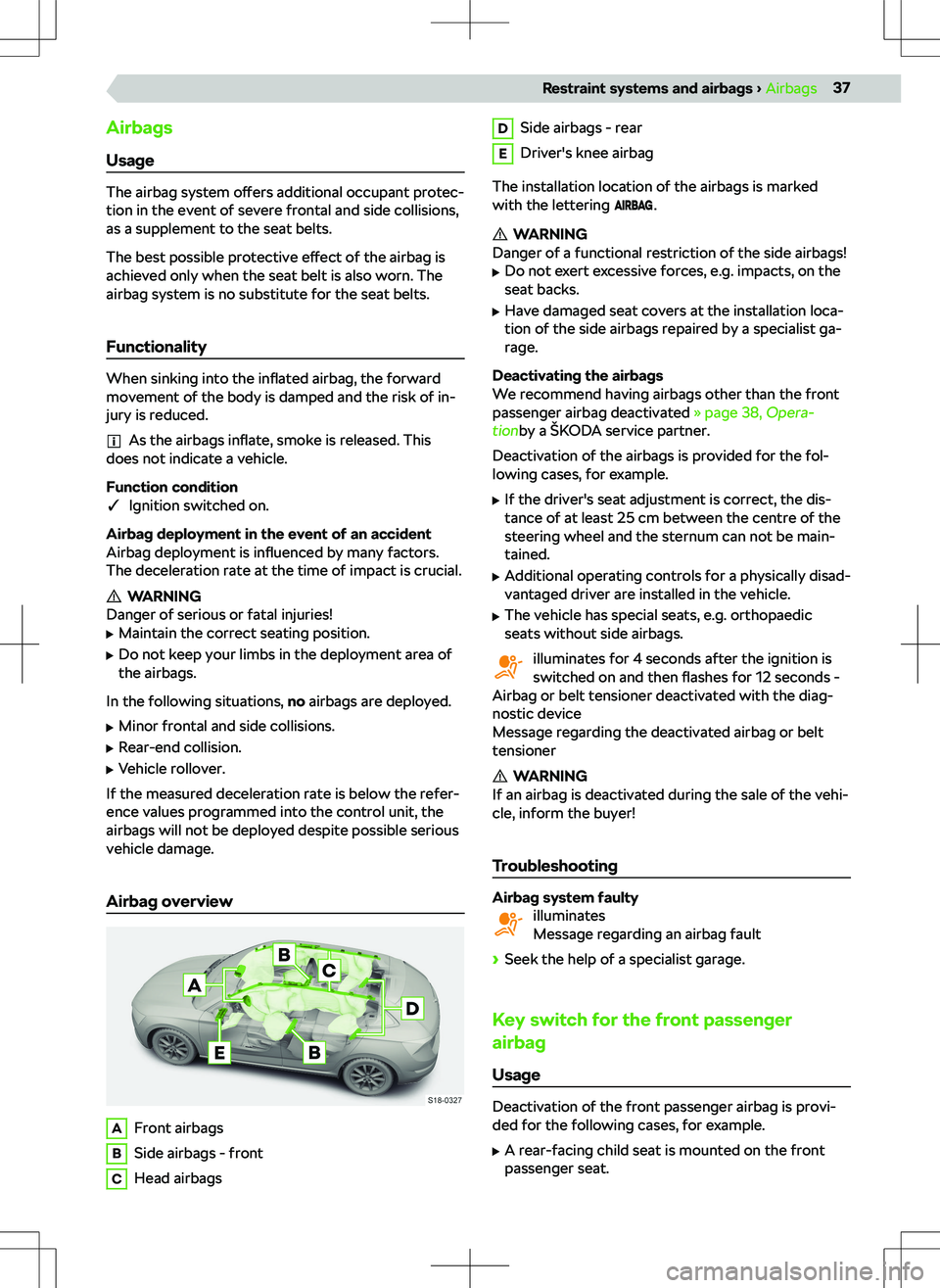

AirbagsUsage
The airbag system o
