2019 SKODA KAMIQ Owner´s Manual

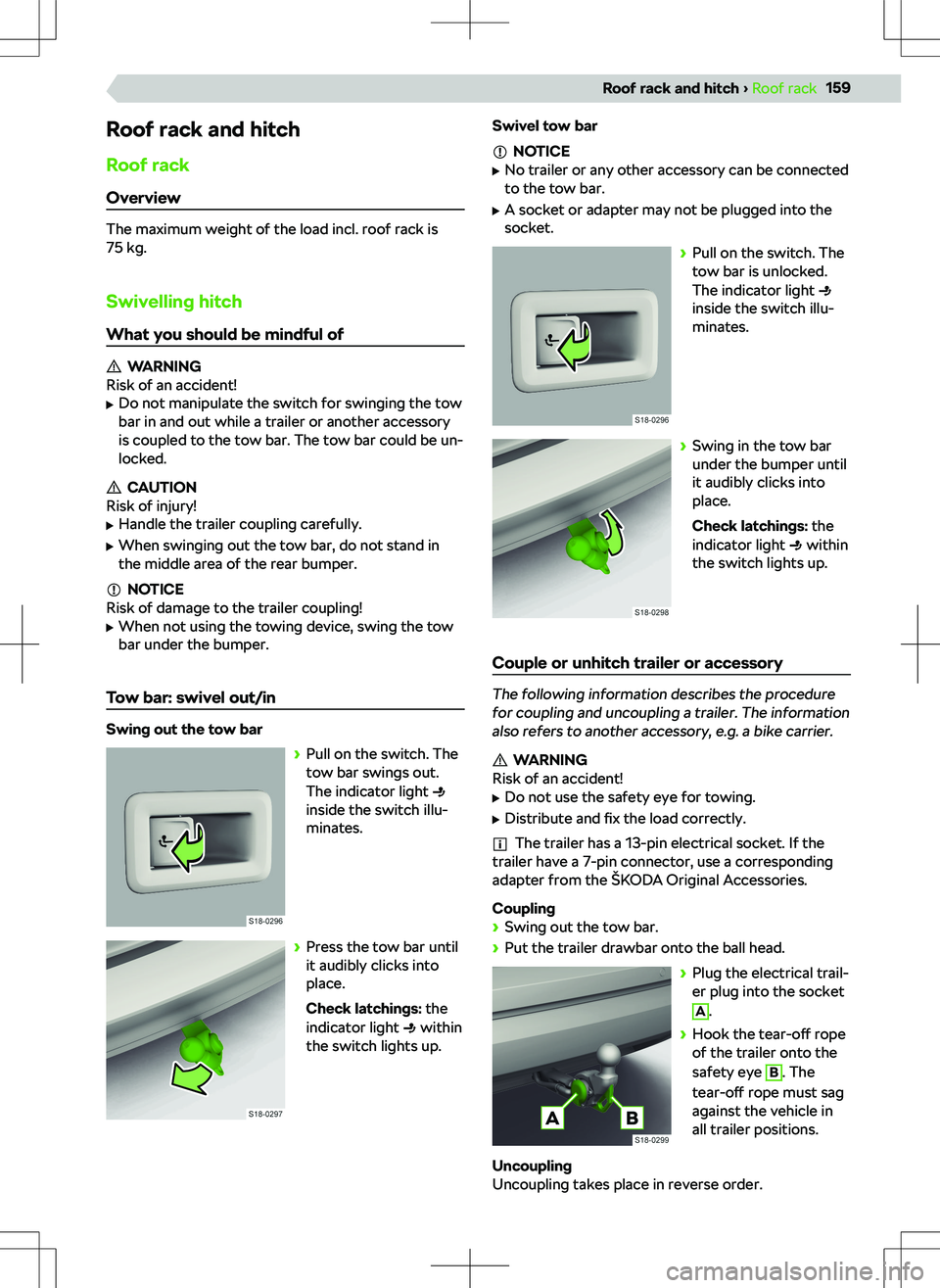

Roof rack and hitchRoof rackOverview
The maximum weight of the load incl. roof rack is
75 kg.
Swivelling hitch
What you should be mindful of
WARNING
Risk of an accident!

Power supply of the trailer power network
In the electrical connection between the vehicle and
trailer, the trailer is powered by the vehicle.
NOTICE
Risk of damage to the vehicle electronics!
The total power consumption of all consumers con-
nected to the trailer power supply must not exceed
350 watts.
Troubleshooting
Trailer coupling error
The indicator light inside the switch does not light
up or flash, or the tow bar does not lock into place.

Maintaining and cleaningService events
Service intervals
Compliance with service intervals is crucial for the
life and value of the vehicle.
You will be notified about a due service appointment
by the symbol
and the corresponding message in
the instrument cluster display.
The specialist garage will inform you of the type of
service interval, the option of changing this and the
scope of service.
All services and the replacement or refilling of op-
erating fluids are chargeable to the customer, even
during the warranty period, unless the

non-legitimate installation in another vehicle (e.g. af-
ter a theft) or operation outside the vehicle.
Interior
What you should be mindful of
NOTICE

NOTICE

Foils
Films will age and become brittle

Service
Engine number
The engine number is embossed in the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle body pillar on the right side of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as altitude increases, as does
the vehicle

Vehicle dimensionsDimensions
SpecificationValue (in mm)Vehicle height1531Vehicle width with folded-in mirrors1793Vehicle width with folded-out mirrors1988Ground clearance of the vehicle182Vehicle length4241Engine speci
