2019 SKODA KAMIQ Owner´s Manual

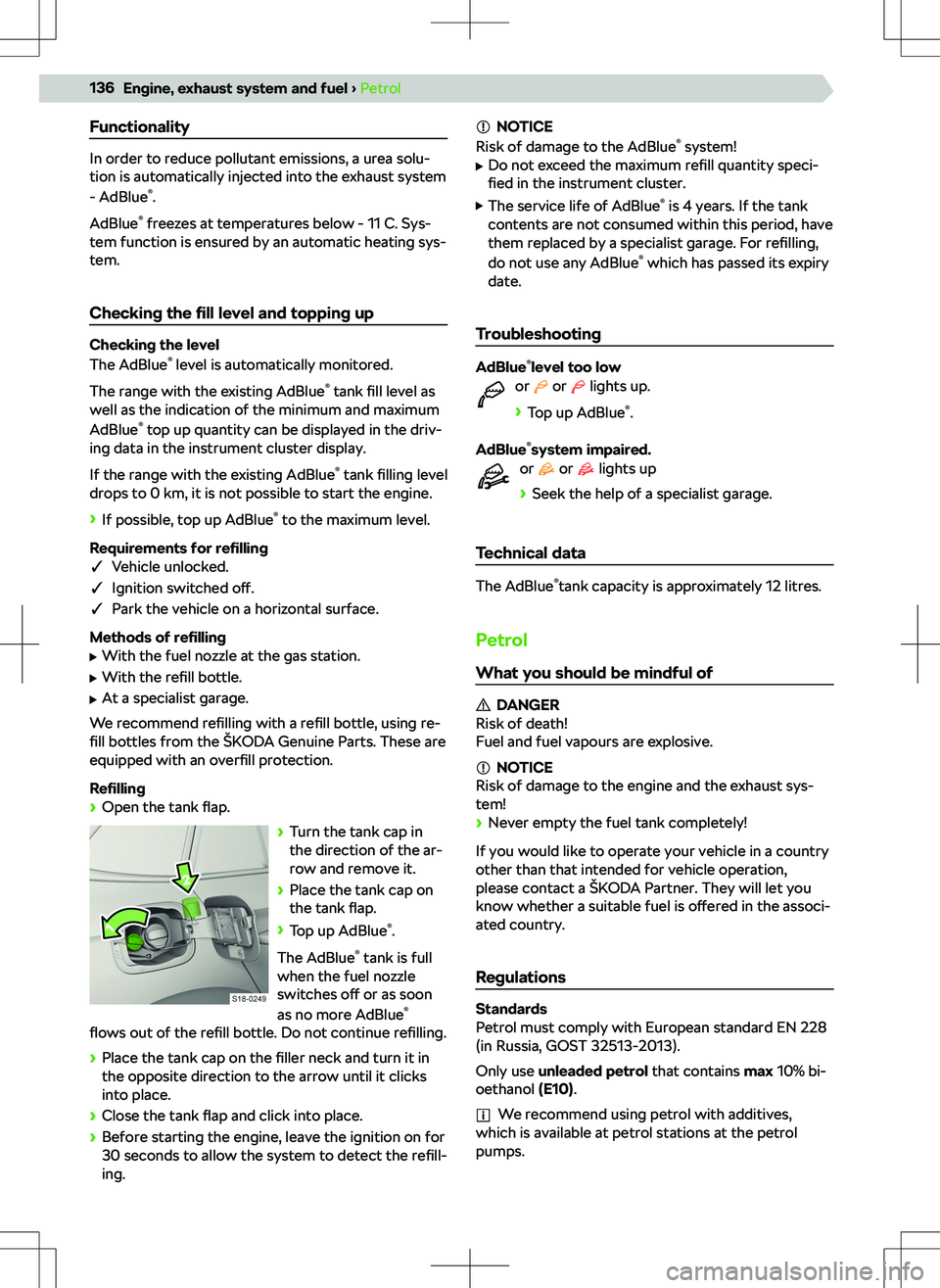

Functionality
In order to reduce pollutant emissions, a urea solu-
tion is automatically injected into the exhaust system
- AdBlue

Octane number
Use the petrol with the octane number prescribed
for your vehicle.
Petrol with an octane number that is one higher than
the one prescribed for your vehicle can be used
without restriction.
NOTICE
Risk of damage to the engine and the exhaust sys- tem!

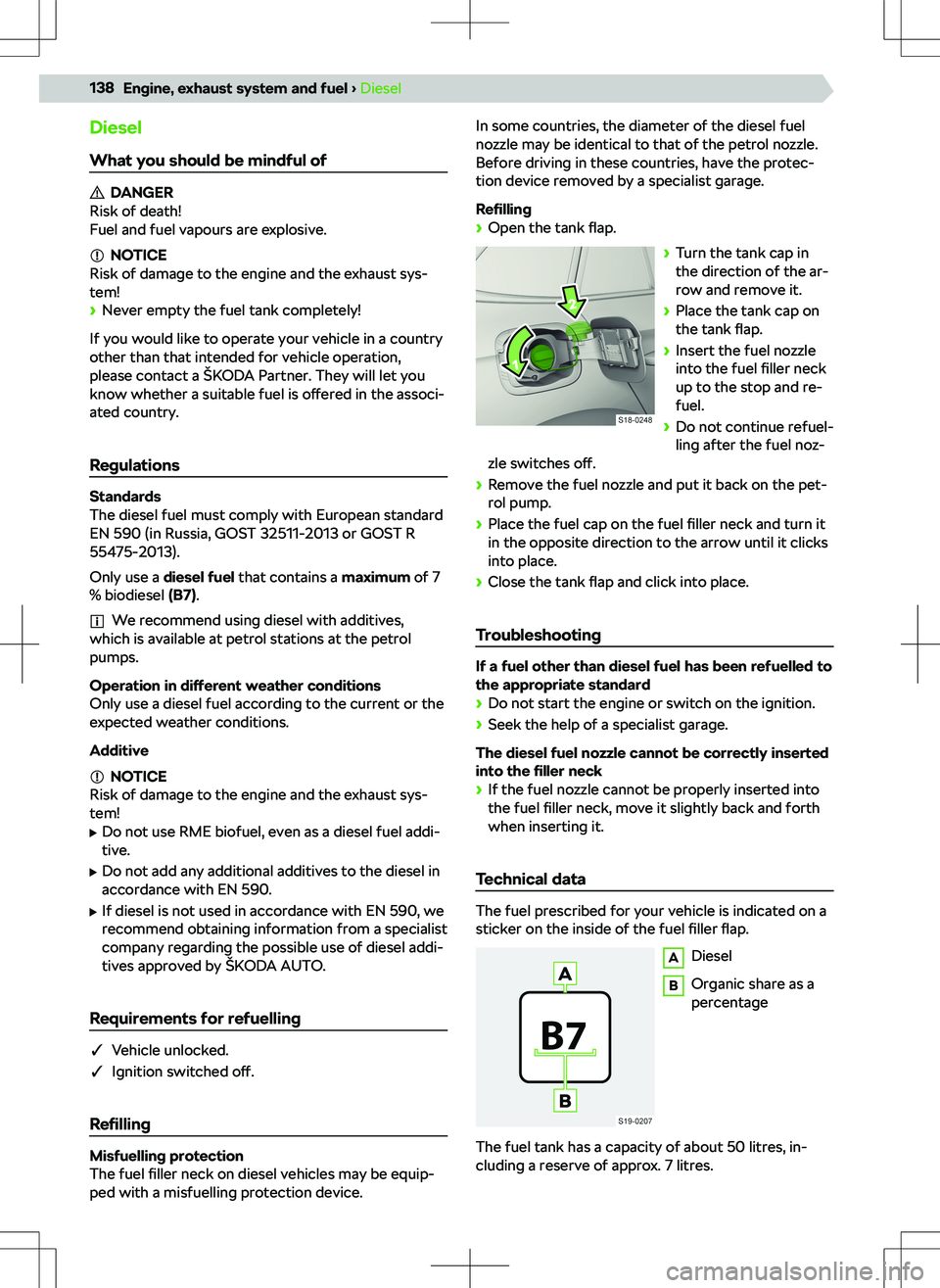

Diesel
What you should be mindful of
DANGER
Risk of death!
Fuel and fuel vapours are explosive.
NOTICE
Risk of damage to the engine and the exhaust sys- tem!

The fuel supply has reached the reserve area.Vehicle battery and fuses
Vehicle battery Functionality - Discharge protection
Possible causes of battery discharge

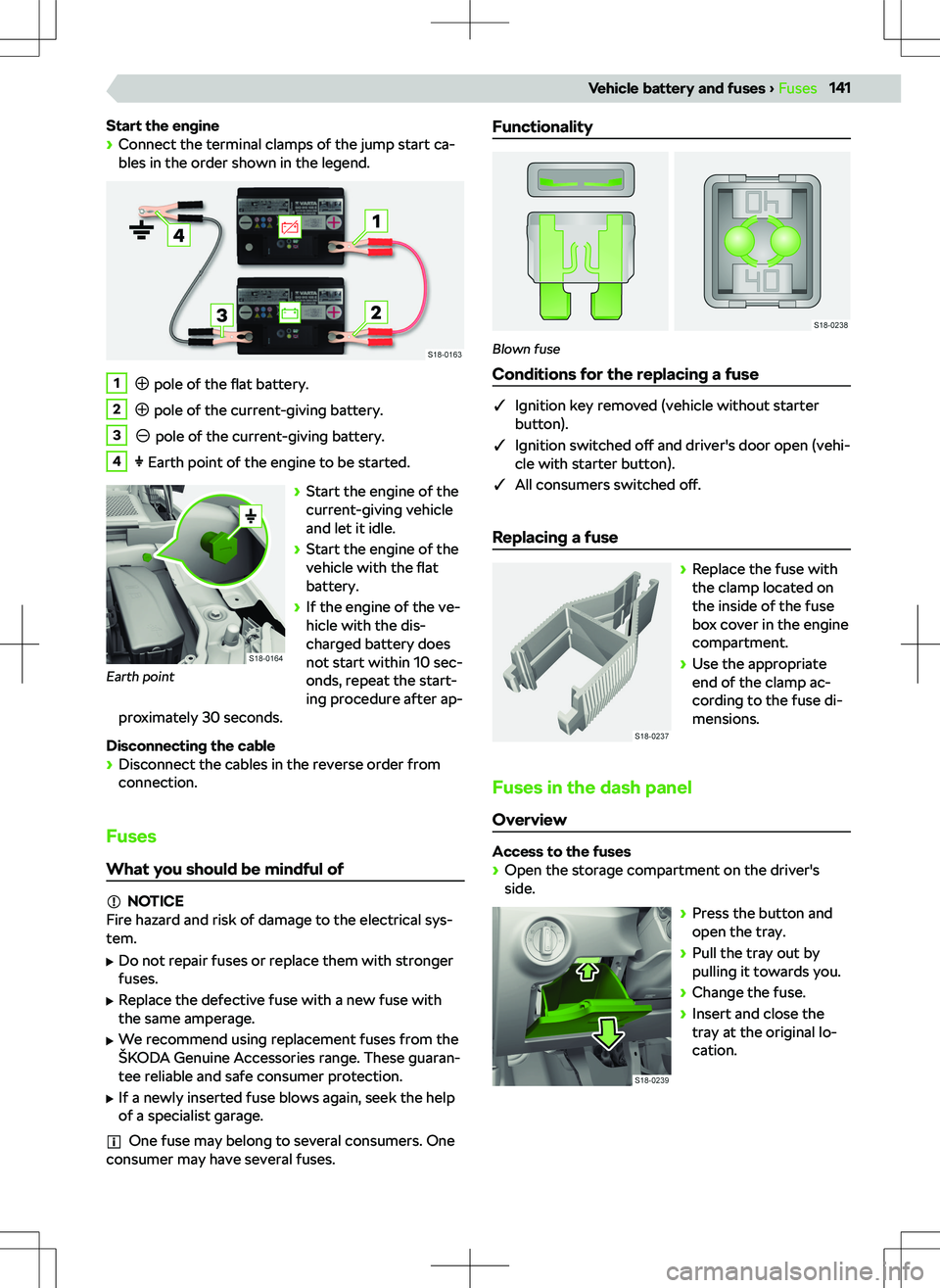

Start the engine

Fuses overviewFuse
numberConsumer1Tow hitch2LED headlights - left side3Music amplifier4Headlight washers5Tilting/sliding sunroof6Central locking, windscreen washer,
rear window wiper7Seat heating - rear8Climatronic9LED headlights - right side10Tow hitch11Electric boot lid12Heated steering wheel13Light switch, diagnosis connection, rain
sensor, control lever under the steering
wheel, front windscreen heating14Windscreen washer system15Instrument cluster, emergency call16Light - right side17Electric windows - right side18Windscreen wiper19Infotainment20Heated rear window21SCR (AdBlue
