Vehicle labeling 11-2 Specifications
11
N01147401938
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist police if your vehicle is stolen. 1 - Vehicle emission control information label The vehicle emission control informationlabel is affixed on the underside of the engine hood. 2 - Vehicle identification number plate The vehicle identification number is stampedon the plate riveted to the left front corner of the dashboard. It is visible from outside of the vehicle through the windshield.
3 - Air conditioning label The air conditioning label is affixed on the inside panel of the engine hood. 4 - Vehicle information code plate The vehicle information code plate is locatedon the front passenger door sill.
The chassis number is stamped on the bulk- head as shown in the illustration.
Vehicle labeling
Chassis number
BK0266800US.bo
ok 2 ページ ２０１８年６月２７日　水曜日　午後５時６分

Vehicle labeling
Specifications 11-3
11
The engine model and serial number are stamped on the cylinder block as shown in the illustration.
N01148101642
The tire and loading information placard is located on the driver’s door sill.
Ty p e 1
Ty p e 2
N01148201252
The certification label is located on the driver’s door sill.
Engine model/serial number * : Front of the vehicleTire and loading information placard
Certification label
BK0266800US.bo
ok 3 ページ ２０１８年６月２７日　水曜日　午後５時６分

Vehicle dimensions 11-4 Specifications
11
N01147501681
Vehicle dimensions Overall length
173.4 in (4,405 mm)
Overall width
71.1 in (1,805 mm)
Overall height
2WD 66.3 in (1,685 mm)4WD 66.5 in (1,690 mm)
Wheel base
105.1 in (2,670 mm)
BK0266800US.bo
ok 4 ページ ２０１８年６月２７日　水曜日　午後５時６分

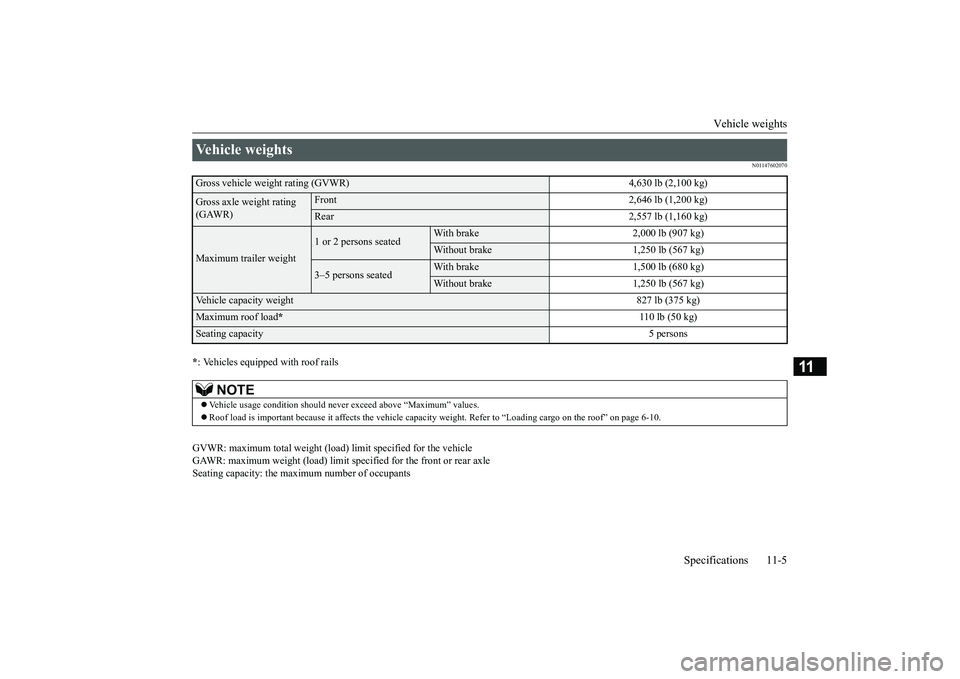

Vehicle weights
Specifications 11-5
11
N01147602070
* : Vehicles equipped with roof rails GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maximum number of occupantsVehicle weights Gross vehicle weight rating (GVWR) 4,630 lb (2,100 kg)Gross axle weight rating (GAWR)
Front 2,646 lb (1,200 kg)Rear 2,557 lb (1,160 kg)
Maximum trailer weight
1 or 2 persons seated
With brake 2,000 lb (907 kg)Without brake 1,250 lb (567 kg)
3–5 persons seated
With brake 1,500 lb (680 kg)Without brake 1,250 lb (567 kg)
Vehicle capacity weight
827 lb (375 kg)
Maximum roof load
*
110 lb (50 kg)
Seating capacity
5 persons
NOTE
Vehicle usage condition should neve
r exceed above “Maximum” values.
 Roof load is important because it affects the vehicle capac
ity weight. Refer to “Loading
cargo on the roof” on page 6-10.
BK0266800US.bo
ok 5 ページ ２０１８年６月２７日　水曜日　午後５時６分

Engine specifications 11-6 Specifications
11
N01147701609 N01147801365
Battery is a 12 volt type.Engine specifications Engine model
4B40
Engine displacement 91.5 CID (1,500 cm³)No. of cylinders and cylinder arrangement Inline-4Bore
2.95 in (75.0 mm)
Stroke
3.34 in (84.8 mm)
Compression ratio 10.0Thermostat valve opening temperature 179.6 °F (82.0 °C)Spark plugs
NGK SILKR7H8
Spark plug gap .028 to .031 in (0.7 to 0.8 mm)Firing order
1-3-4-2
Battery
75D23L
BK0266800US.bo
ok 6 ページ ２０１８年６月２７日　水曜日　午後５時６分

Tires and wheels
Specifications 11-7
11
N01147901874
PCD: Pitch Circle Diameter (installation holes)
N01148002260
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset (Inset) 1.5 in (38 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer
for details on the combination used on your vehicle.
 These tires satisfy vehicle loading cond
itions described in this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“star- burst” symbol) on the container.
Oil filter .21 qt (0.2 L)Oil cooler .11 qt (0.1 L)
Continuously variable transmission (CVT) 8.2 qt (7.8 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-8.
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80
BK0266800US.bo
ok 7 ページ ２０１８年６月２７日　水曜日　午後５時６分

Capacity 11-8 Specifications
11
* : similar high quality ethylene glycol based non-silicate, non-am
ine, non-nitrate and non-borate
coolant with long life hybrid
organic acid tech-
nologyDifferential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .69 qt (0.65 L) in reserve tank}
6.3 qt (6.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or equivalent
*
Washer fluid 4.5 qt (4.3 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFO-1234yf
Item
Capacity
Lubricants
BK0266800US.bo
ok 8 ページ ２０１８年６月２７日　水曜日　午後５時６分
