2019 MITSUBISHI ECLIPSE CROSS Owner's Manual (in English)

Supplemental Restraint System (SRS) - airbag 4-44 Seat and restraint systems
4
Since the side airbags and curtain airbags do not protect the occupant in all types of colli- sions, be sure to always wear your seat belts properly.
N00408500669
Head-on collision Rear end collision to your vehicle Pitch end over end
SRS servicing
WA R N I N G Any maintenance performed on or near the components of the SRS should be per- formed only by an authorized Mitsubishi Motors dealer. Do not permit anyone elseto do any service, inspection, maintenance or repair on any SRS components or wir- ing. Similarly, no part of the SRS shouldever be handled, removed or disposed by anyone except an authorized Mitsubishi Motors dealer.Improper work methods on the SRS com- ponents or wiring could result in an acci- dental airbag deployment or could makethe SRS inoperable. Either of these situa- tions could result in serious injury or death. Do not modify your steering wheel or any other SRS component or related vehiclepart. For example, replacement of the steering wheel, or modifications to the front bumper or body structure canadversely affect SRS performance and may lead to injury. If your vehicle has received any damage, you should have the SRS inspected by an authorized Mitsubishi Motors dealer to make sure it is in proper working order.
 Do not modify your front seats, center pil- lar or center console. Such modifications can adversely affect SRS performance and may lead to injury. Also, if you discover any tear or openseam in the seat fabric near the side air- bag, have the seat inspected by an autho- rized Mitsubishi Motors dealer. If you have found any scratch, crack or damage to the portion of the front andrear pillars and roof side rail, you should have the SRS inspected by an authorized Mitsubishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applicable sec-tions in this owner’s manual.  If you decide to junk or scrap your vehicle, we urge you to first take
it to an authorized
Mitsubishi Motors dealer so that the SRS can be made safe for disposal.  If any of the following parts needs to be modified for use by a handicapped person, the advanced airbag system will be greatly affected. Please consult an authorizedMitsubishi Motors dealer. • Driver’s seat• Front passenger seat • Front seat beltWA R N I N G
BK0266800US.bo
ok 44 ページ ２０１８年６月２７日　水曜日　午後５時６分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-45
4
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc.call 1-888-648-7820 or write to: Mitsubishi Motors North America, Inc. Customer Relations DepartmentP.O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Canada] To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:Mitsubishi Motor Sales of Canada, Inc. Customer Relations Department P.O. Box 410094141 Dixie Road Mississauga, ON L4W 5C9NOTE
[For vehicles sold in Puerto Rico] To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-787-251-8715 or write to:Mitsubishi Motor Sales of Caribbean, Inc. Customer Service DepartmentP.O. Box 192216 SAN JUAN PR 00919-2216 [For vehicles sold in Guam] To contact Triple J Enterprises Inc. call (671) 649-3673 or write to: Triple J Enterprises, Inc.P.O. Box 6066 TAMUNING GUAM 96931 [For vehicles sold in Saipan] To contact Triple J Motorscall (670) 234-7133 or write to: Triple J Motors P.O. Box 500487SAIPAN, MP96950-0487
[For vehicles sold in American Samoa] To contact Pacific Marketing Inc. call 684 (699) 9140 or write to: Pacific Marketing, Inc.P.O. Box 698 PAGO PAGO, AMERICAN SAMOA AS, 96799
BK0266800US.bo
ok 45 ページ ２０１８年６月２７日　水曜日　午後５時６分

Supplemental Restraint System (SRS) - airbag 4-46 Seat and restraint systems
4
N00408601393

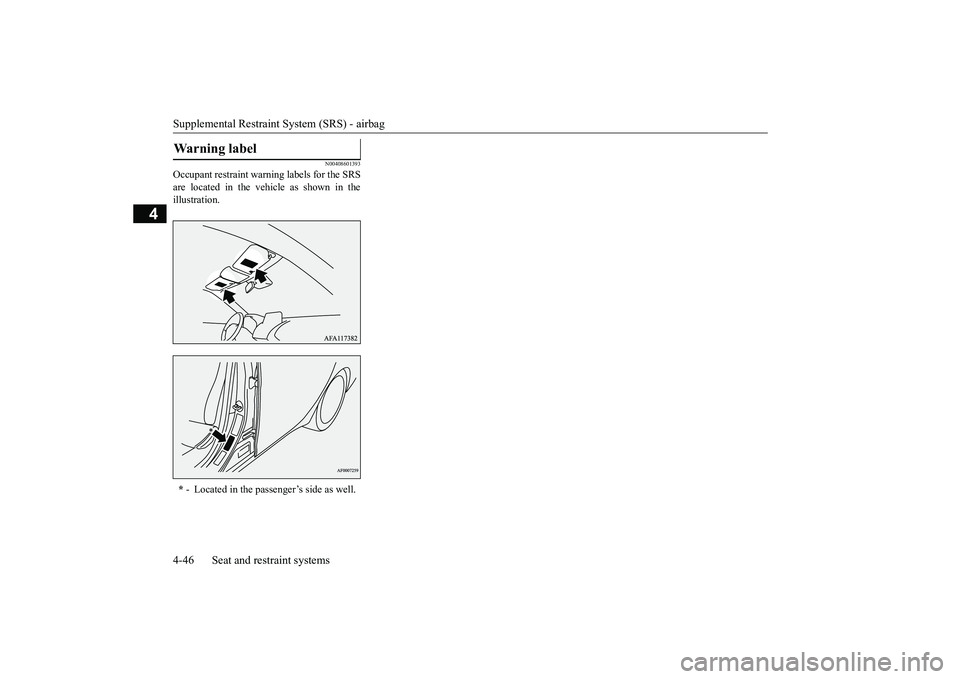

Occupant restraint warning labels for the SRS are located in the vehicle as shown in theillustration.Warning label * - Located in the passenger’s side as well.
BK0266800US.bo
ok 46 ページ ２０１８年６月２７日　水曜日　午後５時６分

5
Features and controlsKeys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................5-12
Door locks .......................
...............................................................5-31
Power door locks ............
...............................................................5-33
Child safety locks for r
ear door .....................................................5-34
Liftgate ......................................
.....................................................5-35
Theft-alarm system
................................................
........................5-37
Power window control
...........................................
........................5-39
Power panoramic sunroof (if
so equipped).....................................5-42
Parking brake ..................
...............................................................5-45
Steering wheel height and reach adjustment ..................................5-49 Inside rearview mirro
r ...........................................
........................5-50
Outside rearview mirr
ors ...............................................................5-52
Ignition switch ......
.................................................
........................5-56
Starting the engine
.................................................
........................5-57
Turbocharger operation
..........................................
........................5-59
Continuously variable trans
mission (CVT) ...................................5-59
S-AWC (Super-All Wheel Control) (if so equipped) .....................5-66 4-wheel drive operation
.........................................
........................5-68
Inspection and maintenance following rough road operation ........5-70Cautions on the handling of 4-wheel drive vehicles ......................5-71 Service brake ..................
...............................................................5-72
Brake auto hold (if so
equipped) ....................................................5-73
Hill start assist .......
.................................................
........................5-75
Brake assist system
................................................
........................5-76
Anti-lock braking syst
em .....................................
......................... 5-77
Electric power steering syst
em (EPS) ........................................... 5-79
Active stability control
(ASC) ....................
................................... 5-79
Cruise control ................
.................................................
............... 5-82
Adaptive Cruise Control System (ACC) (if so equipped) .............. 5-87 Forward Collision Mitigation system (FCM) (if so equipped) ...... 5-99 Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) ..........
.................................................
............. 5-107
Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-113 Lane Departure Warning (LDW) (if so equipped) ....................... 5-117Tire pressure monitoring sy
stem (TPMS) ................................... 5-120
Rear-view camera ..........
.................................................
............. 5-125
Multi Around Monitor (if so
equipped)........................................ 5-127
Instrument cluster
.................................................
....................... 5-137
Multi-information disp
lay ....................................
....................... 5-138
Indicator light, warning light, and information screen display list
..............................................
....................... 5-158
Indicators .................................
.................................................... 5-178
Warning lights ................
.................................................
............. 5-179
Information screen disp
lay ........................
................................. 5-181
Head Up Display (HUD) (if
so equipped).................................... 5-182
Combination headlights and dimmer switch ............................... 5-186Headlight leveling switch (if
so equipped)................................... 5-194
Turn signal lever ..
.................................................
....................... 5-194
Hazard warning flasher
switch .................................................... 5-195
ECO mode switch ..........
.................................................
............. 5-196
Front fog light switch
...........................................
....................... 5-196
Wiper and washer swit
ch ......................................
....................... 5-196
BK0266800US.bo
ok 1 ページ ２０１８年６月２７日　水曜日　午後５時６分

5
Features and controlsElectric rear window defogge
r switch ......................................... 5-202
Heated steering wheel switch (i
f so equipped)............................. 5-203
Horn switch ..................
............................................................... 5-204
USB input terminal
..............................................
........................ 5-204
Sun visors .....................
............................................................... 5-205
12 V power outlets
..............................................
........................ 5-206
HomeLink
® Wireless Control System (if so equipped) ............... 5-207
Interior lights ......
.................................................
........................ 5-212
Storage spaces ..............
............................................................... 5-215
Drink holders ................
............................................................... 5-217
Bottle holders ...............
............................................................... 5-218
Cargo area cover (if so e
quipped) ............................................... 5-218
Assist grips ...................
............................................................... 5-220
Coat hooks ..............................
..................................................... 5-220
Luggage hooks .............
............................................................... 5-221
Convenient hook ....................
..................................................... 5-221
Luggage floor board
...........................................
........................ 5-221
BK0266800US.bo
ok 2 ページ ２０１８年６月２７日　水曜日　午後５時６分

Keys
Features and controls 5-3
5
N00508801787
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergencykey in a safe place together as a set of spare keys.
Keys Type 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plate
Type 2 1- F.A.S.T.-key
(with electronic immobilizer and key- less entry system function)
2- Emergency key3- Key number plate
NOTE
 The key (except for the emergency key) is a precision electronic device with a built-insignal transmitter. Please observe the follow- ing in order to prevent damage.
• Do not leave where it may be exposed toheat caused by direct sunlight, such as on top of the dashboard. • Do not take the key apart.• Do not excessively bend the key or subject it to strong impacts. • Keep the key dry. • Keep away from magnetic objects such as key rings. • Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (including medical devices). • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho-rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key num-ber plate in a safe place separate from the key itself.NOTE
BK0266800US.bo
ok 3 ページ ２０１８年６月２７日　水曜日　午後５時６分

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101905
[For vehicles equipped with the F.A.S.T.-key] For information on operations for vehiclesequipped with the F.A.S.T.-key, refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti- theft starting system)” on page 5-26. [Except for vehicles equipped with the F. A . S . T. - k e y ] The electronic immobilizer is designed to sig-nificantly reduce the possibility of vehicle theft. The purpose of the system is to immo- bilize the vehicle if an invalid start isattempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system.All of the keys provided with your new vehi-cle have been programmed to the vehicle’s electronics.
 No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-4. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): “Electronic immobilizer (Anti-theft starting system)” on page 5-26.  When the theft-alarm is in the system opera- tional status, the alarm operates if a door orliftgate is opened after using the key, the door lock knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation state if the keyless entry system or theF.A.S.T.-key was not used to lock the vehi- cle.
Electronic immobilizer (Anti-theft starting system)
CAUTION Do not make any alterations or additions to the immobilizer system. Alterations or addi- tions could cause failure of the immobilizer.NOTE
NOTE
 In the following cases, the vehicle may not be able to recognize the registered ID codefrom the key. This means the engine will not start even when the ke
y is turned to the
“START” position. • When the key contacts a key ring or other metallic or magnetic object
• When the key grip contacts metal of another key • When the key contacts or is close to other immobilizer keys (including keys of other vehicles) In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “OFF” position. Thentry to start the engine again. If the engine does not start, contact an authorized Mitsubishi Motors dealer.  The key may not operate properly when it is near an object or fac
ility that emits strong
electromagnetic waves.NOTE
BK0266800US.bo
ok 4 ページ ２０１８年６月２７日　水曜日　午後５時６分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed. Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed.
To add a key, you must already have two reg- istered keys. You need to register the ID codeto the vehicle. Registering the ID code can be done by your- self (except for vehicles sold in Canada), orby your authorized Mitsubishi Motors dealer. For you to register the ID code yourself, fol- low the “Customer key programming” proce-dure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remainingkeys to your authorized Mitsubishi Motors dealer.
N00562201208
You can program new keys to the system if you have two valid (already registered) keysand blank immobilizer key (specially cut for
your vehicle at your Mitsubishi Motors dealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds.2. Turn the key to the “OFF” position and remove the first key. 3. Within 30 seconds of removing the firstkey, insert the second valid key into the ignition and turn it to the “ON” position. Approximately 10 seconds later, theimmobilizer display will start to blink.4. When the immobilizer display starts blinking, turn the second valid key to the “OFF” position and remove it. Within30 seconds after doing so, insert a blank immobilizer key into the ignition switch and turn it to the “ON” position. Performthis operation no more than 30 seconds after the immobilizer display starts blink- ing. When registration of the ID code iscomplete, the immobilizer display will come on for 30 seconds then go off. If an error occurs, the blinking immobilizer dis-play will go off during the procedure.
 Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a loss of security pro-tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such a case, contact an authorized MitsubishiMotors dealer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with two keys, but you may register up to eight keys.
Customer key programming (Except for vehicles sold in Canada)
BK0266800US.bo
ok 5 ページ ２０１８年６月２７日　水曜日　午後５時６分
