2019 MERCEDES-BENZ CLA COUPE Owners Manual

Instrument display (standard)
Instrument display in
the widescreen cockpit Depending on
the display setting, the positions
of the indicator lamps on the instrument display
may dif fer from theex ample shown.
Wa rning and indicator lamps:
L Low beam(/
page128)
T St
anding lights(/ page128)
K High beam(/
page130)
#! Tu
rn signal lights( /page 130)
R Re
ar fog light(/ page128)
6 Re
stra int sy stem(/ page 583)
ü Seat belt not
fastened(/ page 588)
J Brakes (yellow)(/
page 583)
J Brakes (red)(/
page 583)
! Elect
ric pa rking brake (yellow)
(/ page 583)
! Electric parking brake (red)
(/
page 583)
! ABS malfunction(/
page 583)÷
ESP®
(/ page 583)
å ESP®
OFF(/ page 583)
L Distance warning(/ page 589)
Ù Electric powerst eering malfunction
(/ page 594)
; Engine diagnostics(/
page 590)
% Preglow
# Elect
rical fault( / page 590)
æ Fu
elreser vewith fuel filler cap loca‐
tion indicator(/ page 590)
? Ve
hicles with a widescreen cock‐
pit: Coolant too hot/cold
(/ page 590)
h Ty
re pressure monitor(/ page 592)
ï Trailer hit chis not operational or is
swiveling(/ page 594) 582
Display messages and warning/indicator lamps

Saf
ety sy stems Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

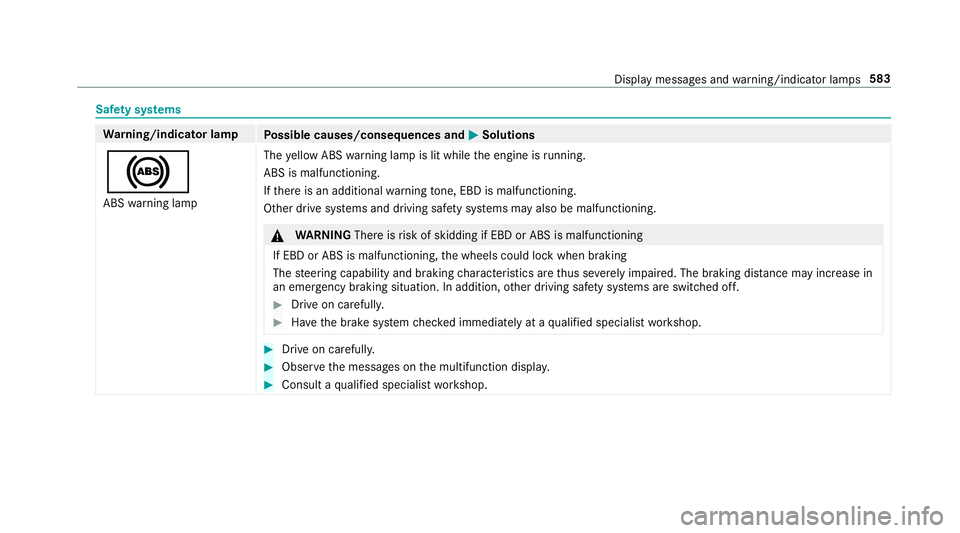

! ABS warning lamp The
yellow ABS warning lamp is lit while the engine is running.
ABS is malfunctioning.
If th ere is an additional warning tone, EBD is malfunctioning.
Other drive sy stems and driving saf ety sy stems may also be malfunctioning. &
WARNING Thereisrisk of skidding if EBD or ABS is malfunctioning
If EBD or ABS is malfunctioning, the wheels could lock when braking
The steering capability and braking characteristics are thus se verely impaired. The br aking distance may increase in
an eme rgency braking situation. In addition, other driving saf ety sy stems are switched off. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. #
Drive on carefully. #
Obser vethe messages on the multifunction displa y. #
Consult a qualified specialist workshop. Display messages and
warning/indicator lamps 583

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

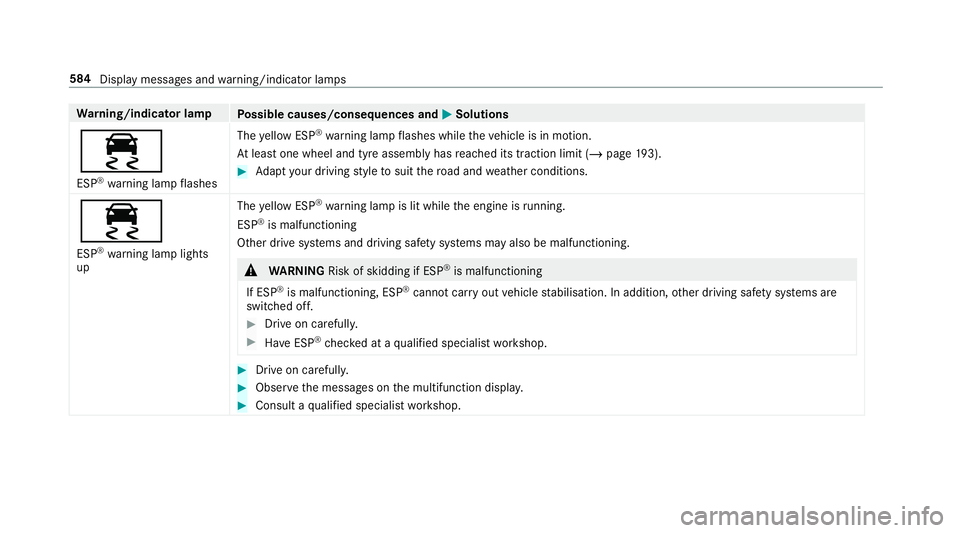

÷ ESP ®
wa rning lamp flashes The
yellow ESP ®
wa rning lamp flashes while theve hicle is in motion.
At least one wheel and tyre assemb lyhas reached its traction limit (/ page193). #
Adapt your driving style to suit thero ad and weather conditions.
÷ ESP ®
wa rning lamp lights
up The
yellow ESP ®
wa rning lamp is lit while the engine is running.
ESP ®
is malfunctioning
Other drive sy stems and driving saf ety sy stems may also be malfunctioning. &
WARNING Risk of skidding if ESP ®
is malfunctioning
If ESP ®
is malfunctioning, ESP ®
cannot car ryout vehicle stabilisation. In addition, other driving saf ety sy stems are
switched off. #
Drive on carefull y. #
Have ESP ®
ch ecked at a qualified specialist workshop. #
Drive on carefully. #
Obser vethe messages on the multifunction displa y. #
Consult a qualified specialist workshop. 584
Display messages and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

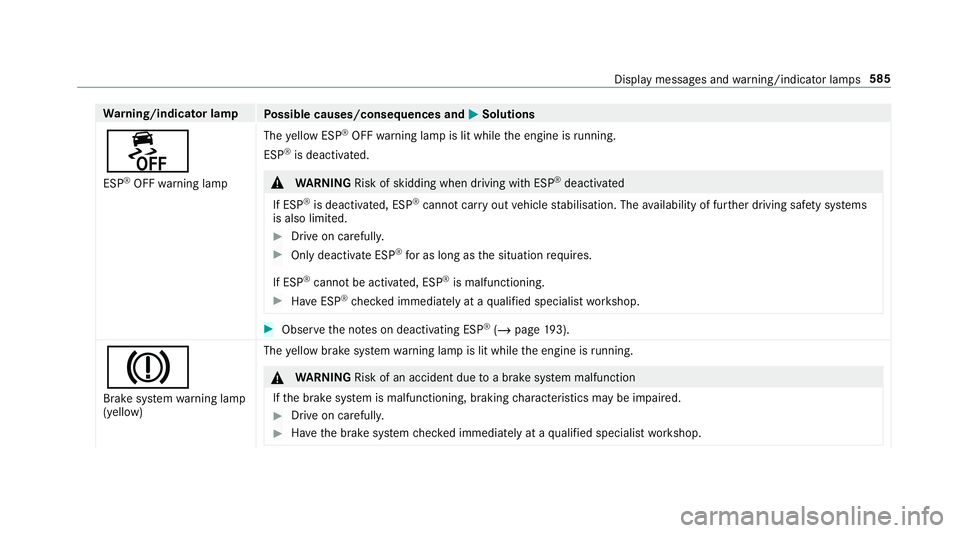

å ESP ®
OFF warning lamp The
yellow ESP ®
OFF warning lamp is lit while the engine is running.
ESP ®
is deacti vated. &
WARNING Risk of skidding when driving wi thESP ®
deacti vated
If ESP ®
is deactivated, ESP ®
cannot car ryout vehicle stabilisation. The availability of fur ther driving saf ety sy stems
is also limited. #
Drive on carefull y. #
Only deactivate ESP ®
for as long as the situation requ ires.
If ESP ®
cannot be activated, ESP ®
is malfunctioning. #
Have ESP ®
ch ecked immediately at a qualified specialist workshop. #
Obser vethe no tes on deactivating ESP ®
(/ page 193).
J Brake sy stem warning lamp
(yellow) The
yellow brake sy stem warning lamp is lit while the engine is running. &
WARNING Risk of an accident due toa brake sy stem malfunction
If th e brake sy stem is malfunctioning, braking characteristics may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. Display messages and
warning/indicator lamps 585

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #

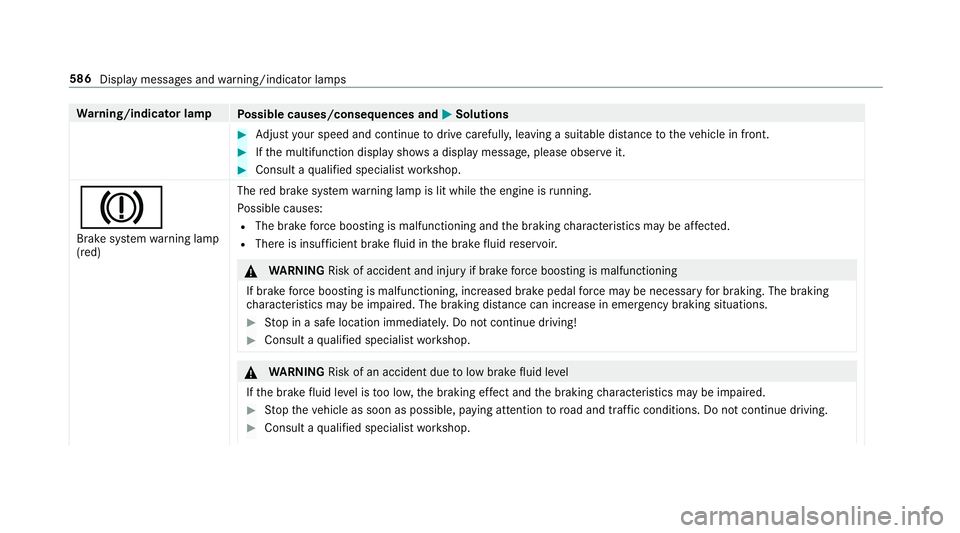

Adjust your speed and continue todrive carefull y,leaving a suitable dis tance totheve hicle in front. #
Ifth e multifunction display sho wsa display message, please obse rve it. #
Consult a qualified specialist workshop.
J Brake sy stem warning lamp
(red) The
red brake sy stem warning lamp is lit while the engine is running.
Po ssible causes:
R The brake forc e boosting is malfunctioning and the braking characteristics may be af fected.
R The reis insuf ficient brake fluid in the brake fluid reser voir. &
WARNING Risk of accident and inju ryif brake forc e boosting is malfunctioning
If brake forc e boosting is malfunctioning, increased brake pedal forc e may be necessary for braking. The braking
ch aracteristics may be impaired. The braking dis tance can increase in emergency braking situations. #
Stop in a safe location immediately. Do not continue driving! #
Consult a qualified specialist workshop. &
WARNING Risk of an accident due tolow brake fluid le vel
If th e brake fluid le vel is too lo w,the braking ef fect and the braking characteristics may be impaired. #
Stop theve hicle as soon as possible, paying attention toroad and traf fic conditions. Do not continue driving. #
Consult a qualified specialist workshop. 586
Display messages and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #

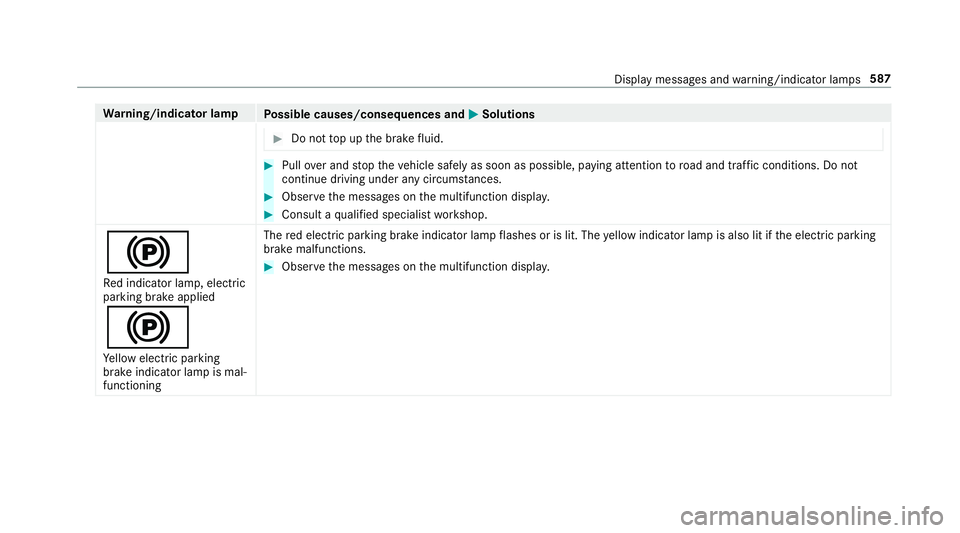

Do not top up the brake fluid. #
Pull over and stop theve hicle safely as soon as possible, paying attention toroad and traf fic conditions. Do not
continue driving under any circums tances. #
Obser vethe messages on the multifunction displa y. #
Consult a qualified specialist workshop.
! Re d indicator lamp, elect ric
parking brake applied
!
Ye llow elect ric pa rking
brake indicator lamp is mal‐
functioning The
red elect ric pa rking brake indicator lamp flashes or is lit. The yellow indicator lamp is also lit if the electric parking
brake malfunctions. #
Obser vethe messages on the multifunction displa y. Displ
aymessa ges and warning/indicator lamps 587

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

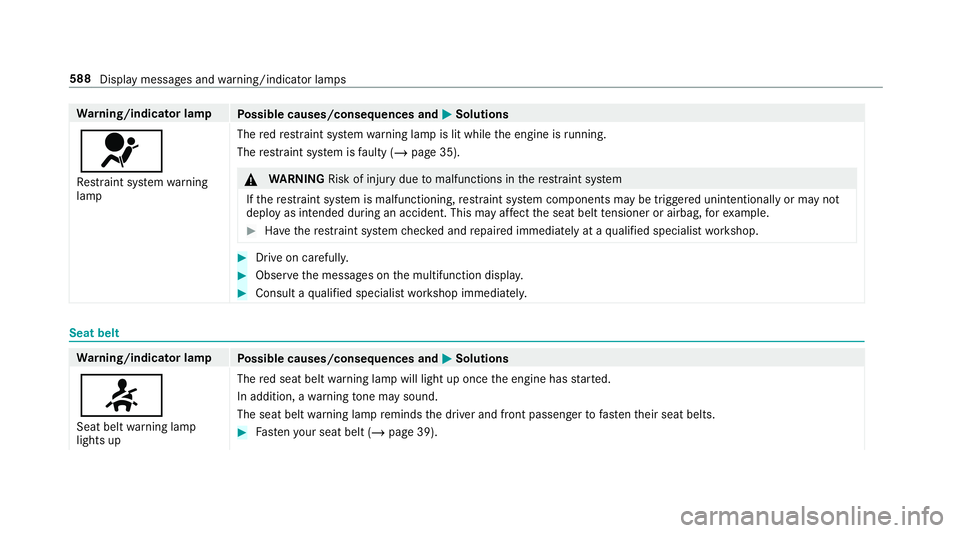

6 Re stra int sy stem warning
lamp The
redre stra int sy stem warning lamp is lit while the engine is running.
The restra int sy stem is faulty (/ page 35). &
WARNING Risk of inju rydue tomalfunctions in there stra int sy stem
If th ere stra int sy stem is malfunctioning, restra int sy stem components may be triggered unintentionally or may not
deploy as intended during an accident. This may af fect the seat belt tensioner or airbag, forex ample. #
Have there stra int sy stem checked and repaired immediately at a qualified specialist workshop. #
Drive on carefully. #
Obser vethe messages on the multifunction displa y. #
Consult a qualified specialist workshop immediatel y.Seat belt
Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
7 Seat belt warning lamp
lights up The
red seat belt warning lamp will light up once the engine has star ted.
In addition, a warning tone may sound.
The seat belt warning lamp reminds the driver and front passenger tofast entheir seat belts. #
Fasten your seat belt (/ page 39).588
Display messages and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

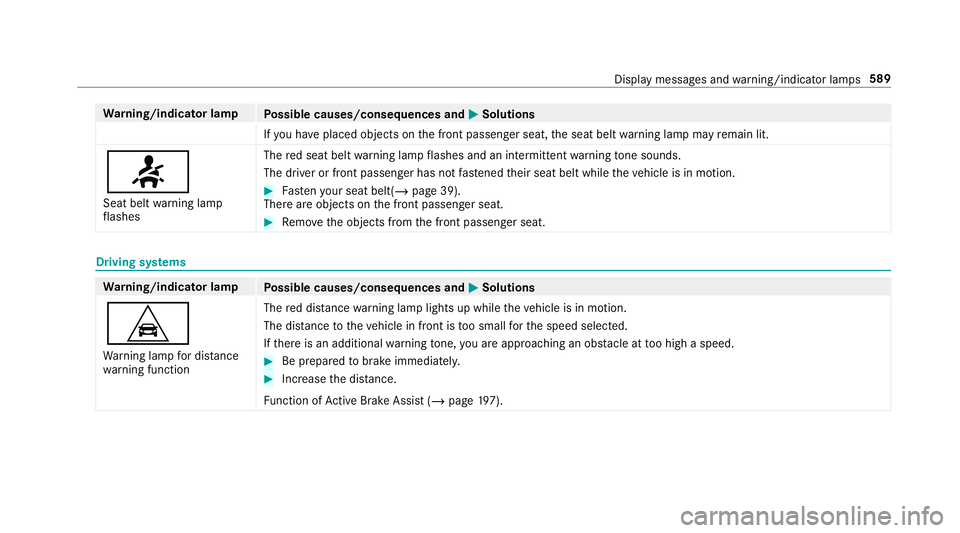

If yo u ha veplaced objects on the front passenger seat, the seat belt warning lamp may remain lit.
7 Seat belt warning lamp
fl ashes The
red seat belt warning lamp flashes and an intermit tent wa rning tone sounds.
The driver or front passenger has not fastened their seat belt while theve hicle is in motion. #
Fasten your seat belt(/ page 39).
There are objects on the front passenger seat. #
Remo vethe objects from the front passenger seat. Driving sy
stems Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
L Wa rning lamp for dis tance
wa rning function The
red dis tancewarning lamp lights up while theve hicle is in motion.
The dis tance totheve hicle in front is too small forth e speed selected.
If th ere is an additional warning tone, you are approaching an obs tacle at too high a speed. #
Be prepared tobrake immediatel y. #
Increase the dis tance.
Fu nction of Active Brake Assi st (/ page 197). Displ
aymessa ges and warning/indicator lamps 589
