2019 MERCEDES-BENZ AMG GT ROADSTER engine

Problem
Possible causes/consequences and
0050
0050Solutions The engine is not running
smoothly and is misfir-
ing. There is a malfunction in the engine electronics or in a mechanical
component of the engine management system.
X Only depress the accelerator pedal slightly.
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it.
X Have the cause rectified immediately at a qualified specialist work-
shop. The coolant temperature
display shows a value
above 248 ‡ (120 †). The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently.
X Stop as soon as possible and allow the engine and the coolant to
cool down.
X Check the coolant level (Y page 239). Observe the warning notes
as you do so and add coolant if necessary. DYNAMIC SELECT controller
General information
Select the drive program using the DYNAMIC
SELECT controller.
Available drive programs: C
Comfort Comfort-oriented, optimum-
economy engine and trans-
mission settings S
Sport Sporty engine and transmis-
sion settings S+
Sport Plus Especially sporty engine and
transmission settings RACE
(AMG GT C
Roadster)
Maximum sportiness and
engine and transmission
settings suitable for the
racetrack
I
Individual Individual settings
In urban traffic and stop-start traffic, drive pro-
gram
Cis recommended.
Depending on the drive program selected the
following vehicle characteristics will change:
R the drive (engine management)
R the transmission management
R ESP ®
(Y page 62)
R the suspension (Y page 147)
R the position of the exhaust flap
(Y page 114) R
the availability of the ECO start/stop function
(Y page 113)
R the availability of gliding mode
(Y page 120)
Further information for automatic drive program characteristics (Y page 122).
Additionally, in drive program Iyou can config-
ure the respective vehicle characteristics using
the multimedia system. You can find informa-
tion about this in the Digital Operator's Manual.
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program Cis
activated. For further information about starting
the engine, see (Y page 111). Selecting the drive program
X
Turn DYNAMIC SELECT controller 0043until the
desired drive program is selected.
The selected drive program appears in the
multifunction display. After five seconds the 116
DYNAMIC SELECT controllerDriving and parking

display goes out and the symbol of the selec-
ted drive program appears.
The drive program indicator on DYNAMIC
SELECT controller 0043lights up in red.
In addition, the current drive program settings
are displayed in the multimedia system dis-
play. Additional settings
0043
Manual mode (Y page 123)
0044 ECO start/stop function (Y page 113)
0087 Position of the exhaust flap (Y page 114)
0085 Suspension (Y page 147)
0083 ESP ®
(Y page 62)
When you press buttons 0043-0083 the corre-
sponding setting is selected. The DYNAMIC
SELECT controller setting is overwritten.
These settings will also be maintained for man-
ual mode and ESP ®
if you switch to drive pro-
gram RACE (AMG GT C Roadster), S+,S or C
using the DYNAMIC SELECT controller.
If you switch to drive program I, all stored char-
acteristics will be accepted. This is also the case
if you have previously pressed one of buttons 0043
- 0083. If you then change the drive program using
the DYNAMIC SELECT controller, the standard
setting for the drive program is selected. AMG SPEEDSHIFT DCT 7-speed sports
transmission Important safety notes
G
WARNING
If the engine speed is above the idling speed
and you engage transmission position 003A or
0046, the vehicle could pull away sud-
denly. There is a risk of an accident.
When engaging transmission position 003Aor
0046, always firmly depress the brake pedal
and do not simultaneously accelerate. G
WARNING
The automatic transmission switches to neu-
tral position Nwhen you switch off the engine.
The vehicle may roll away. There is a risk of an
accident.
After switching off the engine, always switch
to parking position P. Prevent the parked vehi-
cle from rolling away by applying the parking
brake. E-SELECT selector lever
General notes !
If the engine speed is too high or the vehicle
is in motion, do not shift the automatic trans- mission directly from 005Bto005E, from 005Eto005B
or directly to 005D.
Do not open the driver's door while the vehi-
cle is in motion. At low speeds in transmission
position 005Bor005E, otherwise park position 005D
is engaged automatically.
The transmission could be damaged.
! If you want to engage a transmission posi-
tion or to exit park position 005D, the engine
must be running.
The E-SELECT lever always returns to its original position.
The current transmission position 005D,005E, 005Cor
005B is shown in the transmission position display
in the multifunction display. AMG SPEEDSHIFT DCT 7-speed sports transmission
117Driving and parking Z

Overview of transmission positions
005D
Park position with parking lock
005E Reverse gear
005C Neutral
005B Drive
Engaging park position P X
Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Press button 0043on the center console.
If you depress the brake pedal and push the
E‑SELECT lever forwards or pull it backwards to
the first point of resistance, park position 005Dis
disengaged. The transmission shifts to neutral
005C. Engaging park position P automatically Park position
005Dis engaged automatically in the
following circumstances:
R if you switch off the engine using the Start/
Stop button and open the driver's or front-
passenger door.
R if you remove the SmartKey from the ignition
lock.
R if you open the driver's door while traveling at
low speeds in transmission position 005Bor005E.
Under certain conditions, the automatic trans-
mission will shift automatically to transmission
position 005Dif the HOLD function or Active Dis-
tance Assist DISTRONIC is activated. Observe
the information on the HOLD function
(Y page 144) and on Active Distance Assist
DISTRONIC (Y page 140).
Engaging reverse gear R X
Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever forwards past the
first point of resistance.
The transmission position 005Eis engaged.
If you engage reverse gear, the engine starts
automatically (Y page 114).
Shifting to neutral N X
Start the engine (Y page 112).
X Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever forwards or pull it
back to the first point of resistance, depend-
ing on the current transmission position.
If you move the E-SELECT lever to 005Cbefore
switching off the engine, the transmission
remains in 005Cfor approximately 30 minutes. If
you open the driver's or front-passenger door
during this period, the transmission automati-
cally shifts to park position 005D.
If you want the automatic transmission to
remain in neutral 005C, e.g. when having the vehi-
cle cleaned in an automatic car wash with a
towing system:
X Insert the SmartKey into the ignition lock.
X Switch on the ignition. 118
AMG SPEEDSHIFT DCT 7-speed sports transmissionDriving and parking

X
Depress the brake pedal and keep it
depressed.
X Shift to neutral 005C.
X Release the brake pedal.
X Release the electric parking brake.
X Switch the ignition off.
X Turn the SmartKey to position 0048and leave it
in the ignition lock.
You can find further information under "Car
wash" (Y page 242).
Shifting to transmission position D X
Start the engine (Y page 112).
X Make sure that the vehicle is stationary.
X Depress the brake pedal and keep it
depressed.
X Push the E-SELECT lever back past the first
point of resistance.
The automatic transmission shifts to 005B.
If the vehicle is braked to a standstill with the
transmission in position 005B, the ECO start/stop
function switches off the engine automatically
(Y page 113). Transmission position and drive pro-
gram display
The current transmission position and drive pro-
gram appear in the multifunction display. 0043
Drive program
0044 Transmission position
Additionally, displays next to the E ‑SELECT lever
show the current transmission position.
The displays light up if you:
R switch on the power supply with the Start/
Stop button (Y page 110) or
R insert the SmartKey into the ignition lock
(Y page 111). The displays go out if you:
R
switch off the power supply with the Start/
Stop button (Y page 110) or
R remove the SmartKey from the ignition lock
(Y page 111).
If the transmission position display in the mul-
tifunction display is not working, check on the
display next to the E-SELECT lever whether the
desired transmission position is engaged. Transmission positions
0045 Park position
This prevents the vehicle from rolling away when stopped.
Only shift the transmission into posi-
tion 005D(Ypage 117) when the vehi-
cle is stationary. The parking lock
should not be used as a brake when
parking. Always apply the electronic
parking brake in addition to the park-
ing lock in order to secure the vehi-
cle.
The automatic transmission shifts to 005D automatically if you:
R remove the SmartKey
R switch off the engine when in 005Eor
005B and open the driver's door or
front-passenger door
R open the driver's door while trav-
eling at low speeds in transmission
position 005Bor005E
In the event of a malfunction of the
vehicle's electronics, the transmis-
sion may lock in position 005D. Have
the vehicle electronics checked
immediately at a qualified specialist
workshop. 0046 Reverse gear
Only shift the transmission into posi-
tion 005Ewhen the vehicle is station-
ary. AMG SPEEDSHIFT
DCT 7-speed sports transmission
119Driving and parking Z

0044 Neutral
Do not shift the transmission to
005C
while driving. The automatic trans-
mission could otherwise be dam-
aged.
No power is transmitted from the
engine to the drive wheels.
Releasing the brakes will allow you to
move the vehicle freely, e.g. to push
it or tow it.
If ESP ®
is deactivated or faulty: shift
the transmission to position 005Cif the
vehicle is in danger of skidding, e.g.
on icy roads.
If you switch off the engine using the SmartKey or the Start/Stop button,
the automatic transmission shifts to
neutral 005Cautomatically.
! Coasting in neutral
005Cmay
cause damage to the drive train. 003A Drive
The automatic transmission changes
gear automatically in the automatic
drive programs (Y page 122). All
forward gears are available. Driving tips
Changing gear The automatic transmission shifts through the
individual gears automatically when it is in trans-
mission position 005B. This automatic gear shift-
ing behavior is determined by:
R the selected drive program (Y page 116)
R the position of the accelerator pedal
R the road speed
Accelerator pedal position Your style of driving influences how the auto-
matic transmission shifts gear:
R little throttle: early upshifts
R more throttle: late upshifts
A dynamic driving style with high longitudinal
and lateral acceleration delays the shift points
to higher engine speeds. Double-clutch function When shifting down, the double-clutch function
is active regardless of the currently selected
drive program. The double-clutch function
reduces load change reactions and is conducive to a sporty driving style. The sound generated by
the double-clutch function depends on the drive program selected.
Kickdown Use kickdown for maximum acceleration:
X In the automatic drive programs, depress the
accelerator pedal beyond the pressure point.
Depending on the engine speed and the selec- ted drive program, the automatic transmis-
sion shifts to the lowest gear permissible to
give optimal acceleration.
X Ease off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up.
Kickdown is not available in manual mode M.
Rocking the vehicle free Rocking the vehicle free may help to free the
vehicle if it has become stuck in slush or snow. To do so, shift back and forth repeatedly
between transmission positions 005Band 005E.
The vehicle's transmission management
restricts shifting between transmission posi-
tions 005Band 005Eto speeds up to a maximum of
5 mph (9 km/h).
To shift back and forth between transmission
positions 005Band 005E, move the E-SELECT lever
up and down beyond the pressure point.
Gliding mode 120
AMG SPEEDSHIFT DCT 7-speed sports transmissionDriving an
d parking

Gliding mode is characterized by the following:
R the combustion engine is disconnected from
the drive train.
R the engine speed corresponds to the idling
speed.
R the Csymbol disappears from the multifunc-
tion display and symbol 0043is displayed
(Y page 119).
In drive program C, you can deactivate and acti-
vate gliding mode using the ECO button
(Y page 114).
Gliding mode can be activated under the follow-
ing conditions:
R the speed is within a suitable range.
R the course of the road is suitable, e.g. there
are no steep up or downhill gradients.
R you are no longer depressing the accelerator
pedal.
Gliding mode is deactivated under the following conditions:
R you depress the accelerator pedal.
R you depress the brake pedal.
R you switch the transmission position using
the E‑SELECT lever (Y page 117).
R you switch to drive program RACE
(AMG GT C Roadster), S+orS(Y page 116).
R you switch to manual mode M(Y page 121).
R you leave the suitable speed range.
i If you have selected the "Comfort" setting
for the drive (engine management) in drive
program I, you can also activate gliding mode.
You can find information about this in the Dig- ital Operator's Manual. M button X
Press M button 0043.
Indicator lamp 0044lights up. The letter M
appears in the multifunction display. Manual
mode Mis activated. M
Manual Permanent manual gear-
shifting
Further information on manual mode
M
(Y page 123).
In addition to manual mode M, you can also
activate temporary manual drive program
(Y page 122).
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program Cis
activated. For further information about starting
the engine, see (Y page 111). Steering wheel paddle shifters
Using steering wheel paddle shifters
0043and 0044
you can:
R activate the temporary manual drive program
and change gear yourself in automatic drive
programs (Y page 122)
R change gear yourself in manual mode M
(Y page 123)
R activate RACE START (Y page 146) AMG SPEEDSHIFT DCT 7-speed sports transmission
121Driving and parking Z

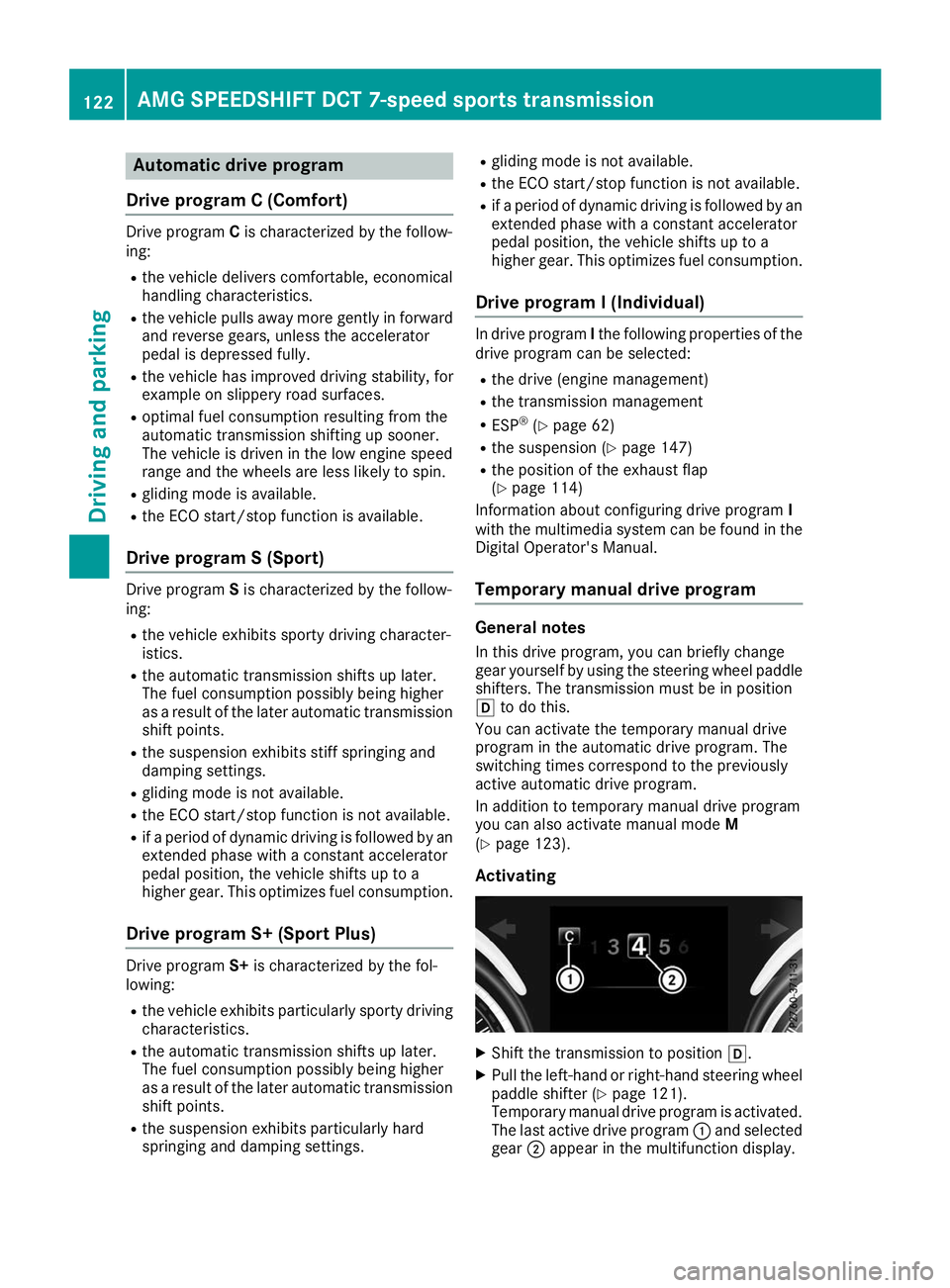

Automatic drive program
Drive program C (Comfort) Drive program
Cis characterized by the follow-
ing:
R the vehicle delivers comfortable, economical
handling characteristics.
R the vehicle pulls away more gently in forward
and reverse gears, unless the accelerator
pedal is depressed fully.
R the vehicle has improved driving stability, for
example on slippery road surfaces.
R optimal fuel consumption resulting from the
automatic transmission shifting up sooner.
The vehicle is driven in the low engine speed
range and the wheels are less likely to spin.
R gliding mode is available.
R the ECO start/stop function is available.
Drive program S (Sport) Drive program
Sis characterized by the follow-
ing:
R the vehicle exhibits sporty driving character-
istics.
R the automatic transmission shifts up later.
The fuel consumption possibly being higher
as a result of the later automatic transmission
shift points.
R the suspension exhibits stiff springing and
damping settings.
R gliding mode is not available.
R the ECO start/stop function is not available.
R if a period of dynamic driving is followed by an
extended phase with a constant accelerator
pedal position, the vehicle shifts up to a
higher gear. This optimizes fuel consumption.
Drive program S+ (Sport Plus) Drive program
S+is characterized by the fol-
lowing:
R the vehicle exhibits particularly sporty driving
characteristics.
R the automatic transmission shifts up later.
The fuel consumption possibly being higher
as a result of the later automatic transmission
shift points.
R the suspension exhibits particularly hard
springing and damping settings. R
gliding mode is not available.
R the ECO start/stop function is not available.
R if a period of dynamic driving is followed by an
extended phase with a constant accelerator
pedal position, the vehicle shifts up to a
higher gear. This optimizes fuel consumption.
Drive program I (Individual) In drive program
Ithe following properties of the
drive program can be selected:
R the drive (engine management)
R the transmission management
R ESP ®
(Y page 62)
R the suspension (Y page 147)
R the position of the exhaust flap
(Y page 114)
Information about configuring drive program I
with the multimedia system can be found in the
Digital Operator's Manual.
Temporary manual drive program General notes
In this drive program, you can briefly change
gear yourself by using the steering wheel paddle shifters. The transmission must be in position
005B to do this.
You can activate the temporary manual drive
program in the automatic drive program. The
switching times correspond to the previously
active automatic drive program.
In addition to temporary manual drive program
you can also activate manual mode M
(Y page 123).
Activating X
Shift the transmission to position 005B.
X Pull the left-hand or right-hand steering wheel
paddle shifter (Y page 121).
Temporary manual drive program is activated.
The last active drive program 0043and selected
gear 0044appear in the multifunction display. 122
AMG SPEEDSHIFT DCT 7-speed sports trans
missionDriving and parking

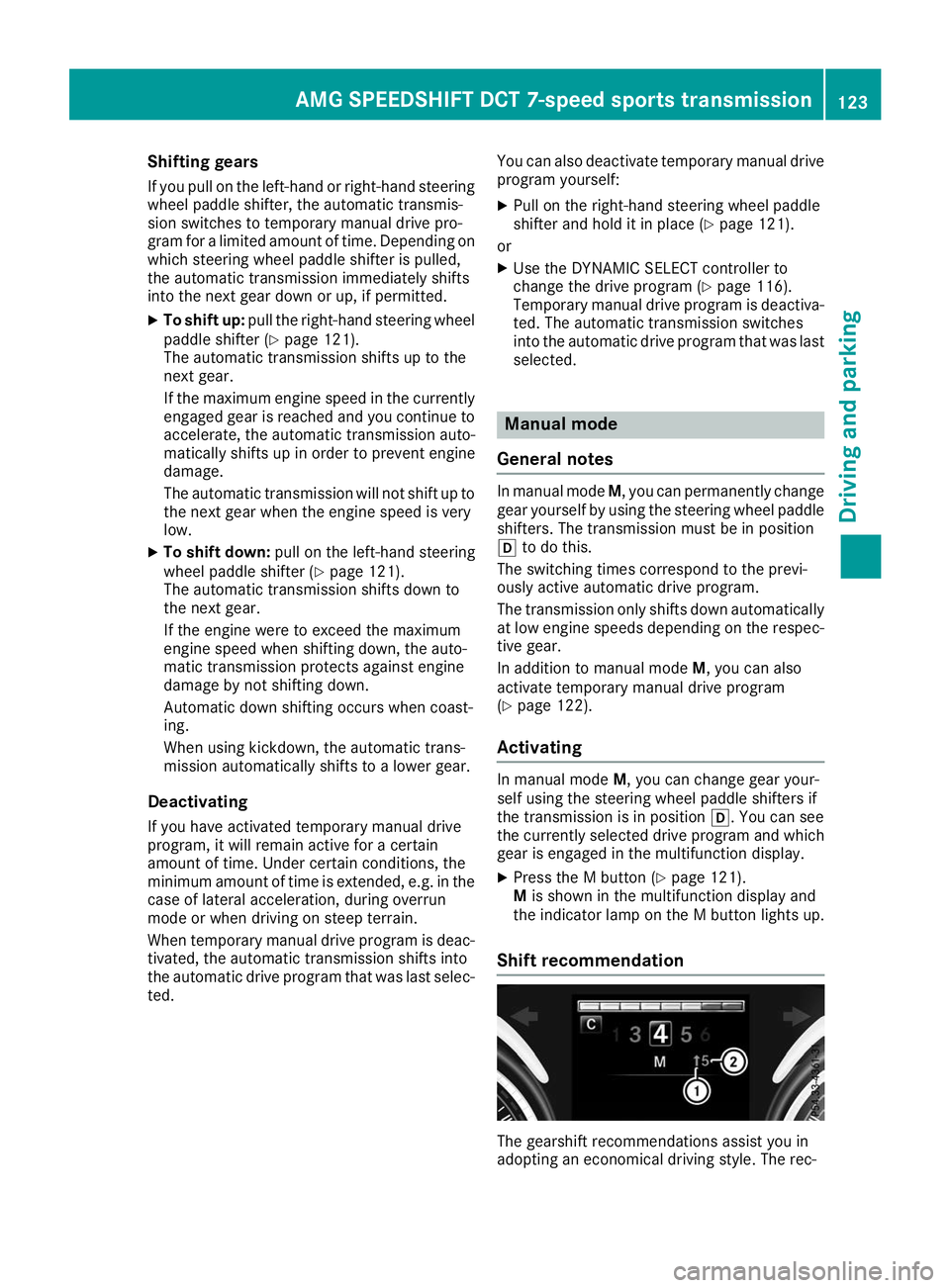

Shifting gears
If you pull on the left-hand or right-hand steering
wheel paddle shifter, the automatic transmis-
sion switches to temporary manual drive pro-
gram for a limited amount of time. Depending on
which steering wheel paddle shifter is pulled,
the automatic transmission immediately shifts
into the next gear down or up, if permitted.
X To shift up: pull the right-hand steering wheel
paddle shifter (Y page 121).
The automatic transmission shifts up to the
next gear.
If the maximum engine speed in the currently
engaged gear is reached and you continue to
accelerate, the automatic transmission auto-
matically shifts up in order to prevent engine
damage.
The automatic transmission will not shift up to the next gear when the engine speed is very
low.
X To shift down: pull on the left-hand steering
wheel paddle shifter (Y page 121).
The automatic transmission shifts down to
the next gear.
If the engine were to exceed the maximum
engine speed when shifting down, the auto-
matic transmission protects against engine
damage by not shifting down.
Automatic down shifting occurs when coast-
ing.
When using kickdown, the automatic trans-
mission automatically shifts to a lower gear.
Deactivating If you have activated temporary manual drive
program, it will remain active for a certain
amount of time. Under certain conditions, the
minimum amount of time is extended, e.g. in the
case of lateral acceleration, during overrun
mode or when driving on steep terrain.
When temporary manual drive program is deac-
tivated, the automatic transmission shifts into
the automatic drive program that was last selec-
ted. You can also deactivate temporary manual drive
program yourself:
X Pull on the right-hand steering wheel paddle
shifter and hold it in place (Y page 121).
or
X Use the DYNAMIC SELECT controller to
change the drive program (Y page 116).
Temporary manual drive program is deactiva-
ted. The automatic transmission switches
into the automatic drive program that was last
selected. Manual mode
General notes In manual mode
M, you can permanently change
gear yourself by using the steering wheel paddle shifters. The transmission must be in position
005B to do this.
The switching times correspond to the previ-
ously active automatic drive program.
The transmission only shifts down automatically at low engine speeds depending on the respec-
tive gear.
In addition to manual mode M, you can also
activate temporary manual drive program
(Y page 122).
Activating In manual mode
M, you can change gear your-
self using the steering wheel paddle shifters if
the transmission is in position 005B. You can see
the currently selected drive program and which gear is engaged in the multifunction display.
X Press the M button (Y page 121).
M is shown in the multifunction display and
the indicator lamp on the M button lights up.
Shift recommendation The gearshift recommendations assist you in
adopting an economical driving style. The rec-AMG SPEEDSHIFT DCT 7-speed sports transmission
123Driving and parking Z
