The vehicle speed is 10 km/h (6 mph) or more. (Except rear sensor)
Without front sensor and front corner sensor
When the ignition is switched ON and the selector lever is shifted to the reverse (R), the
beep sound activates and the system is enabled for use.
The sensors detect obstructions under the following conditions:
Sensor Condition
Rear Sensor The selector lever is in reverse (R).
Rear Corner Sensor The selector lever is in rever
se (R), and the vehicle speed is about 10 km/h (6 mph)
or less.
▼ Obstruction Detection Indication
The position of a sensor which has detected an obstruction is i
ndicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.

With 360° view monitorWithout 360° view monitor
Left front
corner sensor Right front
corner sensor
Rear sensor Rear sensor
Left rear
corner sensor Left front
corner sensor
Left rear
corner sensor
Right rear
corner sensor Right front
corner sensor
Right rear
corner sensor
Front sensor
Front sensor
Some models
NOTE
The detection indicator can switch between display and non-display.
Refer to Personalization Features on page 9-10.
System problem notification
If a problem occurs, the driver is notified of the problem by t he following indications.
When Driving
Parking Sensor System
4-225
CX-9_8HB2-EA-18G_Edition1 2018-5-11 13:09:27

Detection IndicatorSolution
Without 360° view monitor
With 360° view moni‐tor
Without front sensor
and front corner sen‐ sor With front sensor and
front corner sensor
Discon‐ nection
The system may have a
malfunction. Have the ve‐
hicle inspected at an Au‐
thorized Mazda Dealer as
soon as possible.
System mal‐
function
The system may have a
malfunction. Have the ve‐
hicle inspected at an Au‐
thorized Mazda Dealer as
soon as possible.
Frost/
soiling
Foreign matter may be on
the sensor area corre‐
sponding to the obstruc‐
tion detection indication
shown. If the system does
not recover, have the vehi‐
cle inspected at an Author‐
ized Mazda Dealer.
▼ Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
When Driving
Parking Sensor System
4-226
CX-9_8HB2-EA-18G_Edition1
2018-5-11 13:09:27

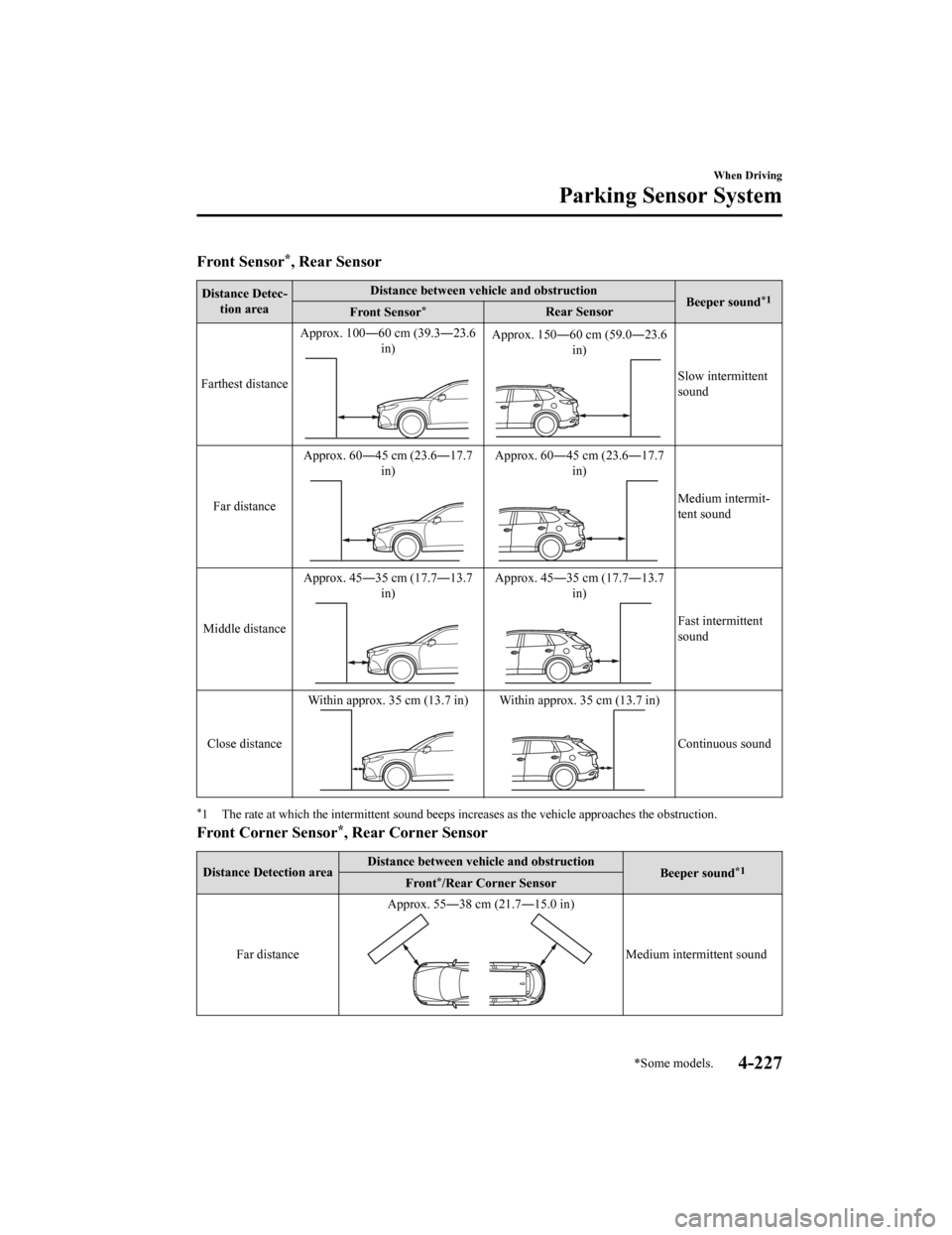

Front Sensor*, Rear Sensor
Distance Detec‐tion area Distance between vehicle and obstruction
Beeper sound*1Front Sensor*Rear Sensor
Farthest distance Approx. 100―60 cm (39.3―23.6
in)
Approx. 150―60 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60―45 cm (23.6―17.7
in)
Approx. 60―45 cm (23.6―17.7in)
Medium intermit‐
tent sound
Middle distance Approx. 45―35 cm (17.7―13.7
in)
Approx. 45―35 cm (17.7―13.7in)
Fast intermittent
sound
Close distance Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Continuous sound
*1 The rate at which the intermitte
nt sound beeps increases as the vehicle approaches the obstruction.
Front Corner Sensor*, Rear Corner Sensor
Distance Detection area Distance between vehicle and obstruction
Beeper sound*1Front*/Rear Corner Sensor
Far distance Approx. 55―38 cm (21.7―15.0 in)
Medium intermittent sound
When Driving
Parking Sensor System
*Some models.4-227
CX-9_8HB2-EA-18G_Edition1
2018-5-11 13:09:27

Distance Detection areaDistance between vehicle and obstruction
Beeper sound*1Front*/Rear Corner Sensor
Middle distance Approx. 38―25 cm (15.0―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the interm
ittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
▼When Warning Indicator/Beep is Activated
The system notifies the driver
of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The indicator light flashes when
the parking sensor switch is
pressed at a vehicle speed of 10
km/h (6 mph) or less. The system may have a malfunctio
n. Have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The beep sound is not heard. The system may have a malfunctio
n. Have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The intermittent sound of the
buzzer is heard 5 times. Remove any foreign material from the sensor area. If the system
does not re‐
cover, have the vehicle inspect ed at an Authorized Mazda Dealer .
A certain obstruction detection
indicator is continuously dis‐
played. Refer to Obstruction Detection Indication on page 4-225.
When Driving
Parking Sensor System
4-228*Some models.
CX-9_8HB2-EA-18G_Edition1
2018-5-11 13:09:27

5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Climate Control System.................... 5-4 Operating Tips.............................. 5-4
Vent Operation (Front)................. 5-5
Front Air Conditione r................... 5-7
Vent Operation (Rear).................5-11
Rear Air Conditioner. ................. 5-13
Before Using the Audio System...... 5-15 Audio Control Swit ch................. 5-15
AUX/USB...................................5-16
Antenna.......................................5-18
Audio Set.......................................... 5-19
Basic Operation Method............. 5-19
Home screen............................... 5-23
Volume/Display/Sound
Controls...................................... 5-24
Operating the Radio....................5-27
Operating the Satellite Radio
*...........
.................................................... 5-31
How to use AUX m ode.............. 5-35
How to use USB mode ............... 5-36
How to use Apple CarPlay™
*...........
.................................................... 5-42
How to use Android Auto™
mode
*..........................................5-45
Bluetooth
®.................................. 5-49
Bluetooth
® Preparation.............. 5-52
Available Language.. .................. 5-54
Bluetooth
® Audio....................... 5-55
How to Use Pandora
®................ 5-58
How to Use Aha™..................... 5-60
How to Use Stitche r™ Radio..... 5-63
Bluetooth
® Hands-Free.............. 5-65
Voice Recognition.................. .....5-74
Settings....................................... 5-77
Applications................................5-79
Troubleshooting.......................... 5-80
Appendix.......................................... 5-85 Things You Need to Know......... 5-85
*Some models.5-1
CX-9_8HB2-EA-18G_Edition1 2018-5-11 13:09:27

Interior Equipment......................... 5-92Sunvisors.................................... 5-92
Interior Lights............................. 5-93
Accessory Sockets...................... 5-97
USB Power Outlet
*.................... 5-98
Cup Holder................................. 5-99
Bottle Holder............................ 5-100
Storage Compartmen ts............. 5-101
Sunshade (Rear Door Window)
*.......
.................................................. 5-106
5-2*Some models.
CX-9_8HB2-EA-18G_Edition1 2018-5-11 13:09:27

MEMO
5-3
CX-9_8HB2-EA-18G_Edition12018-5-11 13:09:27

Operating Tips
Operate the climate control system with
the engine running.
To prevent the battery from being
discharged, do not leave the fan control
switch on for a long period of time with
the ignition switched ON when the
engine is not running.
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
Use the climate control system to defog
the windows and dehumidify the air.
The recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
Run the air cond itioner about 10
minutes at least once a month to keep
internal parts lubricated.
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If the
wrong type of refrigerant is used, it
could result in a ser ious malfunction of
the air conditioner. Consult a
professional, government certified
repairer for the inspection or repair
because a special device is required for
the air conditi oner maintenance.
For details, consult an Authorized
Mazda Dealer.
Label
Interior Features
Climate Control System
5-4
