Liftgate Operation" in this section,
and repeat the arming operation, to
be able to arm the alarm system.
The buttons - located on the outer
edge of the left trunk compartment
lining and indicated in the figure - can
be used to completely close and lock
the power liftgate and arm the alarm
system if all the doors are closed.
See chapter “ Power Liftgate
Operation” in this section for further
information.
Each time the vehicle security alarm is
armed, the anti-intrusion and anti-lift
sensors actively monitor the vehicle.
When arming the security alarm, it is
possible to disable these sensors by
pressing the
button on the key fob
three times within 5 seconds from the
moment the system has been armed
(meanwhile the security alarm light
flashes rapidly). To disarm the System Use any of the following steps to
disarm the vehicle security alarm.
• Press the button on key fob RKE
transmitter.
• Grasp the “Passive Entry” unlock
door handle (see “Passive Entry
System” in this section for further
information).
• Press the START/STOP button so as
to release the OFF position.
NOTE:
• When the vehicle security alarm is
armed, the interior power door lock
switch will not allow unlocking of
the doors.
• The use of the emergency key into
the driver door lock and the use of
the button
on the key fob
cannot arm or disarm the security
alarm of the vehicle.
• The vehicle security alarm remains
engaged while accessing the power
liftgate. Pressing the button
between the license plate lights will
not disarm the vehicle security
alarm. If anyone enters the vehicle
through the liftgate and opens a
door, the alarm will trigger. The vehicle security alarm is designed
to protect your vehicle; however, you
can create conditions where the
system will give you a false alarm. If
one of the previously described
arming sequences has occurred, the
vehicle security alarm will arm
regardless of whether you are in the
vehicle or not. If you remain in the
vehicle and open a door, the alarm
will activate. If this occurs, disarm the
vehicle security alarm.
If the vehicle security alarm is armed
and the battery becomes
disconnected, the vehicle security
alarm will remain armed when the
battery is reconnected; the exterior
lights will flash, the buzzer will
activate. If this occurs, disarm the
vehicle security alarm.Before Starting
2
29

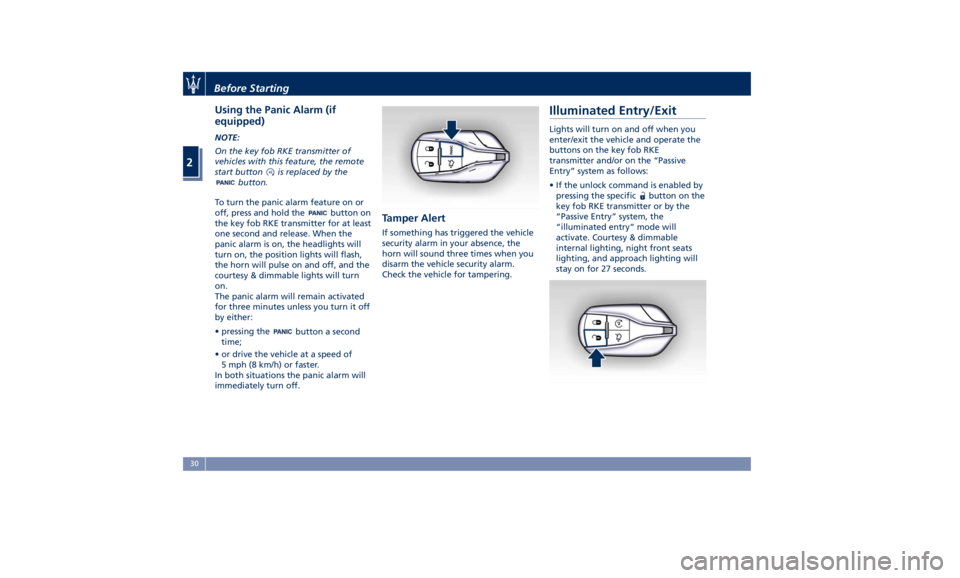

Using the Panic Alarm (if
equipped) NOTE:
On the key fob RKE transmitter of
vehicles with this feature, the remote
start button is replaced by the
button.
To turn the panic alarm feature on or
off, press and hold the
button on
the key fob RKE transmitter for at least
one second and release. When the
panic alarm is on, the headlights will
turn on, the position lights will flash,
the horn will pulse on and off, and the
courtesy & dimmable lights will turn
on.
The panic alarm will remain activated
for three minutes unless you turn it off
by either:
• pressing the
button a second
time;
• or drive the vehicle at a speed of
5 mph (8 km/h) or faster.
In both situations the panic alarm will
immediately turn off. Tamper Alert If something has triggered the vehicle
security alarm in your absence, the
horn will sound three times when you
disarm the vehicle security alarm.
Check the vehicle for tampering.Illuminated Entry/Exit Lights will turn on and off when you
enter/exit the vehicle and operate the
buttons on the key fob RKE
transmitter and/or on the “Passive
Entry” system as follows:
• If the unlock command is enabled by
pressing the specific
button on the
key fob RKE transmitter or by the
“Passive Entry” system, the
“illuminated entry” mode will
activate. Courtesy & dimmable
internal lighting, night front seats
lighting, and approach lighting will
stay on for 27 seconds.Before Starting
2
30

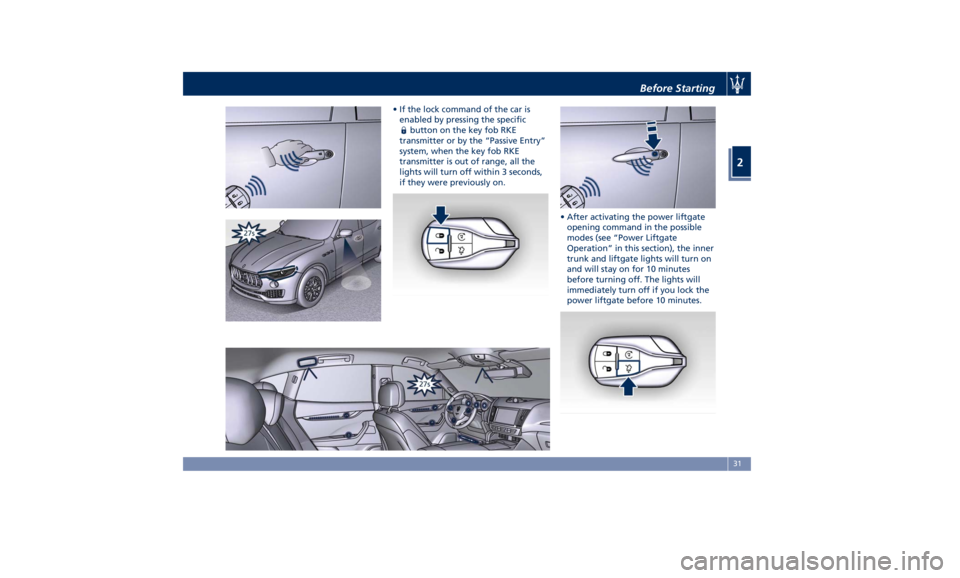

• If the lock command of the car is
enabled by pressing the specific
button on the key fob RKE
transmitter or by the “Passive Entry”
system, when the key fob RKE
transmitter is out of range, all the
lights will turn off within 3 seconds,
if they were previously on.
• After activating the power liftgate
opening command in the possible
modes (see “Power Liftgate
Operation” in this section), the inner
trunk and liftgate lights will turn on
and will stay on for 10 minutes
before turning off. The lights will
immediately turn off if you lock the
power liftgate before 10 minutes.Before Starting
2
31

• On the vehicles equipped with this
feature, if the
button is pressed
on the key fob RKE transmitter, the
headlights, position lights and the
courtesy & dimmable lights will turn
on. Refer to “Using the Panic Alarm”
in this section for further
information. Vehicle Lighting with
Open/Closed Doors • If one or more doors are open, the
central light, front/rear domelights
(main and spot light), the instrument
cluster, the MTC+ display, the night
front seats lighting and the ignition
switch backlight will turn on and will
light up for 27 seconds.
• If the doors are closed, all lights will
turn off (within 3 seconds) with the exception of the console display and
the ignition switch backlight, which
will turn off after 27 seconds.
Use of Light Switch for Vehicle
Lighting Vehicle lighting can be operated from
the key fob RKE transmitter, the
“Passive Entry” system and from the
light switch on the left side of the
dashboard (refer to “Lights” in section
“Understanding the Vehicle” for
further information).Before Starting
2
32

• If the light switch is in the “0” (OFF)
mode all switch backlights and the
front seats lighting will turn off.
• If the light switch is in the
position and the ignition switch
is in OFF or ACC position, the front
low intensity LEDs of the external
headlight and rear position light
guide LED will turn on.
• If the light switch is in
position
and the ignition switch is in RUN
position, no lighting feature will be
available.
• If the light switch is in
position
(Low beam mode) the front
domelight LED (if enabled), the
switches backlighting, the
instrument cluster’s display, the night
front seats lighting will turn on. The
front domelight LED and the night
lighting of the front seats will light
up with the intensity set by the buttons on the right side of the
steering wheel, entering the menu
“Vehicle Settings” and skip to
“Interior Lighting”. If the interior
lighting is in "0" (OFF) position, the
night lighting will turn off.
• If the light switch is turned to
“AUTO” position (on/off AUTO
mode) and the ignition is switched
to RUN position, as in “low beam
mode” all lights turn on either in
“DAY” or “NIGHT” mode according
to the twilight sensor. In “DAY”
mode the switches backlighting will
be at 100% intensity, in “NIGHT”
mode they will be as set by the
buttons on the right side of the
steering wheel.
NOTE:
In “DAY” mode, the switches are not
backlit, except the windows and
steering switches.Unlock the Vehicle with
Key fob The RKE system allows you to unlock
the doors and the fuel filler door,
open the power liftgate and turn the
approach and courtesy lights on from
a distance up to approximately 33 ft
(10 m). The key fob RKE transmitter
does not need to be pointed at the
vehicle to activate the system. See
“Illuminated Entry/Exit” in this section
for further information.
NOTE:
Driving at speeds of 5 mph (8 km/h)
and above disables the system from
responding to all key fobs RKE
transmitter buttons.Before Starting
2
33

Unlock the Doors, Fuel Filler
Door and Liftgate Press and release the unlock button
on the key fob RKE transmitter once
to unlock the driver's door or twice
within five seconds to unlock all doors,
the fuel filler door and the power
liftgate. The turn signal lights will flash
for the unlock signal recognition. The
illuminated entry/exit system will also
turn on. See “Passive Entry System” in
this section for further information.
Unlock Driver Door/All Doors with Key
fob 1 st
Press
This feature allows you to program the
system to unlock either the driver's
door or all doors, the fuel filler door
and the power liftgate, by the first
press of the unlock button
on the
key fob RKE transmitter. To change the
current setting, see “MTC+ Settings” in
section “Dashboard Instruments and
Controls”.
Lock/Unlock Doors Flash Lights
This feature will cause the flash of the
turn signal lights when the doors are
locked or unlocked with the key fob
RKE transmitter. This feature can be
turned on or turned off. To change the
current setting, see “MTC+ Settings” in section “Dashboard Instruments and
Controls”.
Turn Headlights On with Key fob
This feature activates the headlights
for up to 90 seconds when the doors
are unlocked with the key fob RKE
transmitter. The duration can be set as
desired. To change the current setting,
see “MTC+ Settings” in section
“Dashboard Instruments and
Controls”.
Locking Doors Sound Alarm This feature will cause the alarm to
activate when the doors are locked
with the key fob RKE transmitter. This
feature can be enabled or disabled. To
change the current setting, see “MTC+
Settings” in section “Dashboard
Instruments and Controls”.
Unlatch the Liftgate Press the button on the key fob
RKE transmitter two times within five
seconds to unlatch and fully open the
power liftgate.
See chapters “Passive Entry System”
and “Power Liftgate Operation” in this
section for further information.Requiring and Setting
Additional Key fobs Provide your Authorized Maserati
Dealer the following when ordering
additional key fob RKE transmitters:
• all key fobs RKE transmitters in your
possession;
• a personal ID;
• the identification and registration
documents proving ownership of the
vehicle.
Setting new key fobs or re-setting the
original ones can only be performed at
an Authorized Maserati Dealer .
NOTE:
Codes of any key fob RKE transmitters
that are not present when the new
setting procedure is done will be
deleted from the memory to prevent
lost or stolen key fobs transmitters
being used to disarm the electronic
alarm system.Before Starting
2
34

Key fob Battery Replacement NOTE:
A low charge level of the key fob
battery will be indicated on the
instrument cluster display.
The recommended replacement
battery type is: CR2032.
To replace the battery proceed as
follows:
• Remove the emergency key as
indicated in “Keys” chapter of the
current section.
• Loosen the lateral screw that
connects the two side covers with a
torx T6 screwdriver.
• Separate the two lateral covers from
the key fob case. WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicle
can expose you to chemicals including
such as, engine exhaust, carbon
monoxide, phthalates and lead, that
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid breathing
exhaust, do not idle the engine except
as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle
• Separate both parts of the key fob
case.
•
Remove the card
with PCB (Printed
Circuit Board).Before Starting
2
35

• Remove the battery from its seat and
replace with a new recommended
type of battery.
ENVIRONMENTAL!
Batteries contain dangerous materials
that could harm the environment.
Please dispose of them according to
local regulations or at an Authorized
Maserati Dealer. WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicle
can expose you to chemicals including
such as, engine exhaust, carbon
monoxide, phthalates and lead, that
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing
exhaust, do not idle the engine except
as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle
NOTE:
A
void touching the new battery with
your fingers. Skin oils may cause
battery deterioration. If you touch a
battery, clean with alcohol.
• Match the + sign on the battery to
the + sign on the inside of the
battery clip, located on the back
cover. • Replace the printed circuit board by
using the indicated pin for the
sealing of the two covers.
• Assemble the key fob case and
reassemble the two lateral covers: a
click will indicate successful sealing.
• Combine the disassembled parts with
clamping screw and reassemble the
emergency key.
Radio Frequency RKE
Transmitter - Regulatory
Information The “Regulatory Information” for all
the radio frequency and radar devices
can be consulted by accessing the
"Services" section on the website
www.maserati.com.Before Starting
2
36
