2019 LEXUS RX450H Owners Manual

7459-2. Customization
9
Vehicle specifications
RX450h_RX450hL_U
■Intuitive parking assist (P. 332)
*: When intuitive parking assist is operating.
■BSM (Blind Spot Monitor) ( P. 319)
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Outside rear view mirror indica-
tor brightnessBrightDimOO
Alert timing for presence of
approaching vehicle (BSM func-
tion only)
Intermediate
Early
OOLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—Level 3
12

7469-2. Customization
RX450h_RX450hL_U
■Driving mode select switch ( P. 379)
*: If equipped
■Front automatic air conditioning system ( P. 507)
■Seat heaters/seat ventilators ( P. 526, 527)
FunctionDefault settingCustomized setting
Powertrain control in customized
mode
*NormalPowerO—Eco
Chassis control in customized
mode*NormalSportO—
Air conditioning operation in
customized mode
*NormalEcoO—
12
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffOO
Exhaust gas sensor sensitivityStandard-3 to 3OO
12
FunctionDefault settingCustomized setting
Driver’s seat temperature prefer-
ence in automatic modeStandard-2 (cooler) to 2
(warmer)OO
Front passenger’s seat tempera-
ture preference in automatic
modeStandard-2 (cooler) to 2 (warmer)OO
12

7479-2. Customization
9
Vehicle specifications
RX450h_RX450hL_U

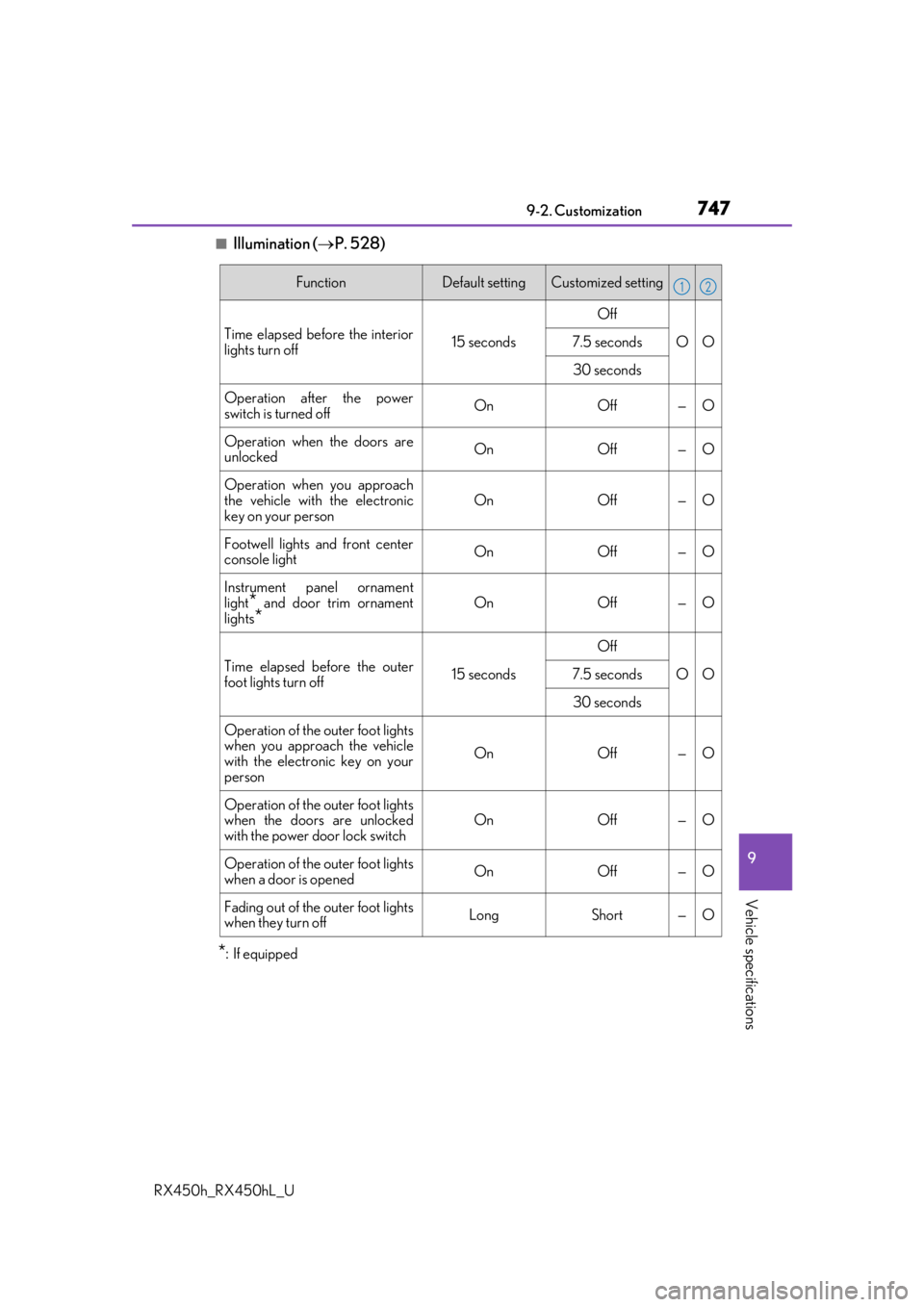

■Illumination (P. 528)
*:If equipped
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff—O
Operation when the doors are
unlockedOnOff—O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff—O
Footwell lights and front center
console lightOnOff—O
Instrument panel ornament
light
* and door trim ornament
lights*OnOff—O
Time elapsed before the outer
foot lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person
OnOff—O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switch
OnOff—O
Operation of the outer foot lights
when a door is openedOnOff—O
Fading out of the outer foot lights
when they turn offLongShort—O
12

7489-2. Customization
RX450h_RX450hL_U
■Seat belt reminder ( P. 662)
■Vehicle customization
●When the smart access system with push-button start is off, the entry unlock function
cannot be customized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch , the changed setting will not be reflected on the audio system
screen until the power switch is turned off and then to ON mode.
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff—O
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventil ation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.
12

749
RX450h_RX450hL_U
9
Vehicle specifications
9-3. Initialization

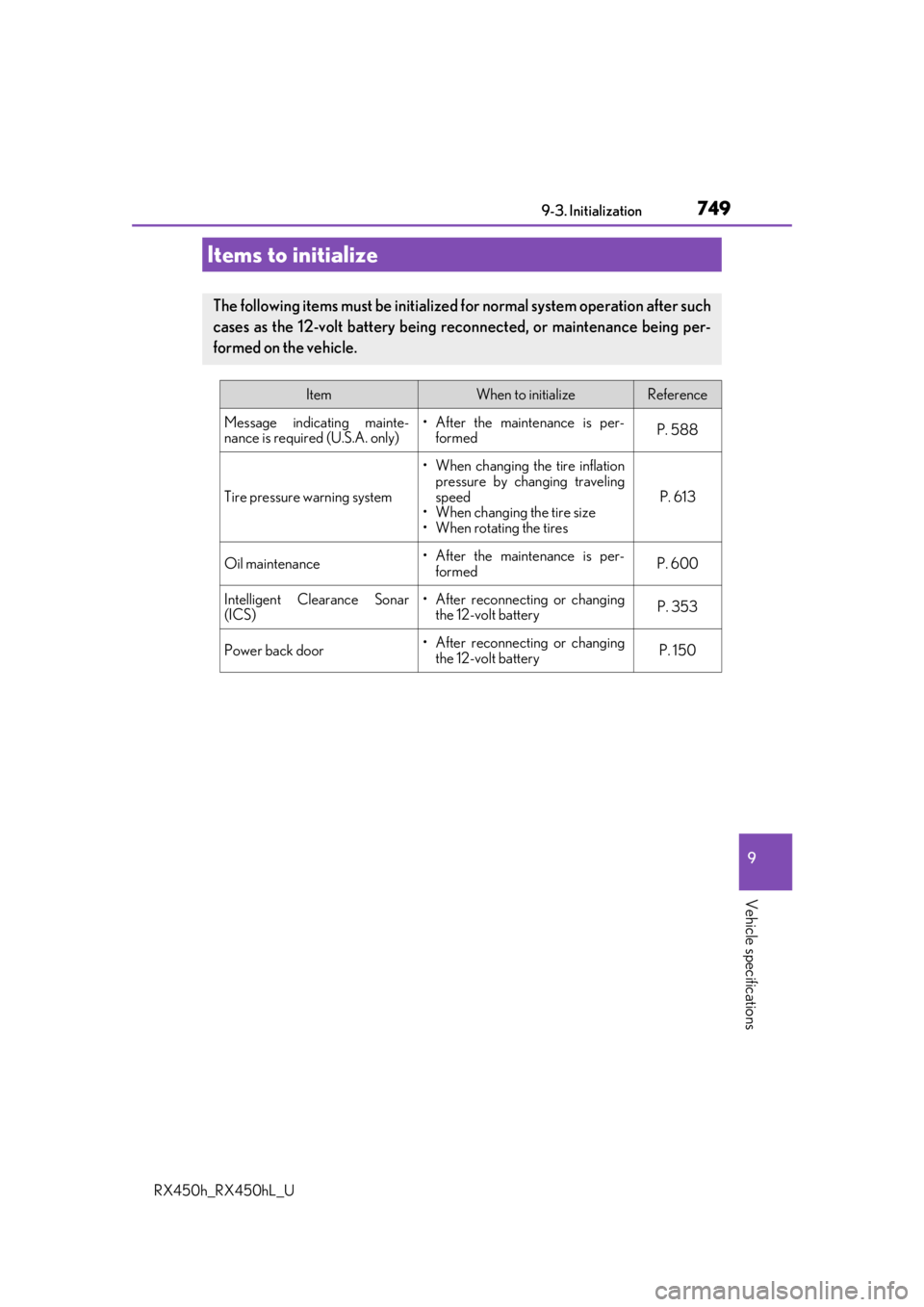

Items to initialize
The following items must be initialized for normal system operation after such
cases as the 12-volt battery being reconnected, or maintenance being per-
formed on the vehicle.
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)• After the maintenance is per- formedP. 588
Tire pressure warning system
• When changing the tire inflationpressure by changing traveling
speed
• When changing the tire size
• When rotating the tires
P. 613
Oil maintenance• After the maintenance is per- formedP. 600
Intelligent Clearance Sonar
(ICS)• After reconnecting or changingthe 12-volt batteryP. 353
Power back door• After reconnecting or changingthe 12-volt batteryP. 150

7509-3. Initialization
RX450h_RX450hL_U

751
10For owners
RX450h_RX450hL_U
Reporting safety defects for U.S. owners ........................................... 752
Seat belt instructions for Canadian owners (in French) ........ 753
SRS airbag instructions for Canadian owners (in French) ........ 754
Headlight aim instructions for Canadian owners (in French) ........ 762

752
RX450h_RX450hL_U

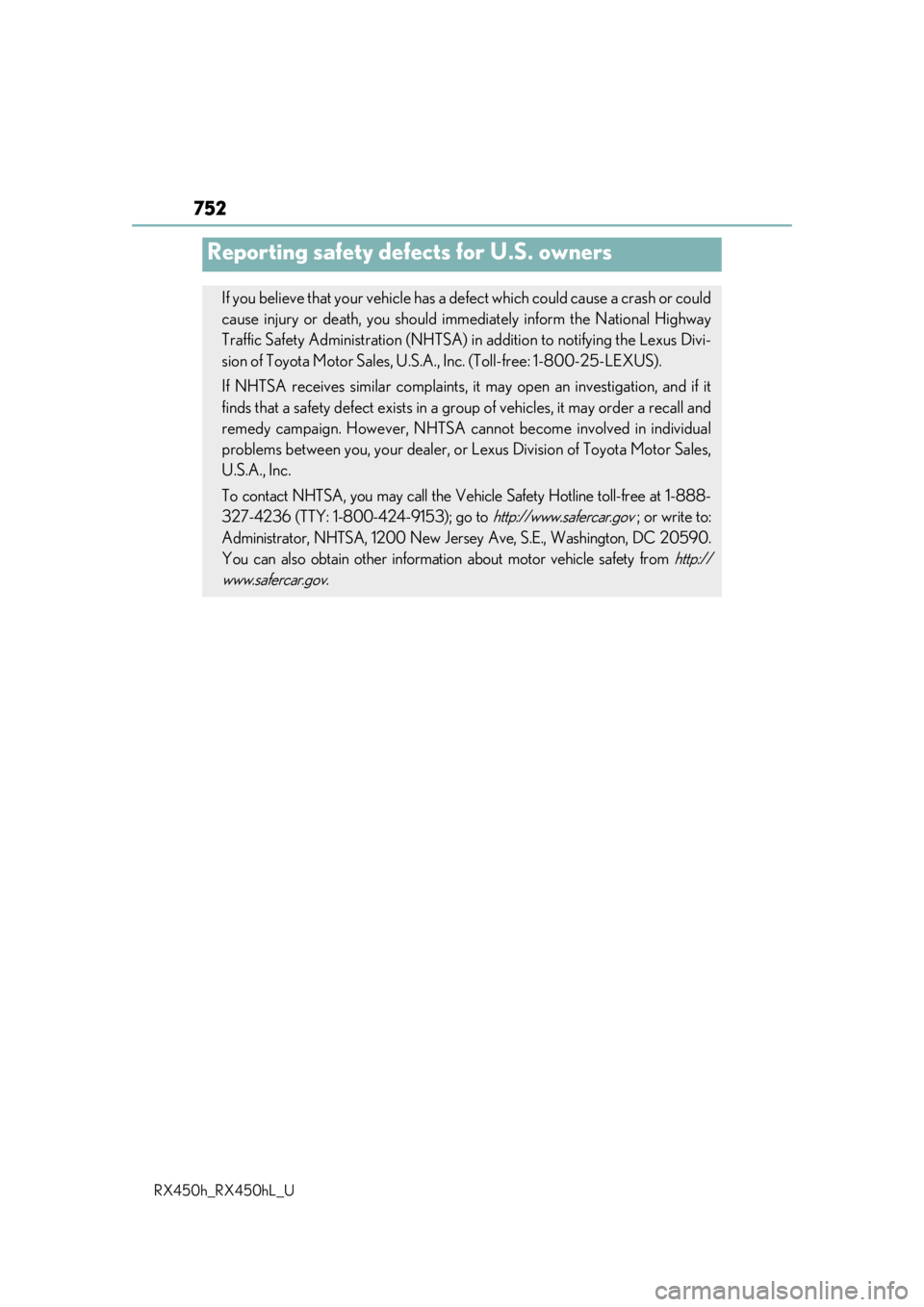

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Divi-
sion of Toyota Motor Sa les, U.S.A., Inc. (Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cann ot become involved in individual
problems between you, your dealer, or Lexus Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the Vehi cle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC 20590.
You can also obtain other informatio n about motor vehicle safety from
http://
www.safercar.gov.
