2019 LEXUS RX450H Owners Manual

411-1. For safe use
1
For safety and security
RX450h_RX450hL_U
WARNING
■SRS airbag precautions
●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur-
tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags and
SRS seat cushion airbag inflate as they may interfere with inflation of the SRS airbags.
Such accessories may prevent the side airbags and SRS seat cushion airbag from
activating correctly, disable the system or cause the side airbags and SRS seat cush-
ion airbag to inflate accidentally, re sulting in death or serious injury.
●Do not strike or apply significant levels of force to the areas around the SRS airbag
components or the front doors.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component part s immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SR S airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicl e if it is safe to do so. Wash off any resi-
due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes, are damaged or cracked, have them replaced by your
Lexus dealer.
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the SRS front airb ags for the front passenger
may not deploy in the event of a collision.
●Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower po rtion of the instru-
ment panel.
These items can become projectiles when the
SRS driver, front passeng er and knee airbags
deploy.
●Do not attach anything to areas such as a
door, windshield, side windows, front or rear
pillar, roof side rail and assist grip.

421-1. For safe use
RX450h_RX450hL_U
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
front seats, parts of the front and rear pillars, and roof side rails, may be hot for several
minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Lexus Enform Safety Connect subscribers, if any of the following situations occur,
the system is designed to send an emerge ncy call to the response center, notifying
them of the vehicle’s location (without needing to push the “SOS” button) and an agent
will attempt to speak with the occupants to ascertain the level of emergency and assis-
tance required. If the occupants are unable to communicate, the agent automatically
treats the call as an emergency and helps to dispatch the necessary emergency ser-
vices. ( P. 571)
• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.
WARNING
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer. The SRS airb ags may malfunction or deploy (inflate)
accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars, roof side rails,
front door panels, front door trims, or front door speakers
●Modifications to the front door panel (such as making a hole in it)
●Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, ka ngaroo bar, etc.), snow plows, winches or
roof luggage carrier
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios and CD players
●Modifications to your vehicle for a person with a physical disability

431-1. For safe use
1
For safety and security
RX450h_RX450hL_U
■SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set threshold
level (the level of force corresponding to an approximat ely 12-18 mph [20-30 km/h]
frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be cons iderably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move
or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possi ble that only the seat belt pretensioners will
activate.
●The SRS front airbags for the fr ont passenger will not activate if there is no passenger
sitting in the front passenger seat. However, the SRS front airbags for the front passen-
ger may deploy if luggage is put in the seat, even if the seat is unoccupied. ( P. 47)
●The SRS seat cushion airbag on the front pa ssenger seat will not operate if the occu-
pant is not wear ing a seat belt.
■SRS airbag deployment conditions (S RS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 3300 lb. [15 00 kg] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 12 -18 mph [20 -30 km/h]).
●Both SRS curtain shield airbags will de ploy in the event of vehicle rollover.
●All SRS side and curtain shield airbags will de ploy in the event of a severe frontal colli-
sion.
■Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags and SRS si de and curtain shield airbags may also deploy if a seri-
ous impact occurs to the underside of your vehicle. Some examples are shown in the
illustration.
●Hitting a curb, edge of pavement or hard sur-
face
●Falling into or jumping over a deep hole
●Landing hard or falling

441-1. For safe use
RX450h_RX450hL_UThe SRS curtain shield airbags
may also deploy under the situations shown in the illustra-
tion.
■Types of collisions that may not deploy the SRS airbags (SRS front airbags)
The SRS front airbags do not gene rally inflate if the vehicle is involved in a side or rear
collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a
collision of any type causes sufficient forward deceleration of the vehicle, deployment of
the SRS front airbags may occur.
■Types of collisions that may not deploy the SRS airbags
(SRS side and curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a
collision from the side at certain angles, or a collision to the side of the vehicle body other
than the passenger compartment.
●The angle of vehicle tip-up is marginal.
●The vehicle skids and hits a curb stone.
●Collision from the side
●Collision from the rear
●Vehicle rollover
●Collision from the side to the vehicle body
other than the passenger compartment
●Collision from the side at an angle

451-1. For safe use
1
For safety and security
RX450h_RX450hL_UThe SRS side airbags do not generally inflate if
the vehicle is involved in a rear collision, if
it rolls over, or if it is involved in a low-speed side or low-speed frontal collision.
The SRS curtain shield airbags do not generally inflat e if the vehicle is involved in a rear
collision, if it pitches end over en d, or if it is involved in a low-speed side or lowspeed fron-
tal collision.
■When to contact your Lexus dealer
In the following cases, the ve hicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
●Any of the SRS airbags have been inflated.
●Collision from the rear
●Vehicle rollover
●Collision from the rear
●Pitching end over end
●The front of the vehicle is damaged or
deformed, or was involved in an accident that
was not severe enough to cause the SRS front
airbags to inflate.

461-1. For safe use
RX450h_RX450hL_U
●A portion of a door or its surrounding area is
damaged, deformed or has had a hole made in
it, or the vehicle was involved in an accident
that was not severe enough to cause the SRS
side and curtain shield airbags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
●The front passenger’s se at cushion surface is
scratched, cracked, or otherwise damaged.
●The surface of the seats with the SRS side air-
bag is scratched, crac ked, or otherwise dam-
aged.
●The portion of the front pillars, rear pillars or
roof side rail garnishes (padding) containing
the SRS curtain shield airbags inside is
scratched, cracked, or otherwise damaged.

471-1. For safe use
1
For safety and security
RX450h_RX450hL_U
SRS warning light
Seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

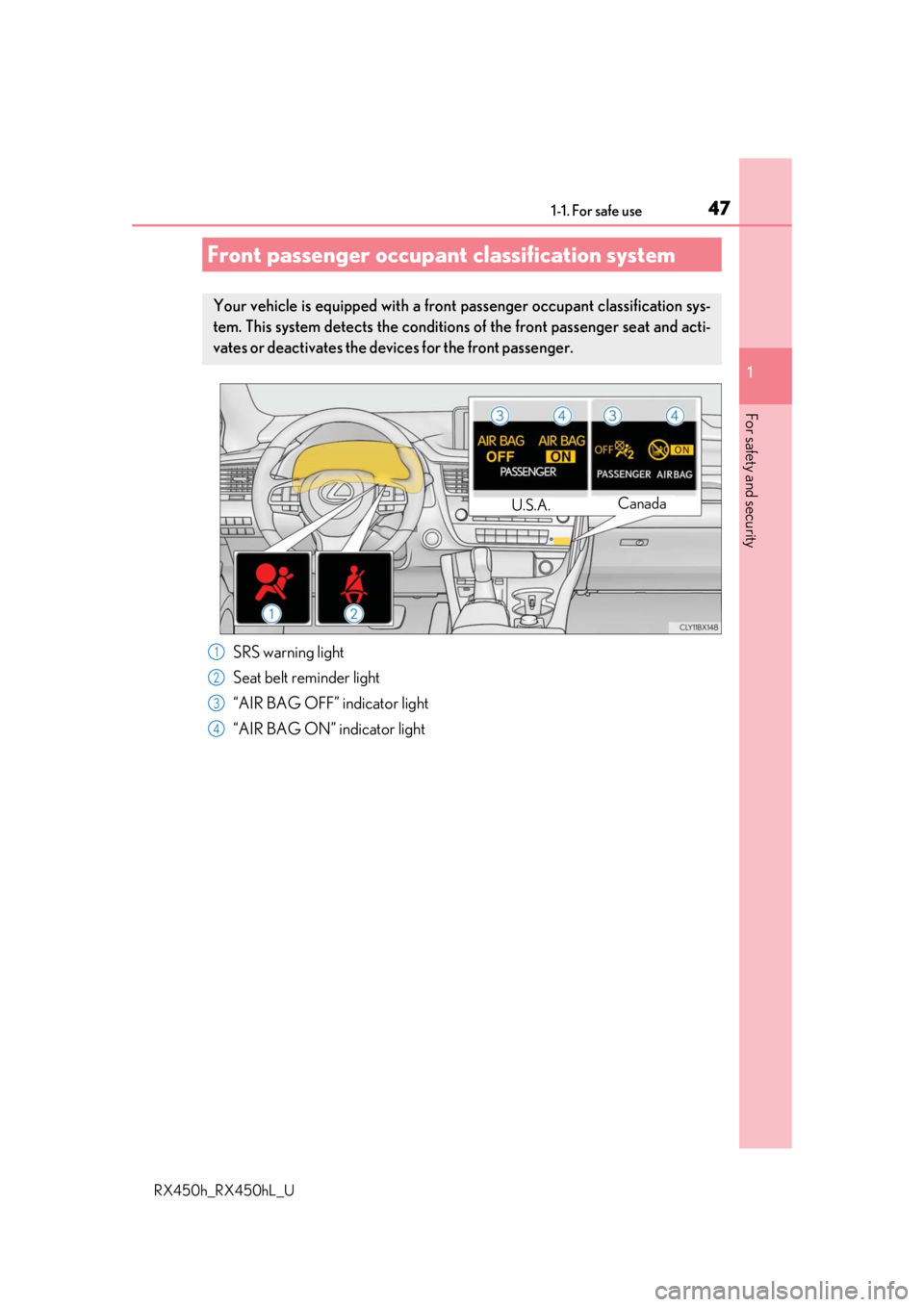

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
U.S.A.Canada
1
2
3
4

481-1. For safe use
RX450h_RX450hL_U
■Adult*1
■Child*4

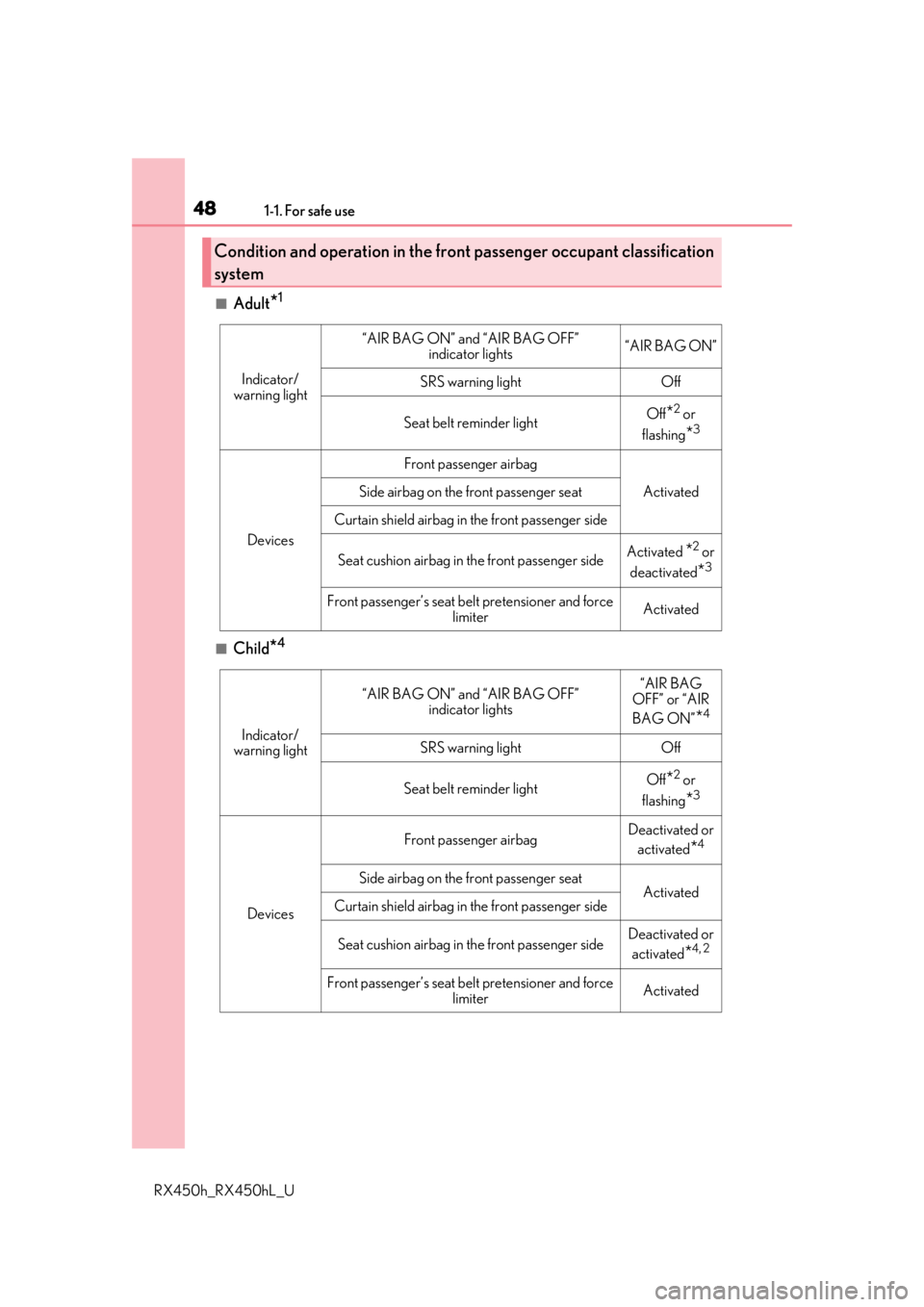

Condition and operation in the front passenger occupant classification
system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG ON”
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing
*3
Devices
Front passenger airbag
ActivatedSide airbag on the front passenger seat
Curtain shield airbag in the front passenger side
Seat cushion airbag in the front passenger sideActivated *2 or
deactivated
*3
Front passenger’s seat belt pretensioner and force
limiterActivated
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF” indicator lights“AIR BAG
OFF” or “AIR
BAG ON”
*4
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing
*3
Devices
Front passenger airbagDeactivated or activated
*4
Side airbag on the front passenger seatActivatedCurtain shield airbag in the front passenger side
Seat cushion airbag in the front passenger sideDeactivated or
activated
*4, 2
Front passenger’s seat belt pretensioner and force
limiterActivated
