2019 LEXUS RX450H Owners Manual

7058-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
Start the hybrid system and check if “Hybrid System Overheated Reduced
Output Power” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
WARNING
■To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the “READY” indicator is off.
When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fans may suddenly operate even if the gasoline engine stops. Do not
touch or approach rotating parts such as th e fans, which may lead to fingers or cloth-
ing (especially a tie, a scarf or a muffler) getting caught, resulting in serious injury.
●Do not loosen the radiator cap and the coolant reservoir caps wh ile the hybrid system
and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).
●Do not use any coolant additive.
6

7068-2. Steps to take in an emergency
RX450h_RX450hL_U
Stop the hybrid system. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other materi al under the front wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

7078-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in deat h or serious injury.
NOTICE
■To avoid damage to the hybrid transmission and other components
●Avoid spinning the front wheels and depre ssing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

7088-2. Steps to take in an emergency
RX450h_RX450hL_U

709
9Vehicle specifications
RX450h_RX450hL_U
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) ................... 710
Fuel information.......................... 720
Tire information .......................... 723
9-2. Customization Customizable features ............ 736
9-3. Initialization Items to initialize ......................... 749

710
RX450h_RX450hL_U9-1. Specifications
*1:Unladen vehicle
*2: Vehicles with towing package
*3:RX450h
*4:RX450hL

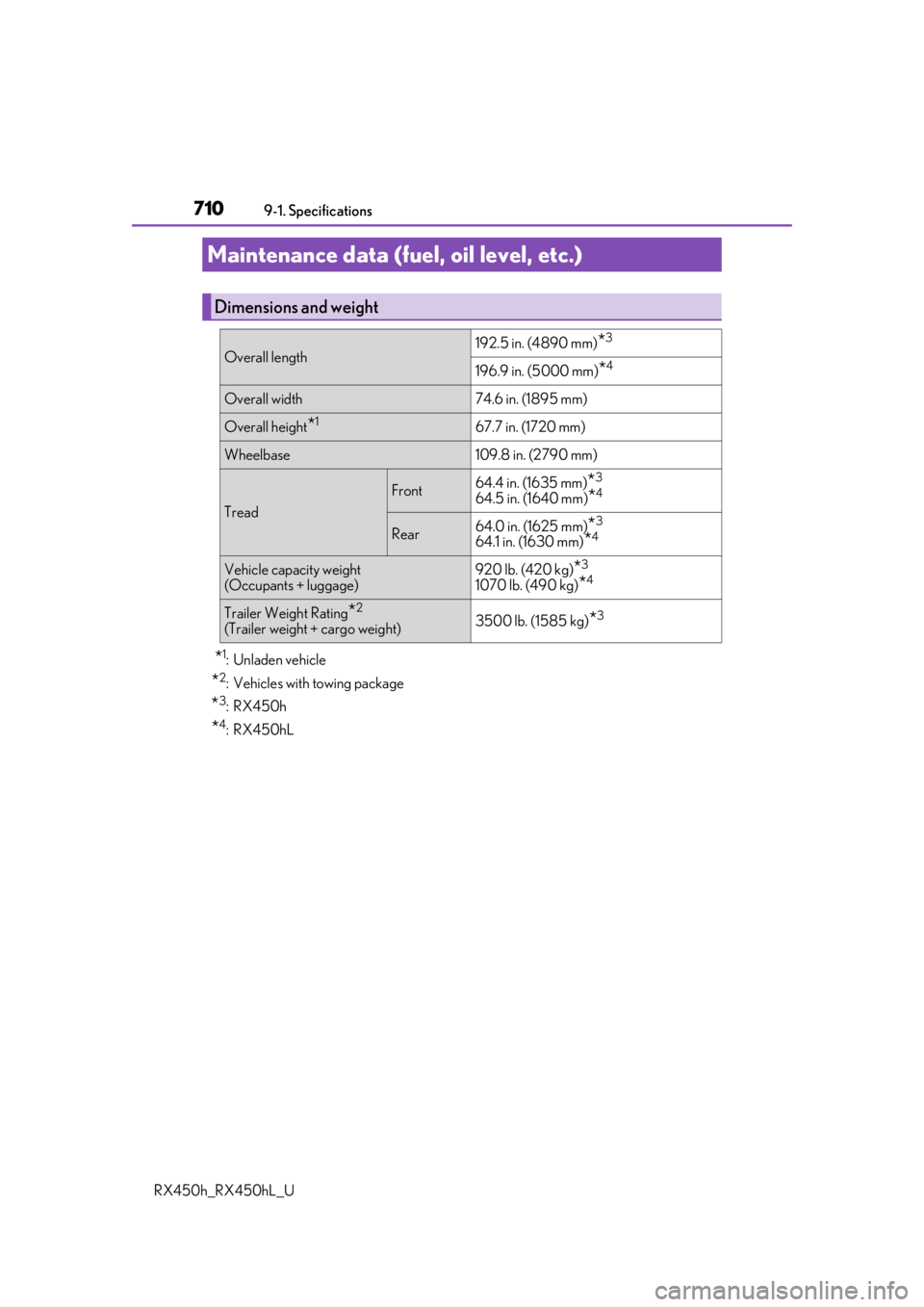

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length192.5 in. (4890 mm)*3
196.9 in. (5000 mm)*4
Overall width74.6 in. (1895 mm)
Overall height*167.7 in. (1720 mm)
Wheelbase109.8 in. (2790 mm)
Tread
Front64.4 in. (1635 mm)*3
64.5 in. (1640 mm)*4
Rear64.0 in. (1625 mm)*3
64.1 in. (1630 mm)*4
Vehicle capacity weight
(Occupants + luggage)920 lb. (420 kg)*3
1070 lb. (490 kg)*4
Trailer Weight Rating*2
(Trailer weight
+ ca

rgo weight)3500 lb. (1585 kg)*3

7119-1. Specifications
9
Vehicle specifications
RX450h_RX450hL_U
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
On some models, this number is also
stamped under the right-hand front
seat.
Vehicle identification

7129-1. Specifications
RX450h_RX450hL_U

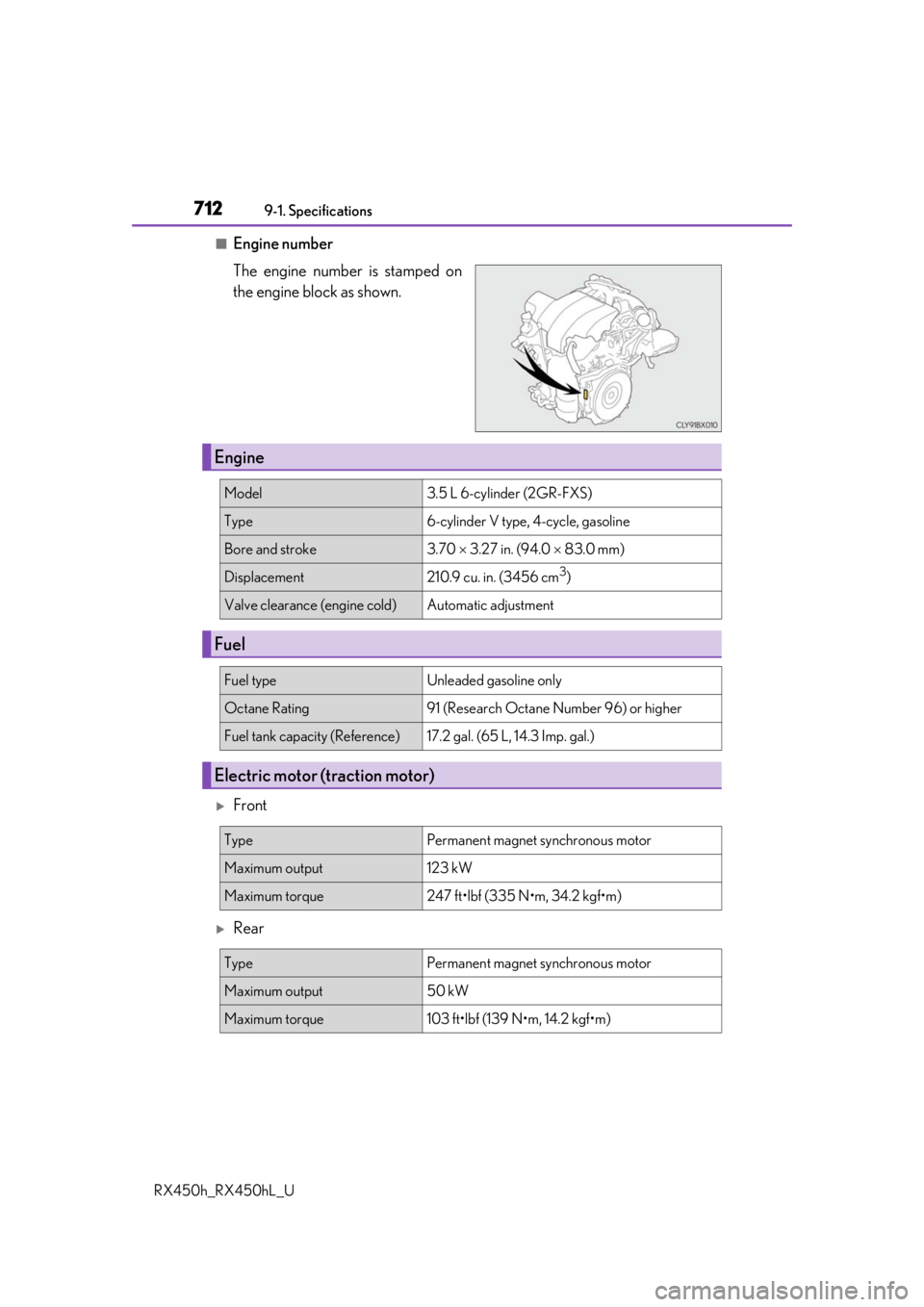

■Engine number
The engine number is stamped on
the engine block as shown.
Front
Rear
Engine
Model3.5 L 6-cylinder (2GR-FXS)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Valve clearance (engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)17.2 gal. (65 L, 14.3 Imp. gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output123 kW
Maximum torque247 ft•lbf (335 N•m, 34.2 kgf•m)
TypePermanent magnet synchronous motor
Maximum output50 kW
Maximum torque103 ft•lbf (139 N•m, 14.2 kgf•m)
