2019 LEXUS RX450H Owners Manual

6578-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
■While towing
If the engine is not running, the power assist for the brakes and steering will not function,
marking steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installe d in luggage compartment. ( P. 674)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessive
stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains
may become damaged, broken debris ma y hit people, and cause serious damage.
●Do not turn the power switch off.
There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyel ets are installed securely.
If not securely installed, towing ey elets may come loose during towing.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the
drivetrain or related parts may be damaged,
the vehicle may fly off the truck, or electricity
generated by the operation of the motor may
cause a fire to occur depending on the nature
of the damage or malfunction.

6588-2. Steps to take in an emergency
RX450h_RX450hL_U
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the power switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground cleara nce for towing at the oppo-
site end of the raised vehicle. Without ad equate clearance, the vehicle could be dam-
aged while being towed.
■To prevent damage to the vehicle wh en towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the ve hicle during emergency towing
Do not secure cables or chains to the suspension components.
■Recreational towing (behind motor home, etc)
Never dinghy tow your vehicle to prevent caus-
ing serious damage to the Hybrid AWD system
and transmission. ( P. 238)

6598-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

6608-2. Steps to take in an emergency
RX450h_RX450hL_U
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspecte d by your Lexus dealer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
Brake system warning light
Indicates a malfunction in:
• The regenerative braking system;
• The electronically controlled brake system; or
• The electric parking brake
 Have the vehicle inspected by your Lexus dealer immediately.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
 Have the vehicle inspected by your Lexus dealer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

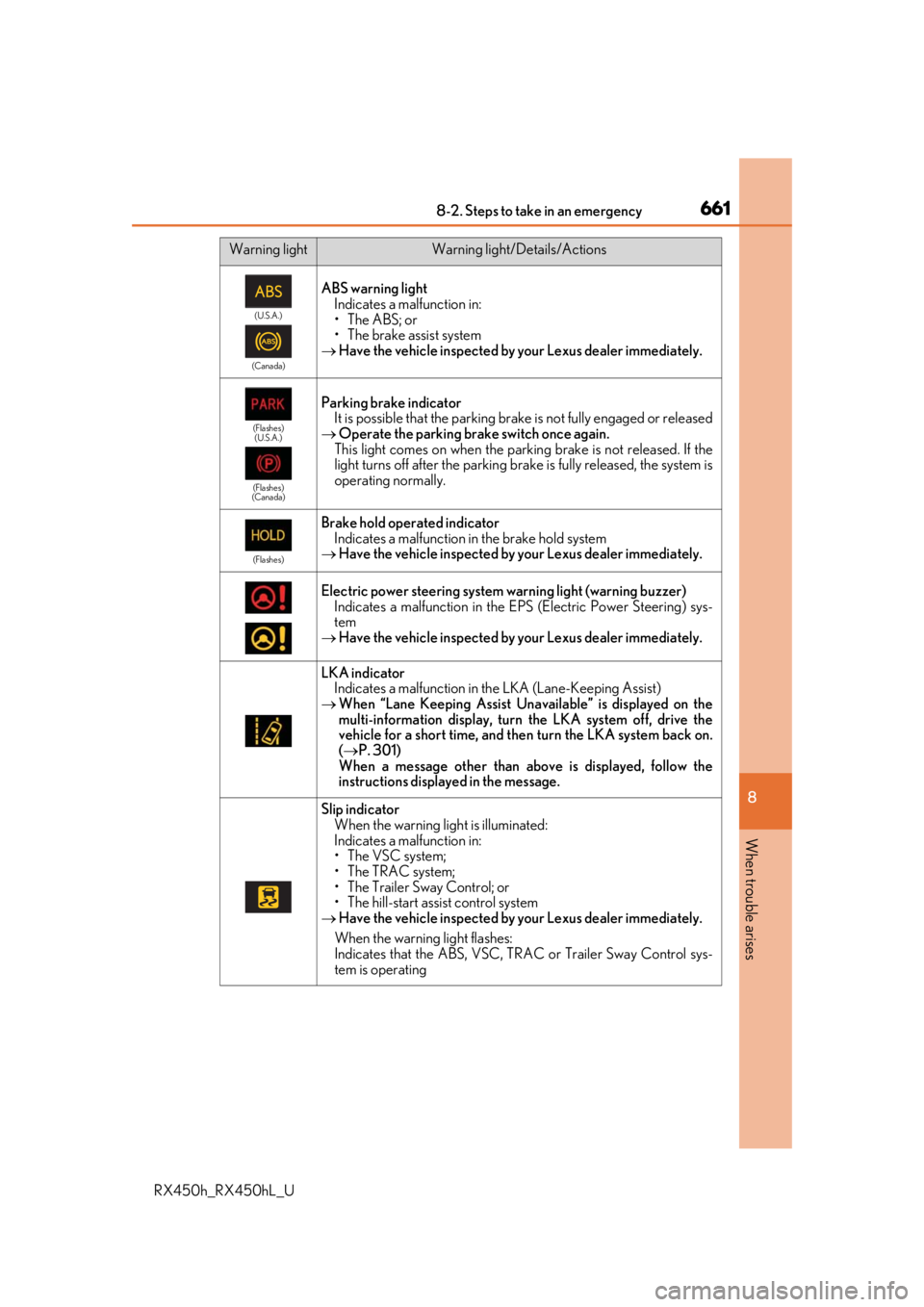

6618-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
Parking brake indicator
It is possible that the parking br ake is not fully engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released. If the
light turns off after the parking brak e is fully released, the system is
operating normally.
(Flashes)
Brake hold operated indicator Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by your Lexus dealer immediately.
LKA indicator
Indicates a malfunction in the LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the
multi-information display, turn the LKA system off, drive the
vehicle for a short time, and then turn the LKA system back on.
(  P. 301)
When a message other than above is displayed, follow the
instructions displayed in the message.
Slip indicator When the warning lig ht is illuminated:
Indicates a malfunction in:
• The VSC system;
• The TRAC system;
• The Trailer Sway Control; or
• The hill-start assist control system
 Have the vehicle inspected by your Lexus dealer immediately.
When the warning light flashes:
Indicates that the ABS, VSC, TR AC or Trailer Sway Control sys-
tem is operating
Warning lightWarning light/Details/Actions

6628-2. Steps to take in an emergency
RX450h_RX450hL_U
(Flashes or illuminates)
PCS warning lightIndicates a malfunction in the PCS (Pre-Collision System) or that
the system is temporarily unavailable due to the vehicle being
extremely hot/cold, or dirt around a front sensor, etc.
( P. 296, 671)
 Follow the instructions displayed on the multi-information dis-
play. ( P. 296, 671)
If the PCS (Pre-Collision System ) or VSC (Vehicle Stability Con-
trol) system is disabled, the PC S warning light will illuminate.
 P. 296
(Flashes)
ICS OFF indicator
When a buzzer sounds:
Indicates a malfunction in the Intelligent Clearance Sonar system
 Have the vehicle inspected by your Lexus dealer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due to
a sensor being dirty or covered with ice, etc.
 Clear the dirt, etc.
Low fuel level warning light
Indicates that remaining fuel is approximately 2.9 gal. (11.0 L,
2.4 Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*1
Warns the driver and/or front passenger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
(RX450h)
(RX450hL)Rear passengers’ seat belt reminder light (warning buzzer)*2
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Tire pressure warning light
Indicates the following:
• Low tire pressure due to flat tire;
• Low tire pressure due to natural causes; or
• The tire pressure warnin g system is malfunctioning
 Immediately stop the vehicle in a safe place.
Handling method ( P. 664)
Warning lightWarning light/Details/Actions

6638-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
*1: Driver’s and front passenger’s seat belt warning buzzer:The driver’s seat belt warning buzzer sounds to alert the driver that his or her seat belt
is not fastened. Once the power switch is turned to ON mode, the buzzer sounds for
6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds
once. If the seat belt is still unfastened af ter 24 seconds, the buzzer will sound inter-
mittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 20 more seconds.
The front passenger’s seat belt warning buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. Th e buzzer sounds once if the vehicle reaches
a speed of 12 mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the
buzzer will sound intermittently for 10 seconds. Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone for 20 more seconds.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning bu zzer sounds to alert the rear passengers
that his or her seat belt is not fastened. The buzzer so unds for 6 seconds after the
vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone for 24 more seconds.
Master warning light A buzzer sounds and the warning light comes on and flashes to
indicate that the master warnin g system has detected a malfunc-
tion.
 P. 667
Warning lightWarning light/Details/Actions

6648-2. Steps to take in an emergency
RX450h_RX450hL_U
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (front door), side impact se nsors (rear), driver’s seat position sensor,
driver’s seat belt buckle sw itch, front passenger occupant classification system (ECU and
sensors), “AIR BAG ON” indicator light, “A IR BAG OFF” indicator light, front passen-
ger’s seat belt buckle switch, driver’s seat belt pretension er, front passenger’s seat belt
pretensioner and force limiter, airbags, in terconnecting wiring and power sources.
(  P. 36)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.
●If a cushion is placed on the seat, the sens or may not detect a passenger, and the warn-
ing light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insu fficient or the voltage temporarily drops,
the electric power steering system warning light may come on and the warning buzzer
may sound.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fu el tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.
■When the tire pressure warning light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured: P. 673
If none of the tires are punctured:
Turn the power switch off then turn it to ON mode. Check if the tire pressure warning
light comes on or blinks.
If the tire pressure warning light comes on
After the temperature of the tires has lowere d sufficiently, check the inflation pressure
of each tire and adjust th em to the specified level.
If the warning light does not turn off even after several minutes have elapsed, check
that the inflation pressure of each tire is at the specified level and perform initialization.
(  P. 613)
If the warning light does not turn off severa l minutes after the initialization has been per-
formed, have the vehicle inspected by your Lexus dealer immediately.
If the tire pressure wa rning light blinks for 1 minute then stays on
There may be a malfunction in the tire pressure warning system. Have the vehicle
inspected by your Lexus dealer immediately.
1
2
