2019 LEXUS RX450H Owners Manual

6658-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caus ed by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire. Replace the spare tire with the repaired tire
and adjust the tire inflation pressure. The tire pressure warnin g light will go off after a few
minutes.
■Conditions that the tire pressure wa rning system may not function properly
 P. 616
■Warning buzzer
In some cases, the buzzer ma y not be heard due to being in a noisy location or audio
sound.
■Customization
Some functions can be customized. ( P. 736)
WARNING
■If both the ABS and the brake sy stem warning lights remain on
Stop your vehicle in a safe place immediat ely and contact your Lexus dealer. The vehi-
cle will become extremely unstable during br aking, and the ABS system may fail, which
could cause an accident resultin g in death or serious injury.
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted. When the
light comes on red, the assist to the power steering is lost and handling operations of
the steering wheel become extremely heavy. When steering wheel operations are
heavier than usual, grip the steering wheel firmly and operate it using more force than
usual.
■If the tire pressure warning light comes on
Be sure to observe the following precaution s. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire . Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

6668-2. Steps to take in an emergency
RX450h_RX450hL_U
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle ha s been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a si gnificantly under-inflated tire causes the
tire to overheat and can lead to tire failure . Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is th e driver’s responsibility to ma intain correct tire pressure,
even if under-inflation has not reached the le vel to trigger illumination of the TPMS low
tire pressure telltale (tir e pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction in dicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning system) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressu re warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning
system may not operate properly.

6678-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message indicates the need for inspection by a
dealer, have the vehicle inspected by your Lexus dealer immediately.

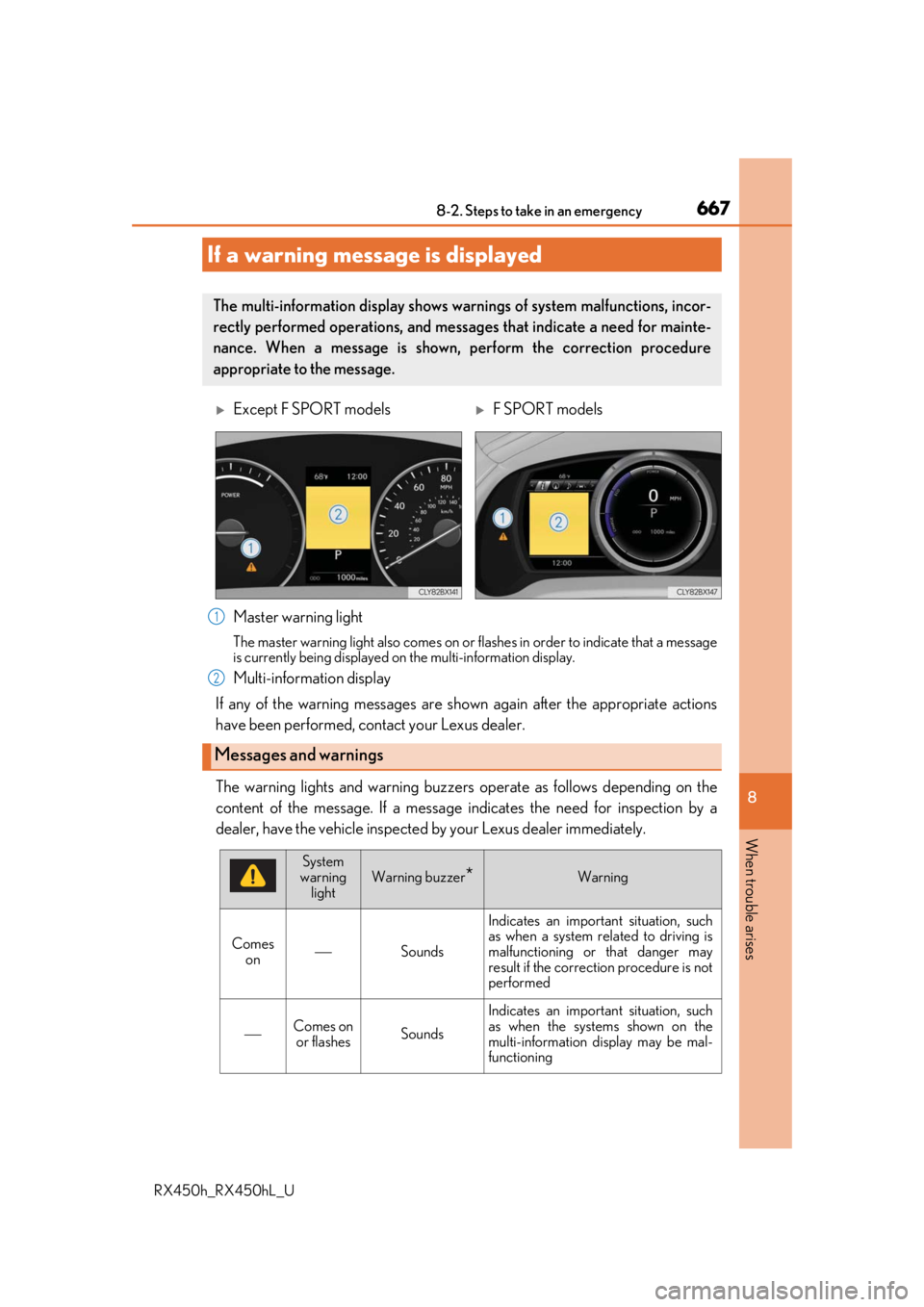

If a warning message is displayed
The multi-information display shows warn ings of system malfunctions, incor-
rectly performed operations, and messag es that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.
Except F SPORT modelsF SPORT models
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning messages are sh own again after the appropriate actions
have been performed, contact your Lexus dealer.
Messages and warnings
1
2
System
warning light
Warning buzzer*Warning
Comes on 
Sounds Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning

6688-2. Steps to take in an emergency
RX450h_RX450hL_U
*: A buzzer sounds the first time a message is shown on the multi-information display.
●If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Continuing to drive the vehicle may be dangerous. • “Braking Power Low Stop in a Safe Place See Owner’s Manual”
• “Oil Pressure Low Stop in a Safe Place See Owner’s Manual”
• “Charging System Malfunction See Owner’s Manual”
●If the following messages are shown, there may be a malfunction.
Immediately have the vehicle inspected by your Lexus dealer.• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Access System with Elec. Key Malfunction See Owner’s Manual”
●If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
displayed, following the instructions, accordingly. ( P. 702)
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes
onDoes not sound
Indicates a condition, such as malfunc-
tion of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly
If a message instructing to refer to the Owner’s Manual is displayed
System
warning
lightWarning buzzer*Warning

6698-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displa yed, also refer to this Owner’s Manual.
■If “Hybrid System Overheated Reduced Output Power” is shown
This message may be displayed when driving under severe operating condi-
tions.
(For example, when driving up a long steep hill.)
Handling method: P. 702
■If “Hybrid Battery Low Shift Ou t of N to Recharge” is shown
Message is displayed when the remainin g charge for the hybrid battery (trac-
tion battery) is low.
As the hybrid battery (traction battery) cannot be charged when the shift
lever is in N, when stopped for long periods of time shift the shift lever to P.
■If “Hybrid Battery Low Hybrid System Stopped Shift to P and Restart” is
shown
Message is displayed when the remainin g charge for the hybrid battery (trac-
tion battery) is low, because vehicle has been shifted N for a long period of
time.
When operating the vehicle, restart the hybrid system.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch off with the shift lever in any position other than P.
Shift the shift lever to P.
Other messages displayed on the multi-information display

6708-2. Steps to take in an emergency
RX450h_RX450hL_U
■If “Shift Is in N Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depressed and
the shift lever is in N. Release the accelerator pedal and shift the shift lever to
D or R.
■If “Depress Brake when Vehicle Is Stopped Hybrid System May Overheat”
is shown
Message is displayed when the accelerato r pedal is depressed to maintain the
vehicle position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and depress the brake pedal.
■If “Power Turned Off to Save Battery” is displayed
This message is displayed when the power was cut off due to the automatic
power off function.
The next time the hybrid system is star ted, increase the engine speed slightly
and maintain it at that speed for approximately 5 minutes to recharge the 12-
volt battery.
■If “A New Key has been Registered Contact Your Dealer for Details” is dis-
played
This message will be displayed each time the driver's door is opened when the
doors are unlocked from the outside fo r approximately one week after a new
electronic key has been registered.
If this message is displayed but you ha ve not had a new electronic key regis-
tered, ask your Lexus dealer to check if an unknown electronic key (other than
those in your possession) has been registered.
■When “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunct ioning. Have the vehicle inspected by
your Lexus dealer immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam
●AFS (Adaptive Front-lighting System) (if equipped)

6718-2. Steps to take in an emergency
8
When trouble arises
RX450h_RX450hL_U
■If “Forward Camera System Unavailable” or “Forward Camera System
Unavailable Clean Windshield” is displayed
The following systems may be suspended until the problem shown in the mes-
sage is resolved. (P. 296)
●PCS (Pre-Collision System)
●LKA (Lane-Keeping Assist)
●Dynamic radar cruise control with full-speed range
●Automatic High Beam
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed.
Check the engine oil, and change if necessary. After changing the engine oil,
the message should be reset. ( P. 600)
■If “Oil Maintenance Required” is shown
Indicates that the engine oil should be changed.
Check and change the engine oil, and o il filter by your Lexus dealer. After
changing the engine oil, the message should be reset. ( P. 600)
■If “Maintenance Required Soon” is displayed (U.S.A. only)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Plea se reset the message after the main-
tenance is performed. ( P. 588)
*: Refer to the separate “Scheduled Mainte nance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.

6728-2. Steps to take in an emergency
RX450h_RX450hL_U
■If “Maintenance Required Visit Your Dealer” is displayed (U.S.A. only)
Indicates that all maintenance is requir ed to correspond to the driven distance
on the maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after the message has
been reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the main-
tenance is performed. ( P. 588)
*: Refer to the separate “Scheduled Mainte nance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a sep-
arate system warning light will come on along with a message shown on the multi-infor-
mation display.
●“Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) come on. ( P. 660)
●“Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. ( P. 661)
●“Charging System Malfunction See Ow ner's Manual” (F SPORT models):
The charging system wa rning light comes on. (P. 660)
■Warning buzzer
 P. 665
NOTICE
■“High Power Consumption Partial Limit On AC/Heater Operation” is frequently
shown
There is a possible malfunction relating to the charging system or the 12-volt battery
may be deteriorating. Have the vehicle inspected by your Lexus dealer.
