1212. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)

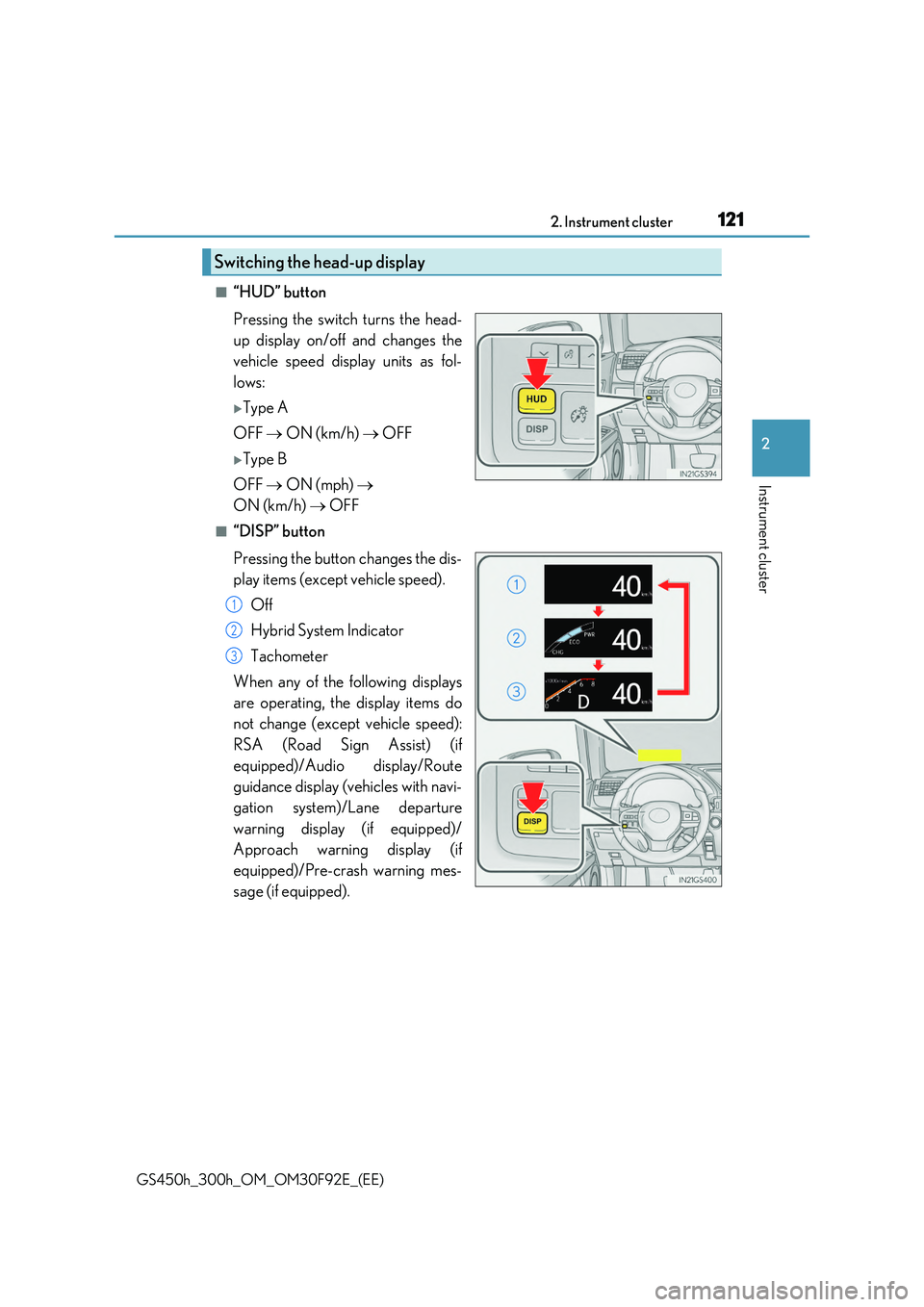

■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
Type A
OFF  ON (km/h)  OFF
Type B
OFF  ON (mph) 
ON (km/h)  OFF
■“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
Tachometer
When any of the following displays
are operating, the display items do
not change (except vehicle speed):
RSA (Road Sign Assist) (if
equipped)/Audio display/Route
guidance display (vehicles with navi-
gation system)/Lane departure
warning display (if equipped)/
Approach warning display (if
equipped)/Pre-crash warning mes-
sage (if equipped).
Switching the head-up display
1
2
3

1222. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■Adjusting the display position
Higher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance with the
brightness of the surrounding environment. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2

1232. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically
stop and restart under various condi- tions.
Eco area
Shows that the vehicle is being dr iven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power driving etc.)
When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance* to the intersection
will also be displayed.
*: The distance decrea ses in increments of
50 m (164 ft.) and the distance indication
will disappear when the vehicle passes
through the intersection.
Hybrid System Indicator
1
2
3
Route guidance display (vehic les with navigation system)
4

1242. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Display of the following screens can be switched on or off.
●Audio display
●Route guidance display (vehicles with navigation system)
■Changing the settings
Continue holding the “DISP” but-
ton until the screen changes, and
repeat the process until the set-
ting you want to change is dis-
played.
Customization can be performed
when the head-up display is on and the vehicle is traveling at less than8 km/h (5 mph).
Press the “DISP” button to switch between on and off.
On and off will be switched between each time the button is pressed.
If the button is left alone without being operated for a short time, setting will be fin-
ished automatically.
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sunglasses, especially polarized sunglasses.Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the power switch is turned to ON mode after the power switch has been turned off.
●The startup image will be displayed on the head-up display after the power switch has
been turned to ON mode while the head-up display switch is set to on.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
■Head-up display automatic position adjustment
If the display position is recorded into me mory, the head-up display will be automatically adjusted to the desired position. ( P. 178)
Display customization
1
2

1252. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an accident, resulting in death or serious injury.
NOTICE
■To prevent damage to components
●Do not touch the inside of the head-up display projector or thrust sharp edges or the
like into the projector. Doing so could cause mechanical malfunctions.
●Do not place any drinks near the head-up dis-play projector. If the projector gets wet, elec-
trical malfunctions may result.
●Do not place anything on or put stickers onto the head-up display projector.
Doing so could interrupt head-up display indications.

1262. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Meter control switches
“MENU” button
Remote Touch knob
“ENTER” buttons
■Remote Touch screen
Press the “MENU” button on the Remote Touch, and then select on the
“Menu” screen.
If the “Trip information” or “Past record ” screen is displayed, select “Energy”.
You can view the status of your hybrid system on the multi-information display
and the Remote Touch screen.
Vehicles with 12.3-inch display: The energy monitor or consumption screen
can be displayed on the side display.
1
2
3
4
5
6
Energy monitor

1272. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
■Multi-information display
Press or of the meter control switches and select , and then press
or to select the energy monitor display.
Remote Touch screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric motor (trac- tion motor)
When the vehicle is powered by the gasoline engine

1282. Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
These images are examples only, and may vary slightly from actual conditions.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
LowFullLowFull
Remote Touch screenMulti-information display
