2019 LEXUS GS300H Owners Manual

401
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may op en while the vehicle is in motion and cause an accident, which may result in death or serious injury.

4026-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floo r jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

403
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Engine compartment
GS450h
■12-volt battery
 P. 412
Engine oil level dipstick
( P. 406)
Engine coolant reservoir
( P. 409)
Engine oil filler cap ( P. 407)
Power control unit coolant
reservoir ( P. 409)
Fuse box ( P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)
1
2
3
4
5
6
7
8
9

4046-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
GS300h
■12-volt battery
 P. 412
Power control unit coolant
reservoir ( P. 409)
Engine oil level dipstick
( P. 406)
Engine oil filler cap ( P. 407)
Engine coolant reservoir
( P. 409)
Fuse box ( P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)
1
2
3
4
5
6
7
8
9

405 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
■Removing the engine compartment cover
Right-hand side
Center
■Installing the clips
Push up center portion
Insert
Press
Engine compartment cover
1
2
3
NOTICE
■Checking the engine compartment cover after installation
Make sure that the cover is securely installed in its original position.

4066-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
GS450hGS300h
3
4
5
1
2
3
Flat dipstickNon-flat dipstick
6

407 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations, oil consumption may increase, and engine oil may need to be refilled in between oilmaintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or afterreplacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
GS450hGS300h
Engine oil selection P. 550
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp.qt.)
Items Clean funnel
1
2
3

4086-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)

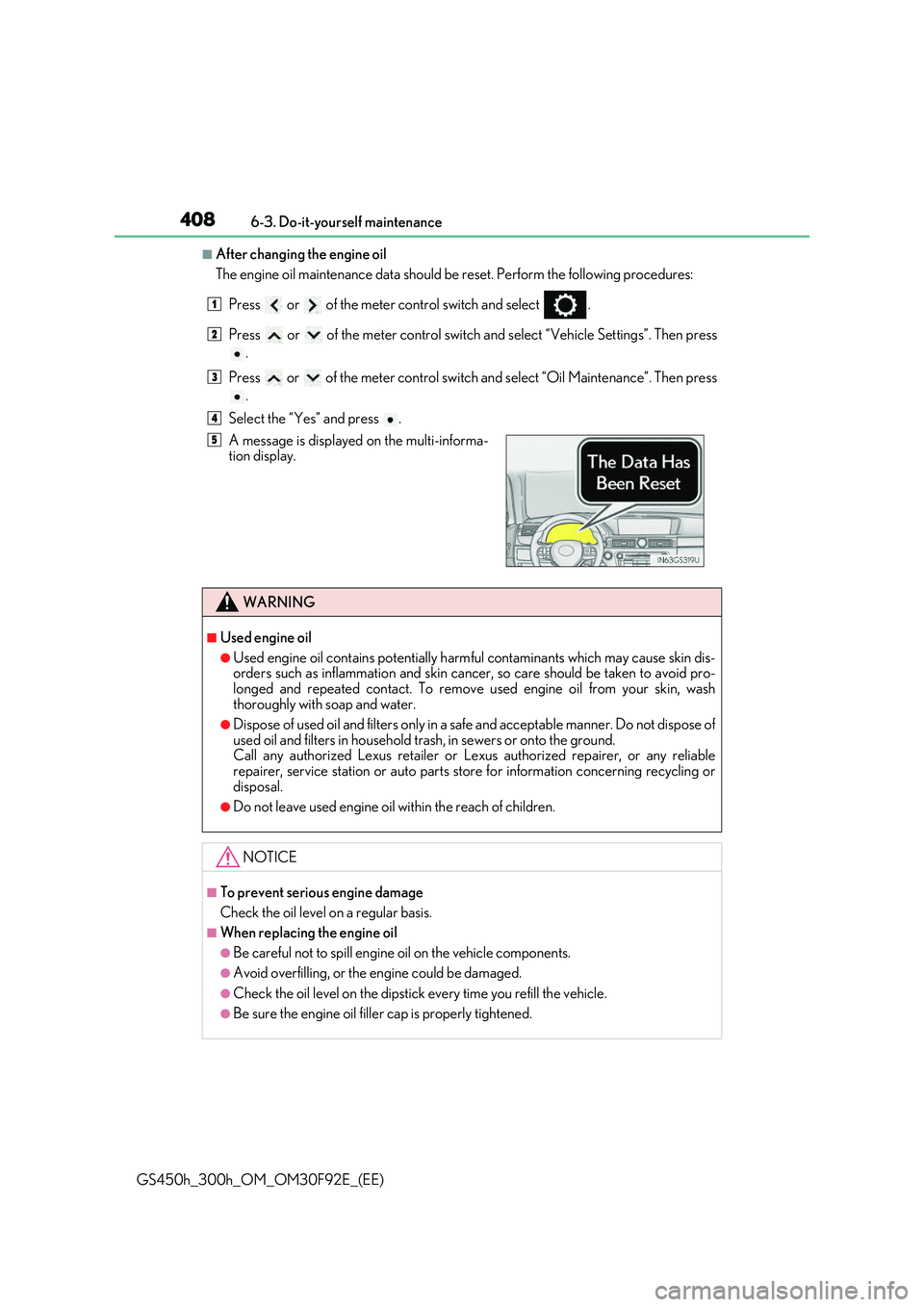

■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switch and select .
Press or of the meter control switch an d select “Vehicle Settings”. Then press
.
Press or of the meter control switch and select “Oil Maintenance”. Then press
.
Select the “Yes” and press .
A message is displayed on the multi-informa- tion display.
WARNING
■Used engine oil
●Used engine oil contains potentially harm ful contaminants which may cause skin dis- orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call any authorized Lexus retailer or Le xus authorized repairer, or any reliable repairer, service station or auto parts st ore for information concerning recycling or
disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
1
2
3
4
5
