2019 LEXUS GS300H fuel pressure

15Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 251
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
To prevent freezing (windshield wiper de-icer)*1 . . . . . . . . . . . . . . . . . . . . . . P. 352 Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 257
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 257 Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 549
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Tire size/inflation pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555 Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 33 4
Checking/rotation/tire pressure warning system*1. . . . . . . . . . . . . . . . . . . . . P. 416 Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 498, 509
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401 Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535 Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Headlights/front position lights/daytime running lights . . . . . . . . . . . P. 237
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Front fog lights/rear fog light*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 250
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Stop lights
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Back-up light*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 224
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 442, Watts: P. 558)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12

992. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F92E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehicle’s sys-
tems.
Warning lights
*1
Brake system warning light
( P. 460)
*2, 3
(If equipped)
“AFS OFF” indicator
( P. 462)
*2, 4Charging system warning
light ( P. 460)
*1, 3Brake hold operated
indicator ( P. 462)
*2Malfunction indicator lamp ( P. 460)
*3Parking brake indicator ( P. 462)
*2SRS warning light ( P. 460)
*1Brake system warning light ( P. 462)
*1ABS warning light
( P. 461)
Low fuel level warning light
( P. 462)
*2Electric power steering system warning light
( P. 461)
Seat belt reminder light ( P. 462)
*2, 3
(If equipped)
PCS (Pre-Crash Safety system) warning light ( P. 461)
*2
Master warning light
( P. 462)
*1
Slip indicator (P. 461)
*2
(If equipped)
Tire pressure warning light ( P. 463)
(If equipped)
LKA warning light ( P. 463)

3324-6. Driving tips
GS450h_300h_OM_OM30F92E_(EE)
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic lights,
will lead to bad fuel economy. Check traffic reports before leaving and avoid
delays as much as possible. When driving in a traffic jam, gently release the
brake pedal to allow the vehicle to move forward slightly while avoiding over-
use of the accelerator pedal. Doing so can help control excessive gasoline
consumption.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a toll
booth or similar, allow plenty of time to release the accelerator and gently
apply the brakes. A greater amount of electrical energy can be regenerated
when slowing down.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help reduce
excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recirculated air
mode. Doing so will help to reduce the burden on the air conditioning system
and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically cut out until it
and the interior of the vehicle are warm, it will consume fuel. Also, fuel con-
sumption can be improved by avoiding overuse of the heater.
◆Checking tire inflation pressure
Make sure to check the tire inflation pressure frequently. Improper tire infla-
tion pressure can cause poor fuel economy.
Also, as snow tires can cause large amounts of friction, their use on dry roads
can lead to poor fuel economy. Use ti res that are appropriate for the season.

3916-1. Maintenance and care
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
■High-pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
■Notes for a smart entry & start system (vehicles with entry function)
If the door handle becomes wet while the electronic key is within the effective range, the
door may lock and unlock repeatedly. In that case, follow the following correction proce- dures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start system. ( P. 155)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Brake caliper coating (vehicles with orange brake calipers for F SPORT models)
●When using detergent, use neutral detergent.
Do not use hard brushes or abrasive clea ners, as they will damage the coating.
●Do not use detergent on the brake calipers when they are hot.
●Wash detergent off immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period. Clean the windows with a soft, damp cloth as soon as possible.• Do not use wax or glass cleaners that co ntain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact any authorized Lexus reta iler or Lexus authorized repairer, or any reliable repairer.

429
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Tire inflation pressure
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold. If your vehicle has been parked for at least 3 hours or has not been driven for more than1.5 km or 1 mile, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.It is difficult to judge if a tire is prop erly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving as heat is generated
in the tire. Do not reduce tire inflation pressure after driving.
●Passengers and luggage weight should be placed so that the vehicle is balanced.
Make sure to maintain proper tire inflation pressure. Tire inflation pressure
should be checked at least once pe r month. However, Lexus recommends
that tire inflation pressure be checked once every two weeks. (P. 555)
WARNING
■Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which could lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire damage
●Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges in the road, etc.)

4637-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
*: Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and front passenger that his or her seat belt is not fastened. The buzzer sounds intermittently for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still unfastened , the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn- ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator la mp does not go off, contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily drops, the electric power steering system warning light may come on and the warning buzzer
may sound.
(If equipped)
Tire pressure warning light When the light comes on:Low tire inflation pressure such as
• Natural causes ( P. 464) • Flat tire ( P. 498, 509)  Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire inflation pressure is adjusted, have thesystem checked by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. When the light comes on after blinking for 1 minute:Malfunction in the tire pressure warning system
 Have the system checked by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
(If equipped)
LKA warning lightThe warning light comes on and a warning message is displayed to
indicate that the LKA (Lane-Keepin g Assist) system is not available temporarily or has detected a malfunction. P. 478
Warning lightWarning light/Details/Actions

4867-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)
Indicates a malfunction in the tire pressure warning sys- tem
 Stop the vehicle in a safe place and turn the power switch off then on again. If the tire pressure warningindicator flashes for 1 minute then illuminates, there
is a malfunction in the system. Have the vehicle inspected by any authorized Lexus retailer or Lexusauthorized repairer, or any reliable repairer.
(If equipped)
Indicates that the tire position information cannot be rec-ognized
 Drive for a short while and check if the display updates.If the radio wave conditio ns improve, the display
may return to normal. If the tire pressure is still not displayed after driving for several minutes, stop thevehicle in a safe place, turn the power switch off
then on again, and start driving. If the tire pressure is still not displayed even after repeating this processseveral times, have the vehicle inspected by any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less  Refuel the vehicle.
Warning messageDetails/Actions

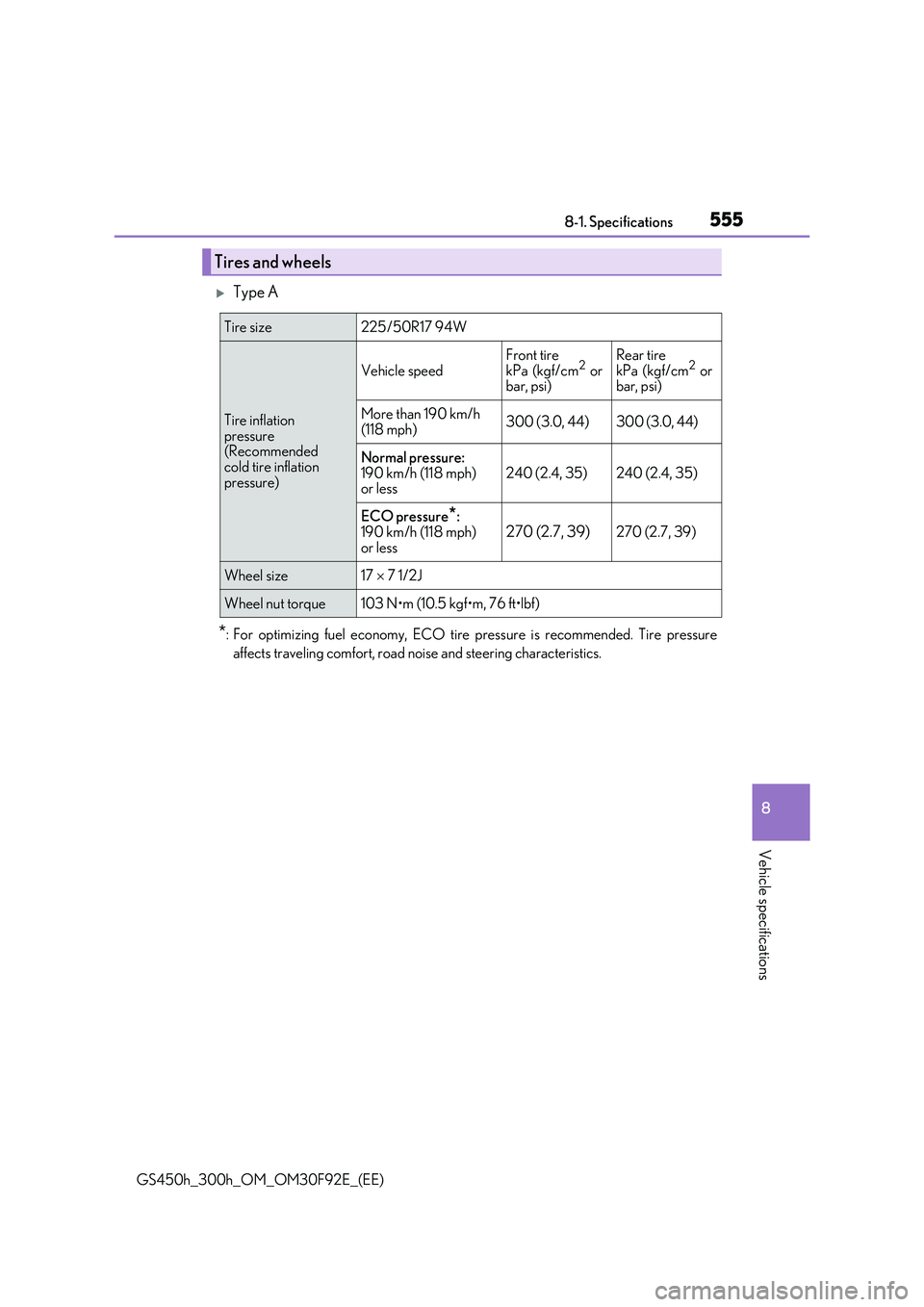

555
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
Type A
*: For optimizing fuel economy, ECO tire pressure is recommended. Tire pressure
affects traveling comfort, road noise and steering characteristics.
Tires and wheels
Tire size225/50R17 94W
Tire inflation
pressure (Recommended cold tire inflation
pressure)
Vehicle speed
Front tire
kPa (kgf/cm2 or bar, psi)
Rear tire
kPa (kgf/cm2 or bar, psi)
More than 190 km/h(118 mph)300 (3.0, 44)300 (3.0, 44)
Normal pressure:
190 km/h (118 mph) or less240 (2.4, 35)240 (2.4, 35)
ECO pressure*:190 km/h (118 mph)
or less270 (2.7, 39)270 (2.7, 39)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
