2019 LEXUS GS300H battery capacity

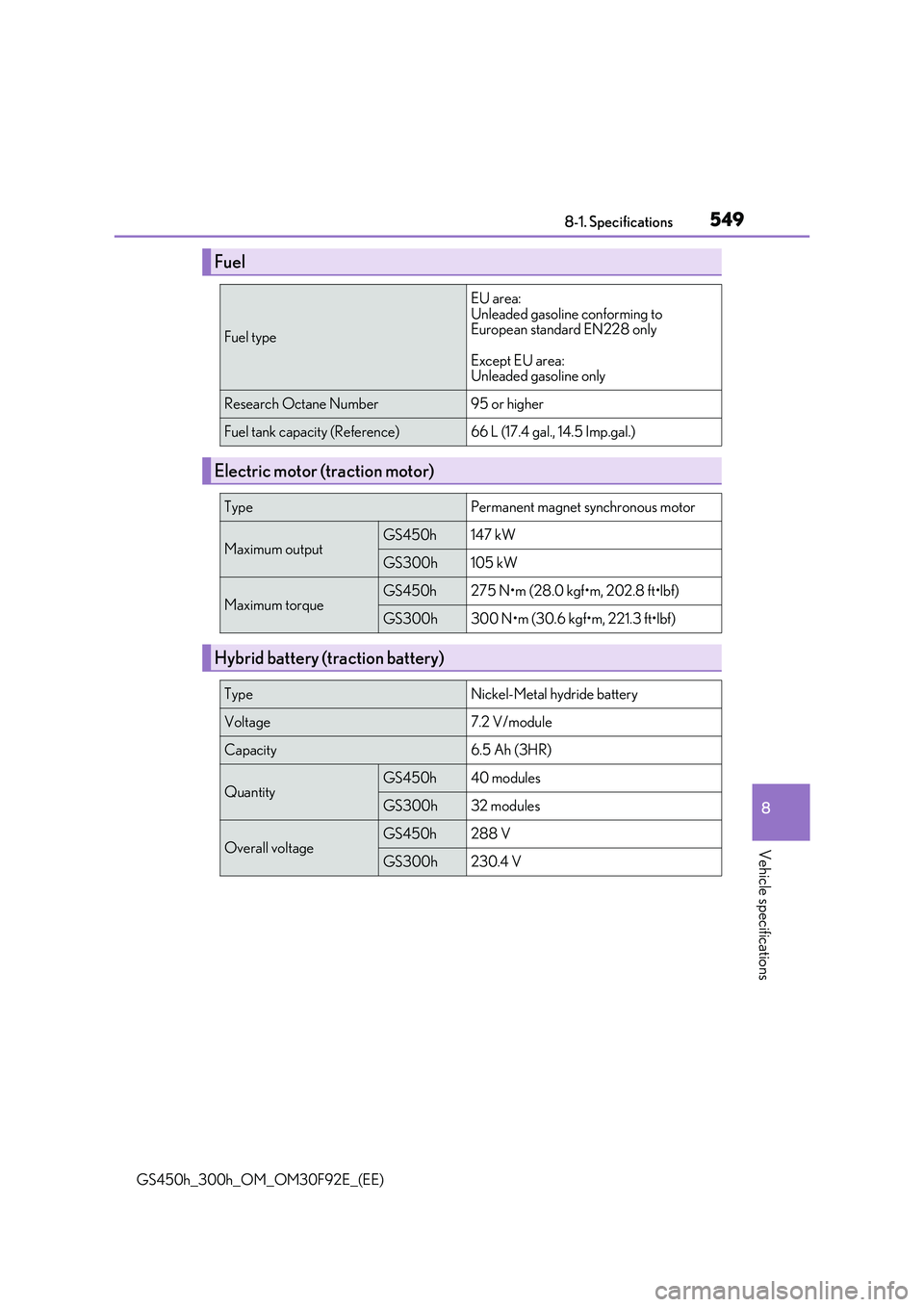

549
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European standard EN228 only
Except EU area: Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp.gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum outputGS450h147 kW
GS300h105 kW
Maximum torqueGS450h275 N•m (28.0 kgf•m, 202.8 ft•lbf)
GS300h300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
QuantityGS450h40 modules
GS300h32 modules
Overall voltageGS450h288 V
GS300h230.4 V

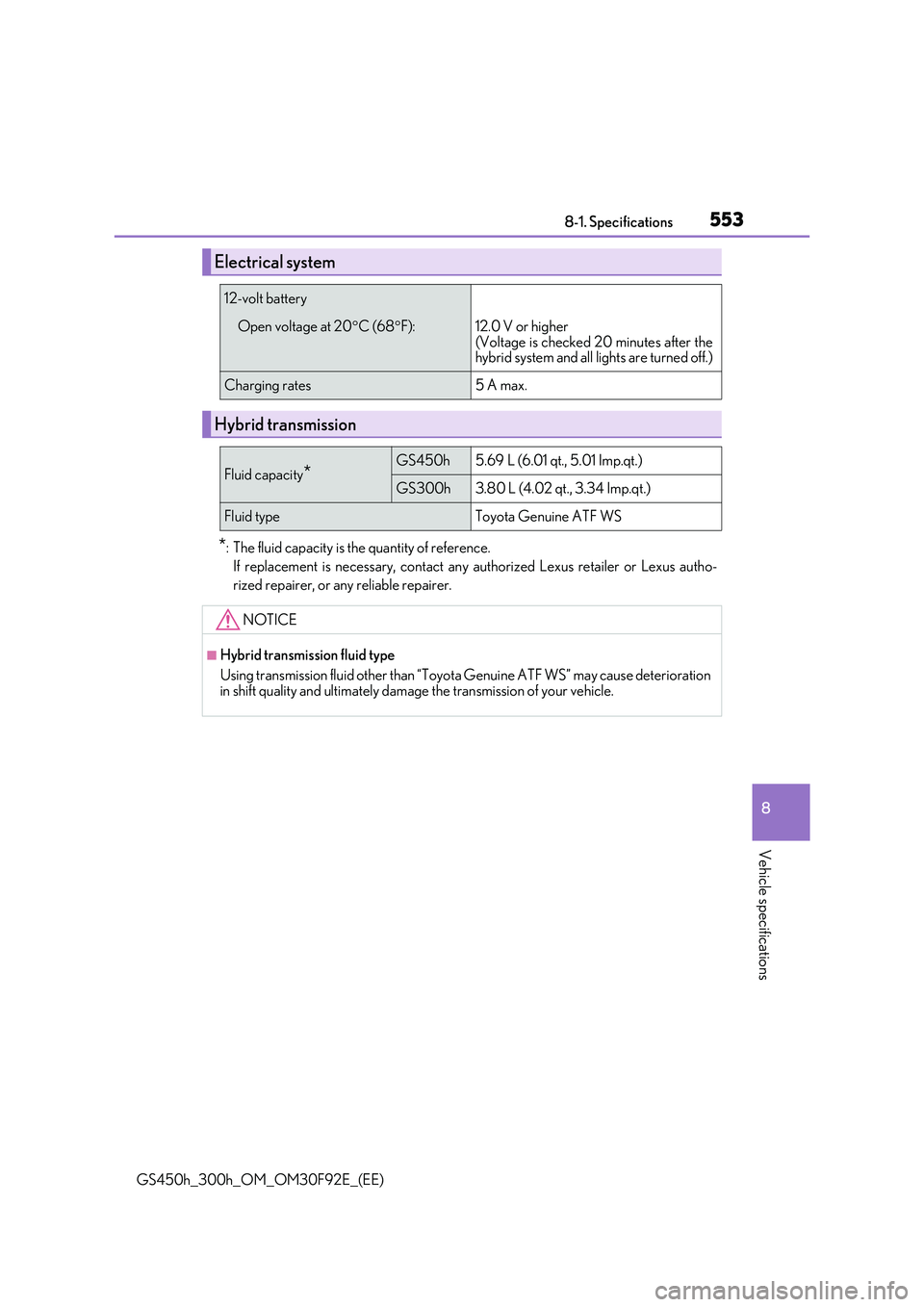

553
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
Electrical system
12-volt battery
Open voltage at 20 C (68F):12.0 V or higher
(Voltage is checked 20 minutes after the hybrid system and all lights are turned off.)
Charging rates5 A max.
Hybrid transmission
Fluid capacity*GS450h5.69 L (6.01 qt., 5.01 Imp.qt.)
GS300h3.80 L (4.02 qt., 3.34 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyot a Genuine ATF WS” may cause deterioration in shift quality and ultimately damage the transmission of your vehicle.

584Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
Cargo hooks........................................... 374
CD player*
Chains ....................................................... 336
Child restraint system ............................ 57
Baby seats, definition ..........................58
Baby seats, installation ....................... 67
Child seats, definition..........................58
Child seats, installation....................... 67
Installing CRS with ISOFIX
rigid anchors........................................ 70
Installing CRS with seat belts.......... 67
Installing CRS with top strap ............ 71
Junior seats, definition ........................58
Junior seats, installation ..................... 69
Child safety................................................. 56
12-volt battery
precautions............................. 414, 534
Airbag precautions .............................. 45
Child restraint system......................... 57
How your child should
wear the seat belt ..................... 39, 40
Installing child restraints .................... 66
Moon roof precautions ................... 198
Power window lock switch.............193
Power window precautions .......... 195
Rear door child-protectors ............143
Removed electronic key
battery precautions ....................... 436
Seat belt comfort guide ..................... 39
Seat belt precautions .......................... 42
Seat heater precautions ...................361
Trunk precautions ..............................149
Child-protectors ................................... 143
Cleaning....................................... 390, 394
Aluminum wheels................................ 391
Exterior ................................................... 390
Interior..................................................... 394
Seat belts ............................................... 395
Clock ............................................... 105, 378
Coat hooks.............................................. 382
Condenser ................................................ 411
Console box ........................................... 370
Console box light ................................... 371
Coolant..................................................... 409
Capacity................................................. 552
Checking ............................................... 409
Preparing and checking
before winter.................................... 334
Cooling system ..................................... 409
Engine overheating .......................... 535
Hybrid system overheating.......... 535
Consumption screen ........................... 126
Cruise control
Cruise control .....................................308
Dynamic radar cruise control
with full-speed range ................... 296
Cup holders .............................................. 371
Curtain shield airbags .......................... 43
Customizable features.........................561

586Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
Dynamic radar cruise control
with full-speed range ....................... 296
Function .................................................. 296
Warning message.............................466
Dynamic Rear Steering (DRS)........ 325
Function .................................................. 325
Warning message.............................466
DVD player*
Eco drive mode ........................................ 311
Electric motor (traction motor) ......... 76
Electric Power Steering (EPS)........ 325
Function .................................................. 325
Warning light .........................................461
Warning message.............................466
Electronic key.......................................... 134
Battery-saving function.................... 155
If the electronic key does not
operate properly ............................ 527
Replacing the battery.......................435
Emergency, in case of
If a warning buzzer sounds ......... 460
If a warning light turns on.............. 460
If a warning message is
displayed ............................................466
If the 12-volt battery is
discharged........................................ 530
If the electronic key does not
operate properly ............................ 527
If the hybrid system will not
start ........................................................ 523
If the parking brake cannot
be released........................................525
If you have a flat tire .............498, 509
If you think something
is wrong .............................................. 459
If your vehicle becomes
stuck ..................................................... 542
If your vehicle has to be
stopped in an emergency ......... 453
If your vehicle needs to
be towed ............................................ 454
If your vehicle overheats................ 535
Emergency brake signal.................... 325
Emergency flashers............................. 452
Emergency tire puncture
repair kit ................................................ 509
Energy monitor ....................................... 126
Engine ....................................................... 548
Accessory mode ................................. 218
Compartment ..................................... 403
Engine switch ........................................ 217
Hood ......................................................... 401
How to start the hybrid
system.................................................... 217
Identification number....................... 548
Ignition switch
(power switch) .................................. 217
Overheating ........................................ 535
Power switch ......................................... 217
Engine compartment cover ............. 405
Engine coolant....................................... 409
Capacity................................................. 552
Checking ............................................... 409
Preparing and checking
before winter.................................... 334
E

594Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
Refueling .................................................. 257
Capacity .................................................549
Fuel types ...............................................549
Opening the fuel tank cap ............259
When the fuel filler door
cannot be opened ......................... 259
Regenerative braking ............................ 78
Remote Touch*
Replacing
Electronic key battery......................435
Fuses ........................................................ 437
Light bulbs ............................................. 442
Tires ......................................................... 498
Rev indicator............................................ 106
Rev peak .................................................... 106
Road accident cautions.........................83
Seat belt reminder light ...................... 462
Seat belts .....................................................38
Adjusting the seat belt ........................ 39
Child restraint system
installation.............................................. 67
Cleaning and maintaining
the seat belt .......................................395
Emergency Locking
Retractor (ELR).................................. 40
How to wear your seat belt ............. 38
How your child should wear
the seat belt .......................................... 40
Pregnant women, proper
seat belt use ........................................... 41
Reminder light and buzzer ........... 462
Seat belt pretensioners ...................... 39
SRS warning light.............................. 460
Seat heaters ............................................ 362
Seat position memory...........................178
Seat ventilators ...................................... 362
Seats............................................................. 175
Adjustment ............................................. 175
Adjustment precautions................... 176
Child seats/child restraint
system installation ............................. 66
Cleaning ................................................ 394
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Properly sitting in the seat................ 36
Seat heaters.......................................... 362
Seat position memory ....................... 178
Seat ventilators ................................... 362
Sensor
Automatic headlight system ........ 240
Automatic High Beam
system.................................................. 246
Inside rear view mirror .....................189
Intrusion sensor and tilt sensor.......94
Lexus parking assist-sensor*
LKA (Lane-Keeping Assist) ........ 282
Radar sensor .............................263, 318
Rain-sensing windshield
wipers .................................................. 255
Service plug ............................................... 80
Service reminder indicators ............... 98
S-FLOW mode ..................................... 347
S

597Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
Tire inflation pressure ......................... 429
Maintenance data............................. 555
Tire inflation pressure
display function.................................. 417
Warning light ....................................... 463
Warning message.............................466
Tire pressure warning system ...........417
Function .................................................... 417
Initializing................................................. 418
Installing tire pressure warning
valves and transmitters................. 418
Registering ID codes .........................419
Warning light ....................................... 463
Warning message.............................466
Tires ............................................................. 416
Chains .....................................................336
Checking .................................................416
Emergency tire puncture
repair kit ............................................. 509
If you have a flat tire .............498, 509
Inflation pressure............................... 555
Replacing .............................................. 498
Rotating tires .......................................... 417
Size........................................................... 555
Snow tires ..............................................338
Spare tire ............................................... 498
Tire inflation pressure display
function .................................................. 417
Tire pressure warning system ....... 417
Warning light ....................................... 463
Warning message.............................466
Tools...................................................499, 511
Top strap ....................................................... 71
Towing ...................................................... 454
Emergency towing ........................... 454
Towing capacity................................. 546
Towing eyelet ...................................... 456
Trailer towing ........................... 209, 210
Traction battery (hybrid battery) ...... 80
Traction Control (TRC) ..................... 324
Traction motor (electric motor) .........76
Trailer towing ............................... 209, 210
Transmission........................................... 224
Driving mode select switch.............. 311
Hybrid transmission .......................... 224
If the shift lever cannot be
shifted from P....................................229
Paddle shift switches.........................226
S mode .................................................... 227
TRC (Traction Control) ..................... 324
Function...................................................324
TRC OFF switch ............................... 326
Trip information...................................... 104
Trip meters ............................................... 104
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
