2019 KIA SOUL Owners Manual

29

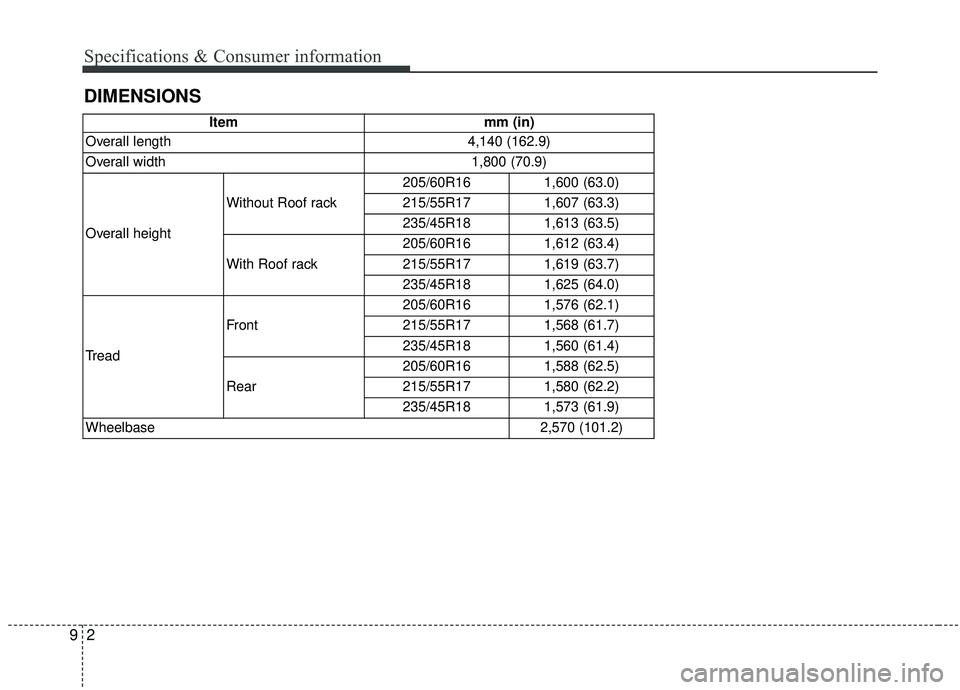

DIMENSIONS Specifications & Consumer information
Itemmm (in)
Overall length
4,140 (162.9)
Overall width
1,800 (70.9)
Overall height Without Roof rack
205/60R161,600 (63.0)
215/55R171,607 (63.3)
235/45R181,613 (63.5)
With Roof rack
205/60R161,612 (63.4)
215/55R171,619 (63.7)
235/45R181,625 (64.0)
Tread Front
205/60R161,576 (62.1)
215/55R171,568 (61.7)
235/45R181,560 (61.4)
Rear
205/60R161,588 (62.5)
215/55R171,580 (62.2)
235/45R181,573 (61.9)
Wheelbase
2,570 (101.2)

93

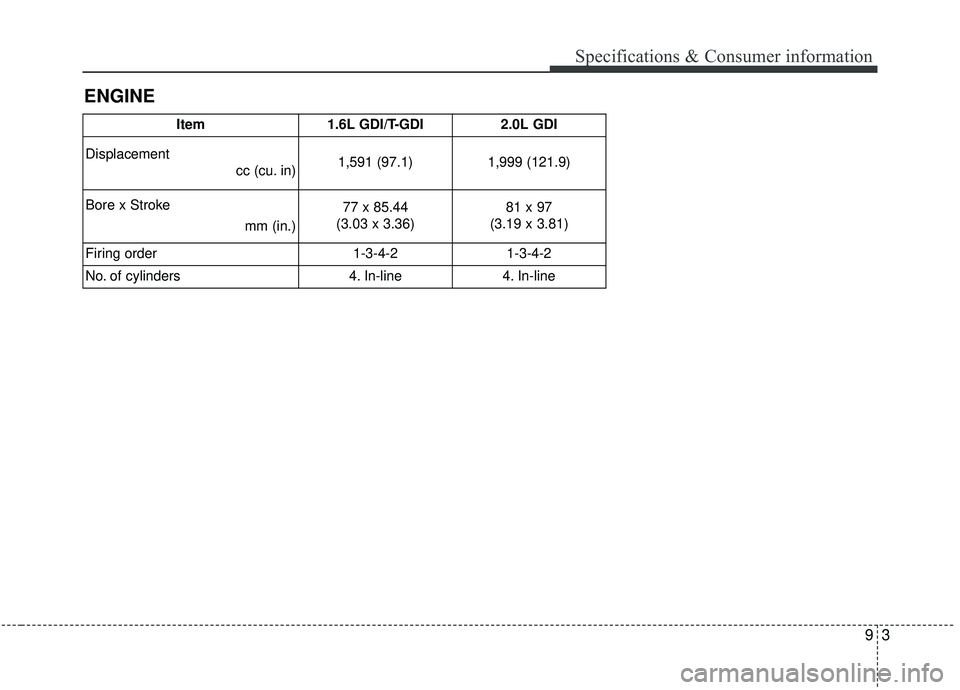

ENGINESpecifications & Consumer information
Item
1.6L GDI/T-GDI 2.0L GDI
Displacement cc (cu. in) 1,591 (97.1)
1,999 (121.9)
Bore x Stroke mm (in.)77 x 85.44
(3.03 x 3.36) 81 x 97
(3.19 x 3.81)
Firing order 1-3-4-21-3-4-2
No. of cylinders 4. In-line4. In-line

49
Specifications & Consumer information

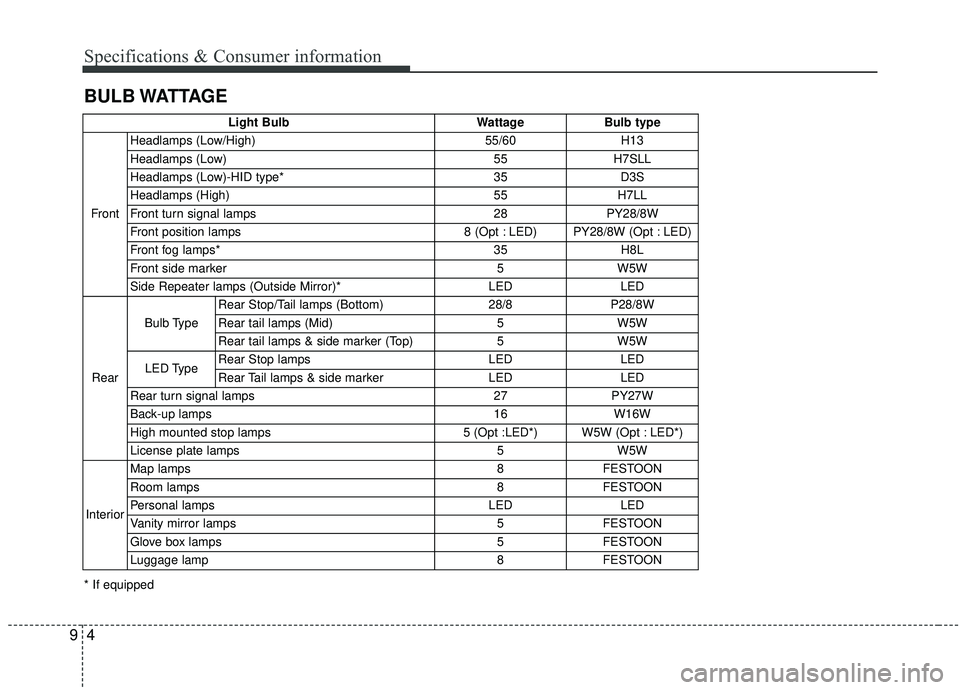

BULB WATTAGE
* If equippedLight Bulb Wattage Bulb type
Front Headlamps (Low/High) 55/60 H13
Headlamps (Low) 55 H7SLL
Headlamps (Low)-HID type* 35 D3S
Headlamps (High) 55 H7LL
Front turn signal lamps 28 PY28/8W
Front position lamps 8 (Opt : LED) PY28/8W (Opt : LED)
Front fog lamps* 35 H8L
Front side marker 5 W5W
Side Repeater lamps (Outside Mirror)* LED LED
Rear Bulb Type
Rear Stop/Tail lamps (Bottom) 28/8 P28/8W
Rear tail lamps (Mid) 5 W5W
Rear tail lamps & side marker (Top) 5 W5W
LED Type Rear Stop lamps LED LED
Rear Tail lamps & side marker LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
High mounted stop lamps 5 (Opt :LED*) W5W (Opt : LED*)
License plate lamps 5 W5W
Interior Map lamps 8 FESTOON
Room lamps 8 FESTOON
Personal lamps LED LED
Vanity mirror lamps 5 FESTOON
Glove box lamps 5 FESTOON
Luggage lamp 8 FESTOON

95
Specifications & Consumer information

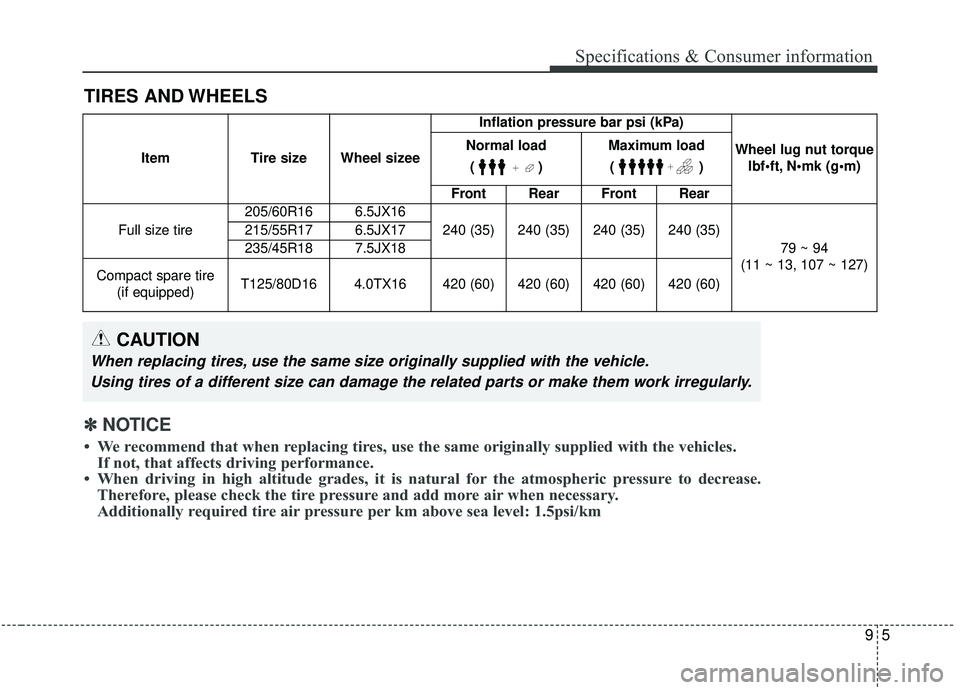

TIRES AND WHEELS
ItemTire size Wheel sizee Inflation pressure bar psi (kPa)
Wheel lug nut torque lbf•ft,
Normal load
()Maximum load()
Front Rear Front Rear
Full size tire 205/60R16 6.5JX16
240 (35) 240 (35) 240 (35) 240 (35)
79 ~ 94
(11 ~ 13, 107 ~ 127)
215/55R17 6.5JX17
235/45R18 7.5JX18
Compact spare tire (if equipped) T125/80D16 4.0TX16 420 (60) 420 (60) 420 (60) 420 (60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make them work irregularly.
✽ ✽ NOTICE
• We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km

69
Specifications & Consumer information

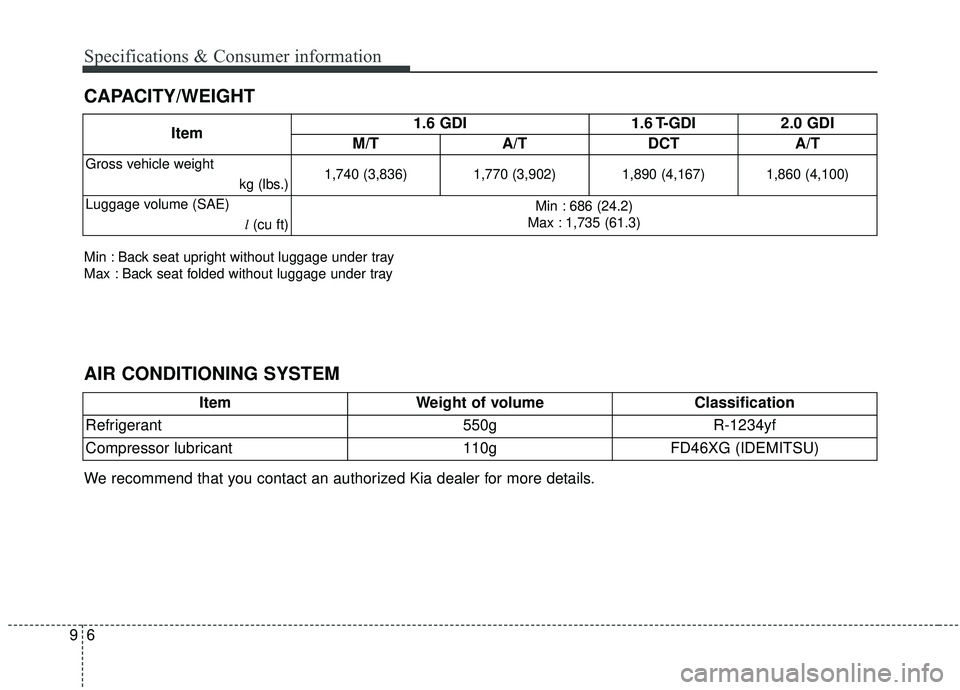

CAPACITY/WEIGHT
Item1.6 GDI
1.6 T-GDI2.0 GDI
M/T A/TDCT A/T
Gross vehicle weight
kg (lbs.)1,740 (3,836) 1,770 (3,902) 1,890 (4,167) 1,860 (4,100)
Luggage volume (SAE) l(cu ft) Min : 686 (24.2)
Max : 1,735 (61.3)
Min : Back seat upright without luggage under tray
Max : Back seat folded without luggage under tray
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant
550g R-1234yf
Compressor lubricant
110g FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details.

97
Specifications & Consumer information

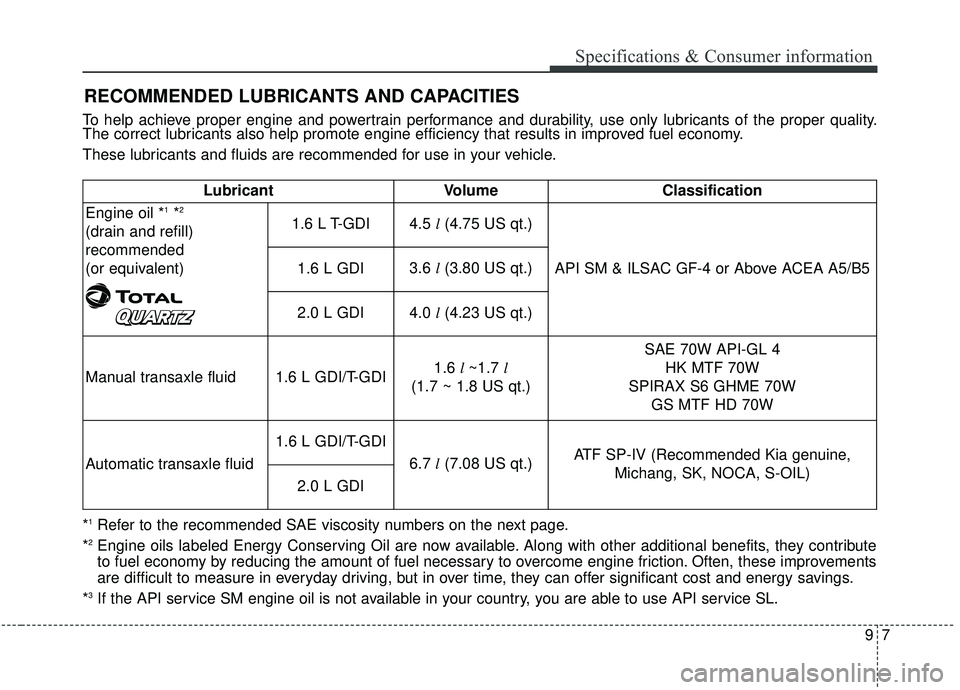

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*
1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute
to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements
are difficult to measure in everyday driving, but in over time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant
Volume Classification
Engine oil *
1*2
(drain and refill)
recommended
(or equivalent) 1.6 L T-GDI
4.5
l(4.75 US qt.)
API SM & ILSAC GF-4 or Above ACEA A5/B5
1.6 L GDI 3.6
l(3.80 US qt.)
2.0 L GDI 4.0 l(4.23 US qt.)
Manual transaxle fluid 1.6 L GDI/T-GDI 1.6
l ~1.7 l
(1.7 ~ 1.8 US qt.) SAE 70W API-GL 4
HK MTF 70W
SPIRAX S6 GHME 70W GS MTF HD 70W
Automatic transaxle fluid 1.6 L GDI/T-GDI
6.7 l(7.08 US qt.) ATF SP-IV (Recommended Kia genuine,
Michang, SK, NOCA, S-OIL)
2.0 L GDI

89
Specifications & Consumer information

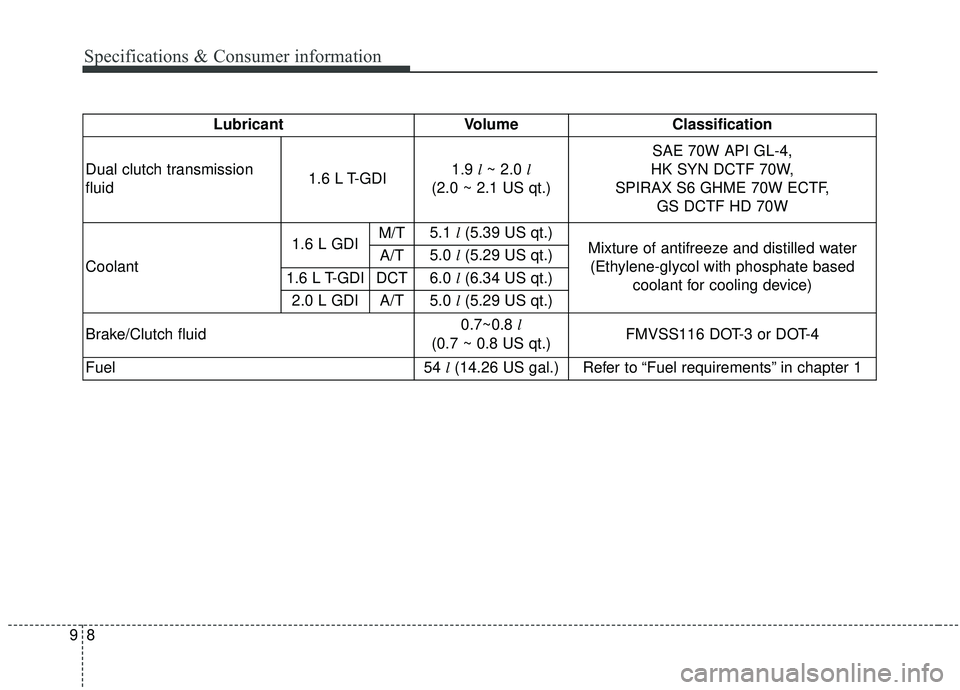

LubricantVolume Classification
Dual clutch transmission
fluid 1.6 L T-GDI1.9
l~ 2.0 l
(2.0 ~ 2.1 US qt.) SAE 70W API GL-4,
HK SYN DCTF 70W,
SPIRAX S6 GHME 70W ECTF, GS DCTF HD 70W
Coolant 1.6 L GDI
M/T
5.1
l(5.39 US qt.)
Mixture of antifreeze and distilled water
(Ethylene-glycol with phosphate based coolant for cooling device)
A/T5.0 l(5.29 US qt.)
1.6 L T-GDIDCT6.0 l(6.34 US qt.)
2.0 L GDIA/T5.0 l(5.29 US qt.)
Brake/Clutch fluid 0.7~0.8
l
(0.7 ~ 0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 54
l(14.26 US gal.)
Refer to “Fuel requirements” in chapter 1

99
Specifications & Consumer information
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
*1 :An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine
oils that uphold this API Certification Mark.
Temperature Range for SAE Viscosity Numbers
Temperature-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Gasoline
Engine Oil *1
for
1.6 L, 2.0 L GDI
for
1.6 L
T-GDI
10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40
°C
(°F)
