2019 KIA SOUL Owners Manual

459
Features of your vehicle
LCD DISPLAY (IF EQUIPPED)
❈For controlling the LCD modes, refer to “LCD Display Control” in this chapter.
LCD Modes (for Type B cluster)
Modes SymbolExplanation
Trip Computer This mode displays driving information like the tripmeter, fuel economy, and so on.
For more details, refer to “Trip Computer” in this chapter.
Tu r n B y Tu r n
(if equipped)This mode displays the state of the navigation.
LDWS
(if equipped)This mode displays the state of the Lane Departure Warning System (LDWS).
For more details, refer to “Lane Departure Warning System (LDWS)” in chapter 6.
User SettingsOn this mode, you can change settings of the doors, lamps, and so on.
Master warningThis mode informs of warning messages related to BSD fail and so on.

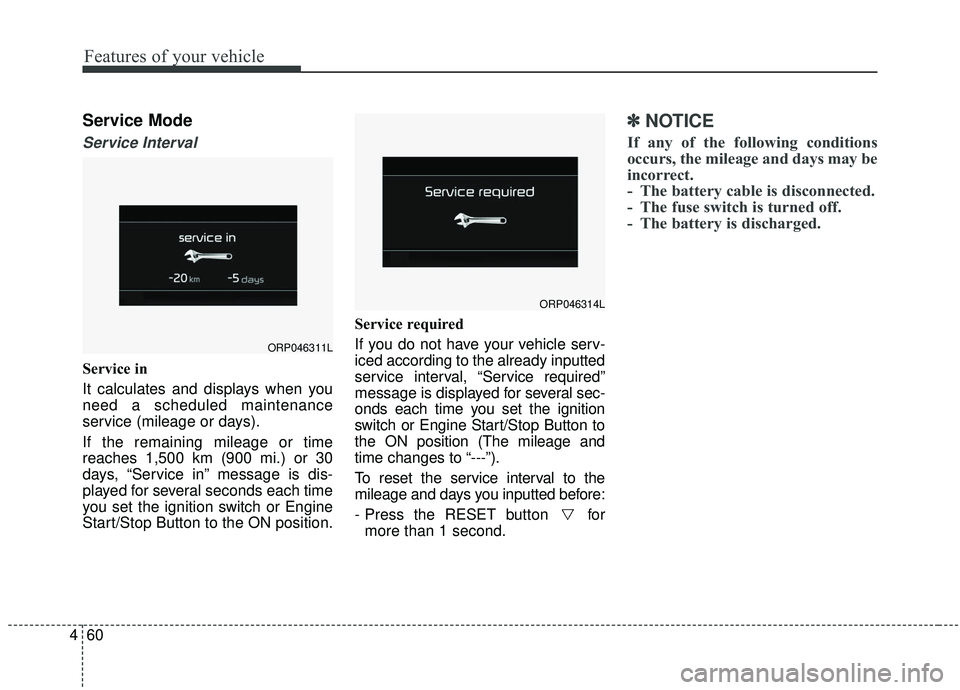

Features of your vehicle
60
4
Service Mode
Service Interval
Service in
It calculates and displays when you
need a scheduled maintenance
service (mileage or days).
If the remaining mileage or time
reaches 1,500 km (900 mi.) or 30
days, “Service in” message is dis-
played for several seconds each time
you set the ignition switch or Engine
Start/Stop Button to the ON position. Service required
If you do not have your vehicle serv-
iced according to the already inputted
service interval, “Service required”
message is displayed for several sec-
onds each time you set the ignition
switch or Engine Start/Stop Button to
the ON position (The mileage and
time changes to “---”).
To reset the service interval to the
mileage and days you inputted before:
- Press the RESET button for
more than 1 second.
✽ ✽ NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
ORP046311L
ORP046314L

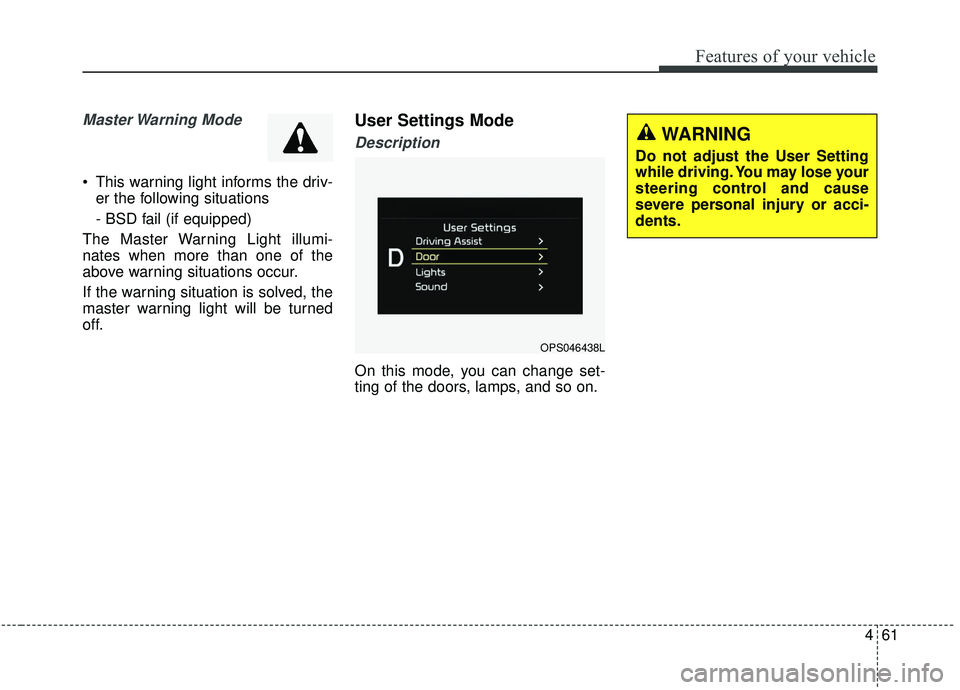

461
Features of your vehicle
Master Warning Mode
This warning light informs the driv-er the following situations
- BSD fail (if equipped)
The Master Warning Light illumi-
nates when more than one of the
above warning situations occur.
If the warning situation is solved, the
master warning light will be turned
off.
User Settings Mode
Description
On this mode, you can change set-
ting of the doors, lamps, and so on.
OPS046438L
WARNING
Do not adjust the User Setting
while driving. You may lose your
steering control and cause
severe personal injury or acci-
dents.

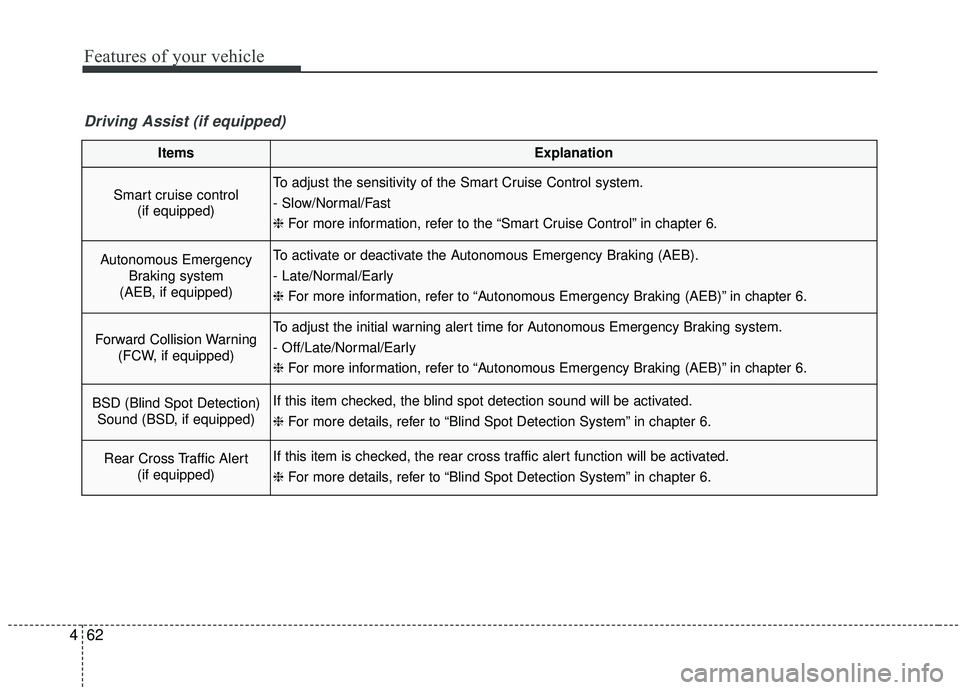

Features of your vehicle
62
4
Driving Assist (if equipped)
ItemsExplanation
Smart cruise control
(if equipped) To adjust the sensitivity of the Smart Cruise Control system.
- Slow/Normal/Fast
❈ For more information, refer to the “Smart Cruise Control” in chapter 6.
Autonomous Emergency
Braking system
(AEB, if equipped) To activate or deactivate the Autonomous Emergency Braking (AEB).
- Late/Normal/Early
❈ For more information, refer to “Autonomous Emergency Braking (AEB)” in chapter 6.
Forward Collision Warning
(FCW, if equipped) To adjust the initial warning alert time for Autonomous Emergency Braking system.
- Off/Late/Normal/Early
❈ For more information, refer to “Autonomous Emergency Braking (AEB)” in chapter 6.
BSD (Blind Spot Detection)
Sound (BSD, if equipped)If this item checked, the blind spot detection sound will be activated.
❈ For more details, refer to “Blind Spot Detection System” in chapter 6.
Rear Cross Traffic Alert
(if equipped) If this item is checked, the rear cross traffic alert function will be activated.
❈ For more details, refer to “Blind Spot Detection System” in chapter 6.

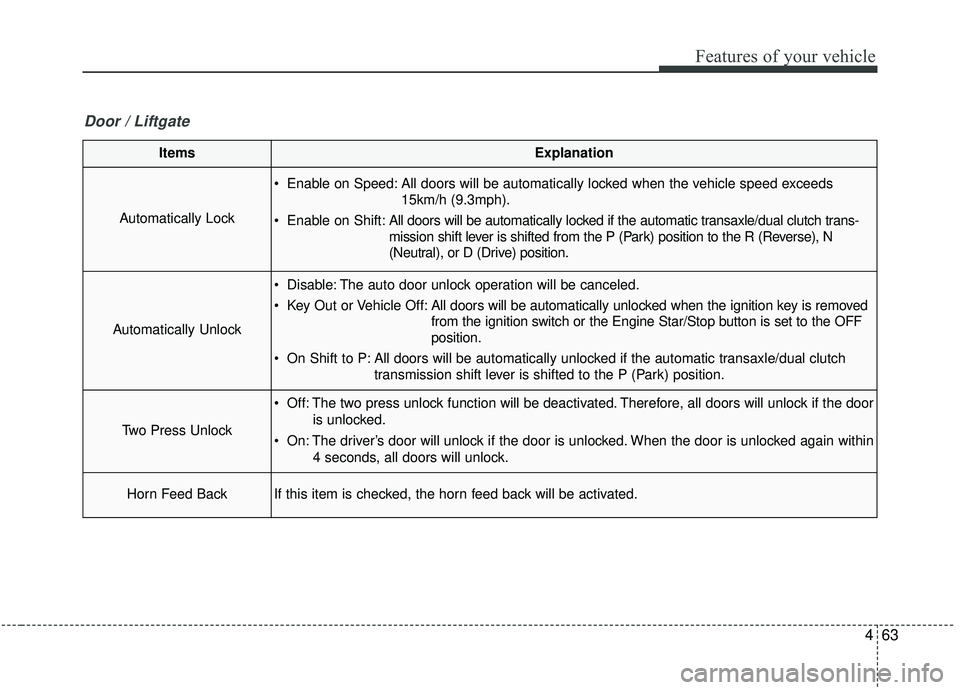

463
Features of your vehicle
ItemsExplanation
Automatically Lock
Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds15km/h (9.3mph).
Enable on Shift: All doors will be automatically locked if the automatic transaxle/dual clutch trans-
mission shift lever is shifted from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position.
Automatically Unlock
Disable: The auto door unlock operation will be canceled.
Key Out or Vehicle Off: All doors will be automatically unlocked when the ignition key is removed
from the ignition switch or the Engine Star/Stop button is set to the OFF
position.
On Shift to P: All doors will be automatically unlocked if the automatic transaxle/dual clutch transmission shift lever is shifted to the P (Park) position.
Two Press Unlock
Off: The two press unlock function will be deactivated. Therefore, all doors will unlock if the door
is unlocked.
On: The driver’s door will unlock if the door is unlocked. When the door is unlocked again within 4 seconds, all doors will unlock.
Horn Feed BackIf this item is checked, the horn feed back will be activated.
Door / Liftgate

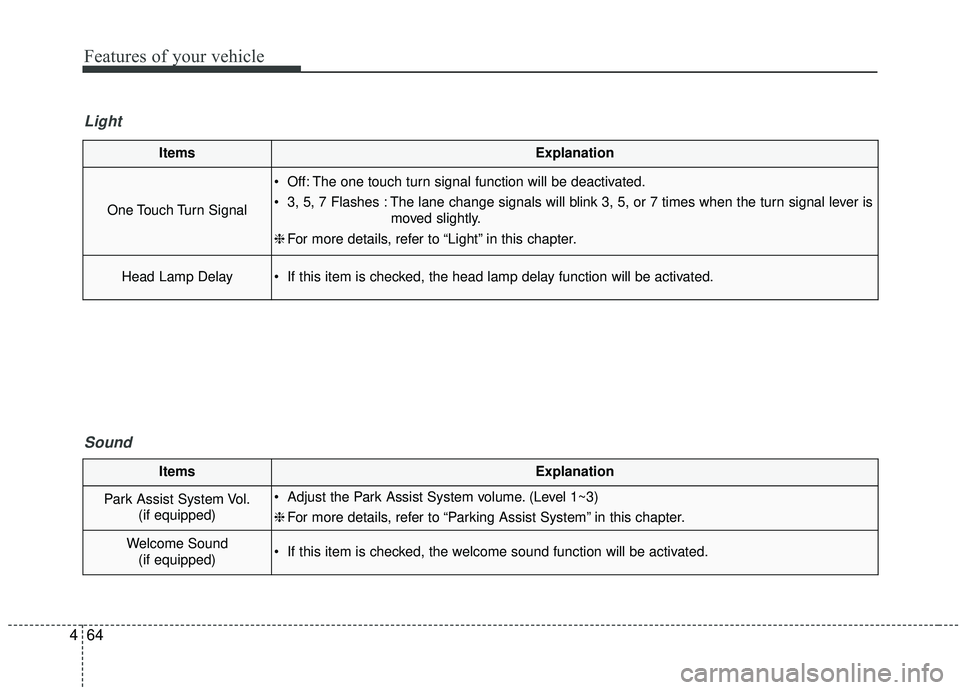

Features of your vehicle
64
4
ItemsExplanation
One Touch Turn Signal
Off: The one touch turn signal function will be deactivated.
3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is
moved slightly.
❈ For more details, refer to “Light” in this chapter.
Head Lamp Delay If this item is checked, the head lamp delay function will be activated.
Light
ItemsExplanation
Park Assist System Vol.
(if equipped) Adjust the Park Assist System volume. (Level 1~3)
❈For more details, refer to “Parking Assist System” in this chapter.
Welcome Sound
(if equipped) If this item is checked, the welcome sound function will be activated.
Sound

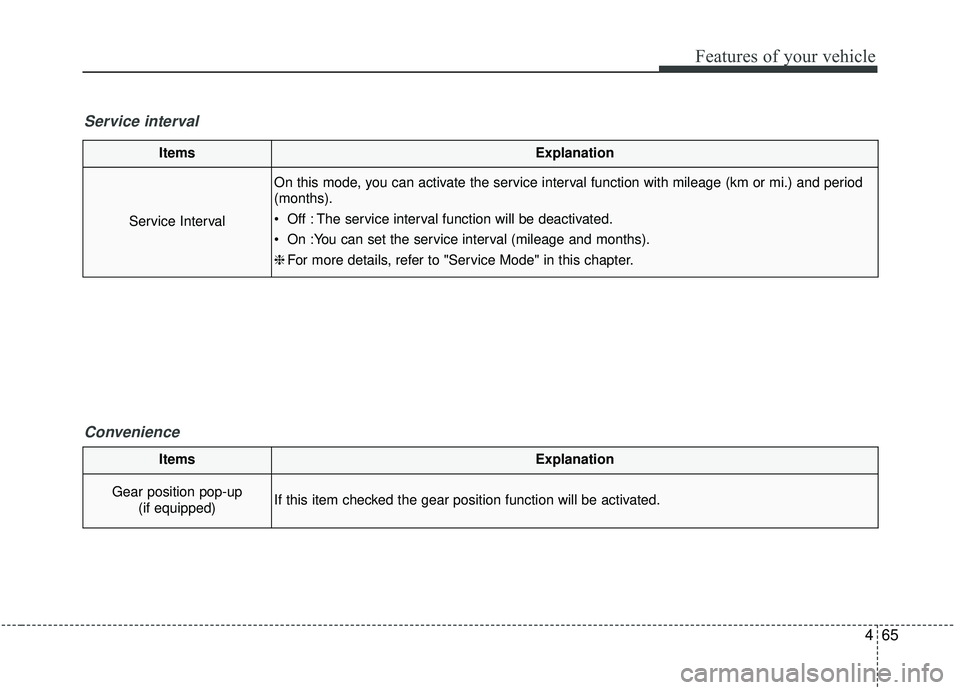

465
Features of your vehicle
Convenience
ItemsExplanation
Gear position pop-up (if equipped)If this item checked the gear position function will be activated.
ItemsExplanation
Service Interval
On this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
Off : The service interval function will be deactivated.
On :You can set the service interval (mileage and months).
❈For more details, refer to "Service Mode" in this chapter.
Service interval

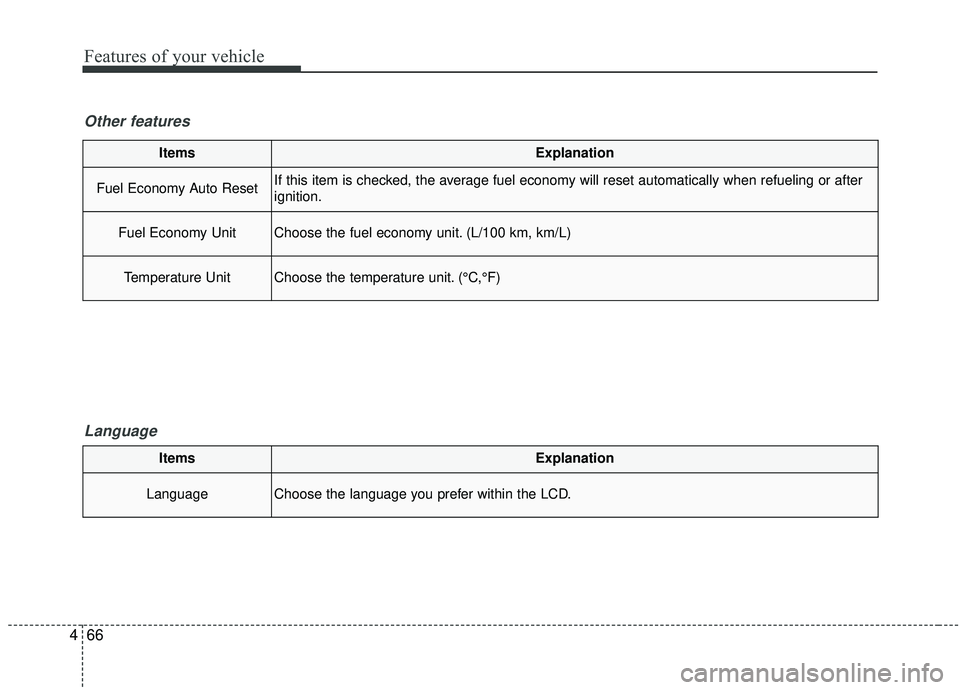

Features of your vehicle
66
4
ItemsExplanation
Fuel Economy Auto ResetIf this item is checked, the average fuel economy will reset automatically when refueling or after
ignition.
Fuel Economy UnitChoose the fuel economy unit. (L/100 km, km/L)
Temperature UnitChoose the temperature unit. (°C,°F)
Other features
Language
ItemsExplanation
LanguageChoose the language you prefer within the LCD.
