7-55
7
Maintenance

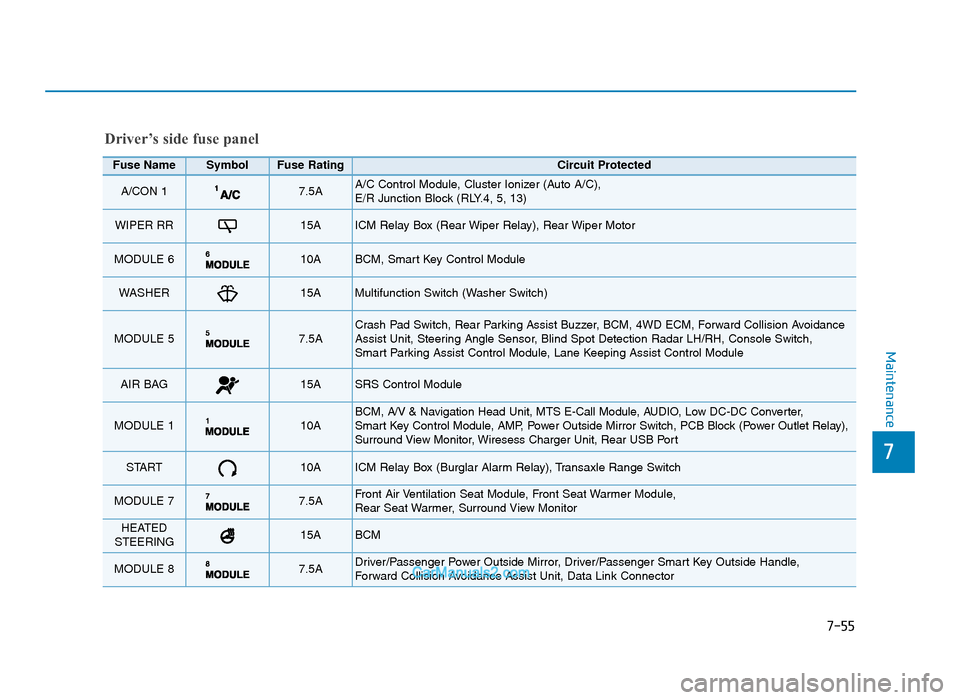

Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
A/CON 1 7.5A A/C Control Module, Cluster Ionizer (Auto A/C),
E/R Junction Block (RLY.4, 5, 13)
WIPER RR15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
MODULE 6 10A BCM, Smart Key Control Module
WASHER 15A Multifunction Switch (Washer Switch)
MODULE 5 7.5A Crash Pad Switch, Rear Parking Assist Buzzer, BCM, 4WD ECM, Forward Collision Avoidance
Assist Unit, Steering Angle Sensor, Blind Spot Detection Radar LH/RH, Console Switch,
Smart Parking Assist Control Module, Lane Keeping Assist Control Module
AIR BAG15A SRS Control Module
MODULE 1 10A BCM, A/V & Navigation Head Unit, MTS E-Call Module, AUDIO, Low DC-DC Converter,
Smart Key Control Module, AMP, Power Outside Mirror Switch, PCB Block (Power Outlet Relay),
Surround View Monitor, Wiresess Charger Unit, Rear USB Port
START 10A ICM Relay Box (Burglar Alarm Relay), Transaxle Range Switch
MODULE 7 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer, Surround View Monitor
HEATED
STEERING15A BCM
MODULE 8 7.5A Driver/Passenger Power Outside Mirror, Driver/Passenger Smart Key Outside Handle,
Forward Collision Avoidance Assist Unit, Data Link Connector
TLe UK 7.qxp 5/10/2018 1:36 PM Page 55

I-7
I
Index
Important safety precautions ..........................................2-2Air bag hazards ............................................................2-2
Always wear your seat belt..........................................2-2
Control your speed.......................................................2-3
Driver distraction .........................................................2-2
Keep your vehicle in safe condition ............................2-3
Restrain all children .....................................................2-2
In case of an emergency whilst driving..........................6-2 If the engine stalls at a crossroad or crossing ............6-3
If the engine stalls whilst driving ................................6-2
If you have a flat tyre whilst driving ..........................6-3
Inside rearview mirror ..................................................3-25
Instrument cluster .........................................................3-60 Distance to empty ......................................................3-68
Gauges .......................................................................3\
-62
Icy road warning light ...............................................3-65
Instrument cluster control ..........................................3-62
LCD display control ..................................................3-68
Odometer ...................................................................3-67
Transaxle shift indicator ............................................3-65
Instrument panel overview .............................................1-5
Intelligent speed limit warning (ISLW) system .........5-124
Interior care...................................................................7-89 Interior features...........................................................3-171
Ashtray .....................................................................3-1\
71
Cargo security screen...............................................3-180
Cigarette lighter .......................................................3-177
Clock ........................................................................\
3-177
Clothes hanger .........................................................3-178
Cup holder ...............................................................3-171
Floor mat anchor(s) .................................................3-178
Luggage net (holder) ...............................................3-179
Luggage tray ............................................................3-182
Power outlet .............................................................3-173
Sunvisor ...................................................................3-172\
USB charger.............................................................3-174
Wireless mobile phone charging system .................3-175
Interior overview ............................................................1-4
Jack and tools ..............................................................6-17
Jack label ......................................................................6-\
23
Jump starting...........................................................\
........6-4
J
TLe UK Index.qxp 6/12/2018 3:27 PM Page 7

I-9
I
Index
Mirrors ........................................................................\
..3-25Inside rearview mirror ...............................................3-25
Outside rearview mirror.............................................3-29
Multimedia system .........................................................4-2 Antenna ........................................................................\
4-3
Audio / Video / Navigation system (AVN) .................4-5
AUX, USB and iPod
®port ..........................................4-2
Bluetooth®Wireless Technology hands-free ...............4-5
How Vehicle Audio Works ..........................................4-6
Steering wheel audio control .......................................4-4
Outside rearview mirror ...............................................3-29
Overheats ........................................................................\
6-8
Overloading ................................................................5-179
Owner maintenance ........................................................7-8 Owner maintenance schedule ......................................7-9
Owner maintenance precautions.....................................7-6
Owner maintenance schedule .........................................7-9
Owner's responsibility ....................................................7-6 Panorama sunroof .........................................................3-37
Closing the sunroof....................................................3-39
Resetting the sunroof .................................................3-41
Sliding the sunroof.....................................................3-38
Sunroof open warning ...............................................3-41
Sunshade ....................................................................3-38\
Tilting the sunroof .....................................................3-39
Parking brake ................................................................7-25
Parking brake (hand type) ............................................5-44
Parking distance warning (reverse) system ................3-129
Parking distance warning (reverse/forward) system ..3-132
Power brakes............................................................\
.....5-43
Power outlet ................................................................3-173
Power tailgate ...............................................................3-49
Power windows...........................................................\
..3-32
Radio ........................................................................\
.....4-22
Rear seats ......................................................................2-\
12
Rear View Monitor .....................................................3-136
Rear window defroster ...............................................3-139
Rear window wiper and washer switch......................3-128
Recommended engine oil .............................................8-12
O
P
R
TLe UK Index.qxp 6/12/2018 3:27 PM Page 9
