3-20
Convenient features of your vehicle
This system helps to protect your
vehicle and valuables. The horn will
sound and the hazard warning lights
will blink continuously if any of the
following occurs:
- A door is opened without using the remote key or smart key.
- The tailgate is opened without using the remote key or smart key.
- The engine bonnet is opened.
The alarm continues for 30 seconds,
then the system resets. To turn off
the alarm, unlock the doors with the
remote key or smart key.
The Theft Alarm System automatical-
ly sets 30 seconds after you lock the
doors and the tailgate. For the system
to activate, you must lock the doors
and the tailgate from outside the vehi-
cle with the remote key or smart key
or by pressing the button on the out-
side of the door handles with the
smart key in your possession.
The hazard warning lights will blink
and the chime will sound once to
indicate the system is armed. Once the security system is set, open-
ing any door, the tailgate, or the bon-
net without using the remote key or
smart key will cause the alarm to acti-
vate.
The Theft Alarm System will not set if
the bonnet, the tailgate, or any door
is not fully closed. If the system will
not set, check the bonnet, the tail-
gate, or the doors are fully closed.
Do not attempt to alter this system or
add other devices to it.
Information
• Do not lock the doors until all pas-
sengers have left the vehicle. If the
remaining passenger leaves the
vehicle when the system is armed,
the alarm will be activated.
• If the vehicle is not disarmed with the remote key or smart key, open
the doors by using the mechanical
key and place the ignition switch in
the ON position (for remote key) or
start the engine (for smart key) and
wait for 30 seconds.
• When the system is disarmed but a door or tailgate is not opened within 30
seconds, the system will be rearmed.
i
THEFT-ALARM SYSTEM (IF EQUIPPED)
TLe UK 3a(~109).qxp 6/12/2018 2:21 PM Page 20

3-21
Convenient features of your vehicle
3
Information
Vehicles equipped with a theft alarm
system will have a label attached to
the vehicle with the following words:
1. WARNING
2. SECURITY SYSTEM
i
OJC040170
TLe UK 3a(~109).qxp 6/12/2018 2:21 PM Page 21

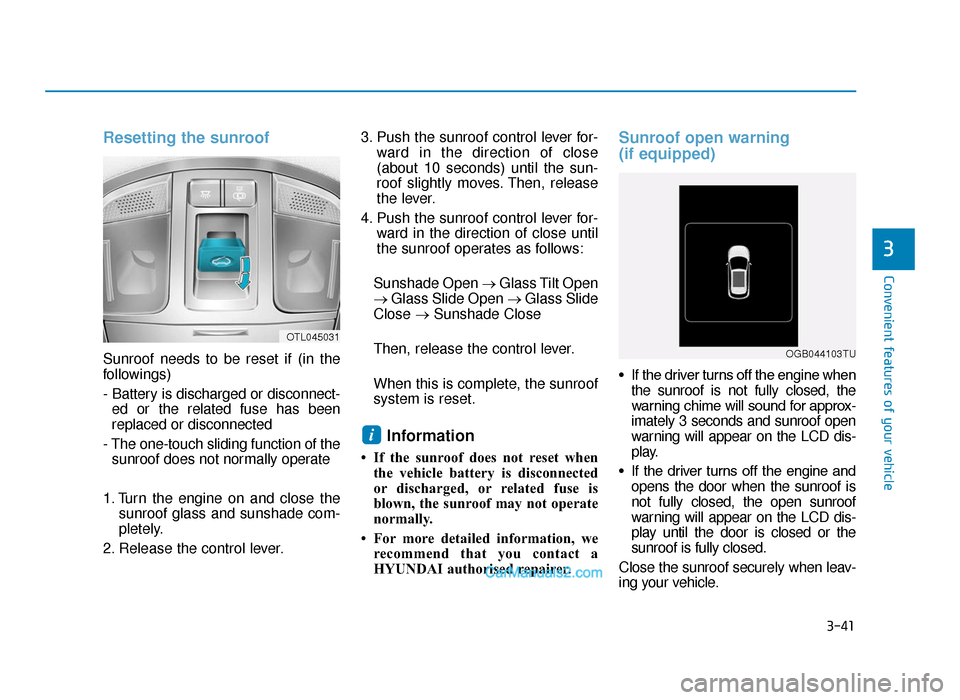

3-41
Convenient features of your vehicle
3
Resetting the sunroof
Sunroof needs to be reset if (in the
followings)
- Battery is discharged or disconnect-ed or the related fuse has been
replaced or disconnected
- The one-touch sliding function of the sunroof does not normally operate
1. Turn the engine on and close the sunroof glass and sunshade com-
pletely.
2. Release the control lever. 3. Push the sunroof control lever for-
ward in the direction of close
(about 10 seconds) until the sun-
roof slightly moves. Then, release
the lever.
4. Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunshade Open → Glass Tilt Open
→ Glass Slide Open → Glass Slide
Close →Sunshade Close
Then, release the control lever.
When this is complete, the sunroof
system is reset.
Information
• If the sunroof does not reset when the vehicle battery is disconnected
or discharged, or related fuse is
blown, the sunroof may not operate
normally.
• For more detailed information, we recommend that you contact a
HYUNDAI authorised repairer.
Sunroof open warning
(if equipped)
• If the driver turns off the engine whenthe sunroof is not fully closed, the
warning chime will sound for approx-
imately 3 seconds and sunroof open
warning will appear on the LCD dis-
play.
• If the driver turns off the engine and opens the door when the sunroof is
not fully closed, the open sunroof
warning will appear on the LCD dis-
play until the door is closed or the
sunroof is fully closed.
Close the sunroof securely when leav-
ing your vehicle.
i
OTL045031
OGB044103TU
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 41

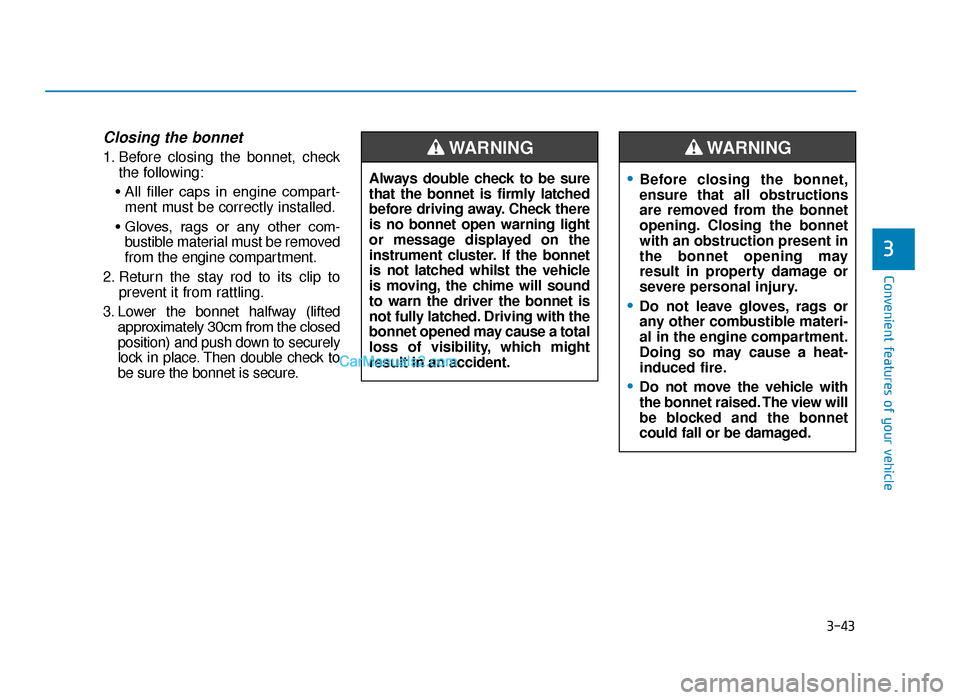

3-43
Convenient features of your vehicle
3
Closing the bonnet
1. Before closing the bonnet, checkthe following:
• All filler caps in engine compart- ment must be correctly installed.
• Gloves, rags or any other com- bustible material must be removed
from the engine compartment.
2. Return the stay rod to its clip to prevent it from rattling.
3. Lower the bonnet halfway (lifted approximately 30cm from the closed
position) and push down to securely
lock in place. Then double check to
be sure the bonnet is secure.
•Before closing the bonnet,
ensure that all obstructions
are removed from the bonnet
opening. Closing the bonnet
with an obstruction present in
the bonnet opening may
result in property damage or
severe personal injury.
•Do not leave gloves, rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
•Do not move the vehicle with
the bonnet raised. The view will
be blocked and the bonnet
could fall or be damaged.
WARNING
Always double check to be sure
that the bonnet is firmly latched
before driving away. Check there
is no bonnet open warning light
or message displayed on the
instrument cluster. If the bonnet
is not latched whilst the vehicle
is moving, the chime will sound
to warn the driver the bonnet is
not fully latched. Driving with the
bonnet opened may cause a total
loss of visibility, which might
result in an accident.
WARNING
TLe UK 3a(~109).qxp 6/12/2018 2:23 PM Page 43

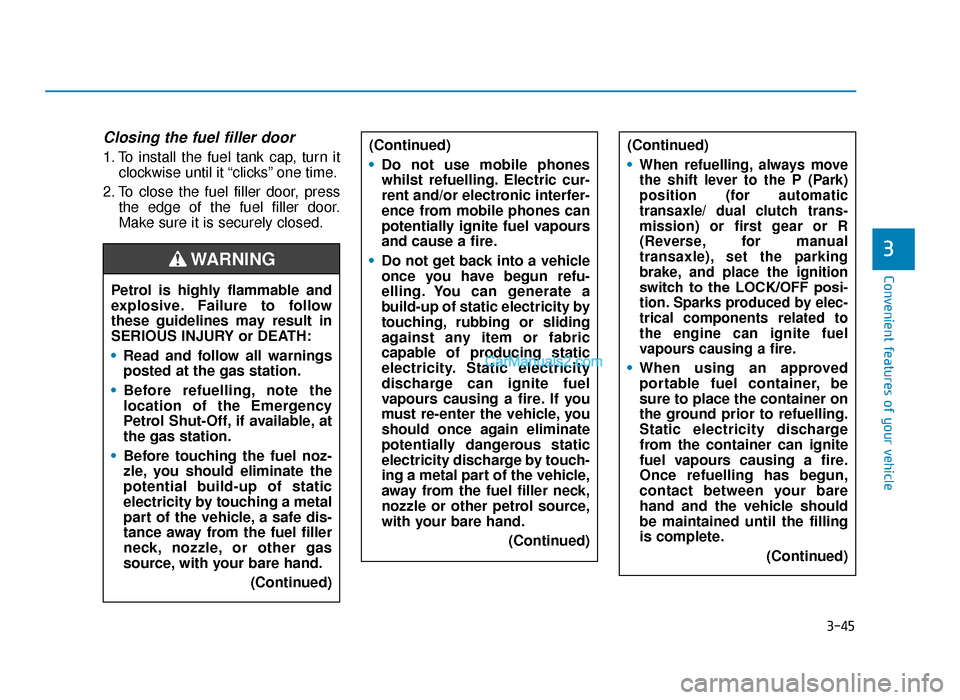

3-45
Convenient features of your vehicle
Closing the fuel filler door
1. To install the fuel tank cap, turn itclockwise until it “clicks” one time.
2. To close the fuel filler door, press the edge of the fuel filler door.
Make sure it is securely closed.
3
Petrol is highly flammable and
explosive. Failure to follow
these guidelines may result in
SERIOUS INJURY or DEATH:
•Read and follow all warnings
posted at the gas station.
• Before refuelling, note the
location of the Emergency
Petrol Shut-Off, if available, at
the gas station.
• Before touching the fuel noz-
zle, you should eliminate the
potential build-up of static
electricity by touching a metal
part of the vehicle, a safe dis-
tance away from the fuel filler
neck, nozzle, or other gas
source, with your bare hand.
(Continued)
WARNING
(Continued)
•Do not use mobile phones
whilst refuelling. Electric cur-
rent and/or electronic interfer-
ence from mobile phones can
potentially ignite fuel vapours
and cause a fire.
• Do not get back into a vehicle
once you have begun refu-
elling. You can generate a
build-up of static electricity by
touching, rubbing or sliding
against any item or fabric
capable of producing static
electricity. Static electricity
discharge can ignite fuel
vapours causing a fire. If you
must re-enter the vehicle, you
should once again eliminate
potentially dangerous static
electricity discharge by touch-
ing a metal part of the vehicle,
away from the fuel filler neck,
nozzle or other petrol source,
with your bare hand.
(Continued)(Continued)
•
When refuelling, always move
the shift lever to the P (Park)
position (for automatic
transaxle/
dual clutch trans-
mission) or first gear or R
(Reverse, for manual
transaxle), set the parking
brake, and place the ignition
switch to the LOCK/OFF posi-
tion. Sparks produced by elec-
trical components related to
the engine can ignite fuel
vapours causing a fire.
• When using an approved
portable fuel container, be
sure to place the container on
the ground prior to refuelling.
Static electricity discharge
from the container can ignite
fuel vapours causing a fire.
Once refuelling has begun,
contact between your bare
hand and the vehicle should
be maintained until the filling
is complete.
(Continued)
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 45

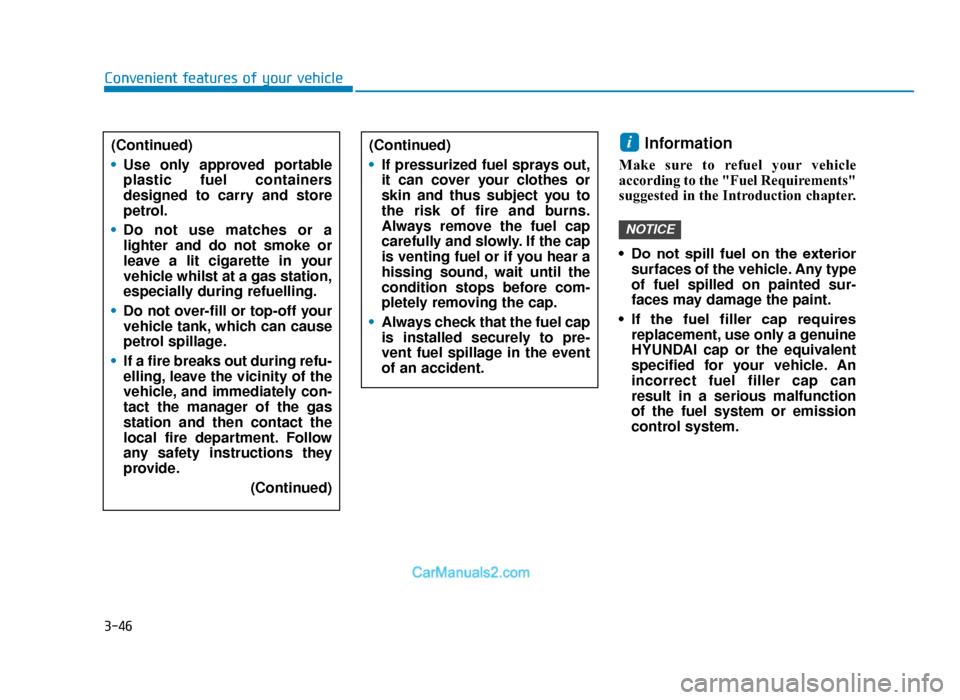

3-46
Information
Make sure to refuel your vehicle
according to the "Fuel Requirements"
suggested in the Introduction chapter.
• Do not spill fuel on the exteriorsurfaces of the vehicle. Any type
of fuel spilled on painted sur-
faces may damage the paint.
• If the fuel filler cap requires replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can
result in a serious malfunction
of the fuel system or emission
control system.
NOTICE
i
Convenient features of your vehicle
(Continued)
•If pressurized fuel sprays out,
it can cover your clothes or
skin and thus subject you to
the risk of fire and burns.
Always remove the fuel cap
carefully and slowly. If the cap
is venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
• Always check that the fuel cap
is installed securely to pre-
vent fuel spillage in the event
of an accident.
(Continued)
•Use only approved portable
plastic fuel containers
designed to carry and store
petrol.
• Do not use matches or a
lighter and do not smoke or
leave a lit cigarette in your
vehicle whilst at a gas station,
especially during refuelling.
• Do not over-fill or top-off your
vehicle tank, which can cause
petrol spillage.
• If a fire breaks out during refu-
elling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station and then contact the
local fire department. Follow
any safety instructions they
provide.
(Continued)
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 46

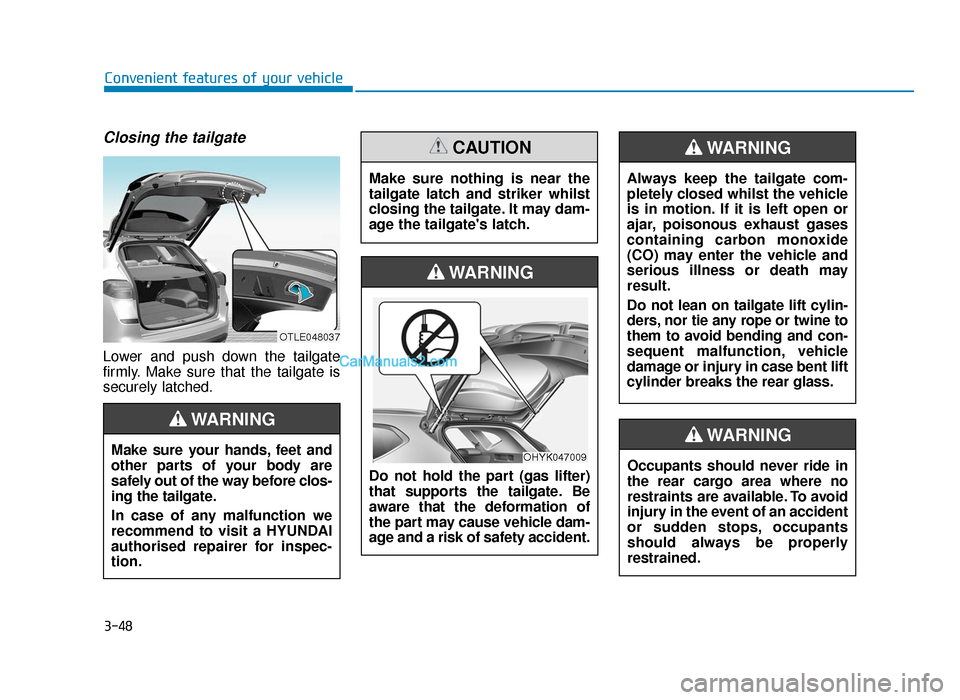

3-48
Closing the tailgate
Lower and push down the tailgate
firmly. Make sure that the tailgate is
securely latched.
Convenient features of your vehicle
OTLE048037
Make sure your hands, feet and
other parts of your body are
safely out of the way before clos-
ing the tailgate.
In case of any malfunction we
recommend to visit a HYUNDAI
authorised repairer for inspec-
tion.
WARNING
Make sure nothing is near the
tailgate latch and striker whilst
closing the tailgate. It may dam-
age the tailgate's latch.
CAUTION
Always keep the tailgate com-
pletely closed whilst the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.
Do not lean on tailgate lift cylin-
ders, nor tie any rope or twine to
them to avoid bending and con-
sequent malfunction, vehicle
damage or injury in case bent lift
cylinder breaks the rear glass.
WARNING
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an accident
or sudden stops, occupants
should always be properly
restrained.
WARNING
Do not hold the part (gas lifter)
that supports the tailgate. Be
aware that the deformation of
the part may cause vehicle dam-
age and a risk of safety accident.
WARNING
OHYK047009
TLe UK 3a(~109).qxp 6/12/2018 2:24 PM Page 48

3-123
Convenient features of your vehicle
3
Rear lamps
Do not leave the lamp switches on
for an extended period of time
when the engine is turned off.
Tailgate room lamp
The tailgate room lamp comes on
when the tailgate is opened.
The tailgate lamp comes on as long
as the tailgate lid is open. To pre-
vent unnecessary charging system
drain, close the tailgate lid securely
after using the tailgate.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
If the glove box is not closed, the
lamp will turn off after 20 minutes.
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box.
NOTICE
NOTICE
NOTICE
Rear room lamp switch ( ) :
Press this button to turn the room
lamp on and off.
OTL045081
OTL045082
■Type A
■Type B
OTLE048083
OTLE048084R
TLe UK 3b(110~).qxp 6/12/2018 2:36 PM Page 123
